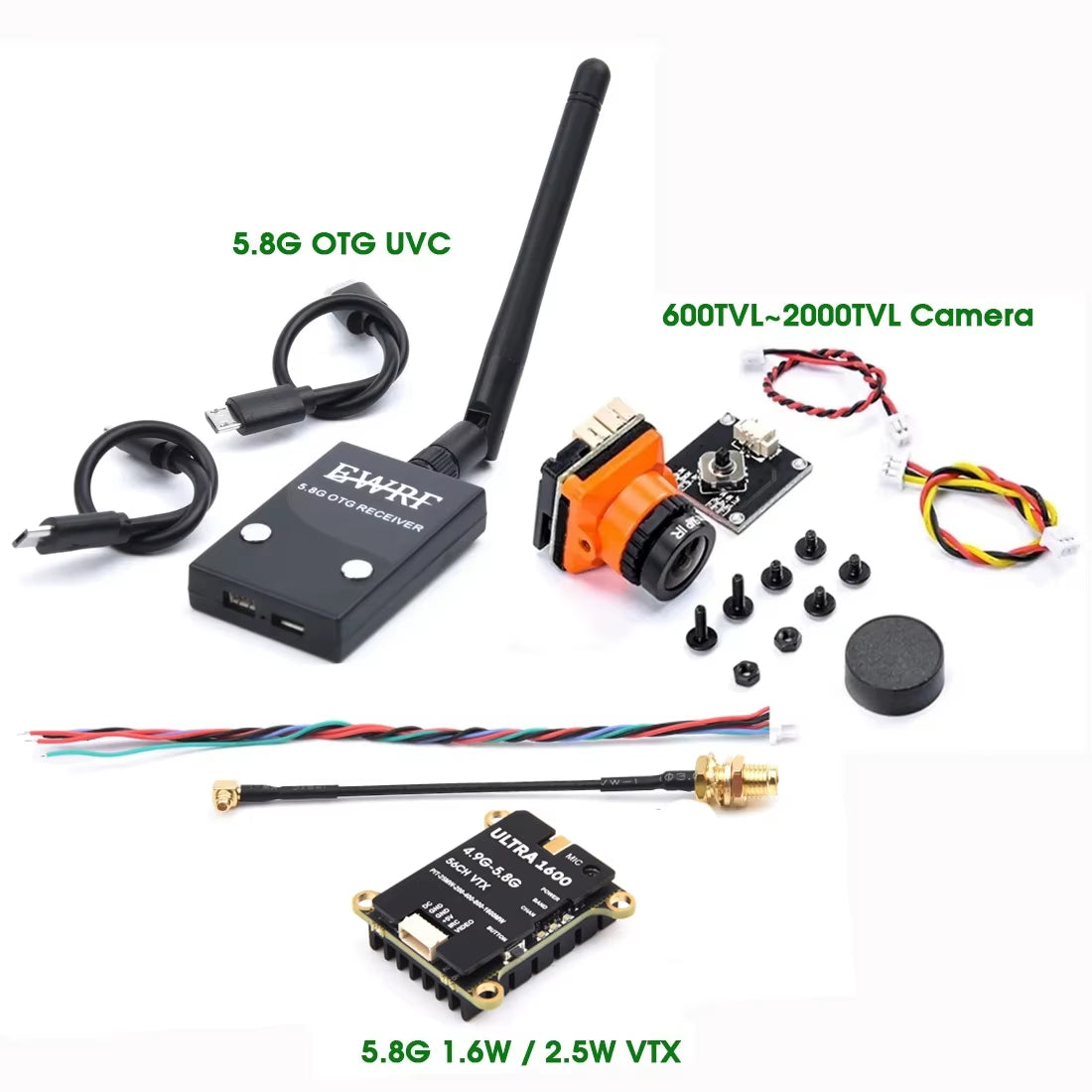

VTX2W5 5.8GHZ 1.6W / 2.5W 64CH FPV VTX Transmitter & 1500TVL / 1800TVL / 2000TVL Camera Receiver UVC for FPV RC Camera Drone
VTX2W5 5.8GHZ 1.6W / 2.5W 64CH FPV VTX Transmitter & 1500TVL / 1800TVL / 2000TVL Camera Receiver UVC for FPV RC Camera Drone
Normaler Preis
€22,81 EUR
Normaler Preis
€0,00 EUR
Verkaufspreis
€22,81 EUR
Inkl. Steuern.

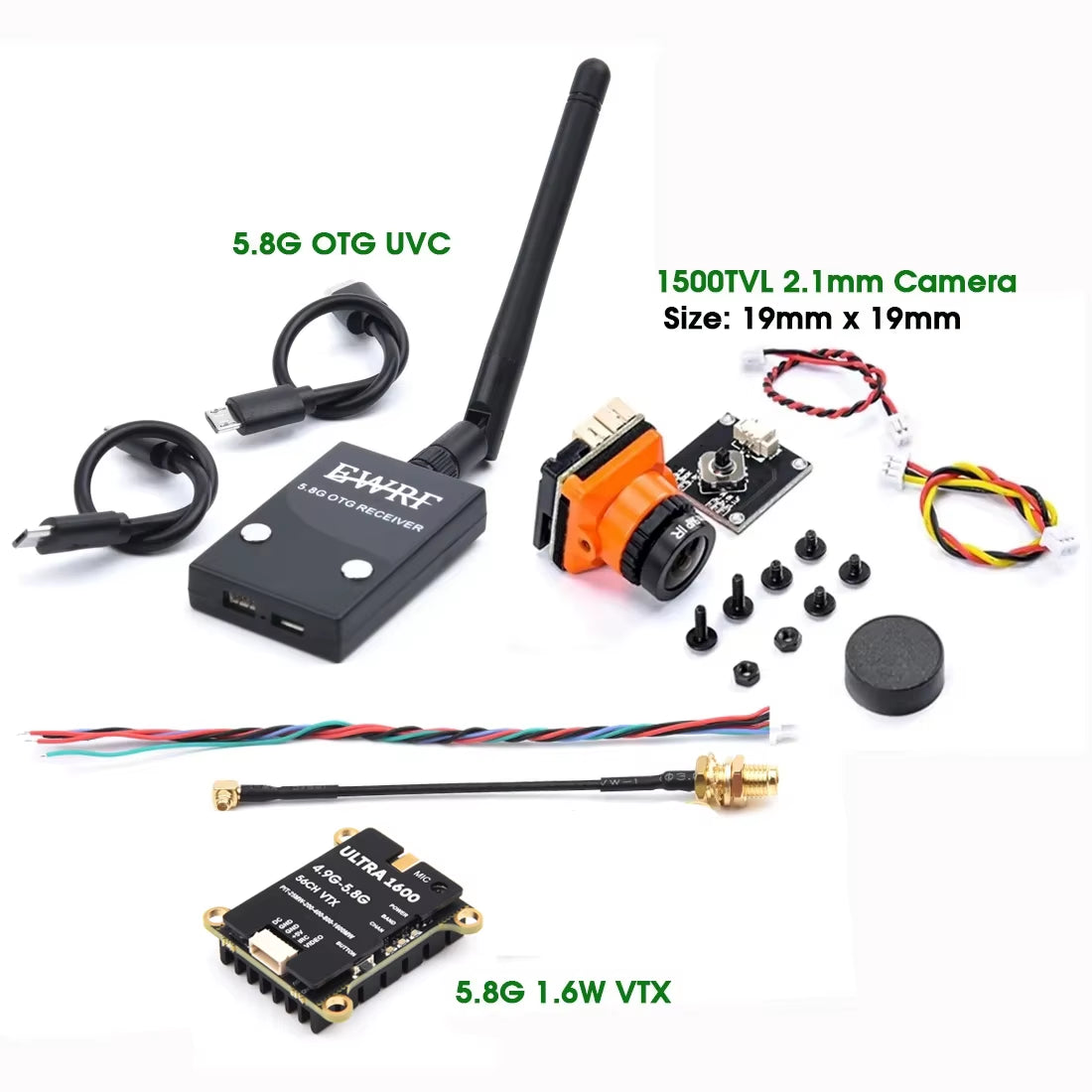

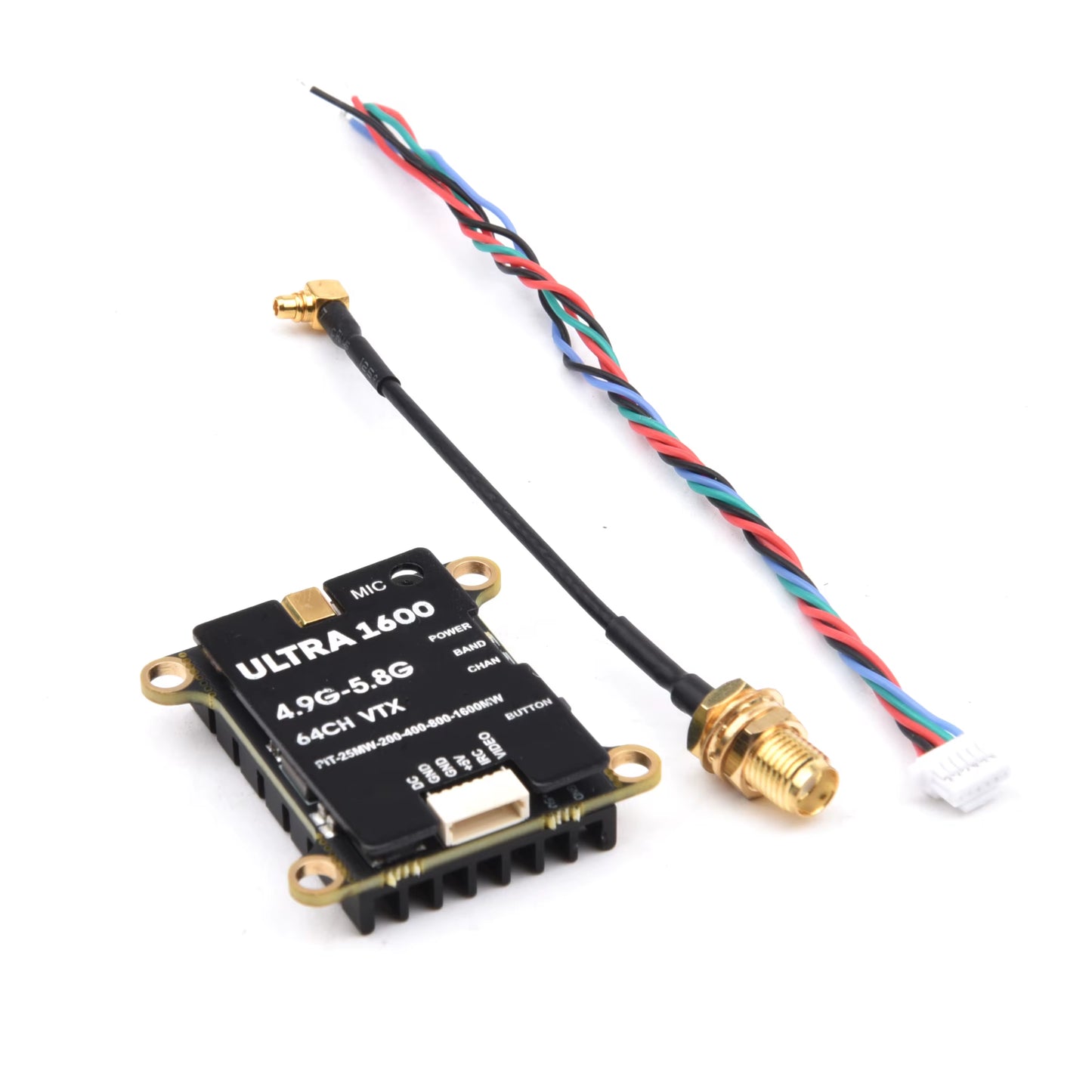

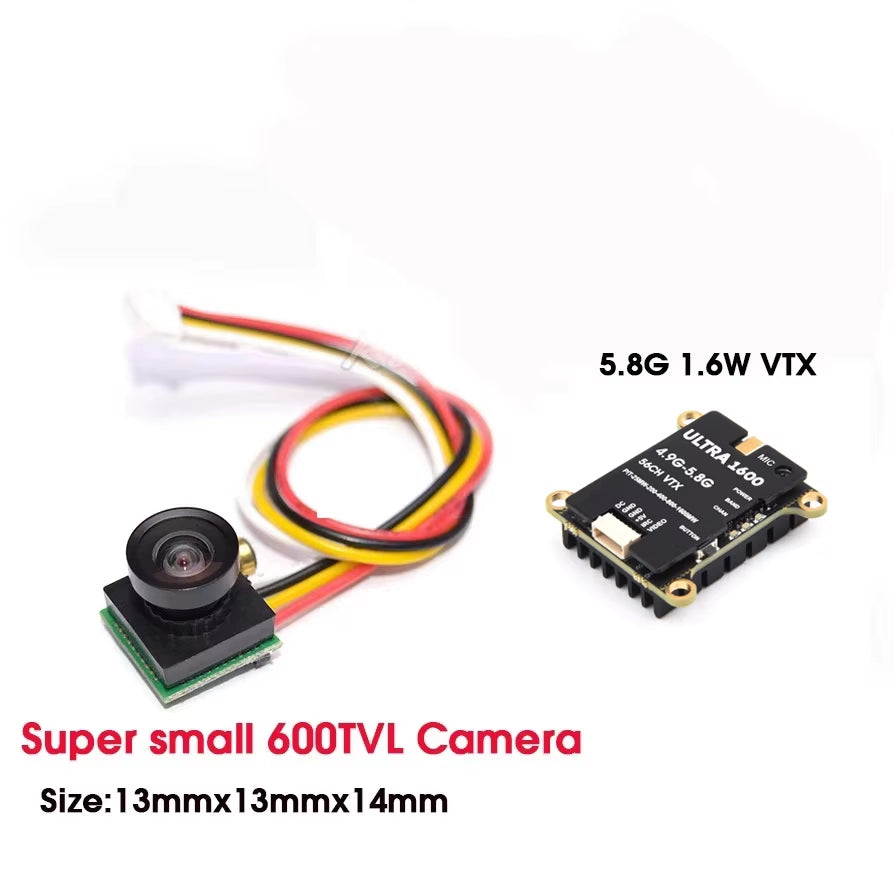

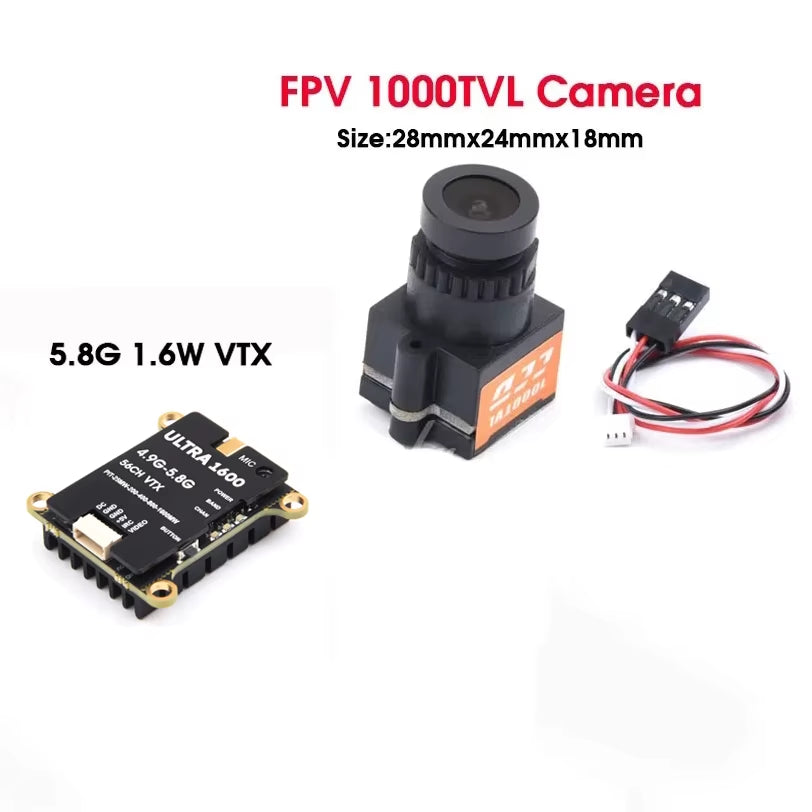

Model: Ultra1600 VTX 4.9G-5.8G 1.6W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/
400mW/800mW/1600mW/Pit mode

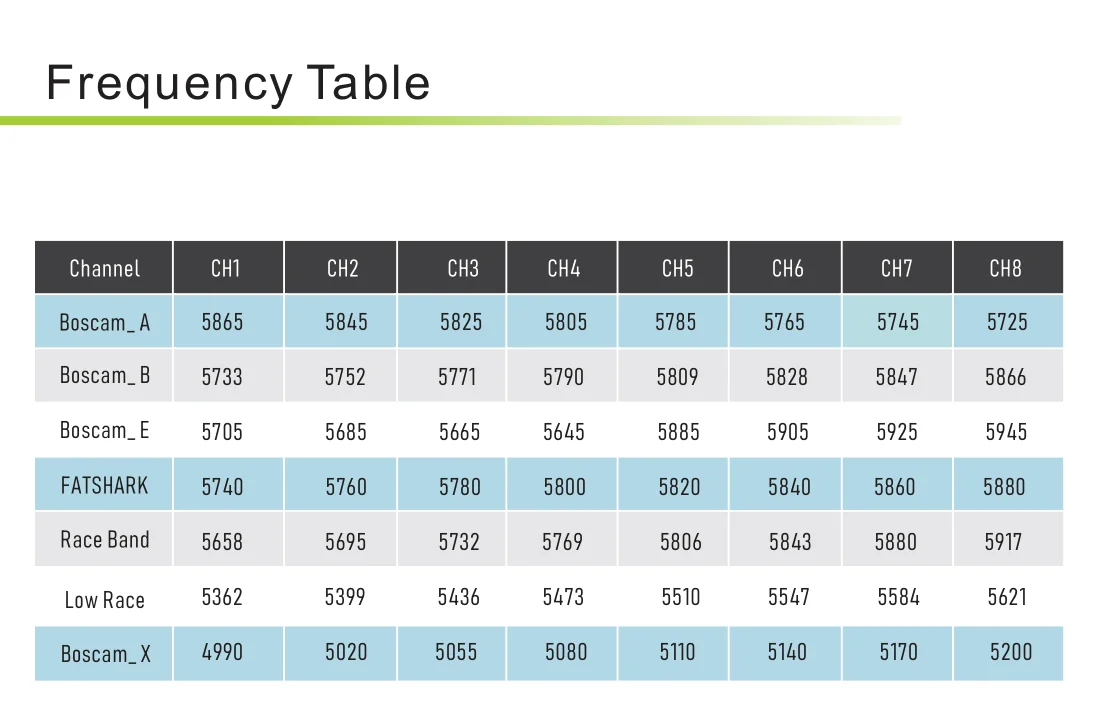

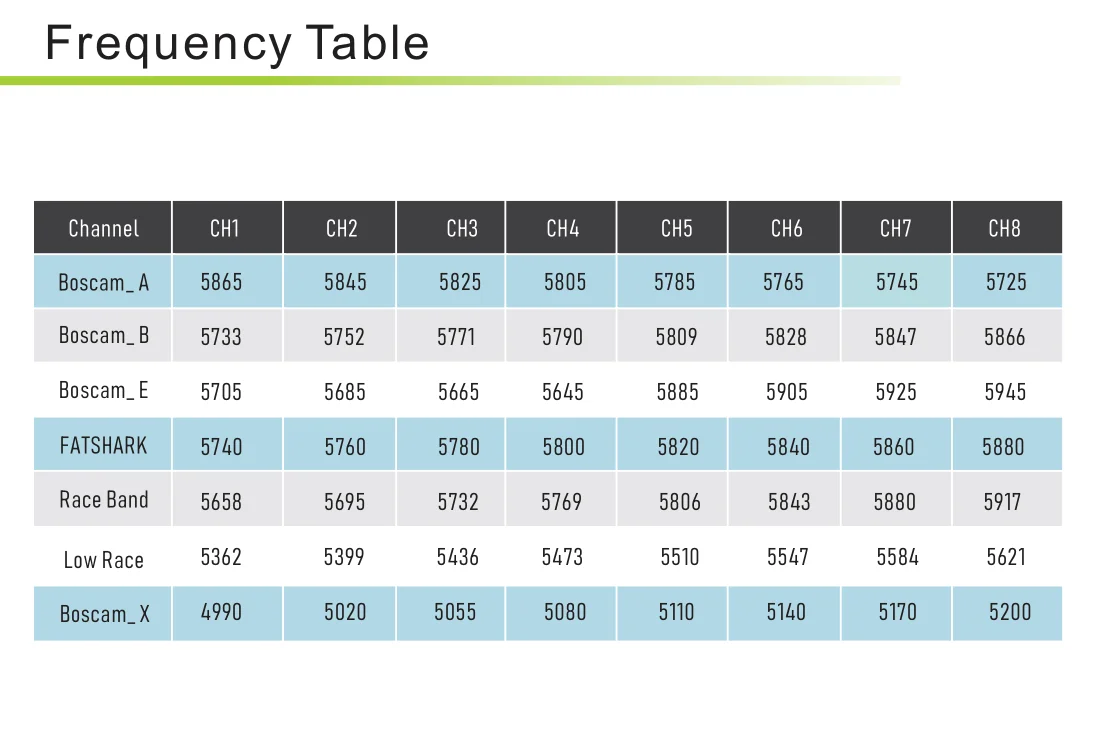

Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Features
1. 1.6W super-power ,suitable for Long Range flight with good stability.
2. Six power levels: 25mW/
400mW/800mW/1600mW/Pit mode .

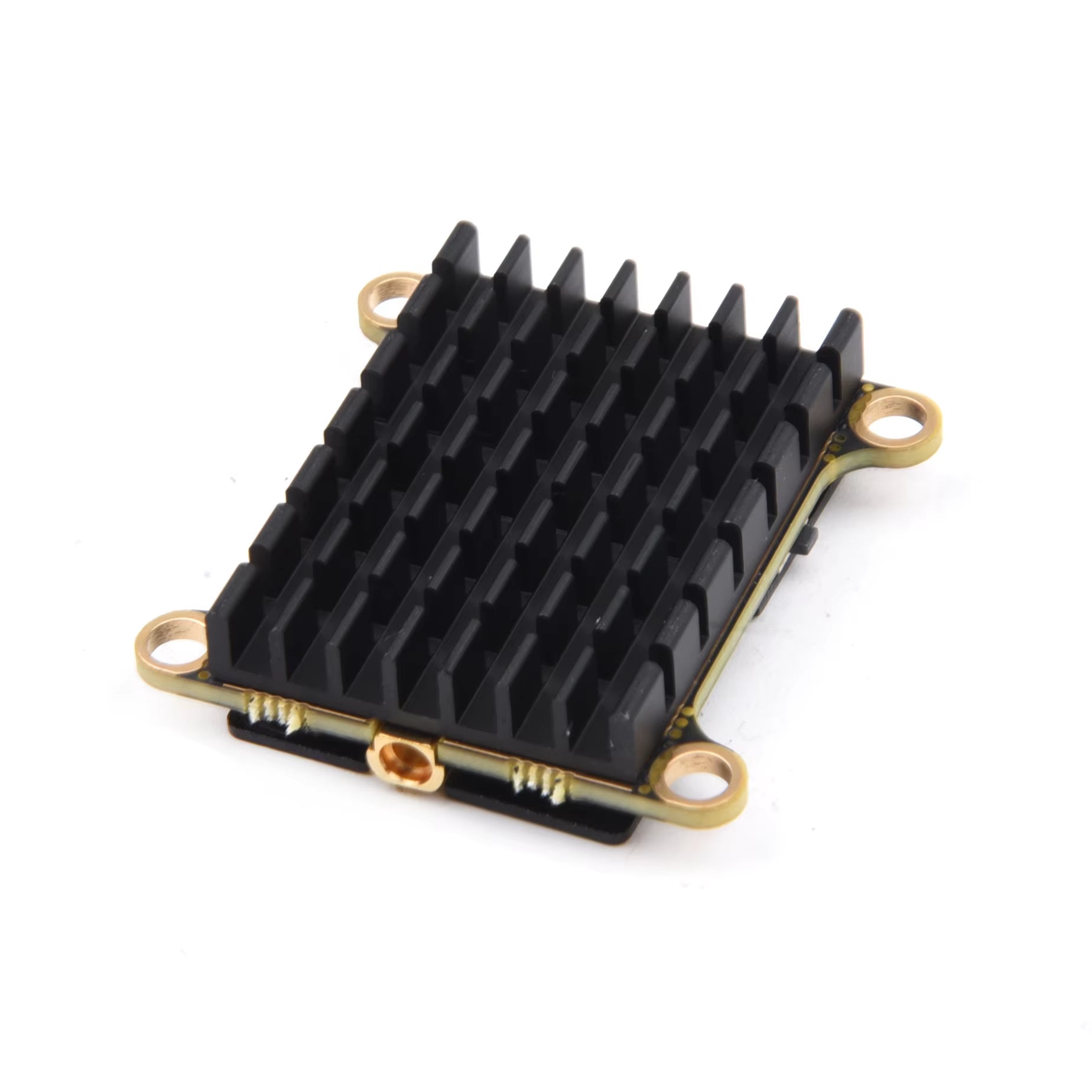

3. Two-layer board cooling structure,separate power BEC and main-board,reducing
and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature
burning.
5. Wide voltage input, supports 7V-36V voltage input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone's sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.

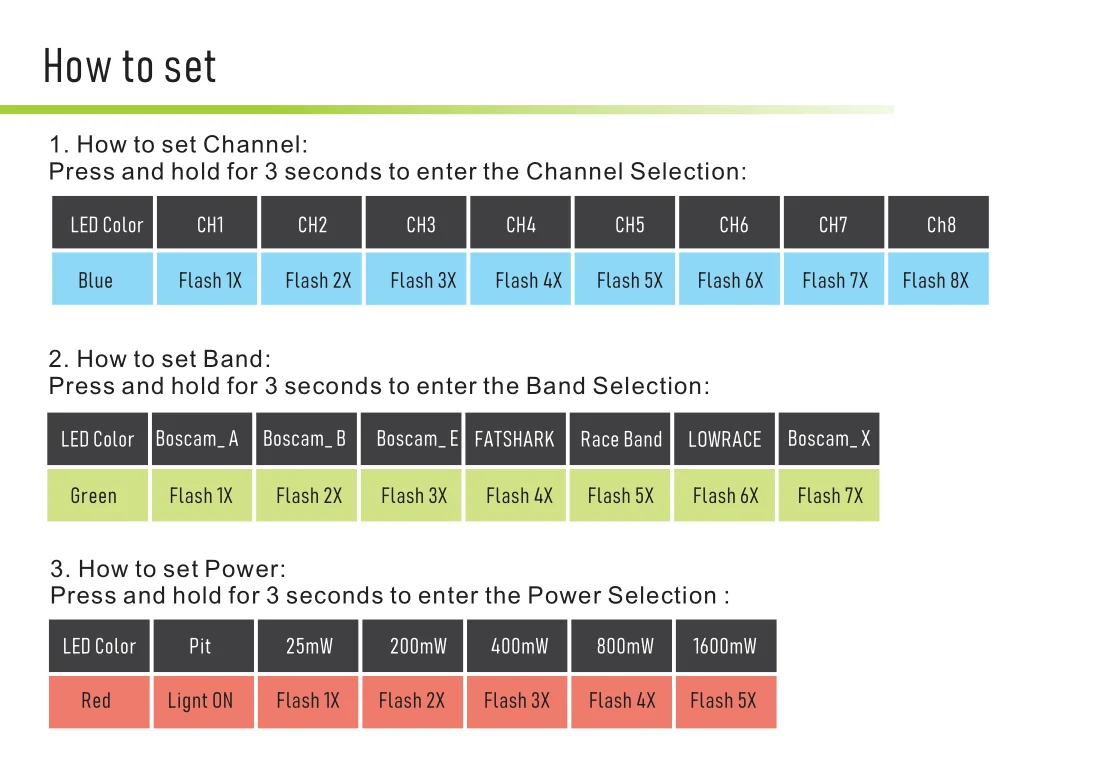

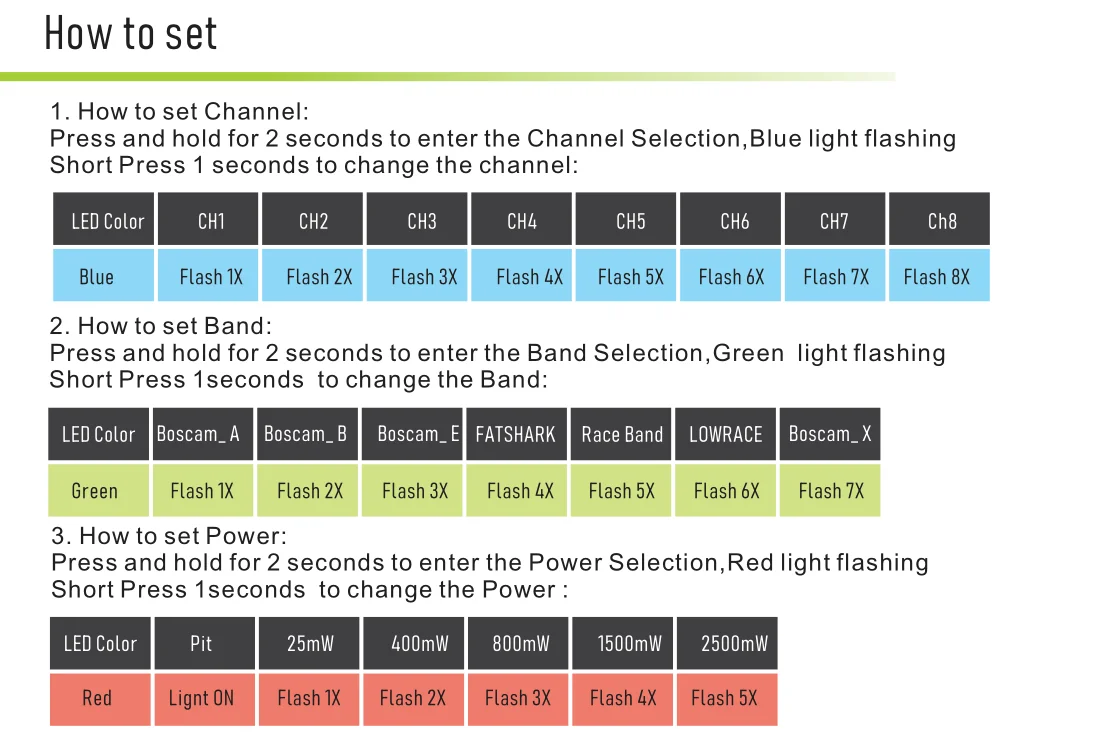

9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.

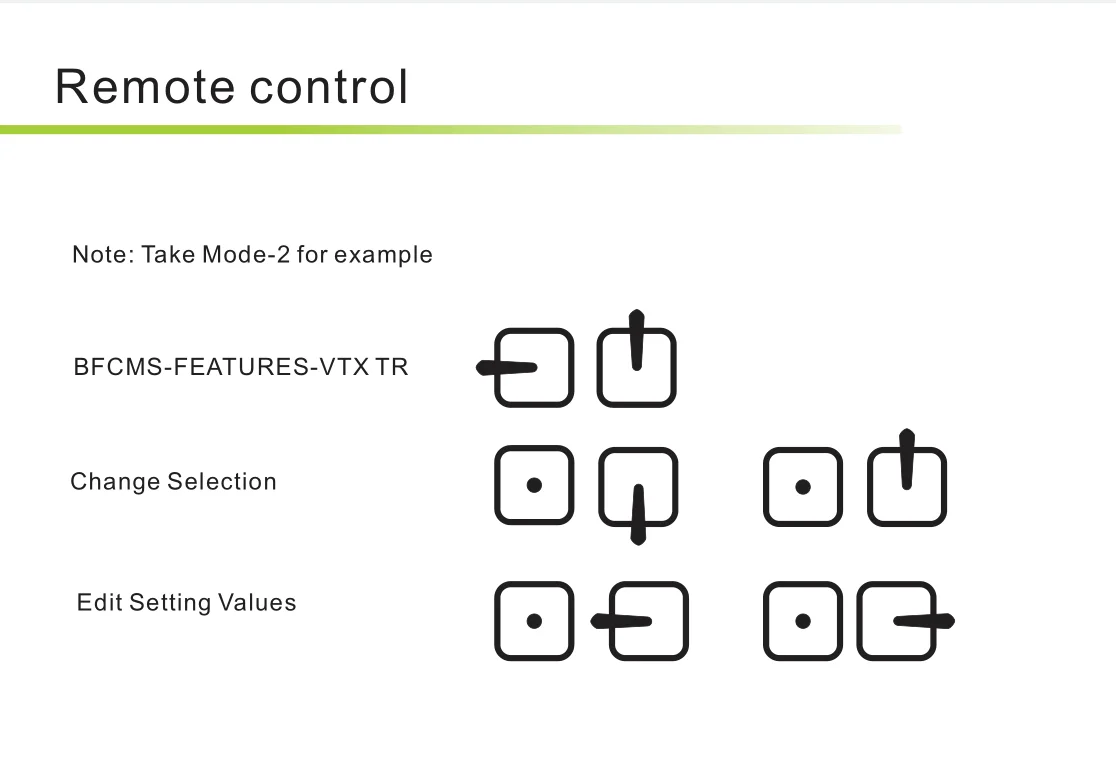

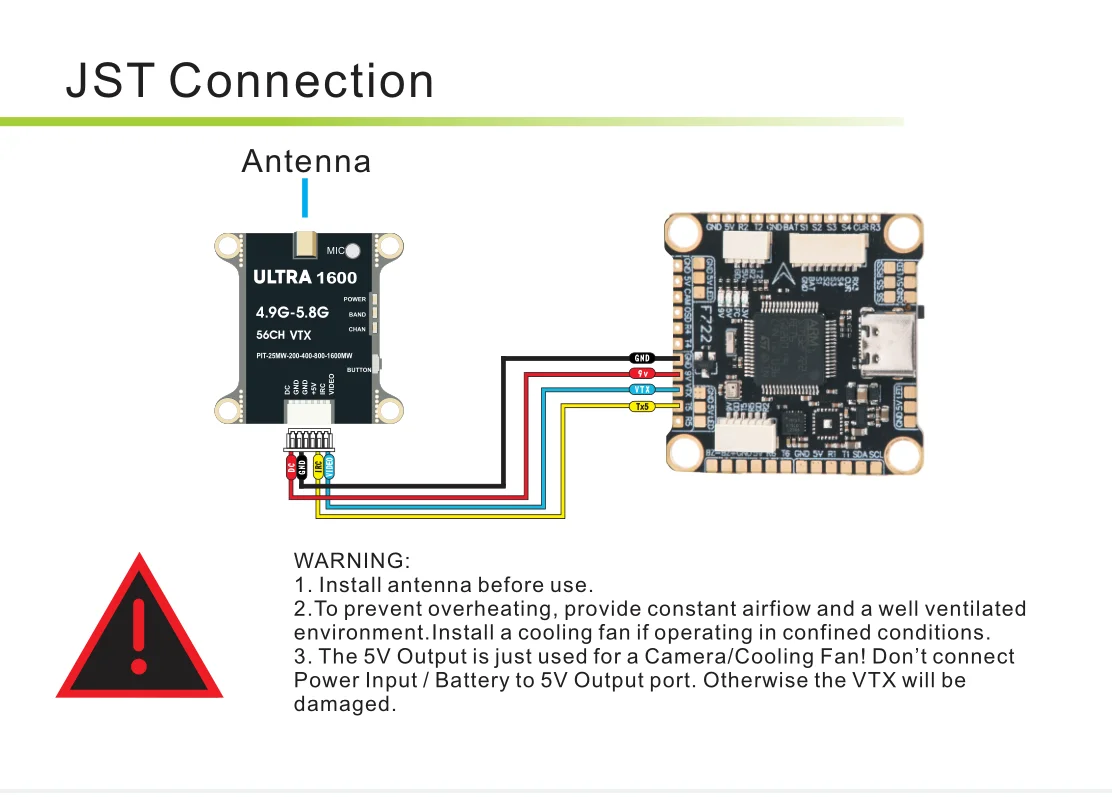

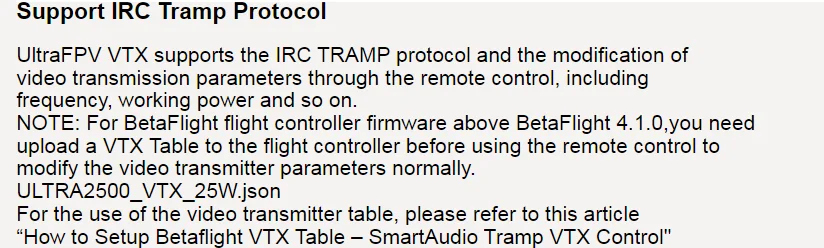

Support IRC Tramp Protocol

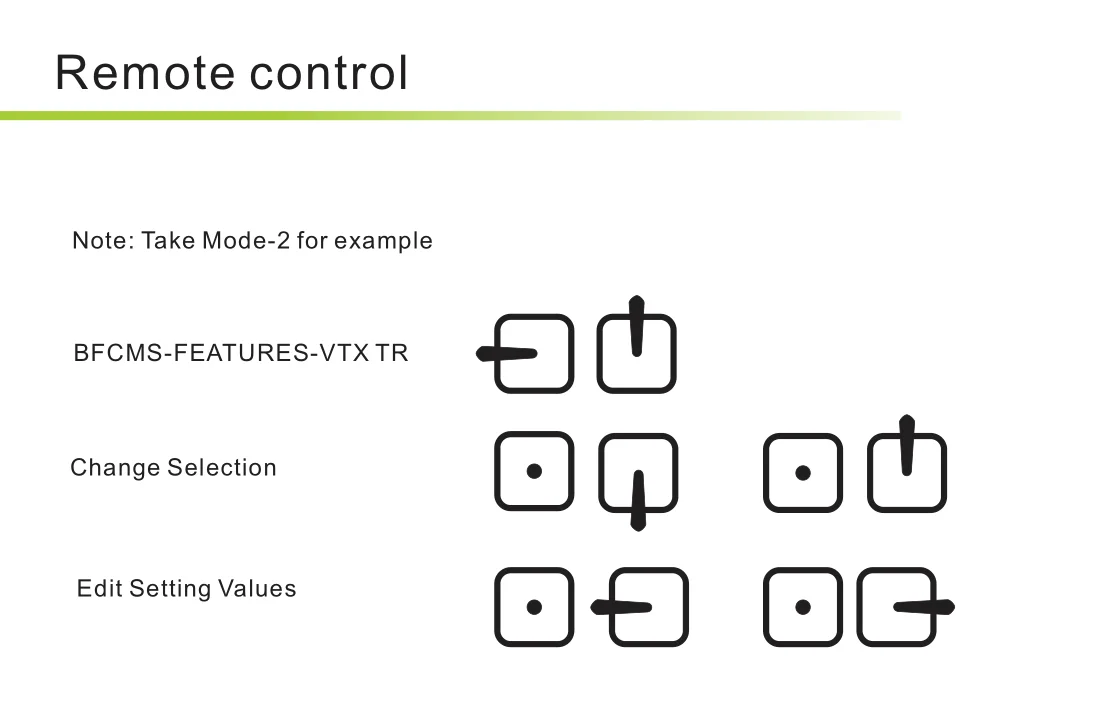

Ultra1600 VTX supports the IRC TRAMP protocol and the modification of
video transmission parameters through the remote control, including
frequency, working power and so on.
NOTE: For BetaFlight flight controller firmware above BetaFlight 4.1.0,you need
upload a VTX Table to the flight controller before using the remote control to
modify the video transmitter parameters normally.
ULTRA1600_VTX_16W.json
For the use of the video transmitter table, please refer to this article
“How to Setup Betaflight VTX Table – SmartAudio Tramp VTX Control"

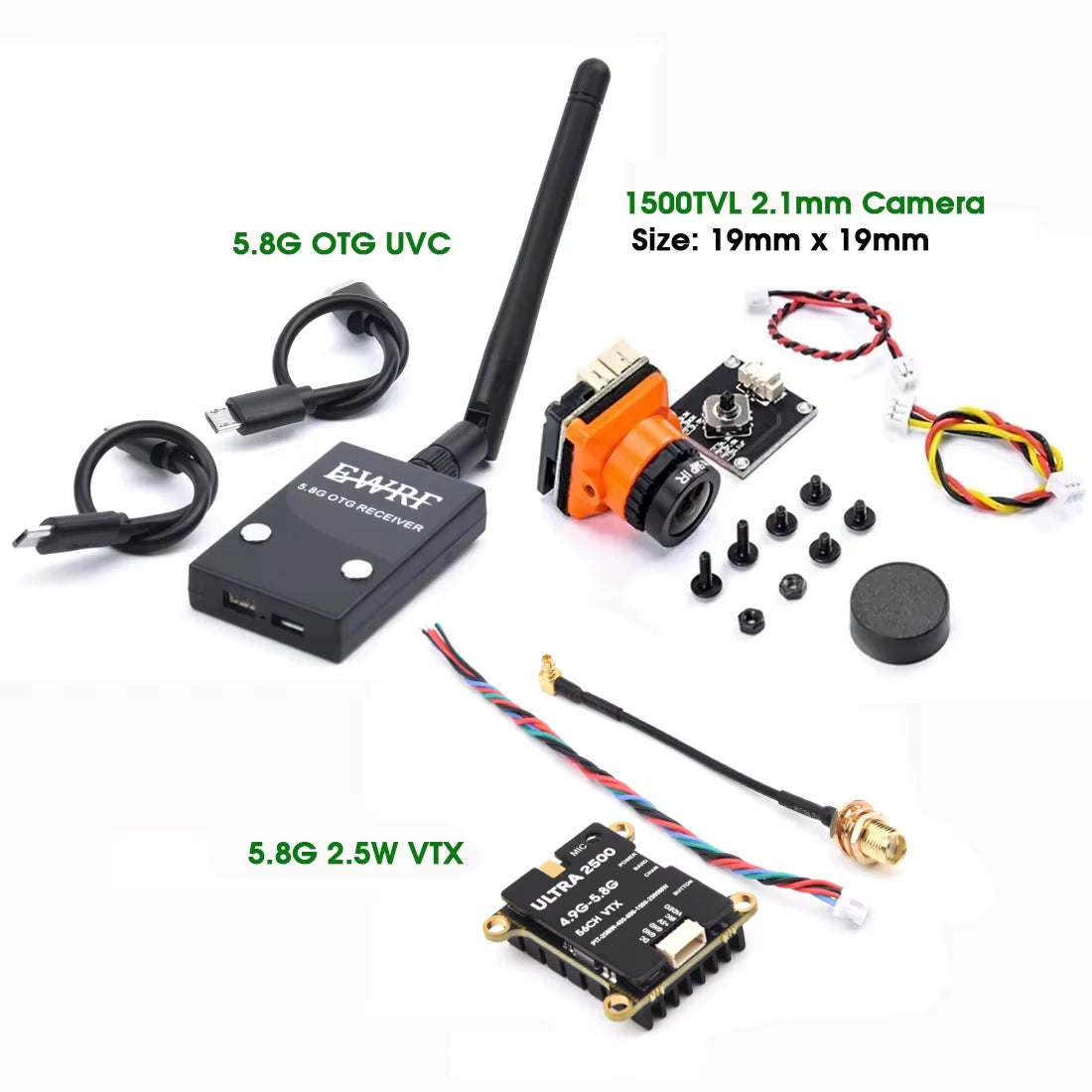

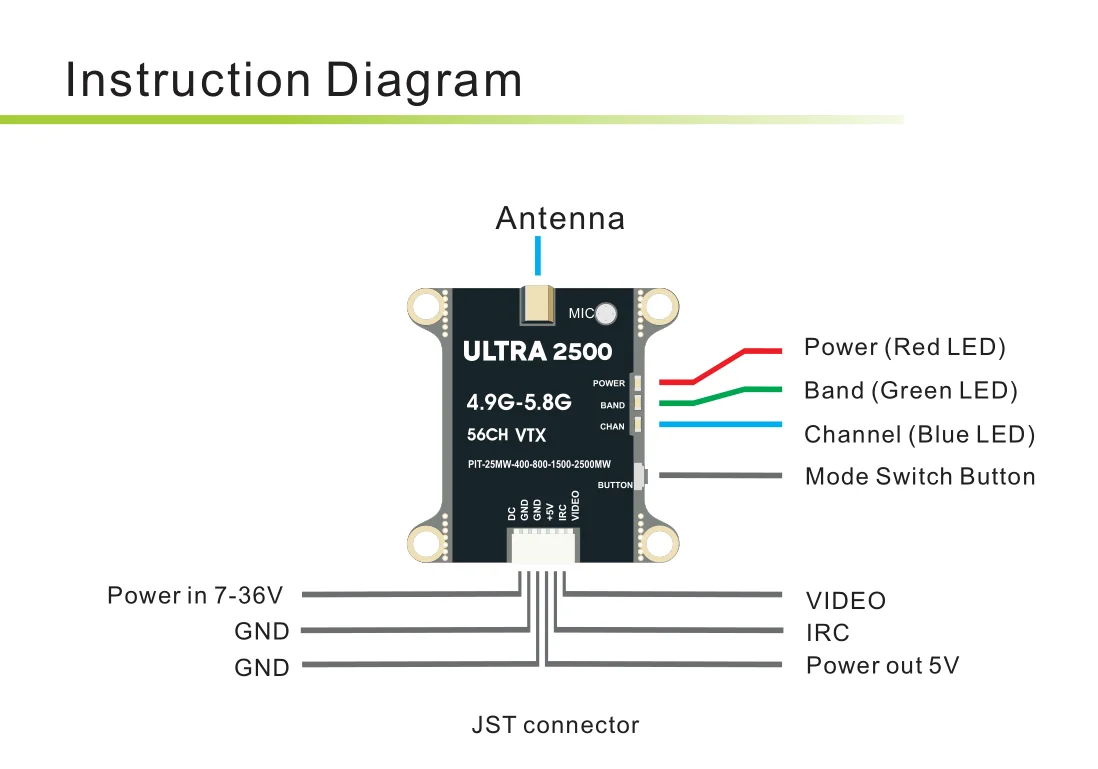

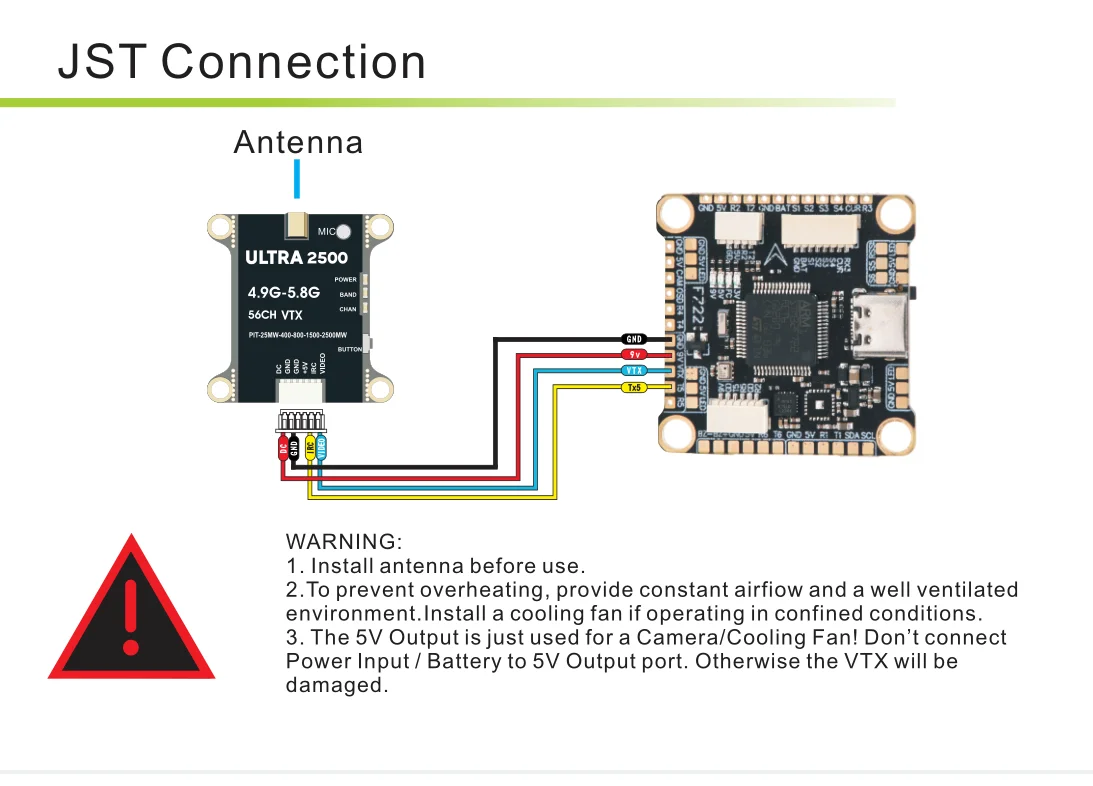

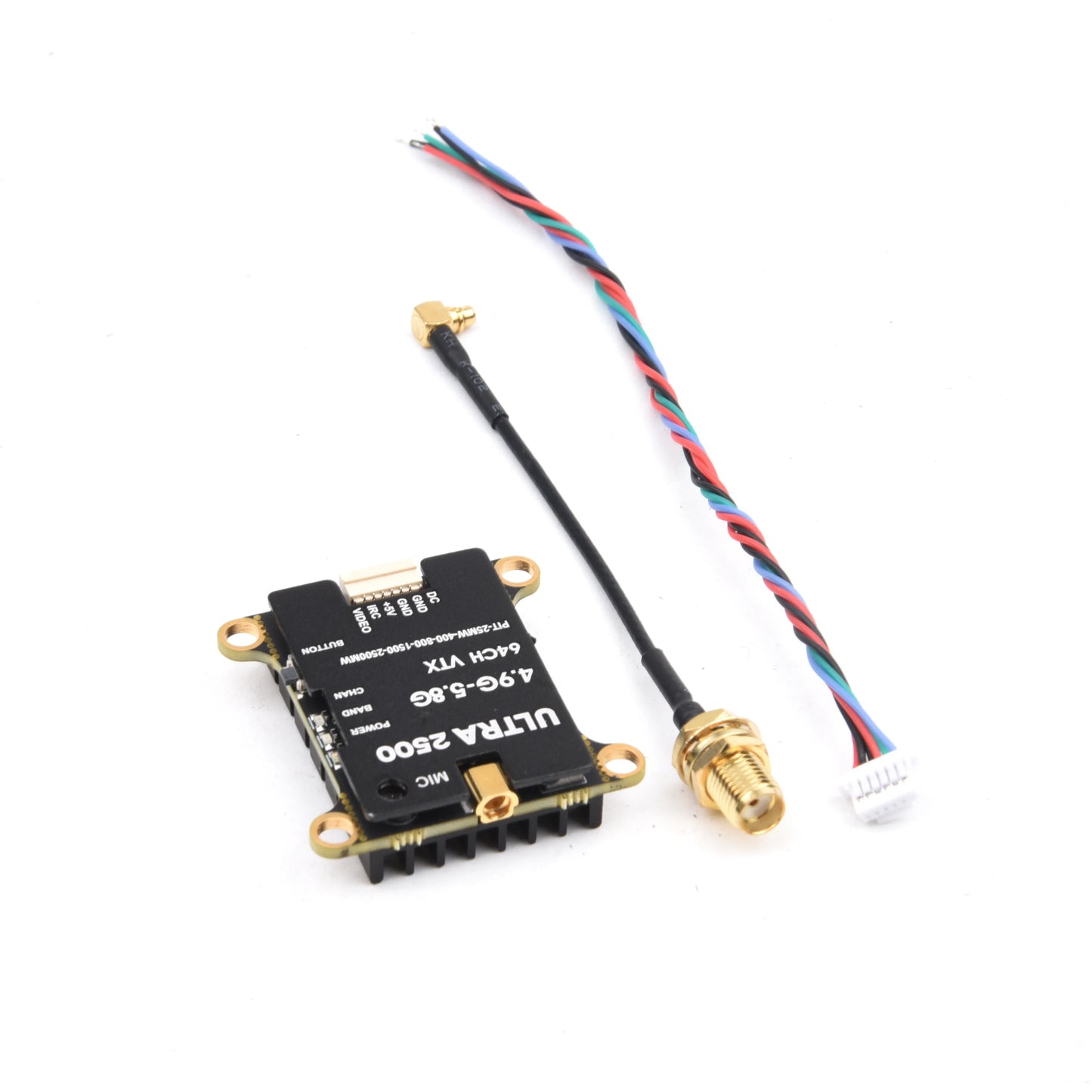

Model: Ultra2500 2.5W VTX
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/400mW/800mW/1500mW/2500mW/Pit mode
Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Features
1. 2.5W super-power ,suitable for Long Range flight with good stability.
2. Six power levels: 25mW/400mW/800mW/1500mW/2500mW/Pit mode .
3. Two-layer board cooling structure,separate power BEC and main-board,reducing
and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature
burning.
5. Wide voltage input, supports 7V-36V voltage input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone's sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.
9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.

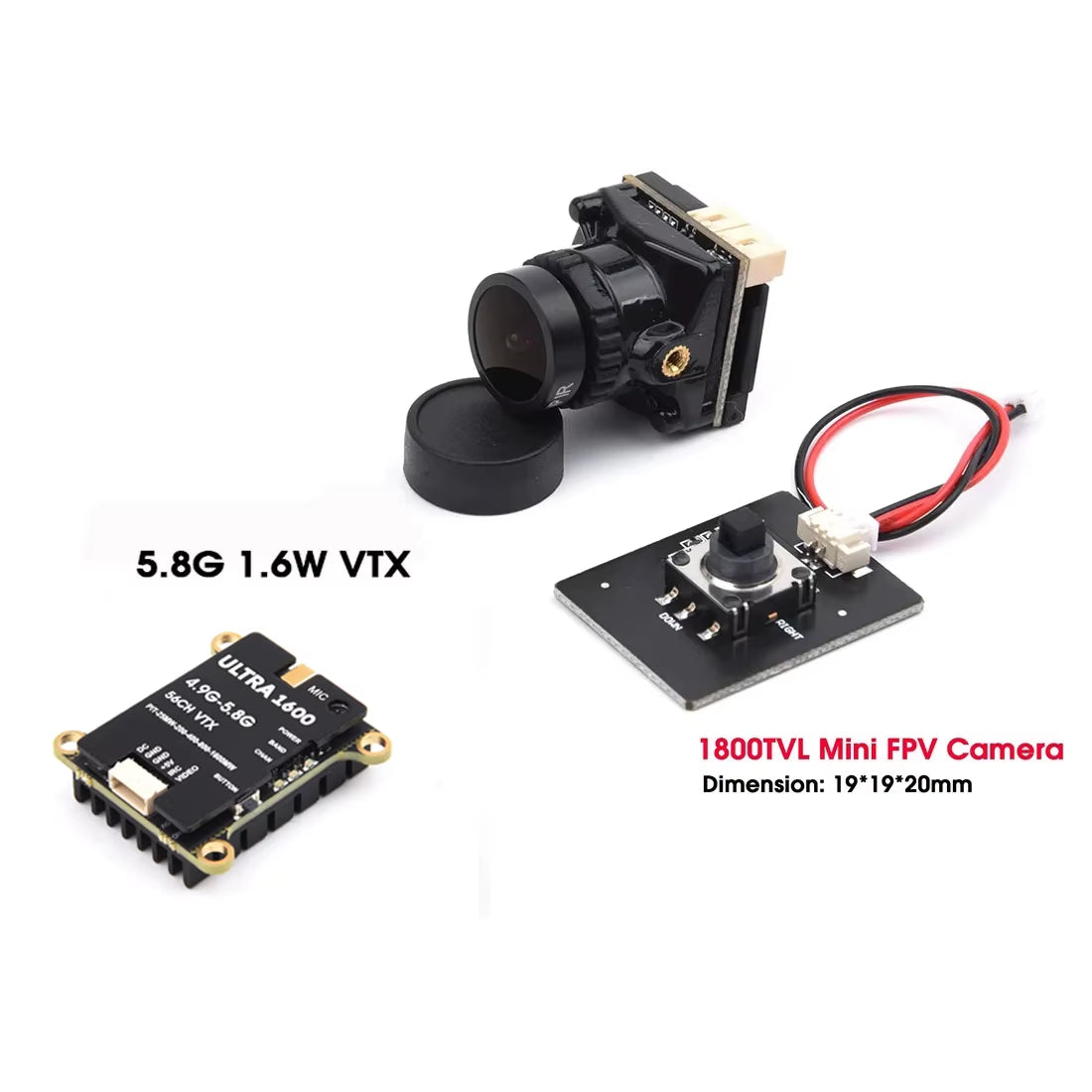

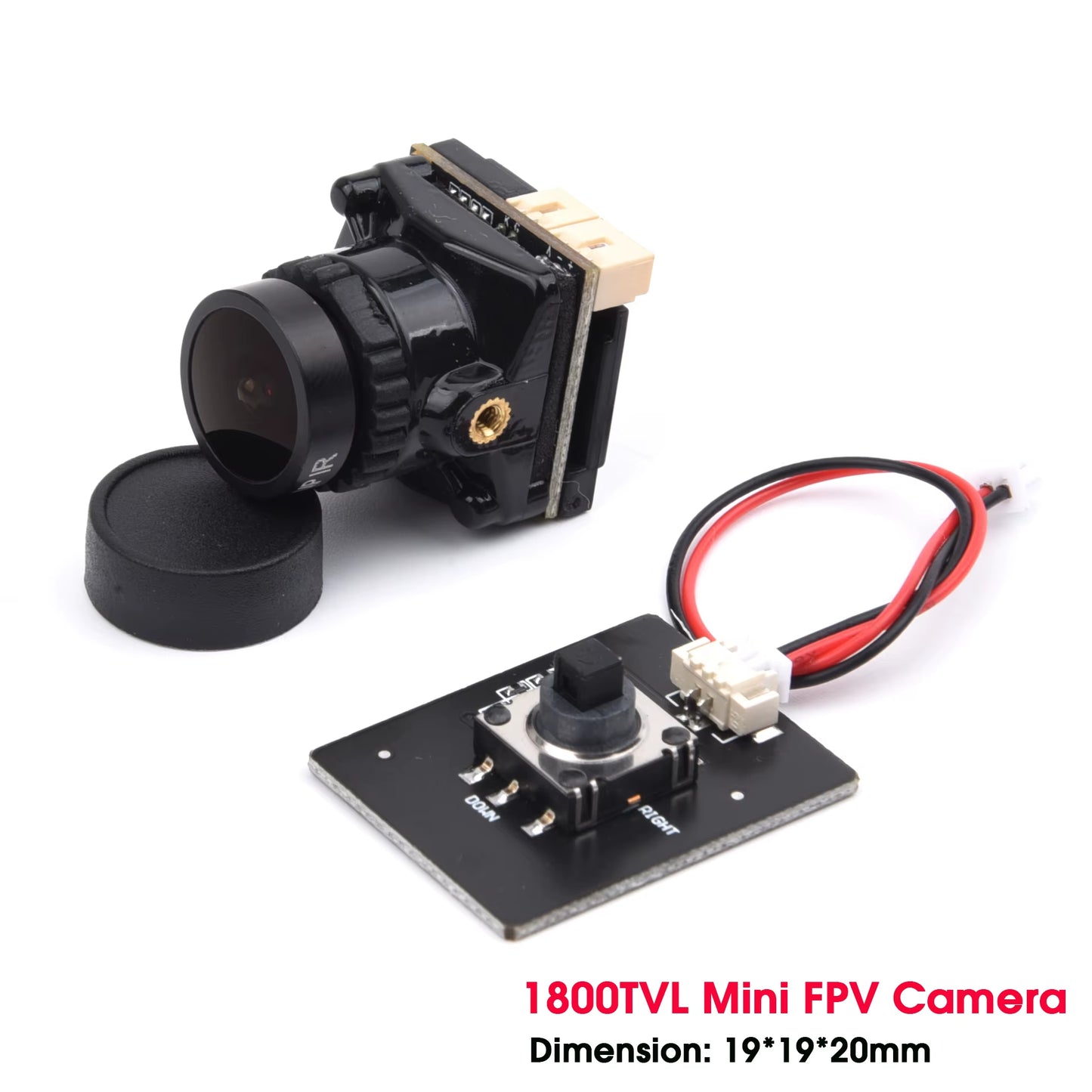

1800TVL FPV Camera
Description:
Sensor: 1/1.8 "Inch Sensor
Horizontal resolution: 1800TVL
Horizontal field of view angle: 165 °
Lens: 2.1mm lens
Video format: NTSC & PAL (adjustable)
Image scale: 16:9
Wide dynamic: Super WDR
Noise reduction: 3DNR
Low illumination: 0.0001LUX
Video output: CVBS
Day and night: exterior/interior/black and white/color
Language: ENGLISH/中文/繁醴中文/Русский/ Español/ITALIANO/FRANCAIS/POLSKIM/PORTUGUES/日本語
Electronic shutter: PAL: 1/50~100000; NTSC: 1/60~100000
Wide voltage input: 5-40V
Working temperature: -20 ° C~+60 ° C
Weight: 5.9g
Dimension: 19*19*20mm

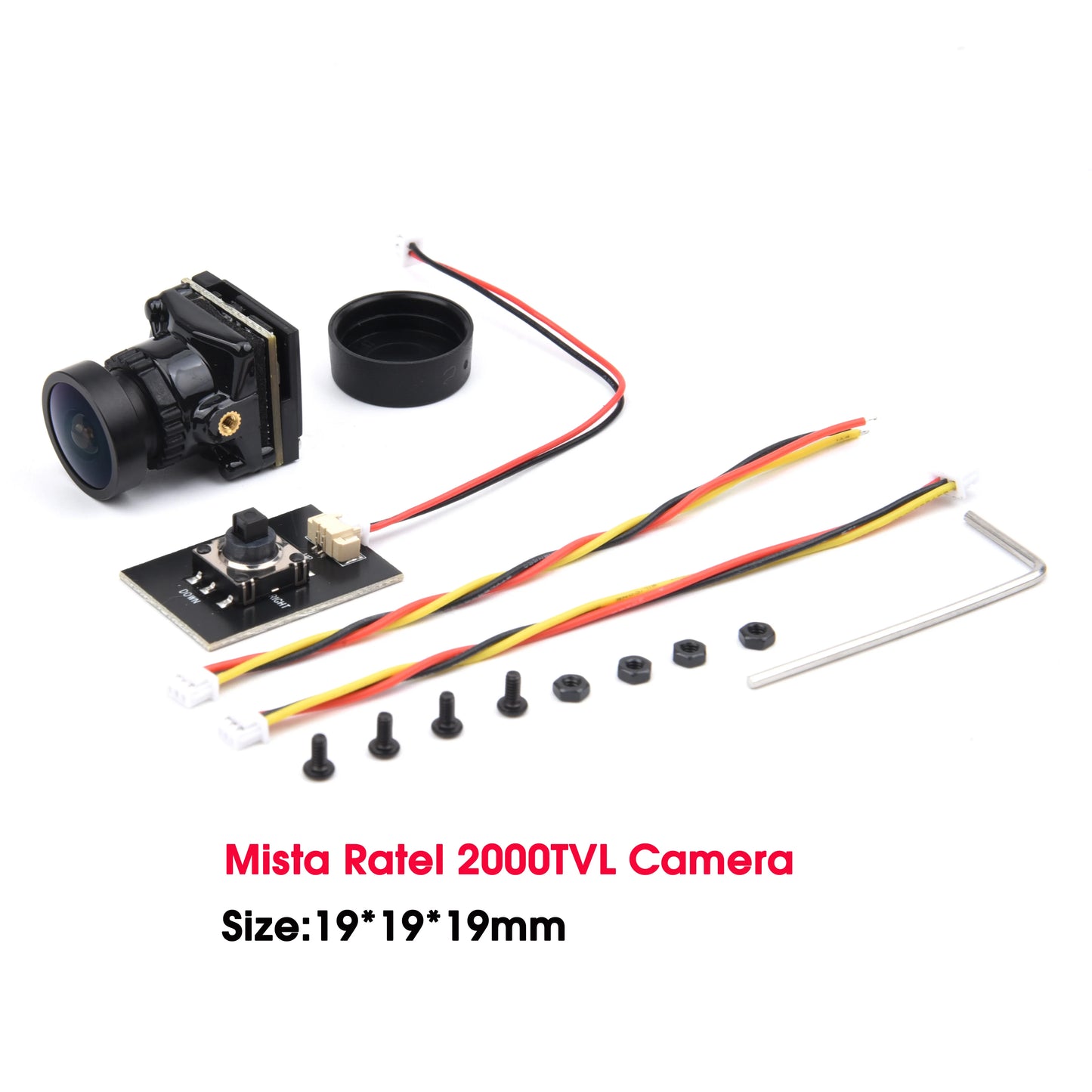

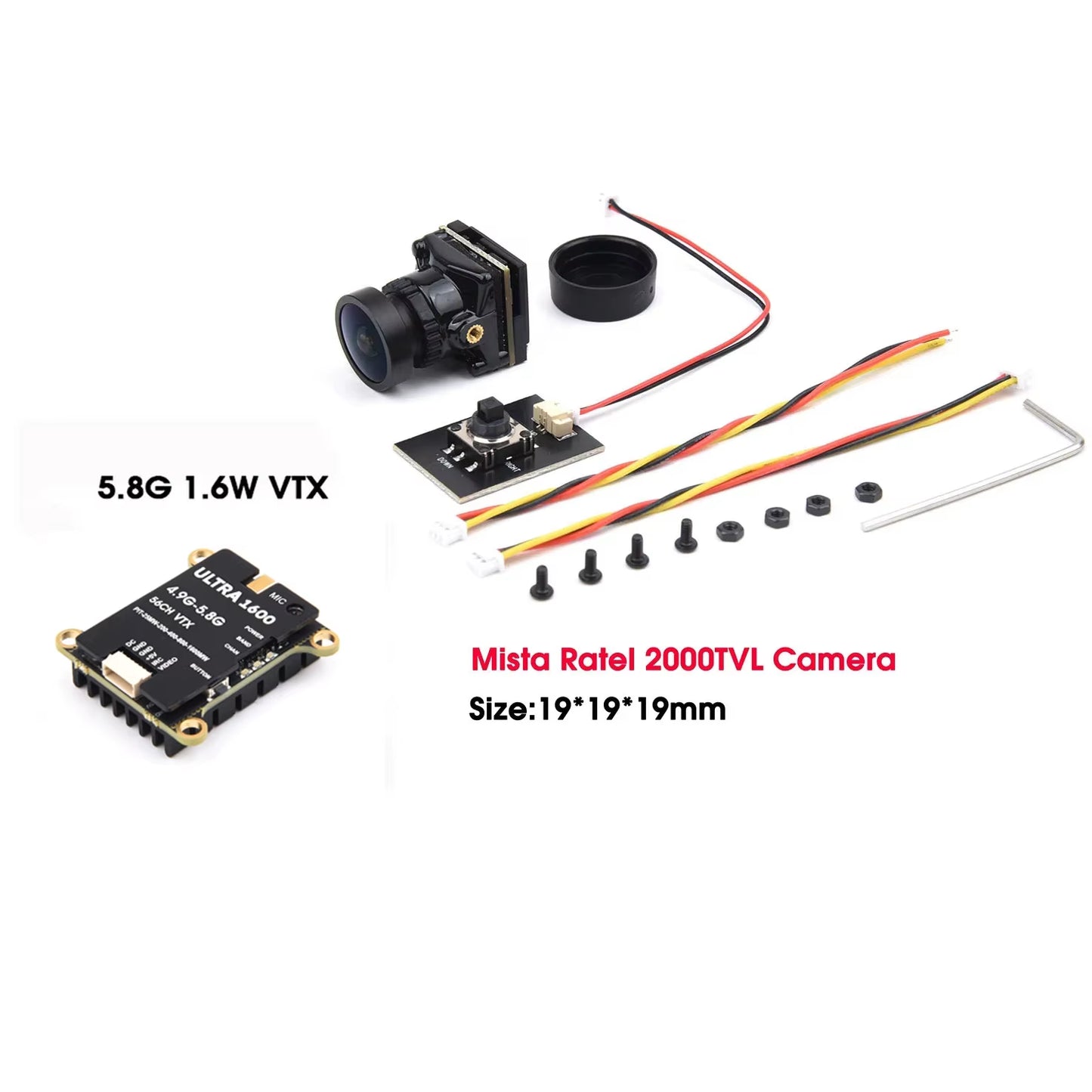

Item: Mista Ratel FPV Mini Camera
Features:
Using M12 HD 5MP lens, lighter weight

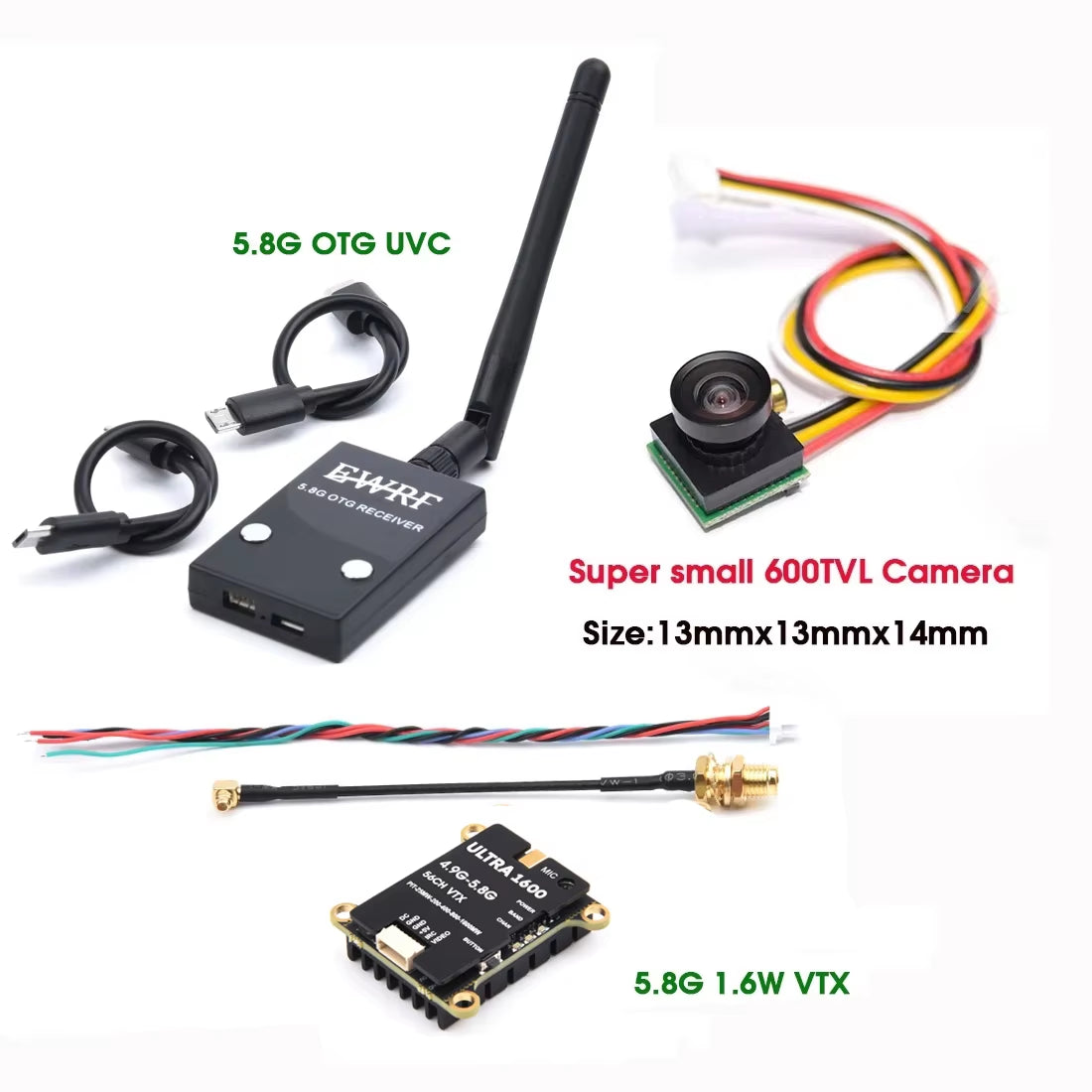

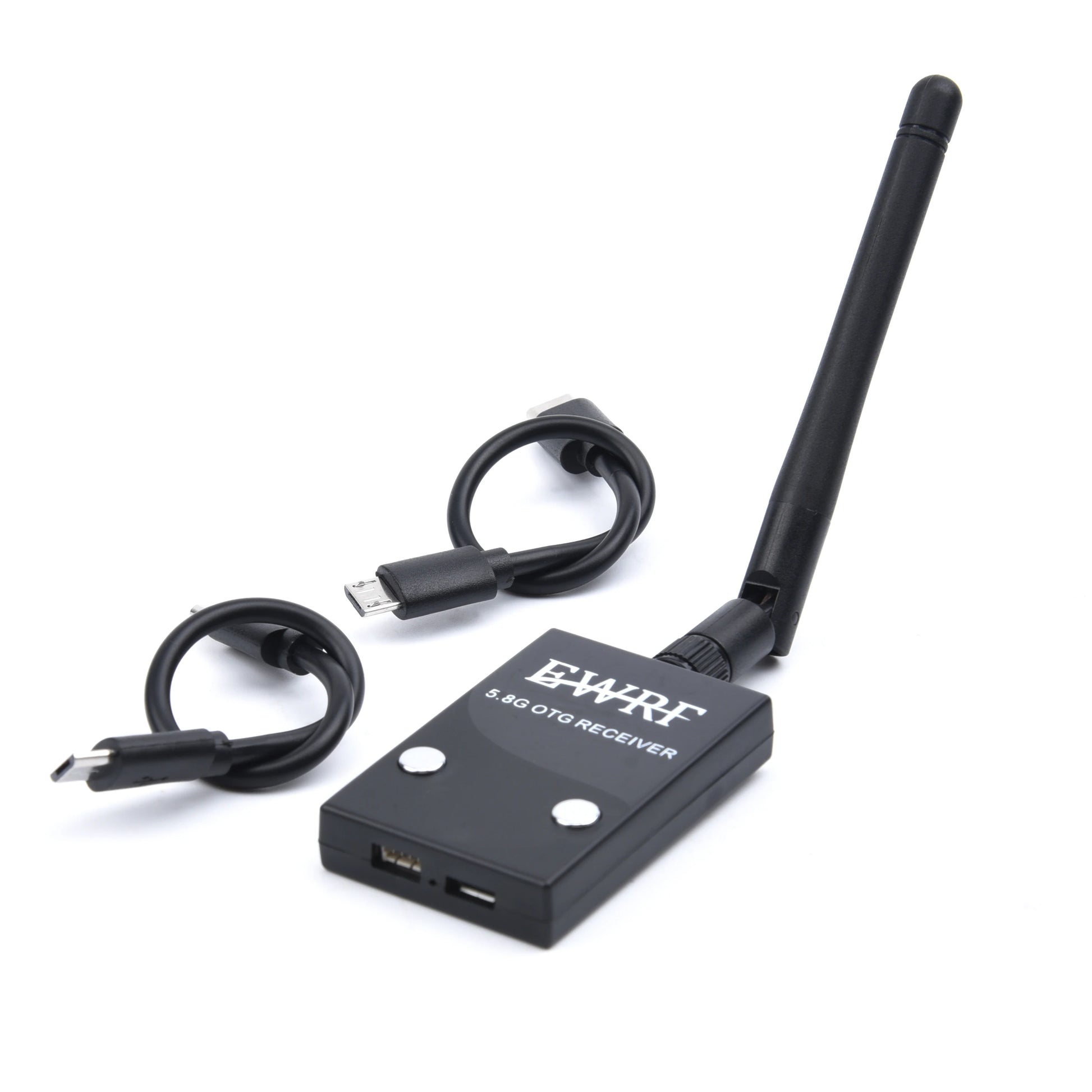

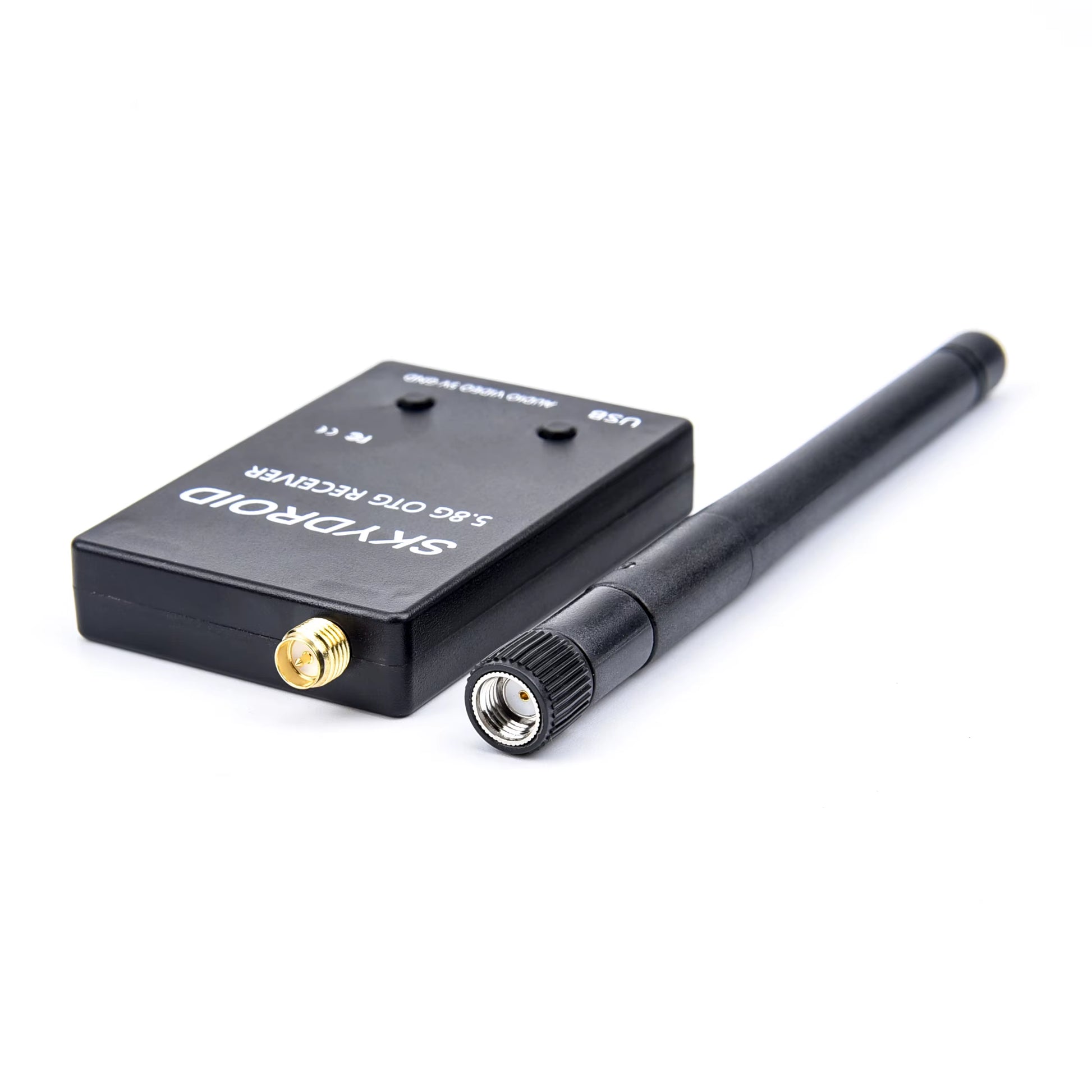

Newest Mini 5.8G FPV Receiver UVC Video Downlink OTG for VR Android Phone Smartphone FPV Quadcopter Drone
This is the newest version, add auto sweep and matc frequency,Snow screen 0.1s Delay.
I believe that we have been on the issue of digital map simulation has been tangled, then we will tell a lot of this product, the original simulation we have just begun!
Original 150 point full frequency band scan 1500 times to calculate the intensity of RSSI, locking the most accurate frequency! The frequency of the traditional 3240 channel transmitter will tend to drift from 5m to 10m, the traditional receiver of the 32 channel, which is only 10m of precision, the maximum distance between the 10m can be a difference of 5 times
We increase the channel to 150, the accuracy is 2m, 2m is also the highest! 2m basic can lock ninety-five percent signal points, which is the highest accuracy of the chip.. The distance between individuals can be controlled at ten percent
With a high accuracy, then the abstract radio, how can we show to everyone, so we made 2 months, in the case of no increase in power consumption and cost of a OSD waveform to do the image interface!! This thing is the mobile spectrum instrument, you can detect the quality of the antenna, the transmitter to do horizontal comparison, the factory's electromagnetic environment testing, aircraft, etc...
Add new features to the 2 generation:
150 frequency points + automatic sweep frequency+ snow display +...... more simple and beautiful appearance......
Equipment Assistant: http://www.skydroid.xin/download/app/DeviceHelper.apk
UVC FPV address: http://www.skydroid.xin/download/app/SkydroidFpv.apk
UVC ground station address: https://www.pgyer.com/0JjN

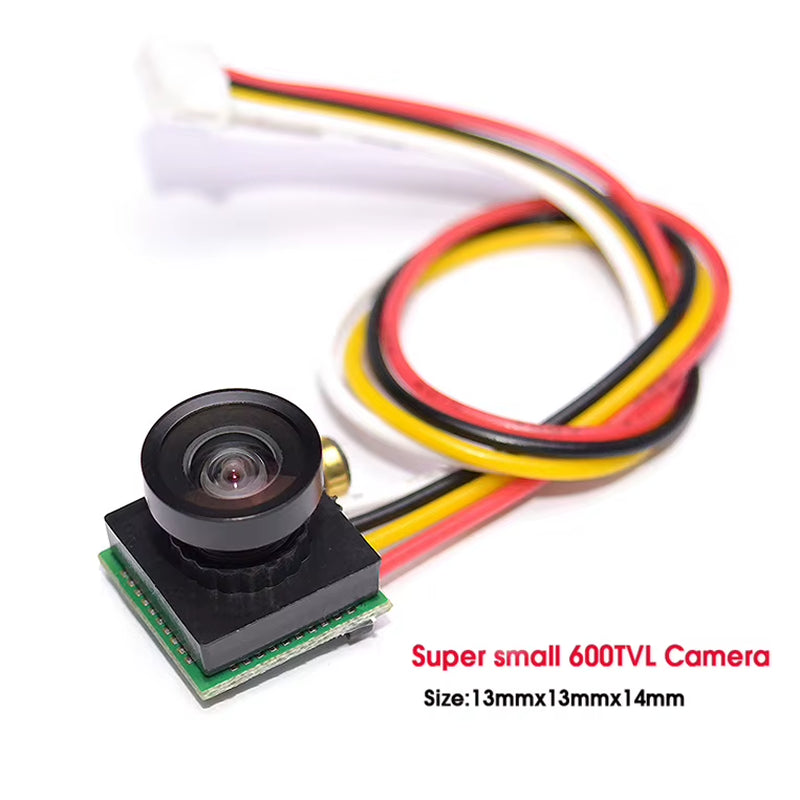

Audio out |
Monophonic |
Video out |
1.2Vp-p 75Ω CVBS |
Image color |
Color |
TV format |
PAL |
Lens |
1.8mm Wide view angle 170° |
Input power |
3.3V-5V(Module)/12V(With step-down AV cable) |
|
Power consumption |
80mA |
Size of the camera |
13mm*13mm*14mm(L*W*H) |
Package included：
(send it as your choice)

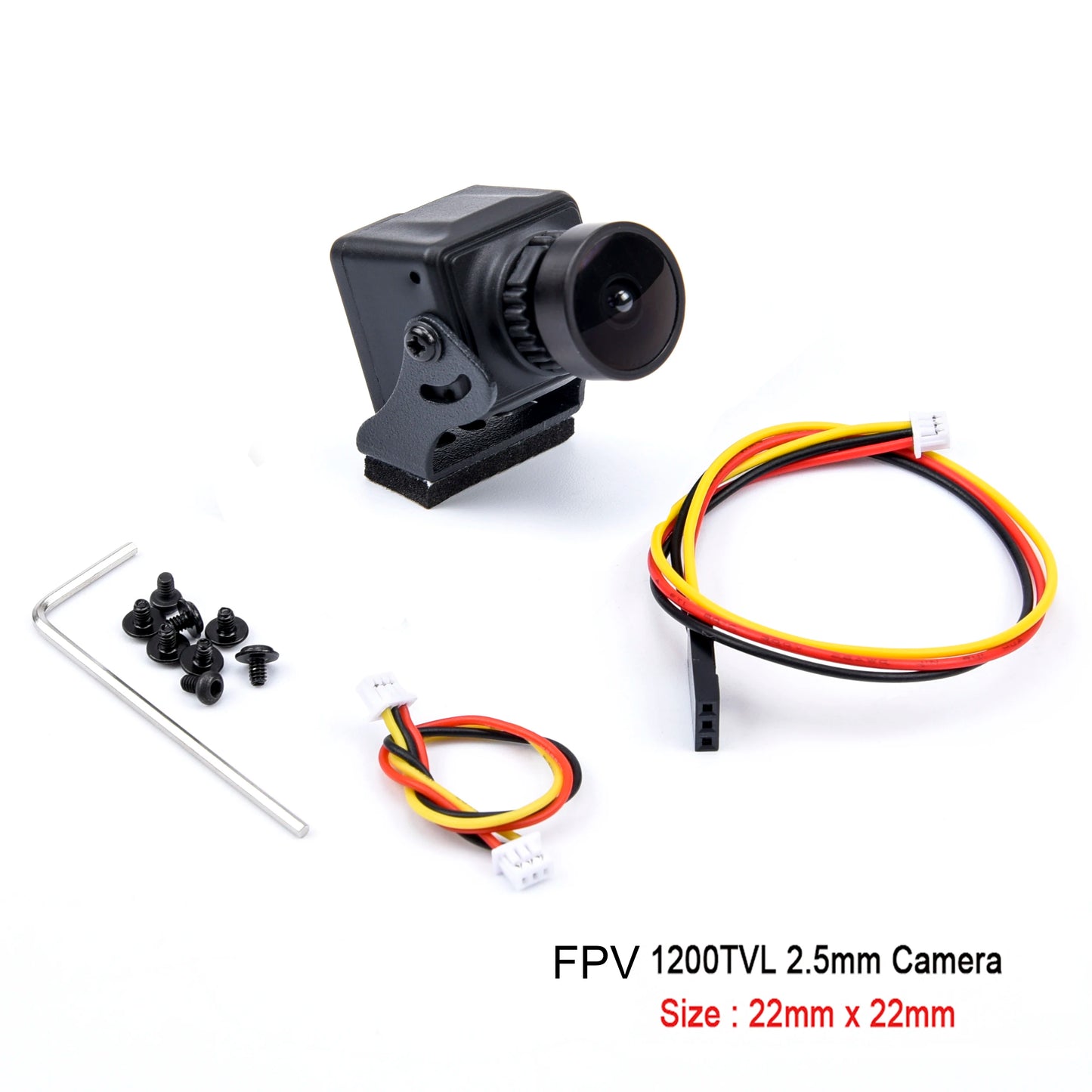

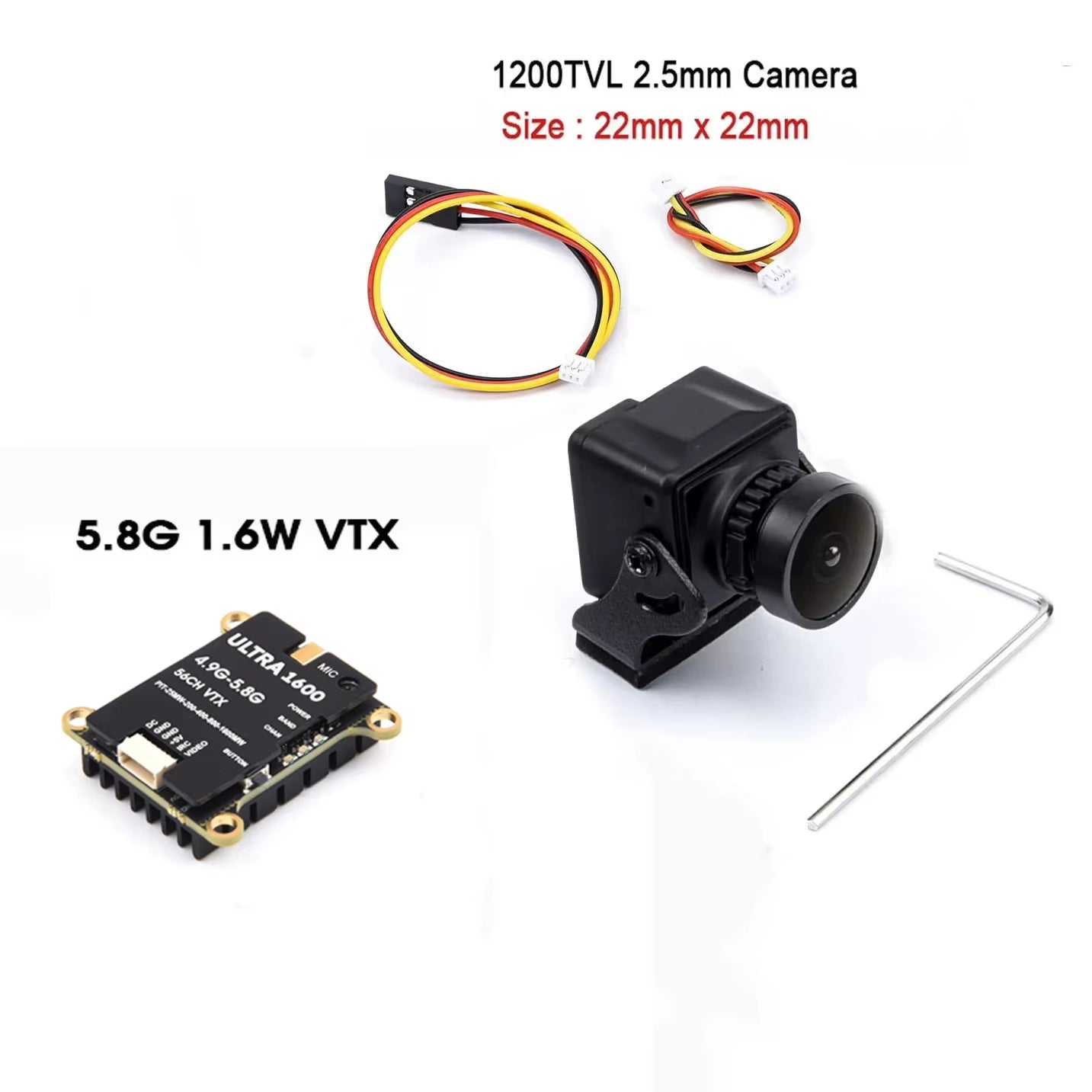

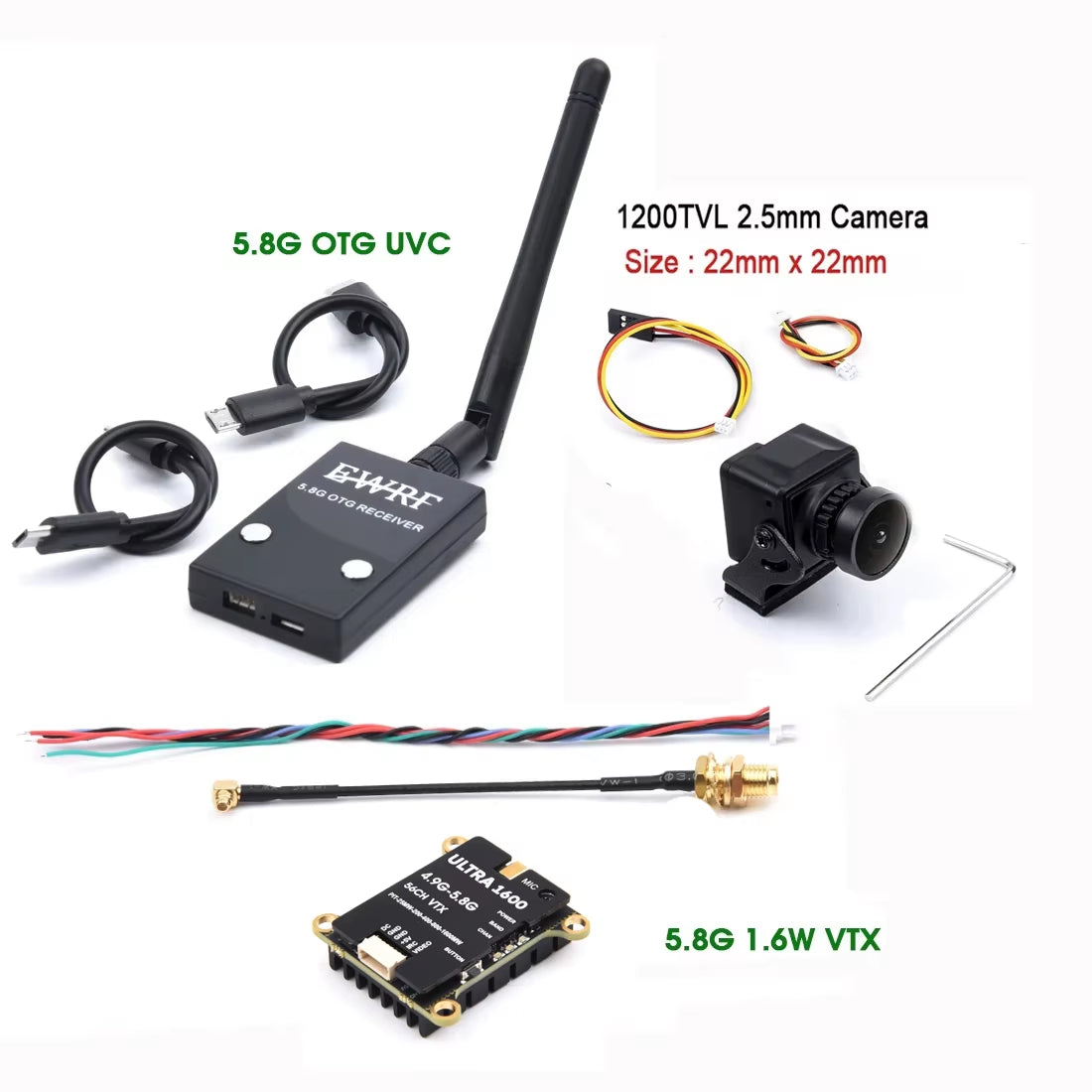

Item Name : 1200TVL Mini Camera
Size : 22mm x 22mm
Format : PAL Optional
PAL: 1920H×1080V(1MP)
NTSC: 1020H×1920V (1MP)
Horizontal Resolution : 1000TVL
Video Output : 1.0Vp p/75ohm
AGC : 0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB
WB : ON/OFF
Exposure Type: electronic exposure
Electronic Shutter : 1/50(1/60) 1/100000 second
Gamma Correction : 0.45/1.0
Synchronization Mode : inter sync
Lens : 2.5mm 130degree/2.8mm 120degree optional
Specification :
Working Voltage : DC5 to 12V(wide voltage , measured 5 to 13V)
Working Current : 70mA(ow power consumption)
Working Temp. : -20degree to 60degree
Wetness: 0% ~ 98%
700TVLFPV Camera
Image Sensor : 1/3" COMS
Horizontal Resolution: 700TVL
Lens: 2.1mm/2.5mm
Signal System: PAL
S/N Ration: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 -12V
Net weight: 15.6g
Dimensions: 22mm * 22mm * 28mm
|

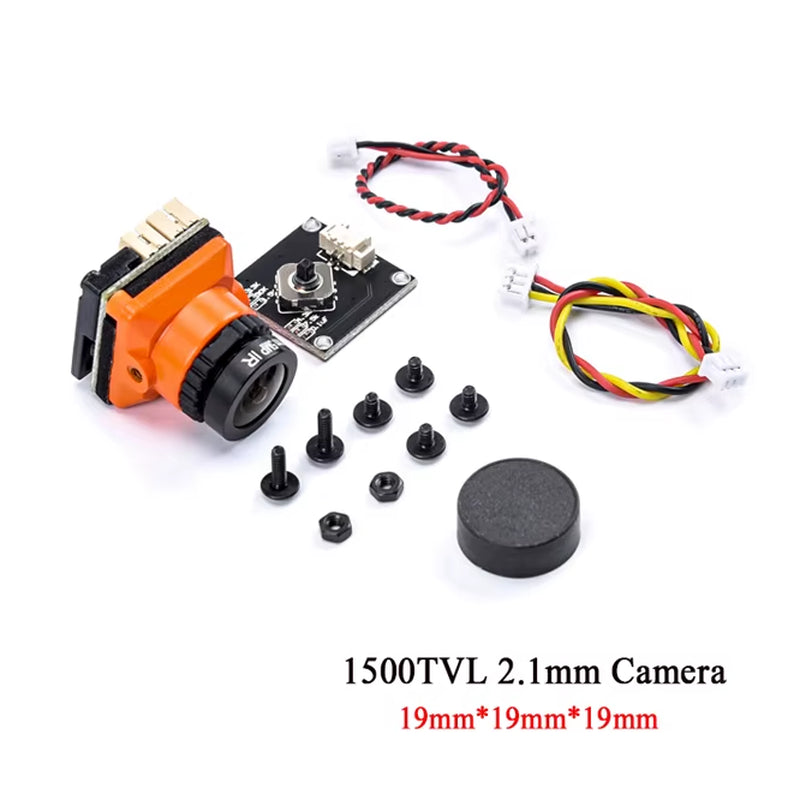

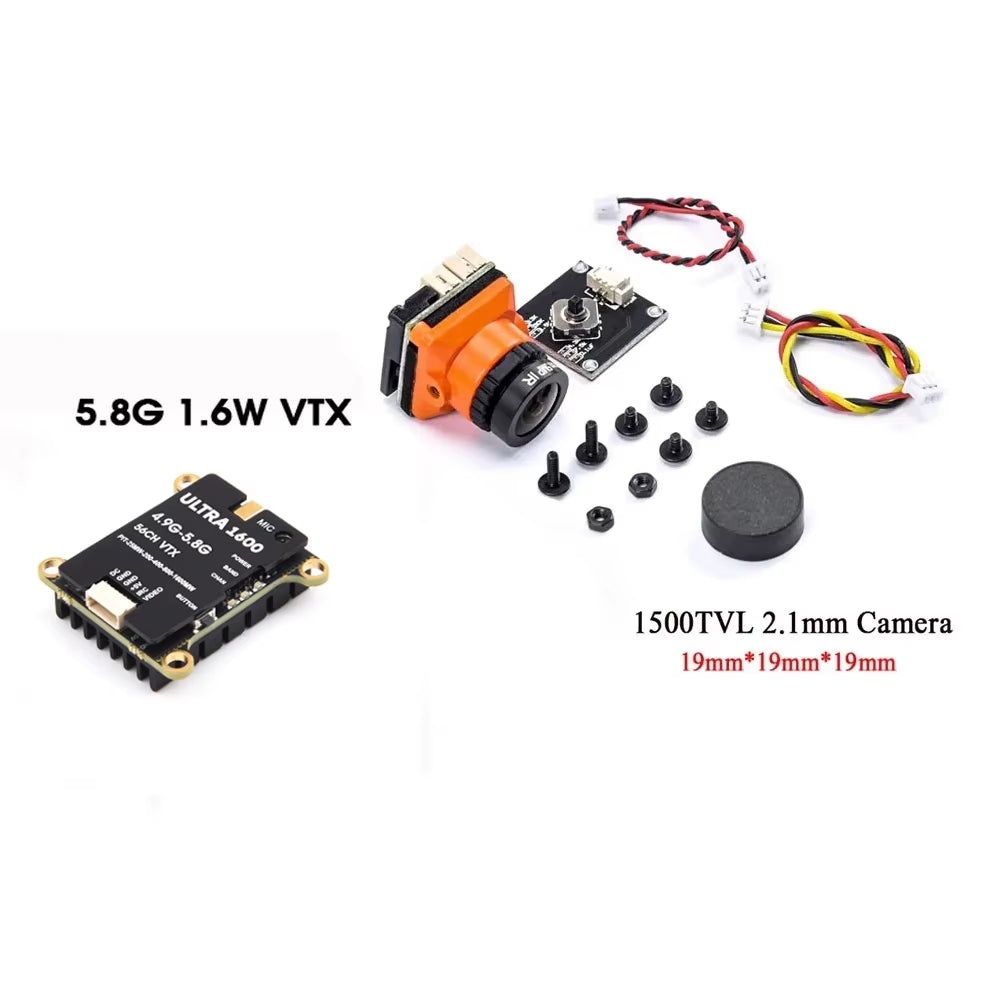

JINJIEAN MINI B19 | |
Model |
MINI B19FPV cameras |
Lmage Sensor |
1/3＇CMOS |
Horizotal Resoulution |
1500TVL |
Lens |
2.1mm |
Signal System |
PAL/NTSC (OSD Internal adjustable） |
S/N Ratio |
＞60Db(AGC OFF) |
Electronic Shutter Speed |
PAL: 1/50-100.000, NTSC:1/60-100,000 |
Auto Gain Control(AGC) |
LOW/MIDDLE/HIGH |
Back light compensation(BLC) |
YES |
Min lllumination |
0.001Lux/1.2F |
WDR |
D-WDR |
DNR |
3DNR |
Day/Night |
Auto/Color/B*W |
Power |
DC 5V-30V |
Net weight |
6.0g |
Dimensions |
19mm*19mm*19mm |
OSD | |
exposure |
Brightness/exposure mode/gain |
The white balance |
Automatic tracking white balance |
Day and night mode |
Internal automatic/color mode/black and white mode |
Video Settings |
Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynamic |
language |
Chinese/English/German/Italian/Russian |
Restore the factory Settings |
OK |
Save the exit |
OK |
Note: 1500tvl camera cable type send at random.
