Treadmill Dc Motor Permanent Magnet Dc Motor 2.0Hp Dc180V 5A

Rated voltage: DC 180V

Rated current: 5 A

No-load speed: 4600RPM

Rated power: 1.2HP (900W)

Peak power: 2HP (30s)

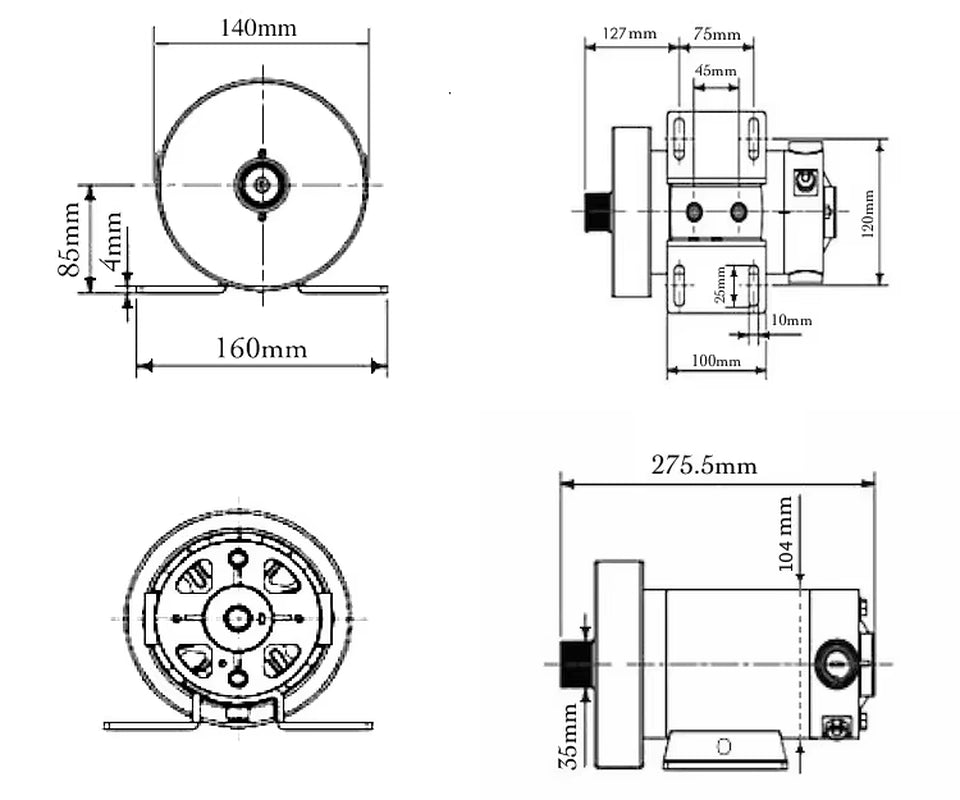

Total length of motor: 275.5mm (including tail fan)

Motor shaft diameter: 15.9mm (after removing the original flywheel)

Motor shaft length: 50mm (keyway 5mm)

Product quality: 8.75kg (net weight), packed 10KG.

Product Type: Brand new

Friendship:

The buyer used to replace the original treadmill motor is best to send your existing motor photo to the customer service to help you confirm whether the parameters are similar or the same. Many Taobao treadmill motor manufacturers are marked with the rated power (horsepower) of the product. The peak power - this is the virtual standard behavior of the stolen concept. The nominal and peak values are completely unequal parameters.

Rated power: (continuous power) long-term continuous power (horsepower)

Peak power: It can also be understood as overload power. In short, it is the power (horsepower) of the motor when it is overloaded for a certain period of time under overload conditions. The duration is usually 30 seconds or even lower. It will burn out beyond the maximum withstand time. It is.

The formula for calculating the rated power is as follows:

E.g:

Rated voltage: 180V Rated current: 5A,

Rated power = 180 × 5 = 900W ≈ (1.2HP)

Such as the 1.2HP motor in my store, many treadmill manufacturers marked the peak power of 2.0HP or even 3.5HP, so it is best to provide photos and sizes for customers to help you estimate the actual rated power of your motor. So avoid buying the wrong one and buying it big. A simpler method can be used to estimate the actual power range by weighing. Buyers please refer to the following data.

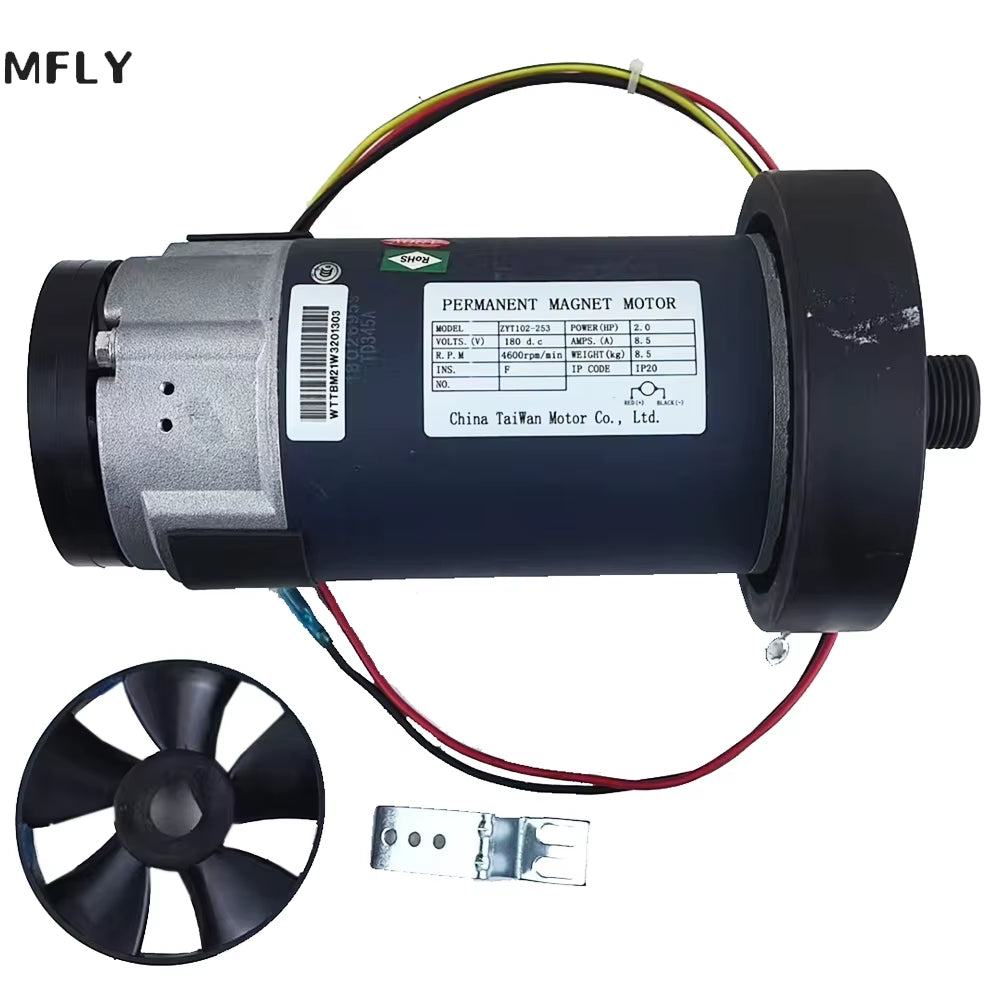

The following picture motor is a physical map of 1.2HP specifications, unit price: 258 yuan / Taiwan (including the base)
