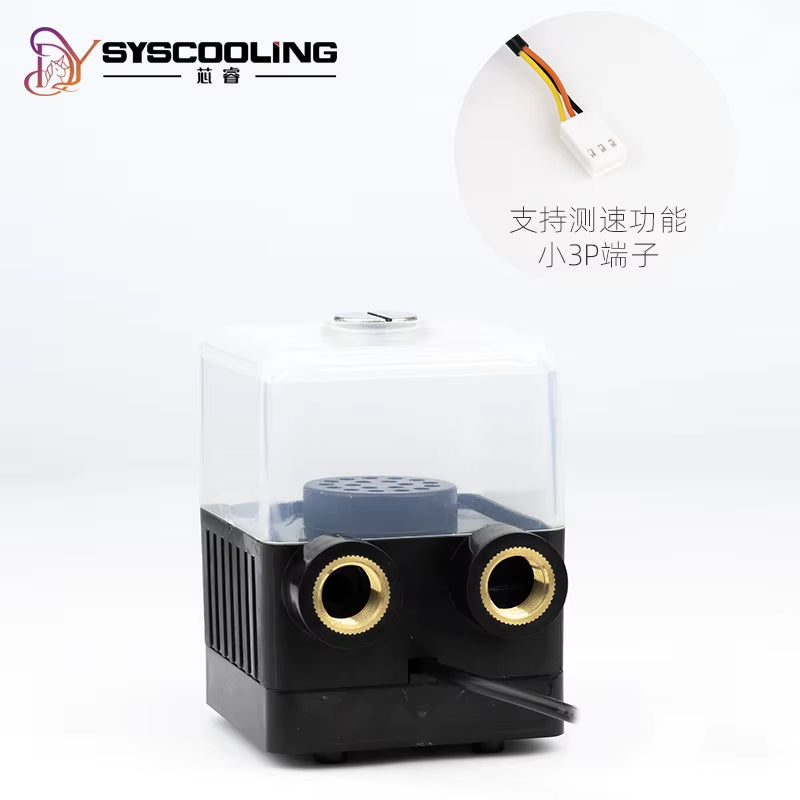

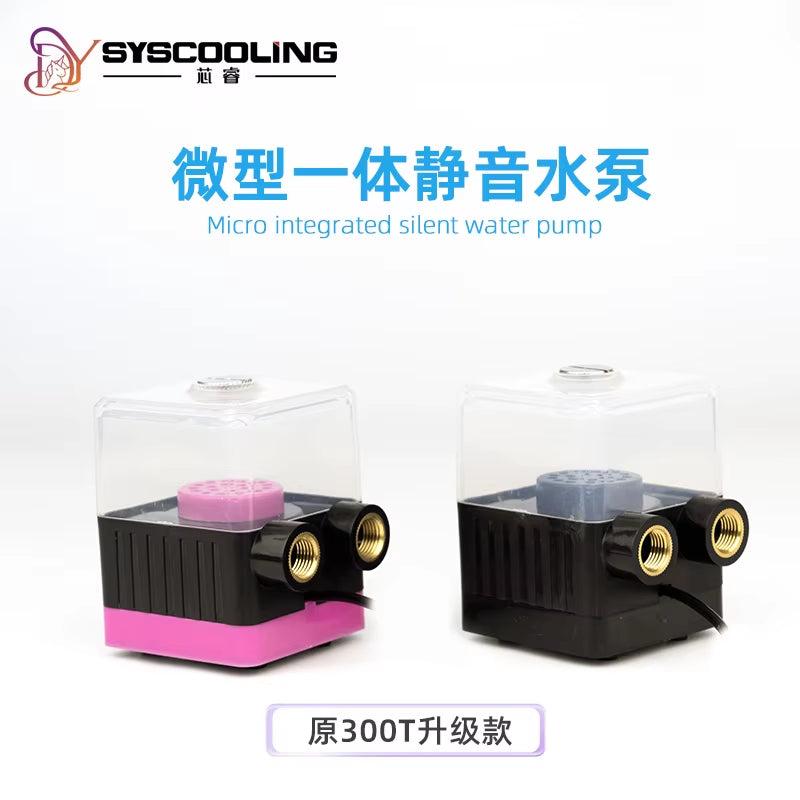

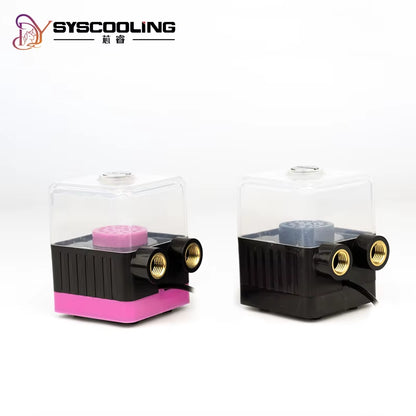

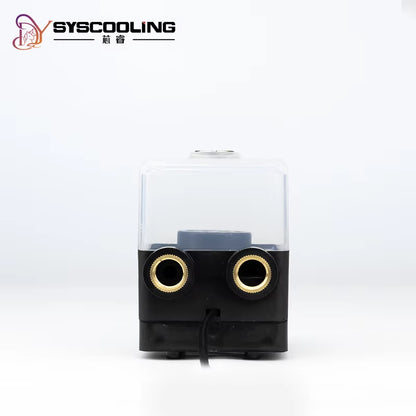

SC-400T Water Cooling Pump DC 12V Brushless Liquid Cooling Pump 450L/H 7.2W Small 3 Pin Water Cooling Pump

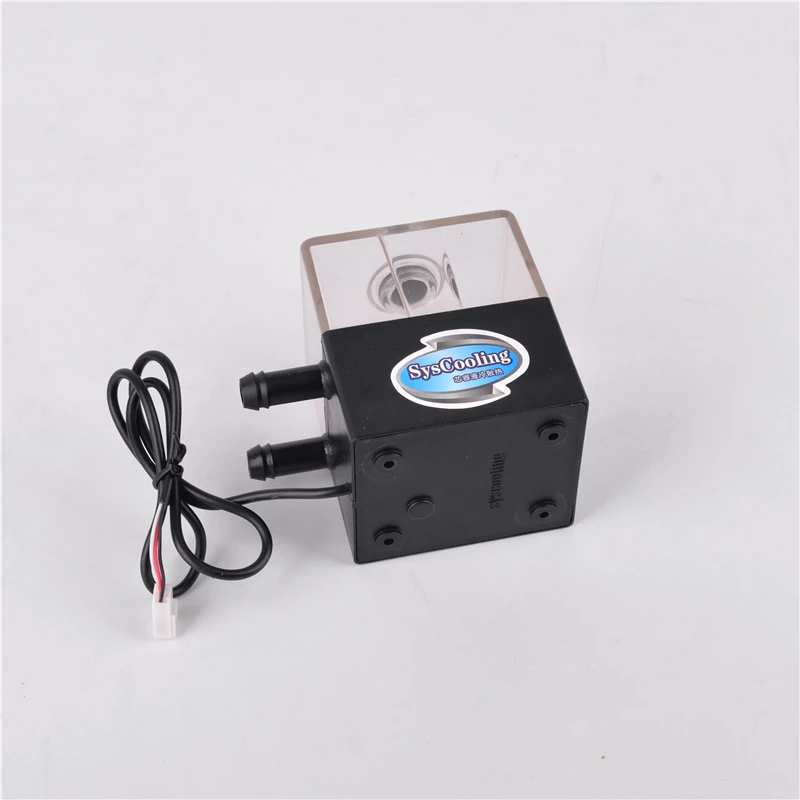

SC-300T Circulating Water Cooling Pump

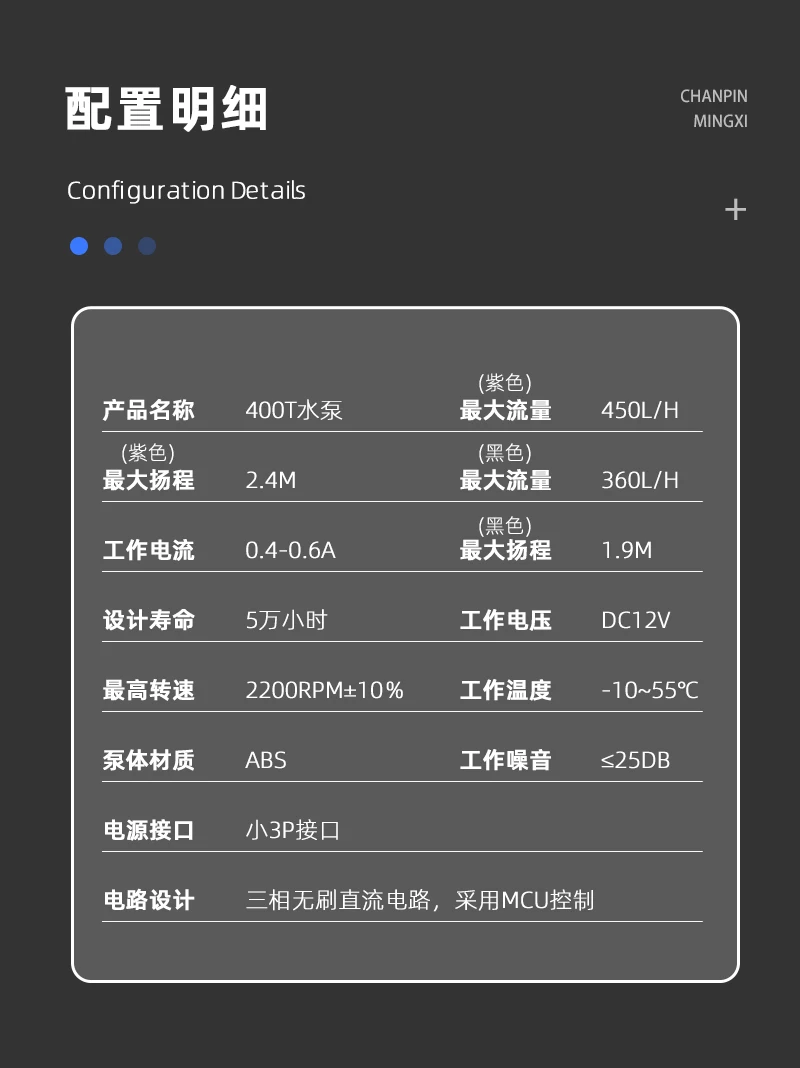

Specification

Flow: 300L / H

Power Connector: Small 3P

Voltage: DC 12V

Power: 4W

Water tank capacity: 300ML

Max lift: 1.9M

Noise: <23DB

Dimensions: 65mm * 56mm * 95mm(length * width * height)

Tap Diameter: 9.4 mm

It is best to use with a hose with an inside diameter of 8mm.

Features:

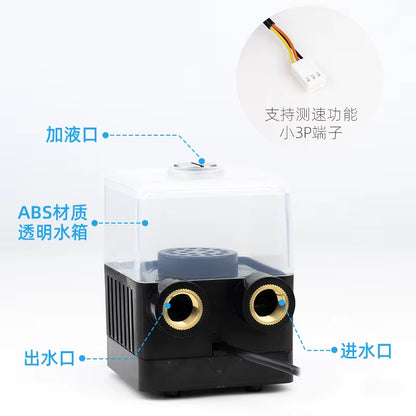

LED power indicator to indicate power-on state.

This pump provides speed test wire(the yellow wire).

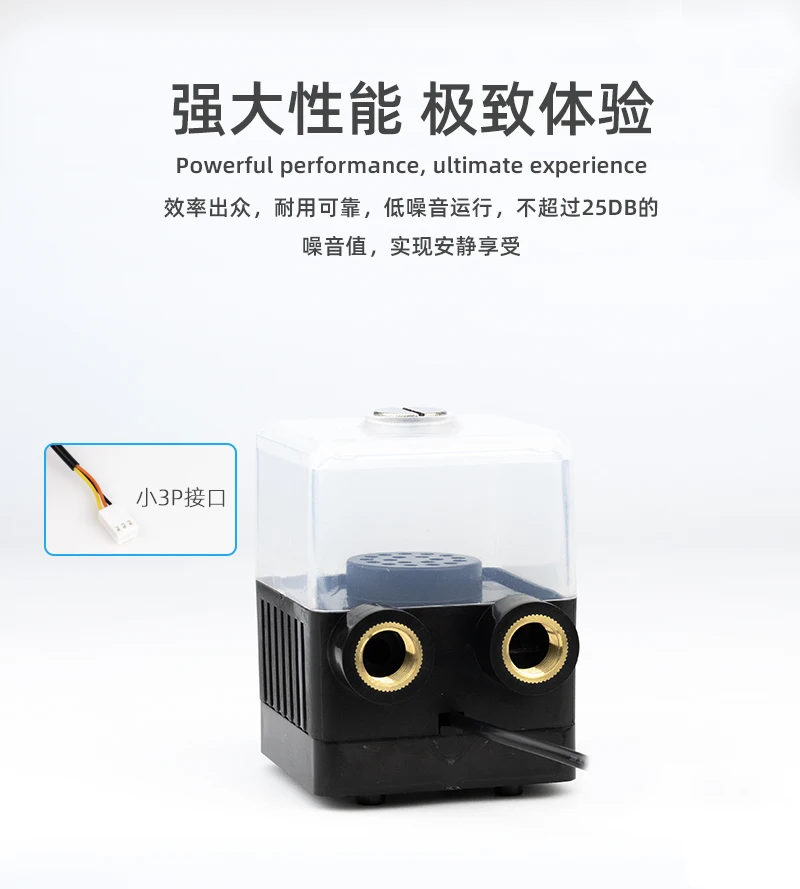

Small 3P power connector can be directly plugged into the motherboard.

With rubber shock absorber base, ultra-quiet.

Package included:

SC-300T Water Cooling Pump * 1

Base Support * 1

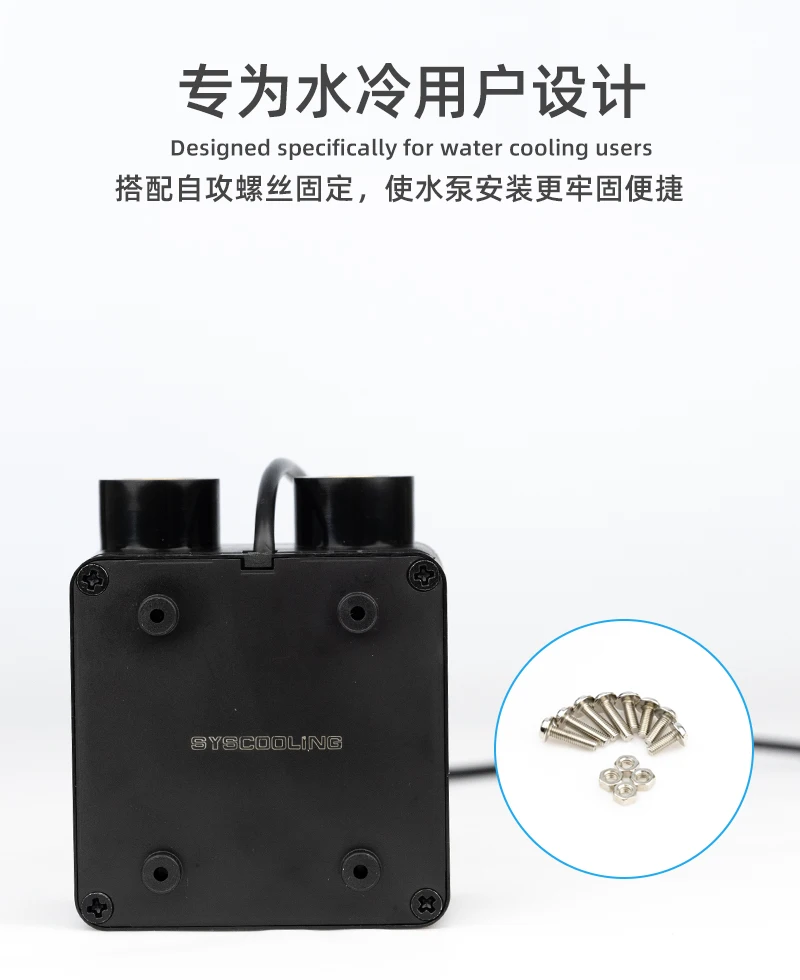

Accessories Package * 1

Water nozzle diameter: 8mm (use our N8 tube ID8mm OD11mm together)

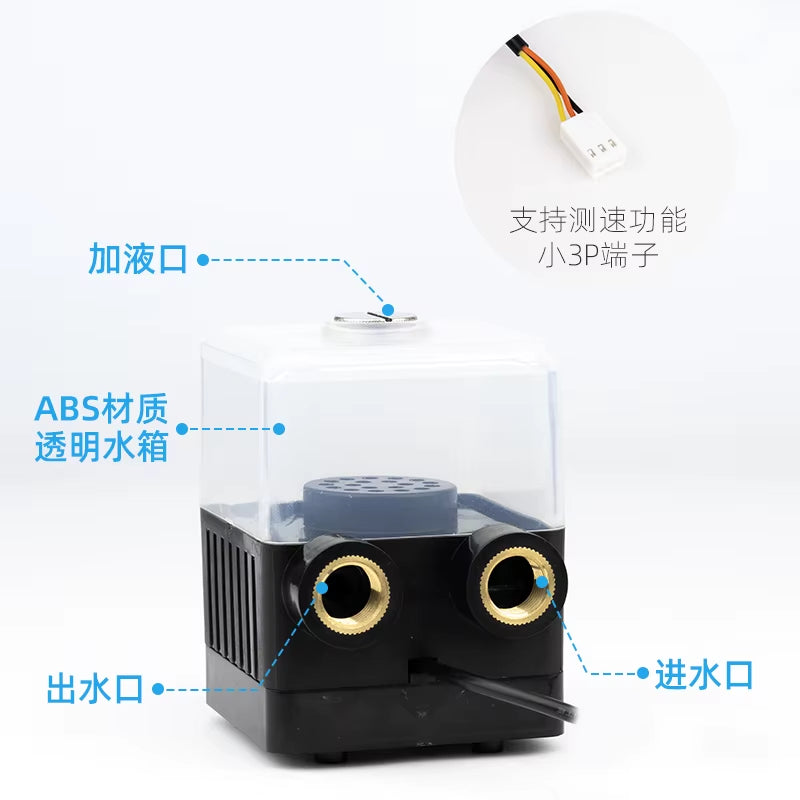

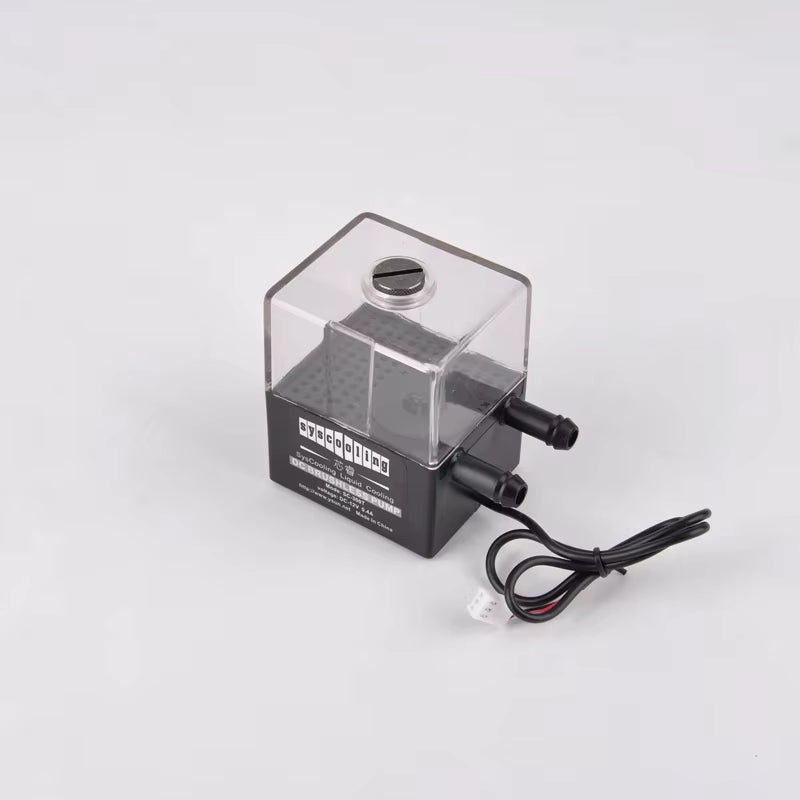

Remark: The red wire is DC 12V power supply cord, the black line is ground wire,

The yellow wire is the speed testing wire

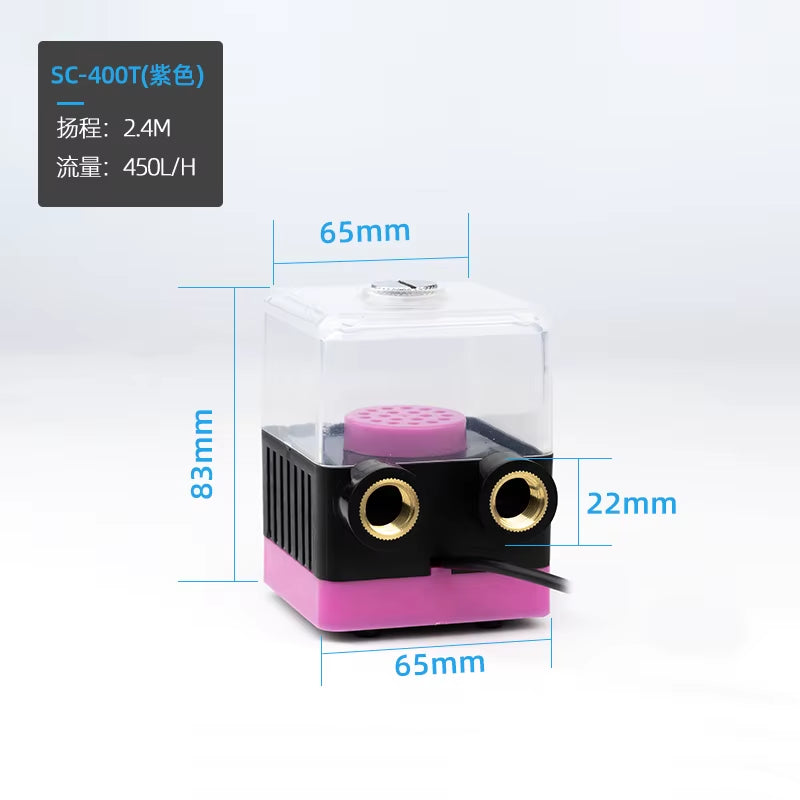

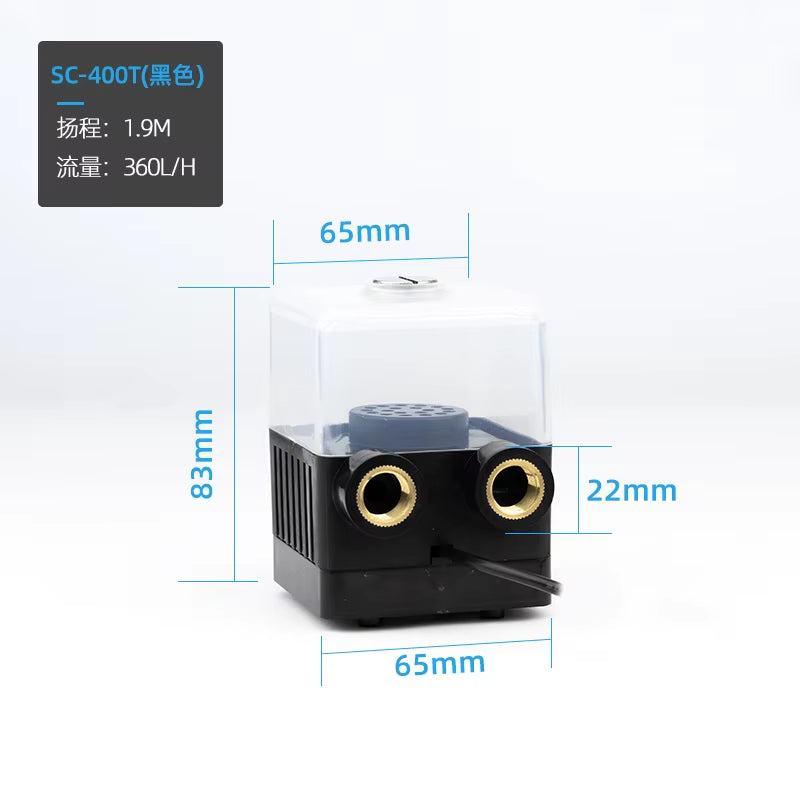

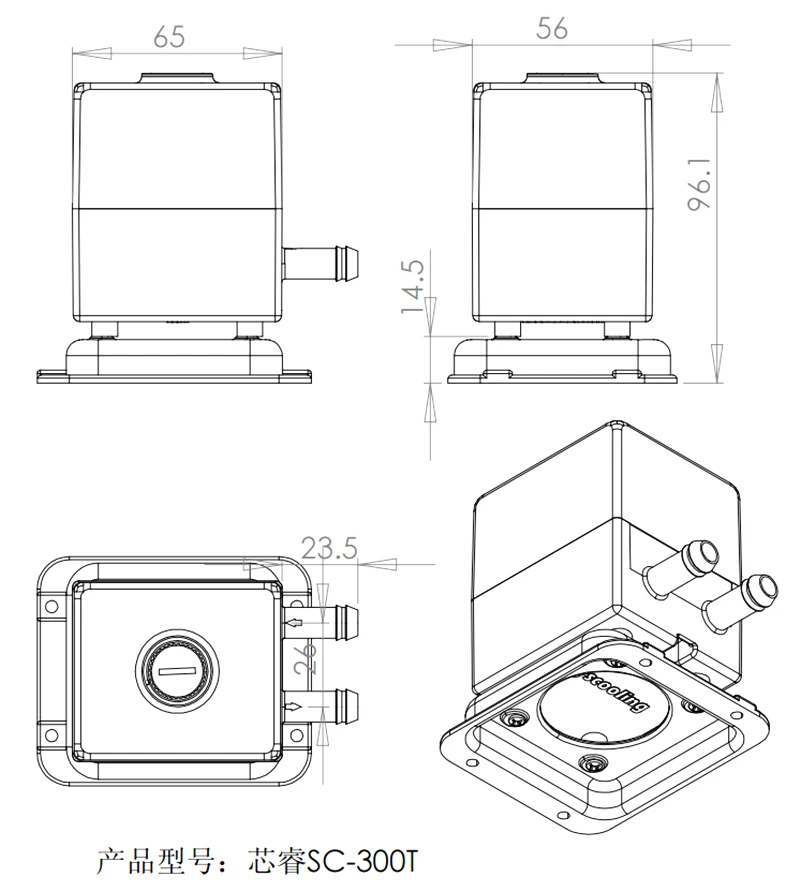

Dimensional Drawing
