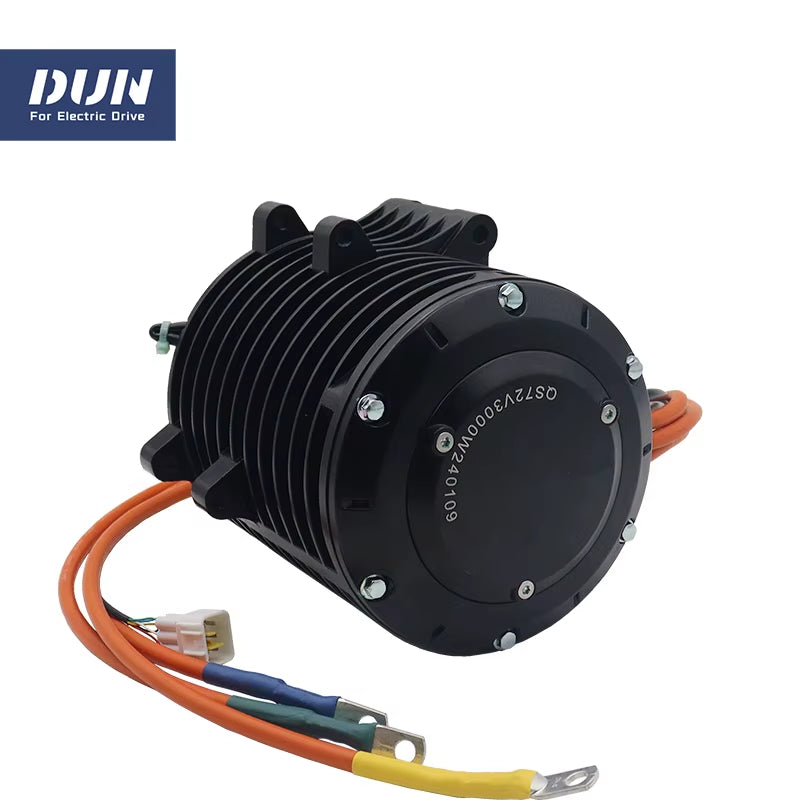

QS138 3KW V3 70H 72V 100KMH PMSM Mid-Drive Motor with Fardriver ND72360,DKD Display,T08 Throttle for Electric Moped Motorcycle

QS138 3KW V3 70H 72V 100KMH PMSM Mid-Drive Motor With FarDriver ND72360,DKD Display,T08 Throttle For Electric Moped Motorcycle

For QS138 V3 3000W mid drive motor , it could be used for electric light motorcycle dirtbike.

NOTICE:
Because there is oil in the reduction gear box, there will be slight oil leakage at the interface, but this has no effect on motor performance. If you mind, please purchase with caution, thank you.

Pls check the delivery time with sales before placing order.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.

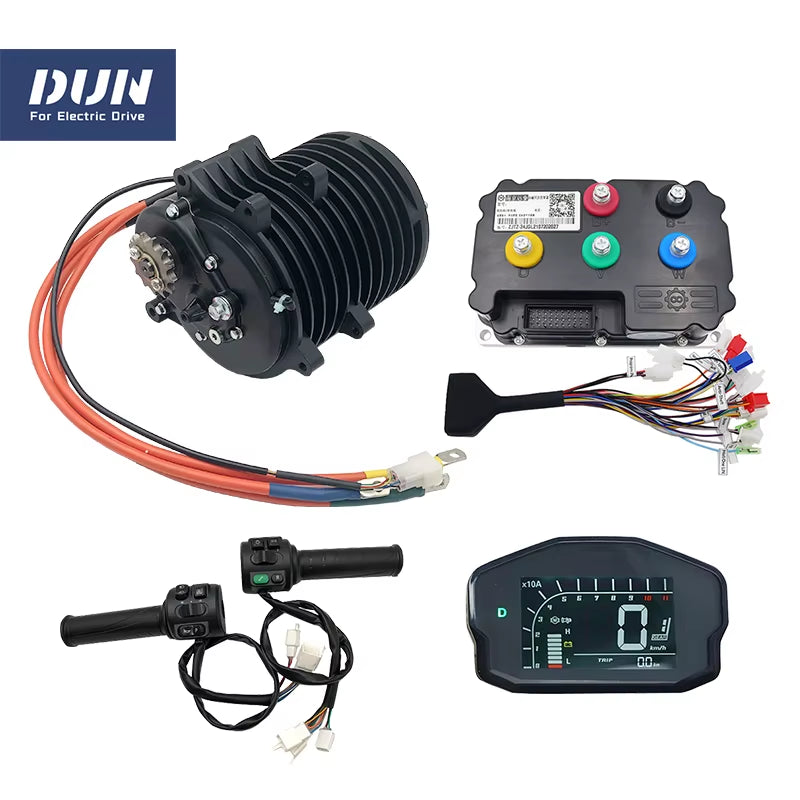

- Package Including -

1 pc x QS138 3KW V3 Mid Drive Motor with 428 Sprocket

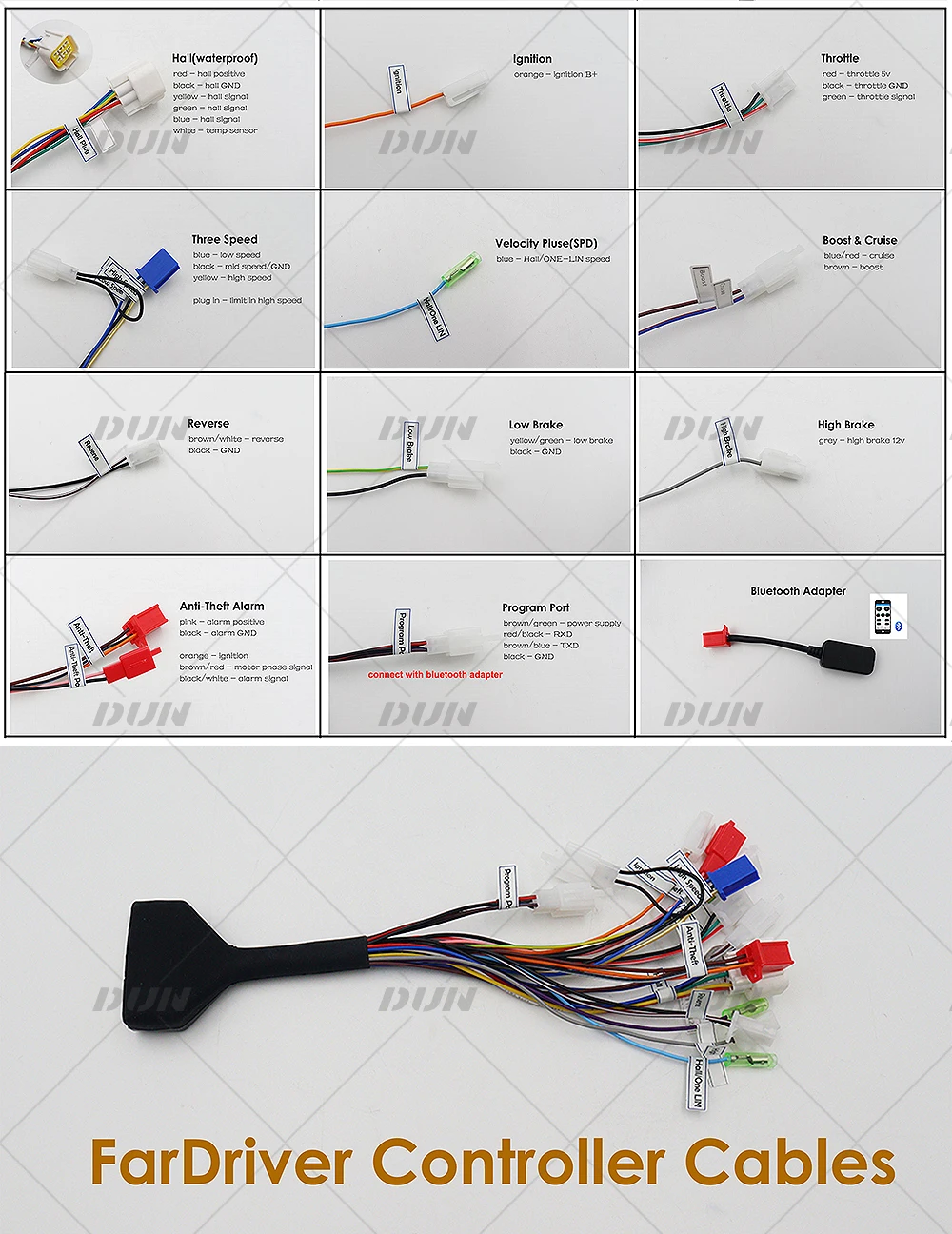

1 pc x Fardriver ND72360 Controller with Bluetooth Adapter
1 pc x DKD Display
1 pc x T08 Throttle

- Application Performance Refer -

e.g. Dirt bike
E-motorcycle weight, approx 130kg+2*80kg
Speed: continuous 100km/h
Climbing slope: 30°@208kg
Battery: 72V40h
Tire: 130/70-17

- Key Features -

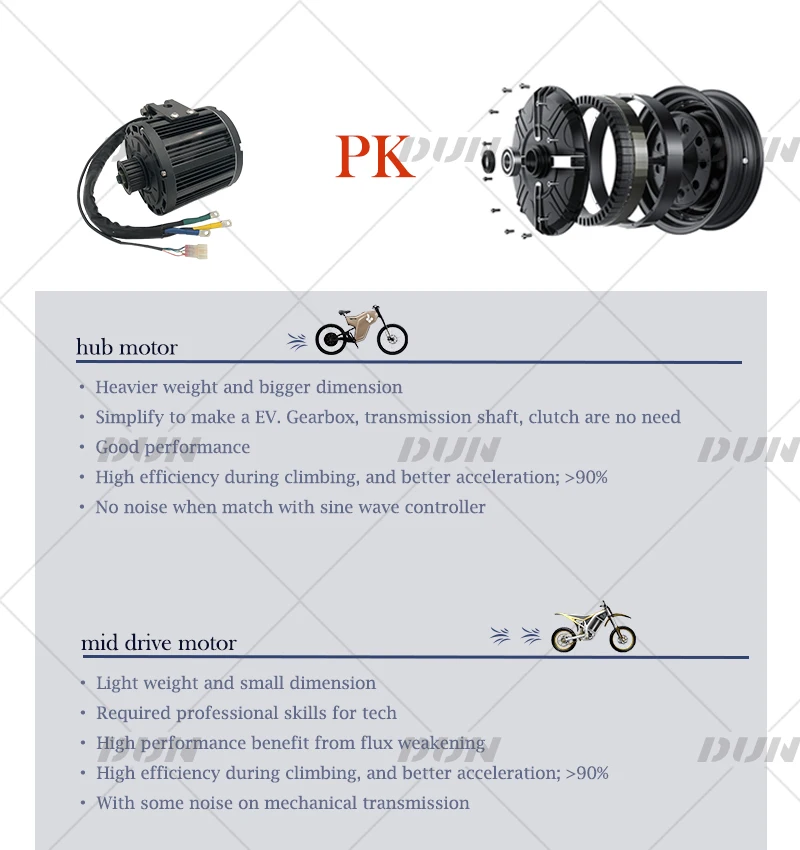

1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking

- Order Guide -

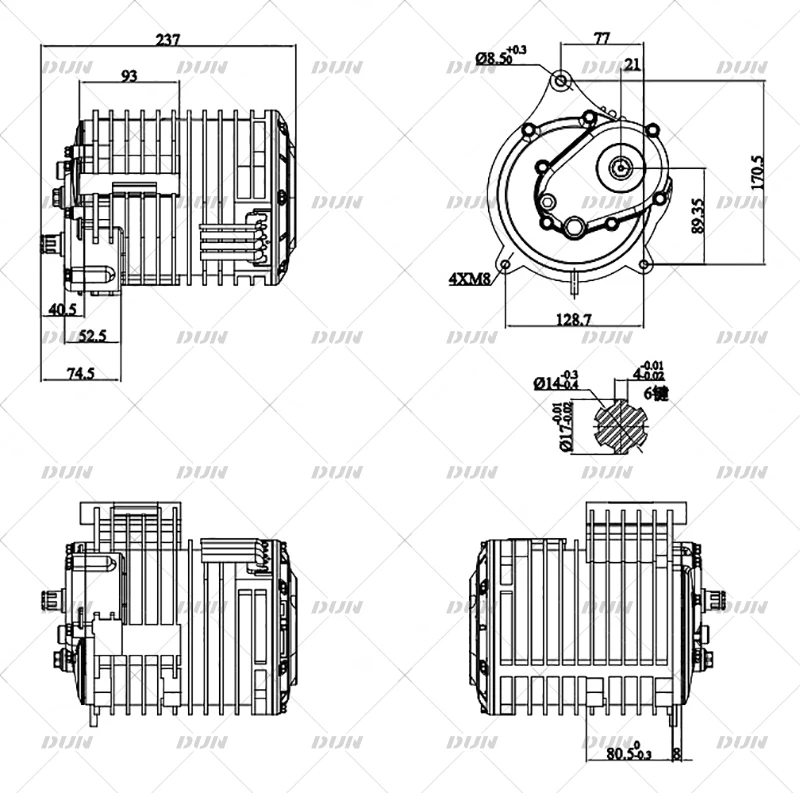

1). Pls. make sure this size is ok for your installation.
2). Pls. make sure the controller is Lande EM controller, other brand may not matched to get good performance.

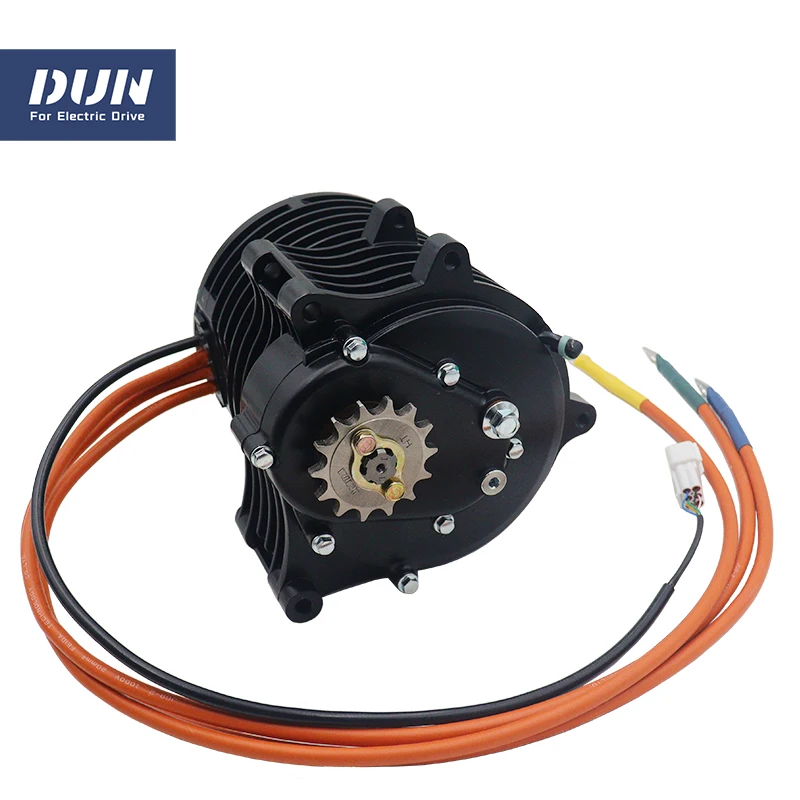

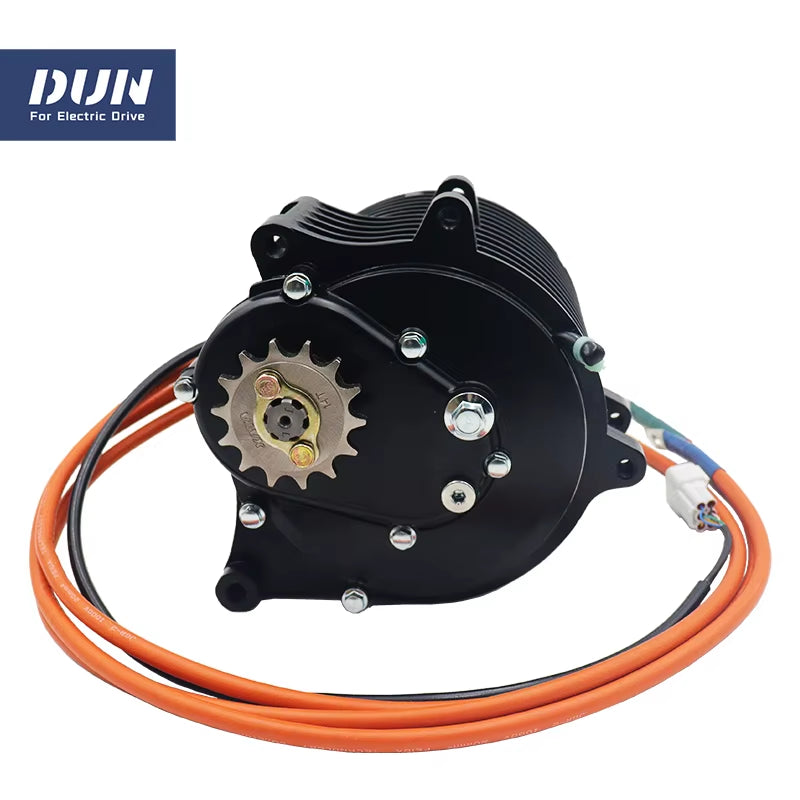

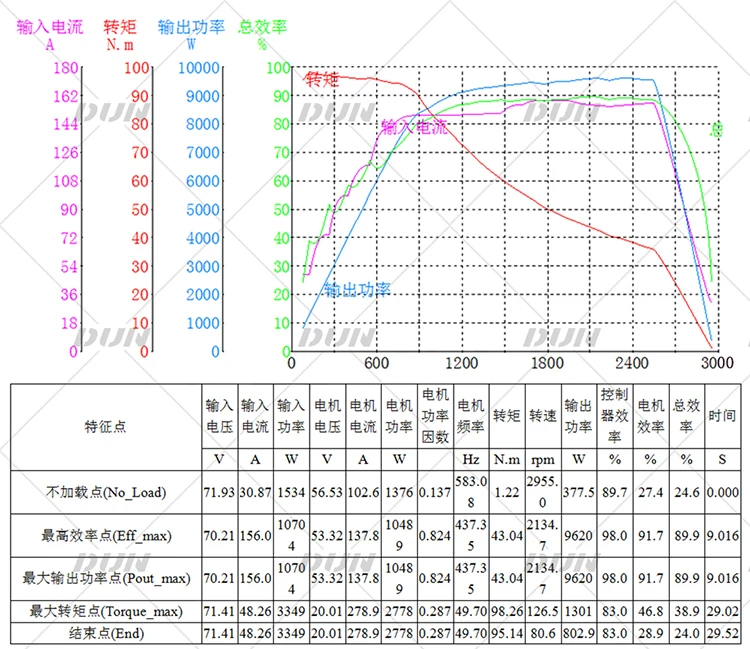

- Motor Spec -

Motor Type: PMSM Motor With Internal Reduction Gears
Rated Power: 3000W (9600W peak in few seconds)
Rated Voltage: 72V
Speed: 4000RPM (basic RPM), 6800RPM peak with flux weakening
Max Torque: 98N.m
Magnet Height: 70mm,5 pole pairs
Motor Gear Ratio: 1:2.35
Max Efficiency: approx 94%
Continuous Battery Current: 80A (72V)
Peak Battery Current: 150A (72V)
Working Temperature: 70-130℃ , peak 150 ℃
Single Hall Set with waterproof connectors
Waterproof Grade: IP67
Cooling: Air cooling
Thermic Probe: KTY83/122
Phase wire: 16mm²
Color: Black
N.W./G.W.: approx 12.5kg/14kg
Package Dimension: 31cm*31cm*31cm

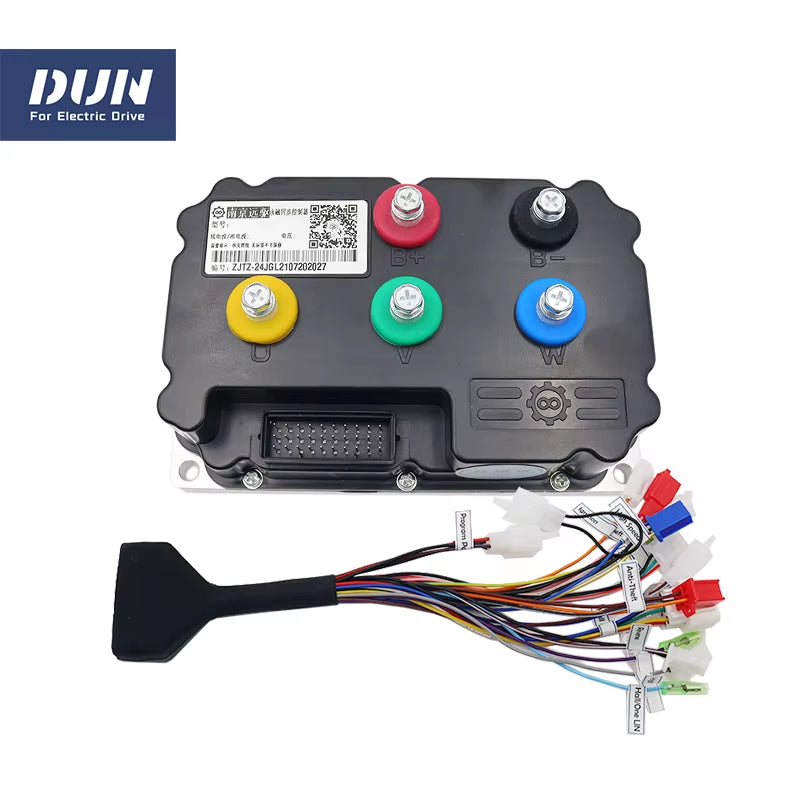

- ND72360 Controller Spec -

1). Controller Type: Sine Wave FOC Controller
2). Model Number: ND72360
3). Peak DC Current: 190A
4). Peak Phase Current: 360A
5). Working Voltage:48V/60V/72V, max. 88V
6). Compatible Motor Power: 3000W-4000W

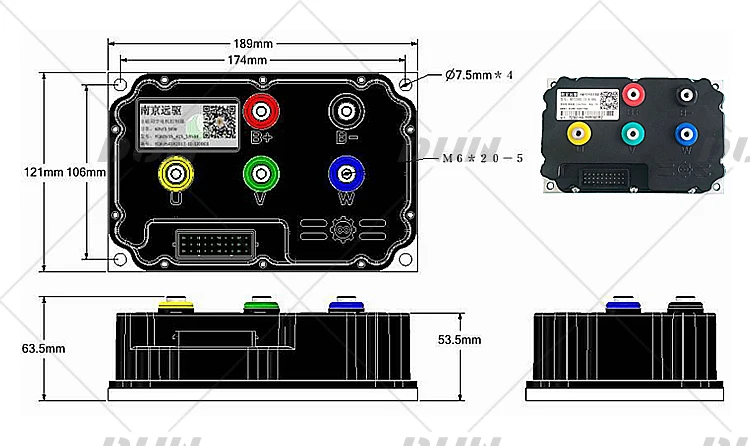

7). Size: 189mm*121mm*63.5mm
8). Weight:2.05KGS

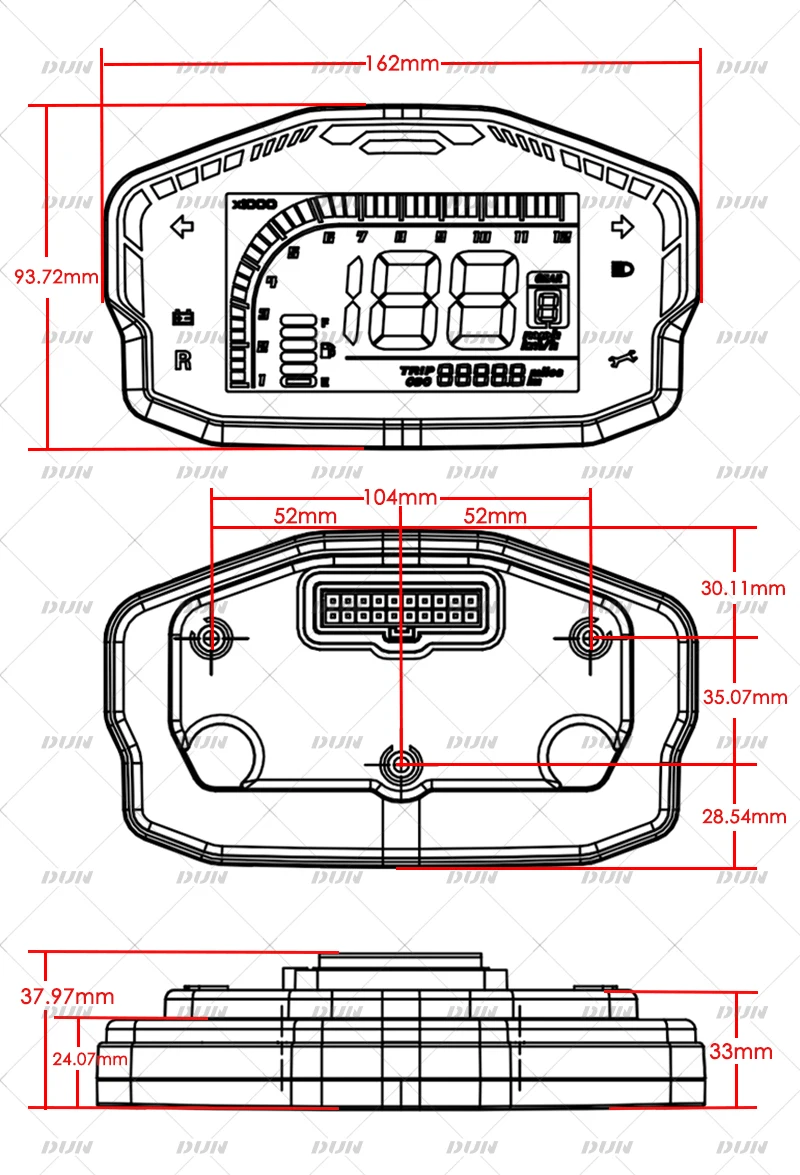

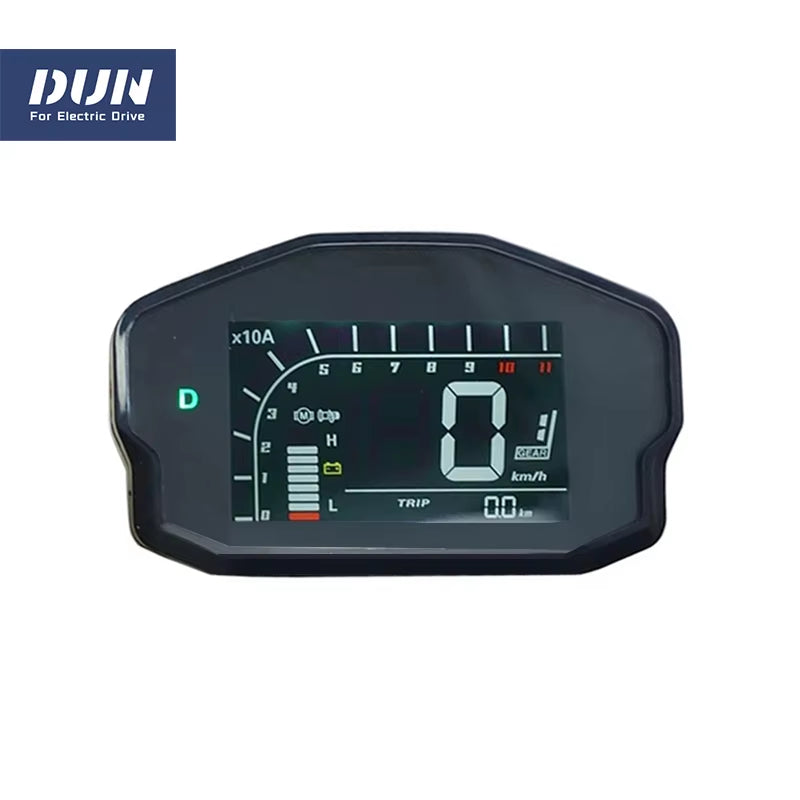

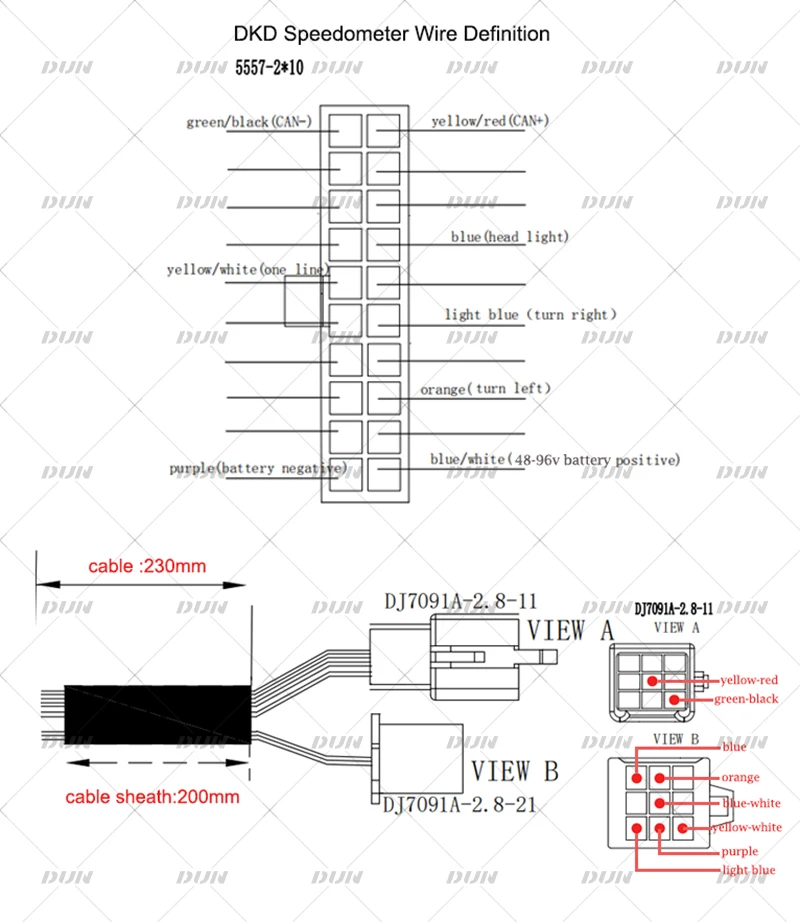

- DKD Display Spec -

NOTICE:
This display can be used in ONE-LIN.

The adjust parameters support: voltage, motor pole pairs, tire perimeter, kmh/mph. This display has more complete functions and easier operation

Click the pic to enter DKD display link to check more details

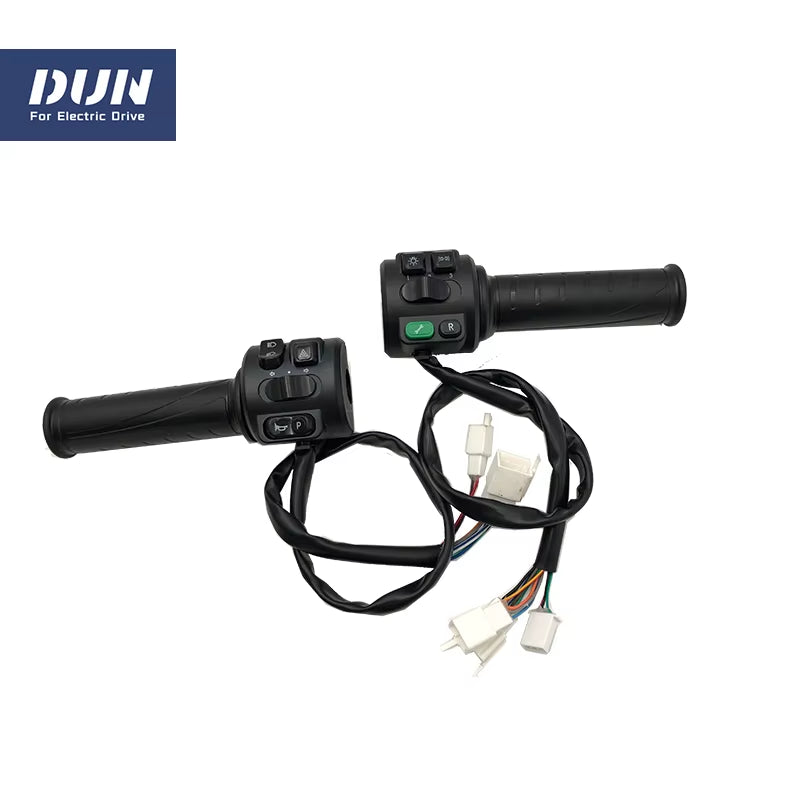

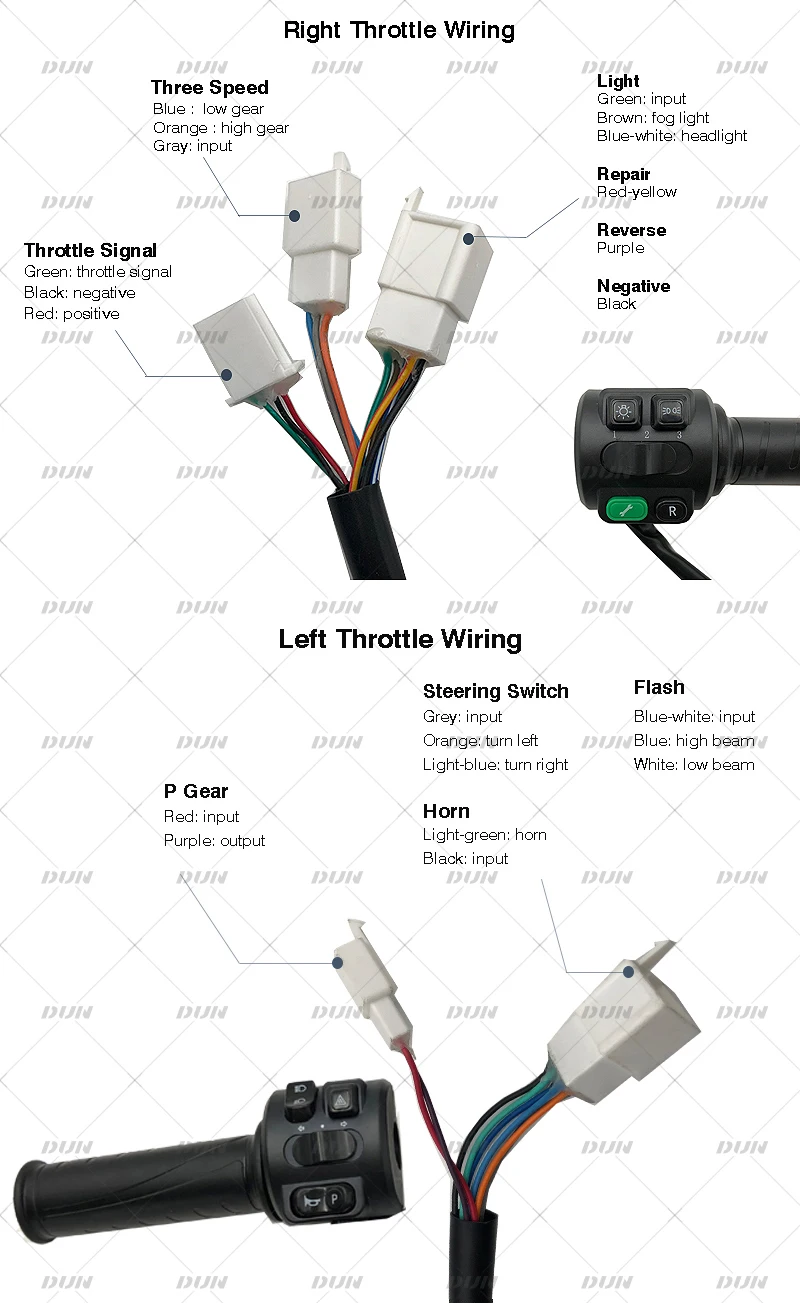

- T08 Throttle Spec -

1) Functions: Three Speed, P Gear, Reverse, One Click Repair, Left Turn Signal, Turn Right Signal, Headlight, Horn, High Beam, Low Beam.
2) The color of the corresponding wire may change. You only need to disassemble the handle when installing, and you can see the wiring at the corresponding position to be clear.
3) At the same time you can connect some function lines to the functions you need.

- Recommendation -

Click the pic to check more QS mid drive motor
