Panda Knomi Display Screen Customize UI OTA Firmware Real-Time Updates for Bambu Lab P1 A1 X1 A1 MINI Panda Branch

Github:https://github.com/bigtreetech/PandaKnomi

Wiki:https://bttwiki.com/PandaKnomi.html

*Important Note: Since the Panda Knomi only uses "non-critical" status communication from printers, it is not affected by any of the authentication processes recently announced by Bambu Lab.

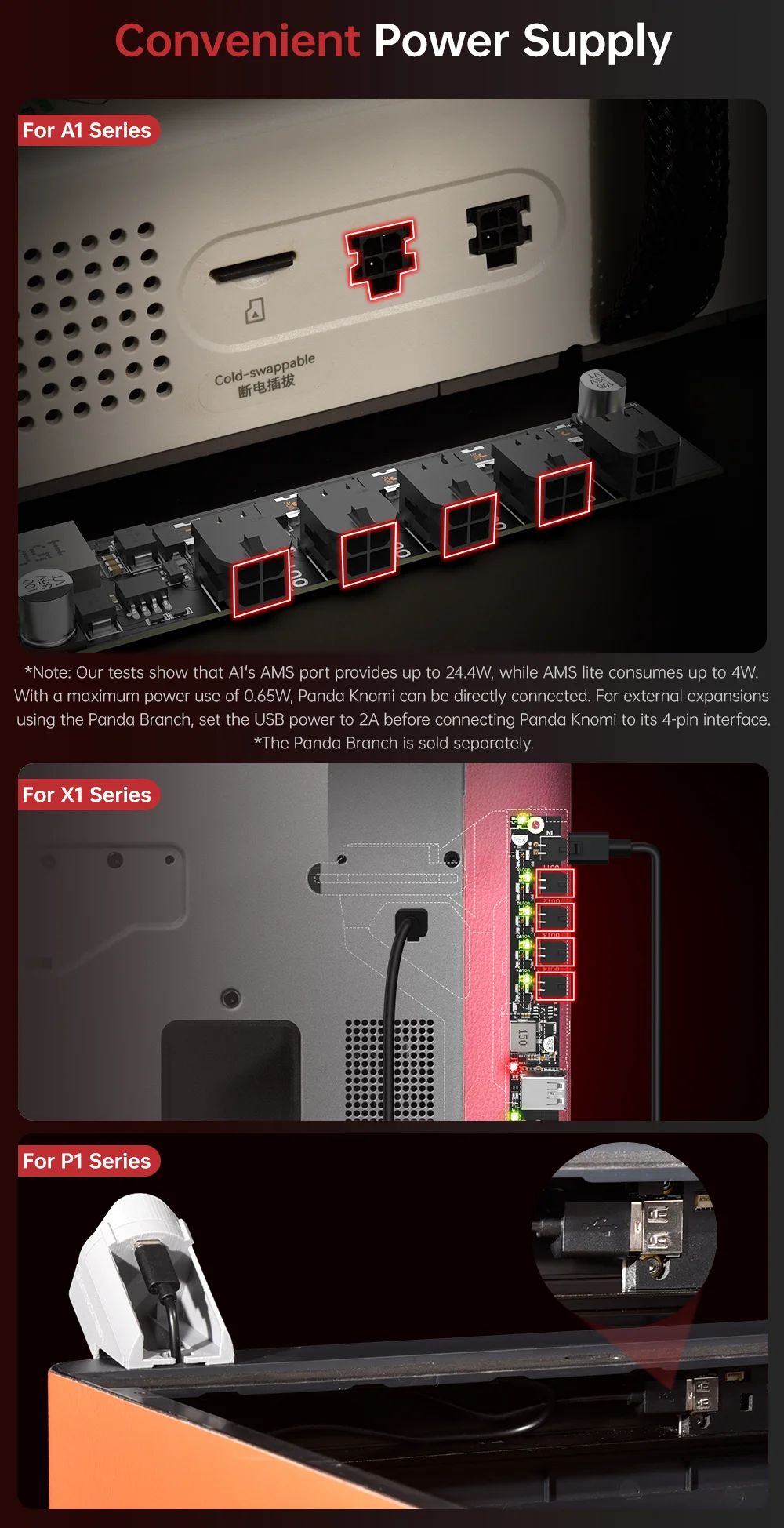

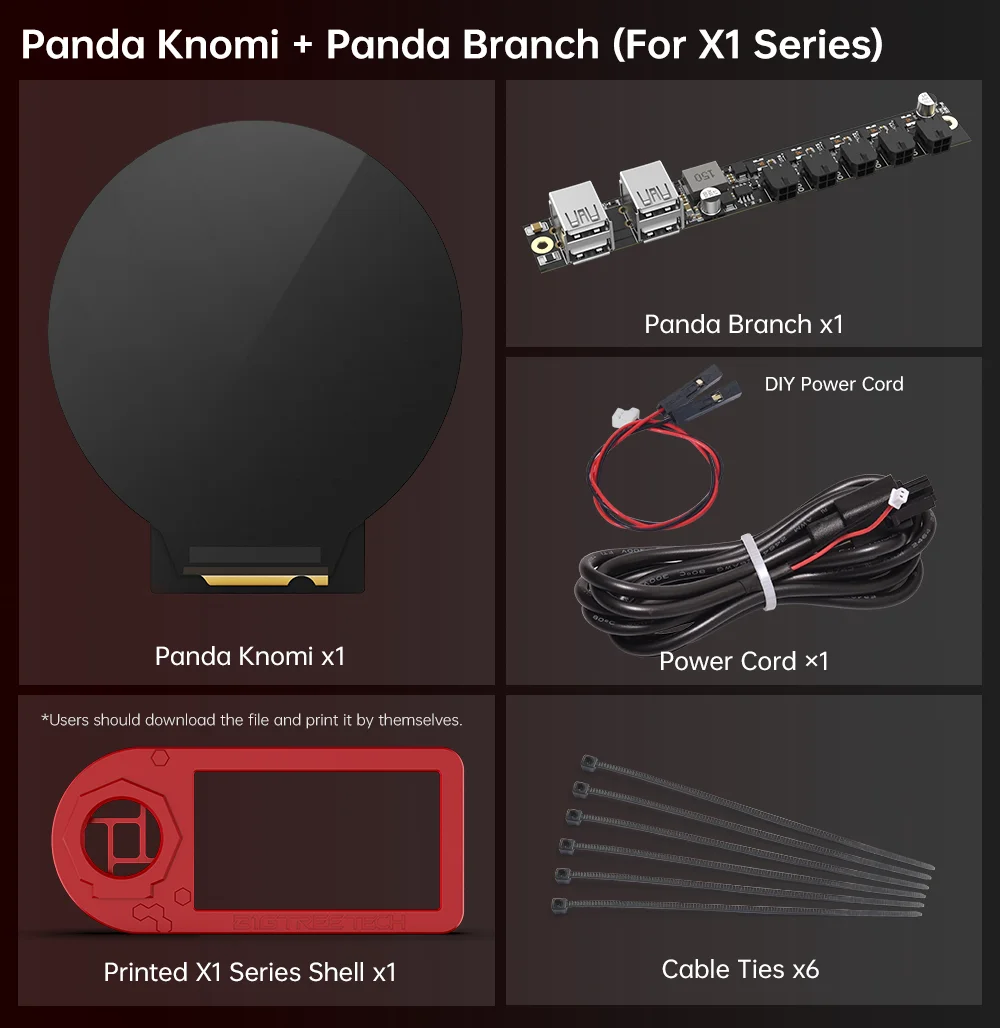

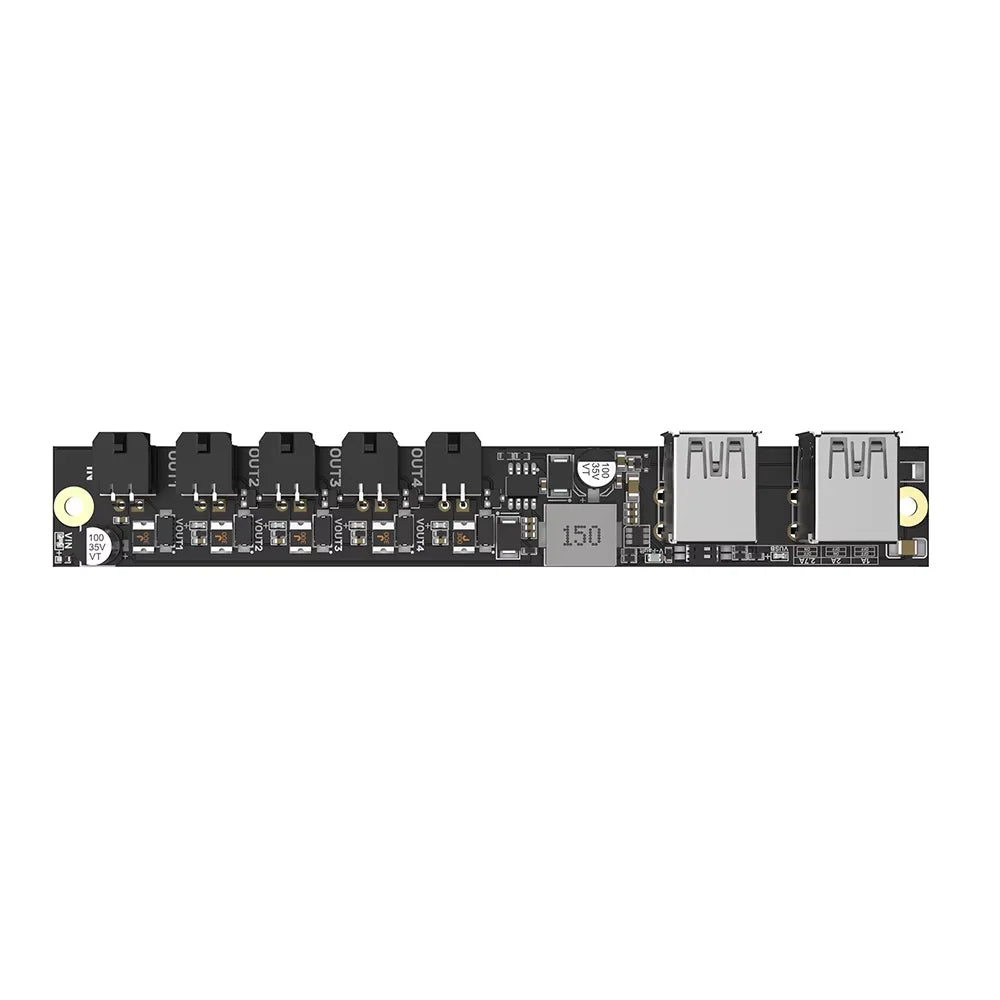

*Note: Our tests show that Al's AMS port provides up to 24.4W, while AMS lite consumes up to 4W.With a maximum power use of 0.65W, Panda Knomi can be directly connected. For external expansions using the Panda Branch, set the USB power to 2A before connecting Panda Knomi to its 4-pin interface.

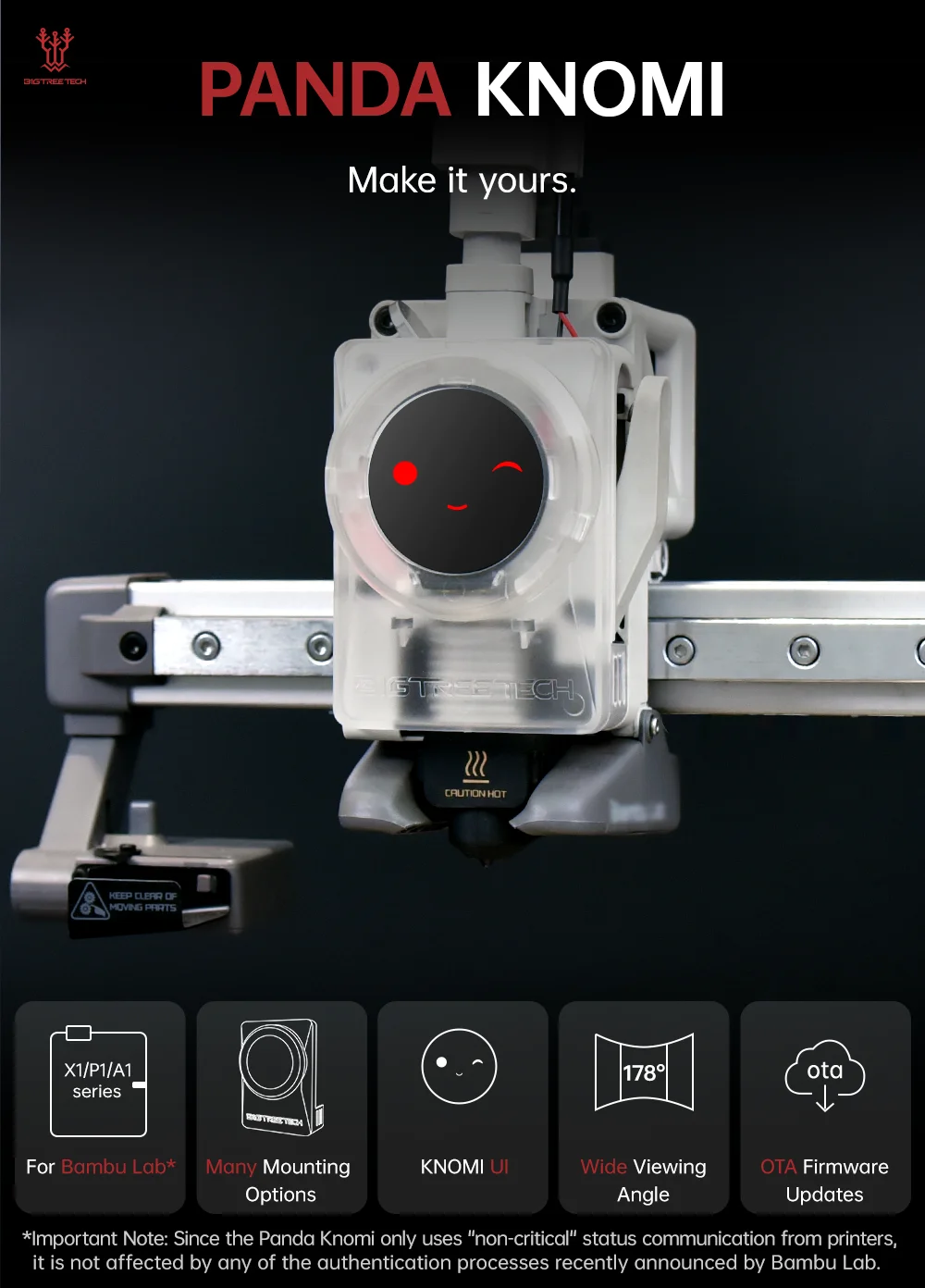

Why PANDA KNOMI?

• For Bambu Lab

• Many Mounting Options

• KNOMI UI

• Wide Viewing Angle

• OTA Firmware Updates

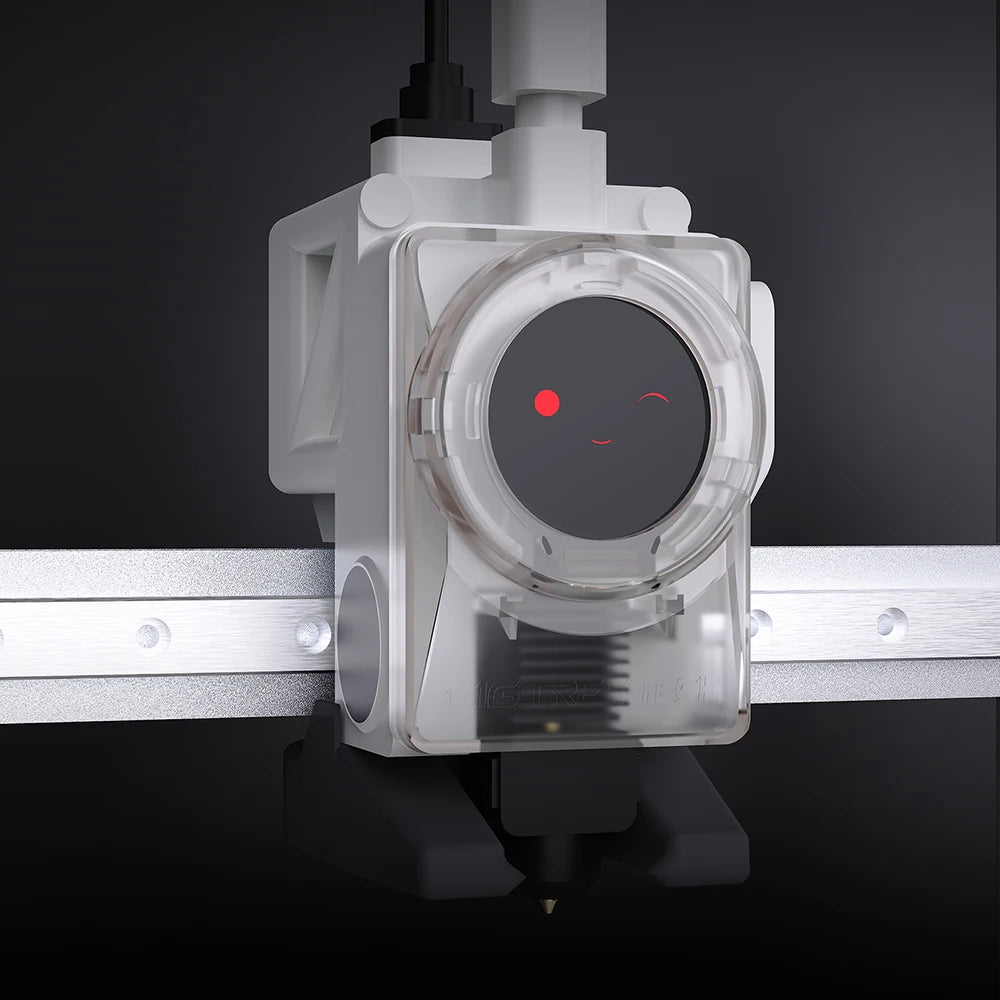

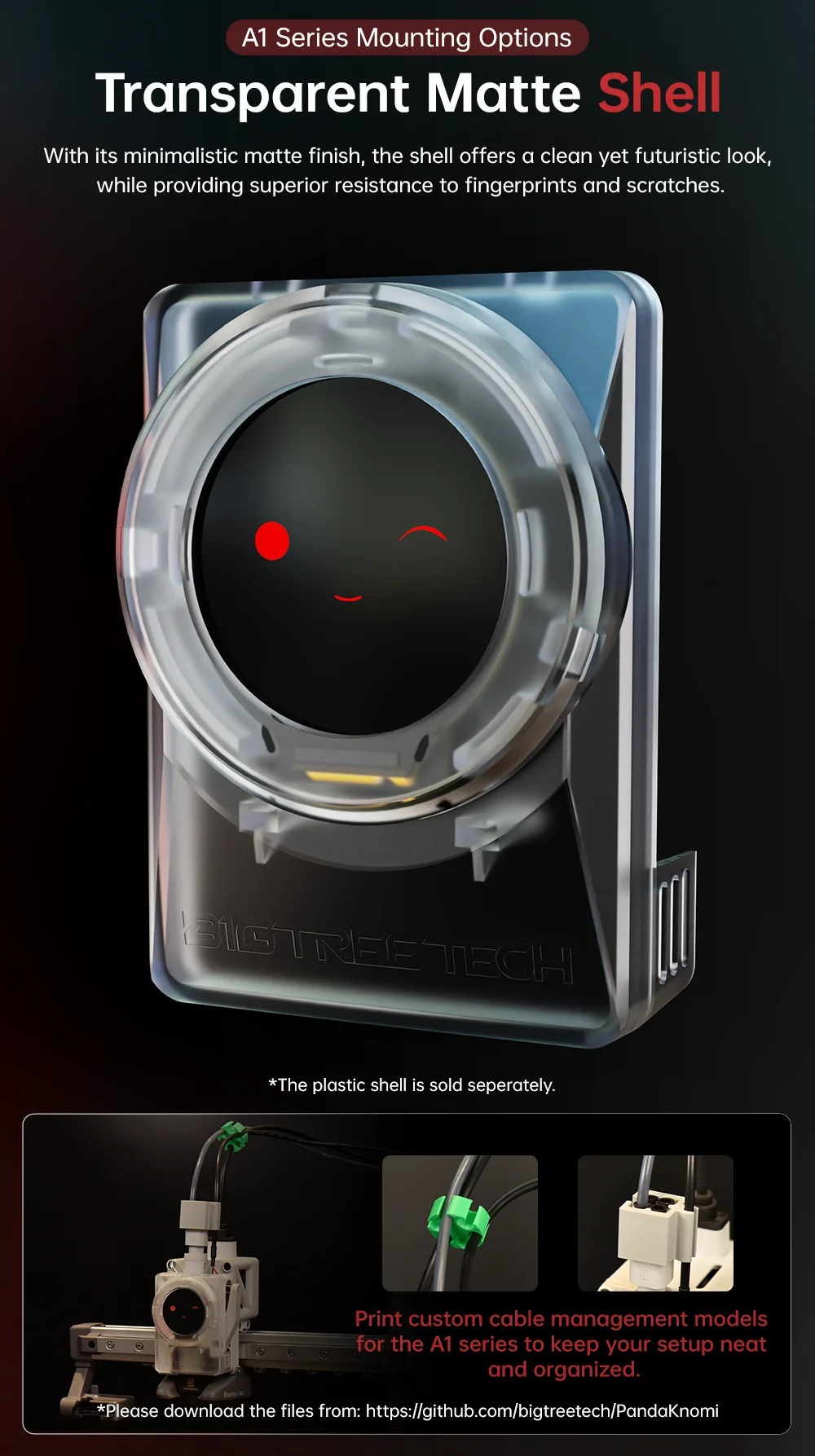

A1 Series Mounting Options

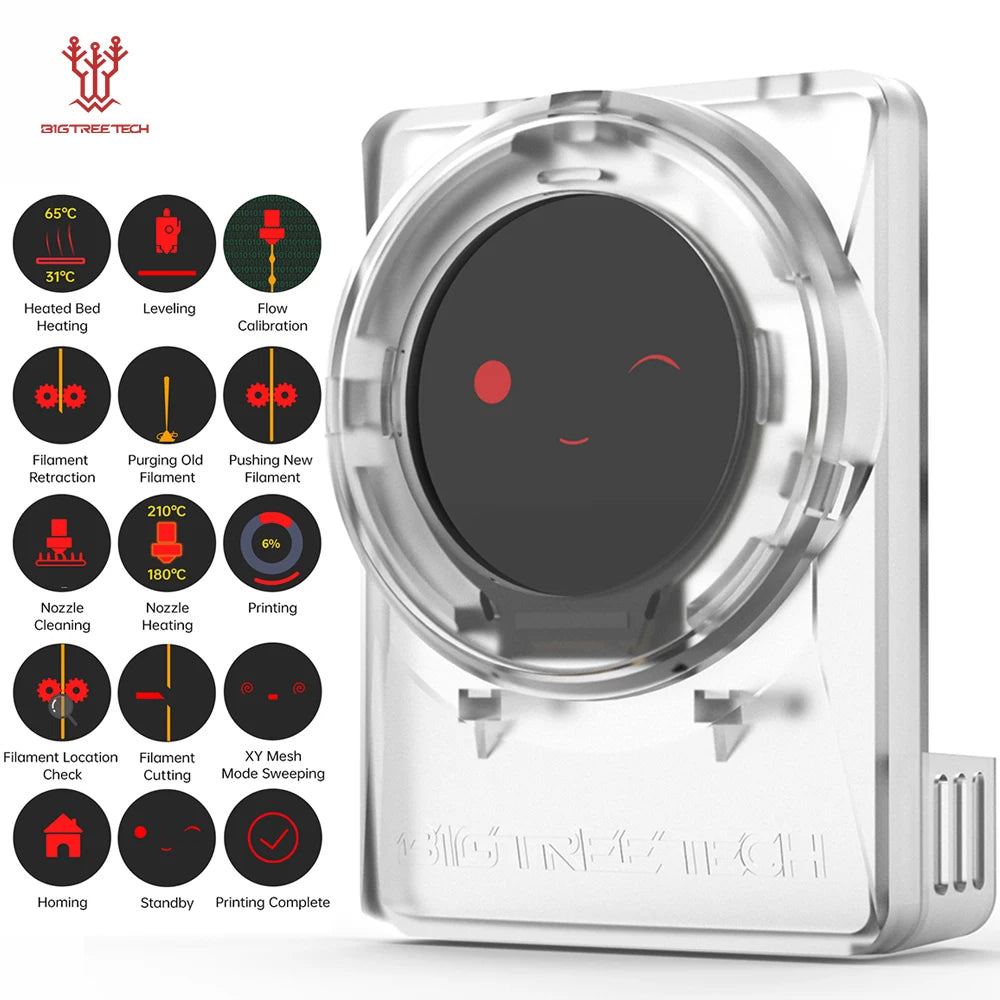

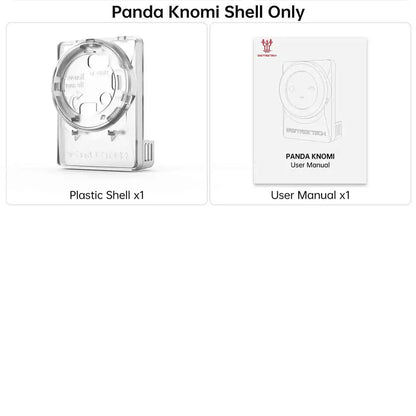

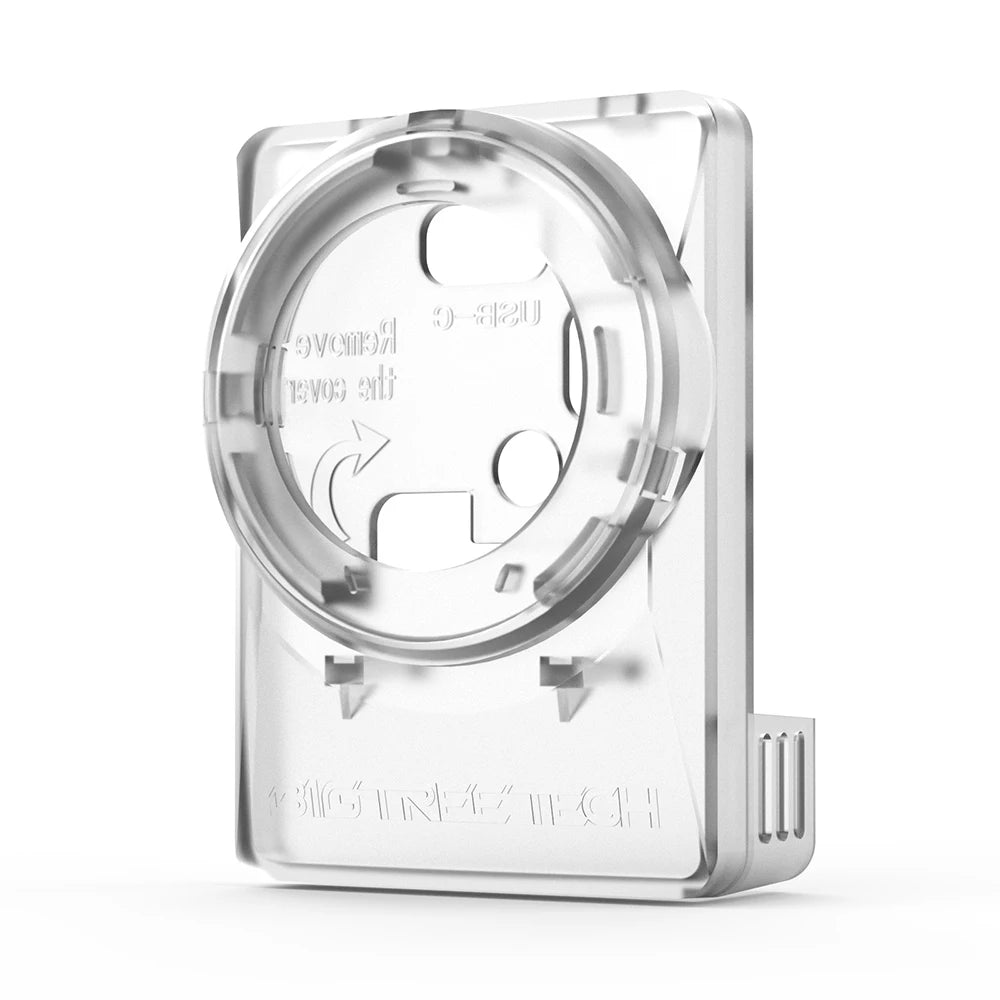

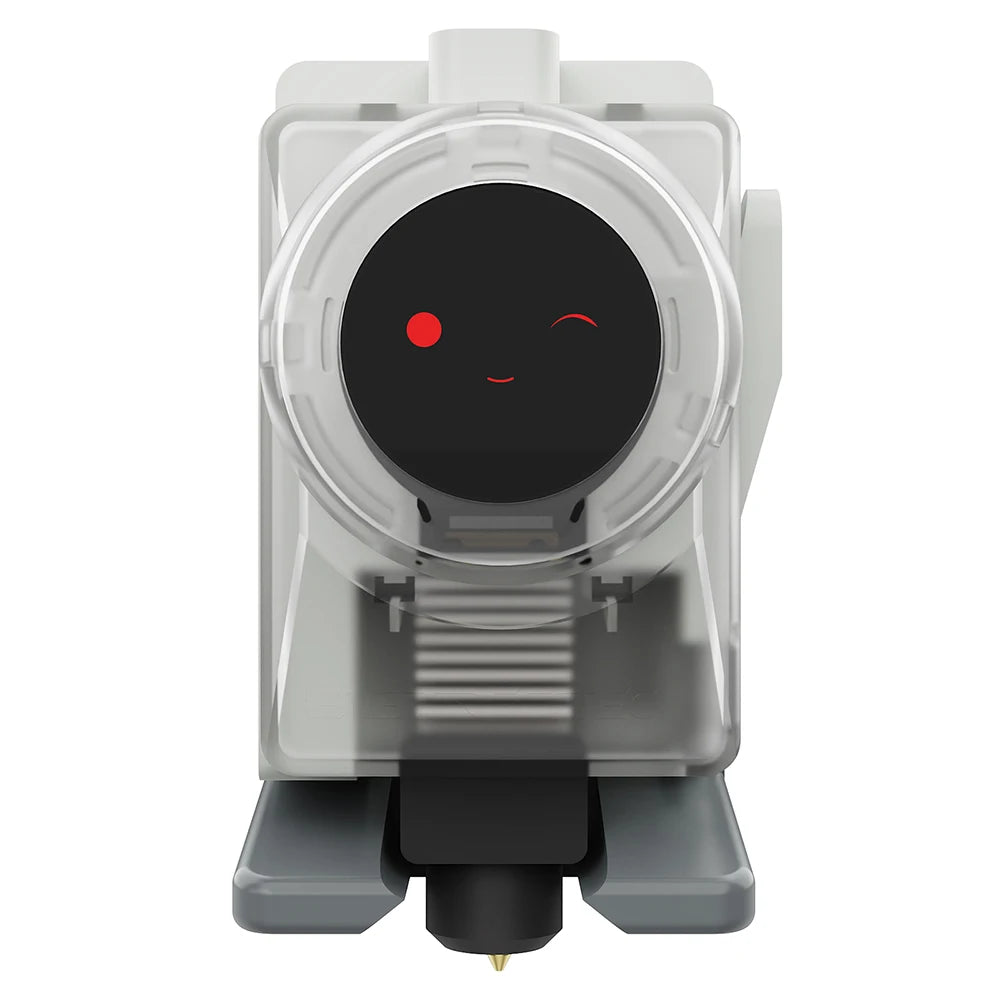

Transparent Matte Shell

With its minimalistic matte finish, the shell offers a clean yet futuristic look, while providing superior resistance to fingerprints and scratches.

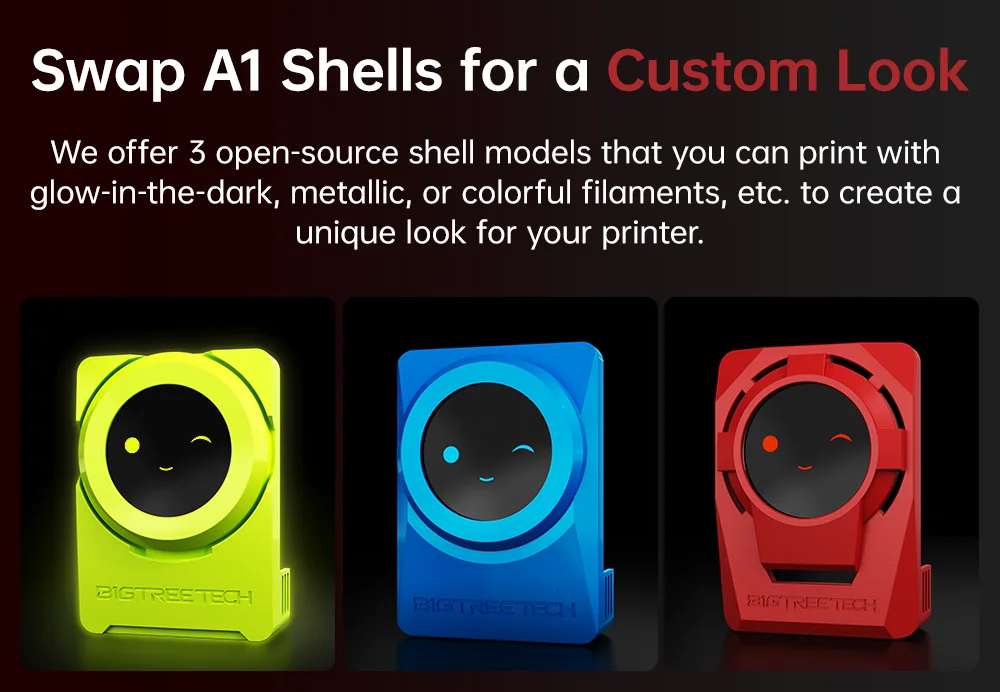

Swap A1 Shells for a Custom Look

We offer 3 open-source shell models that you can print with glow-in-the-dark, metallic, or colorful filaments, etc. to create a unique look for your printer.

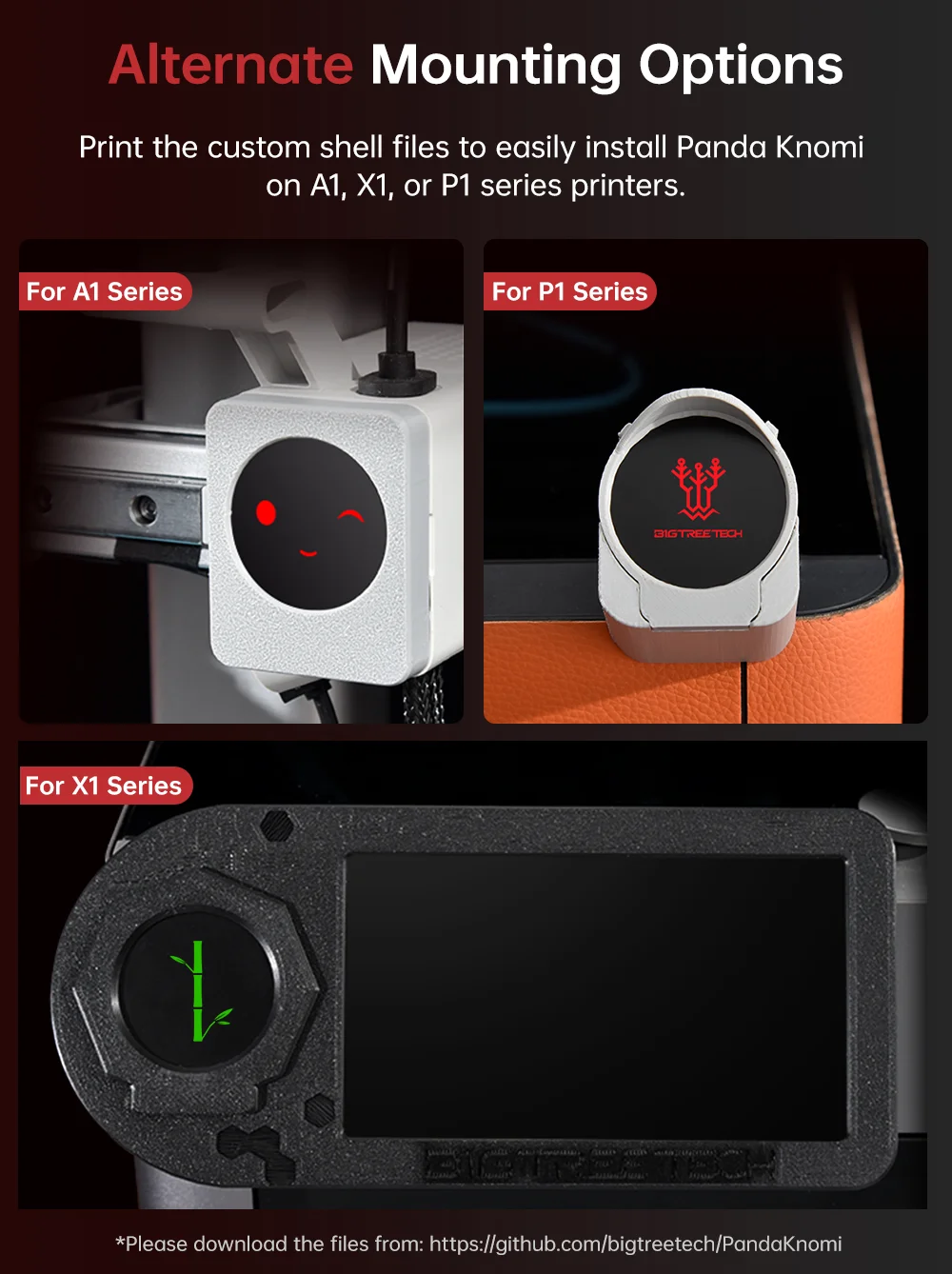

Alternate Mounting Options

Print the custom shell files to easily install Panda Knomi on A1, X1, or P1 series printers.

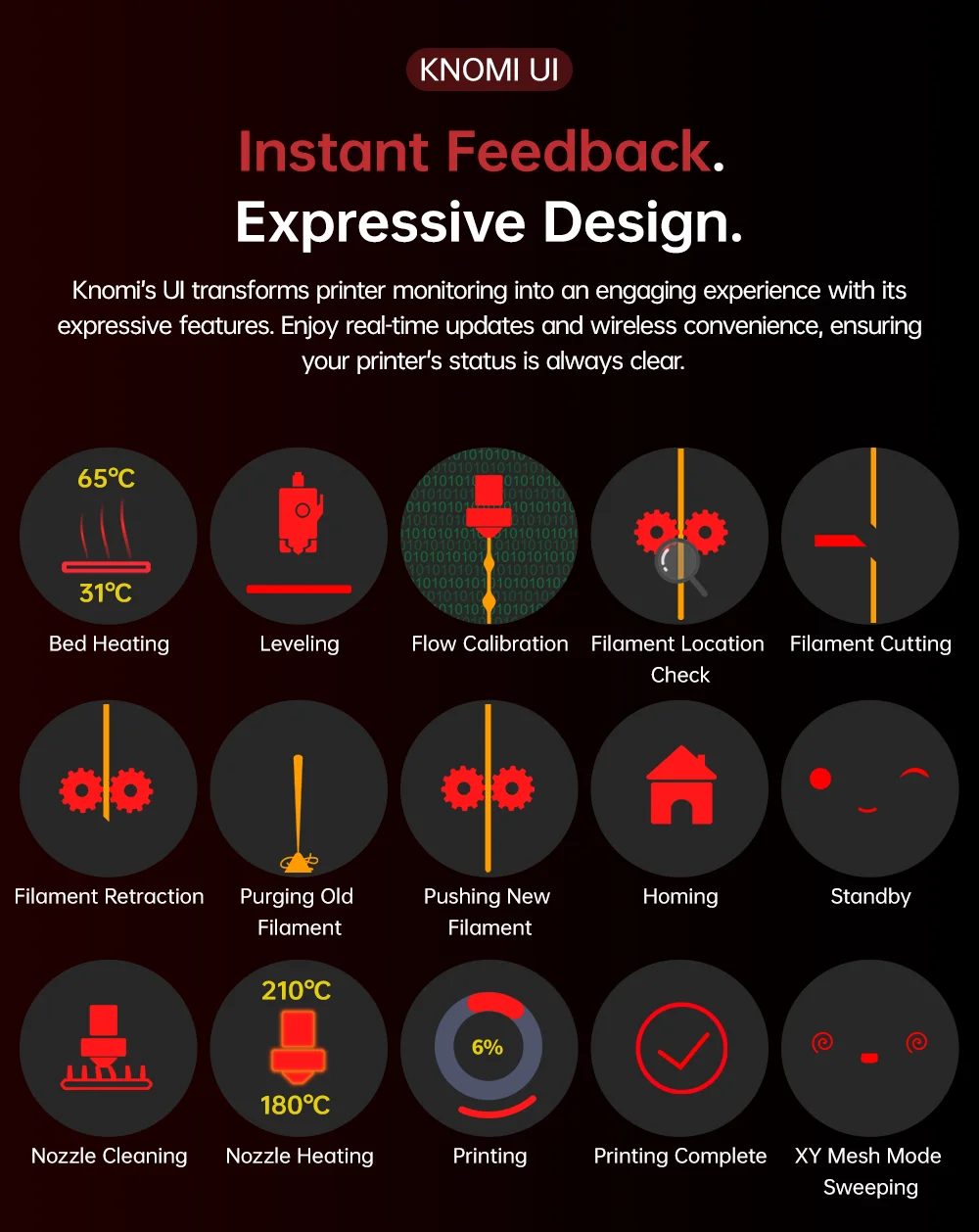

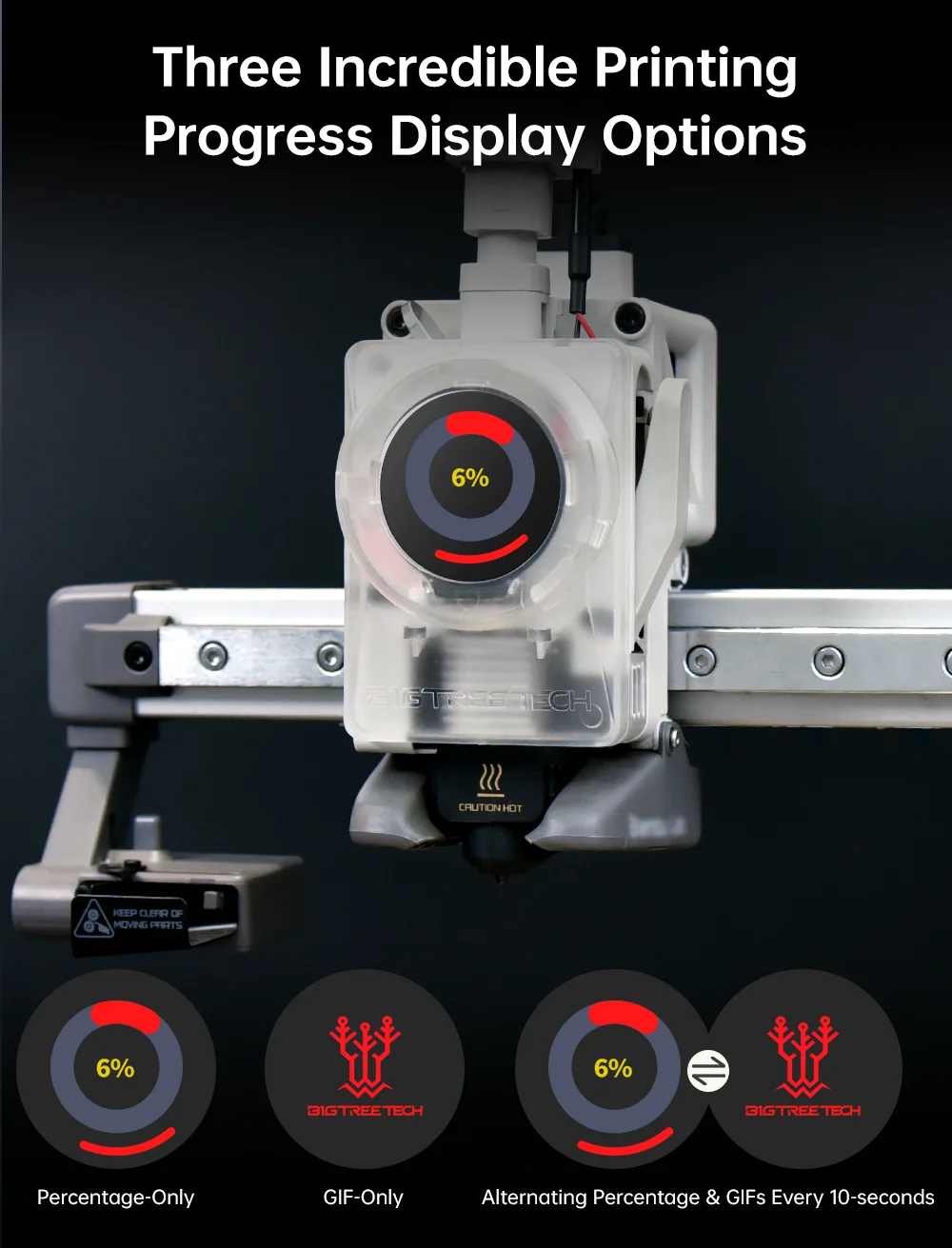

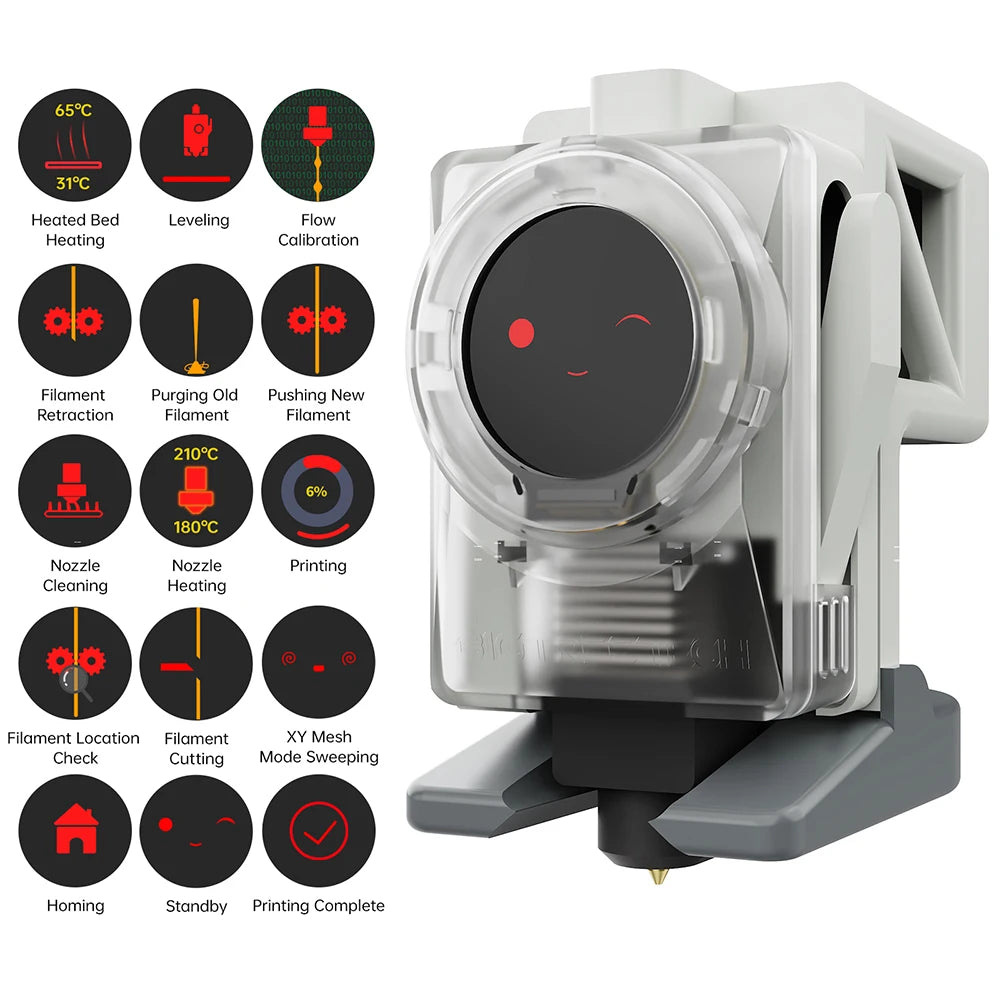

Instant Feedback. Expressive Design.

Knomi’s UI transforms printer monitoring into an engaging experience with its expressive features. Enjoy real-time updates and wireless convenience, ensuring your printer's status is always clear.

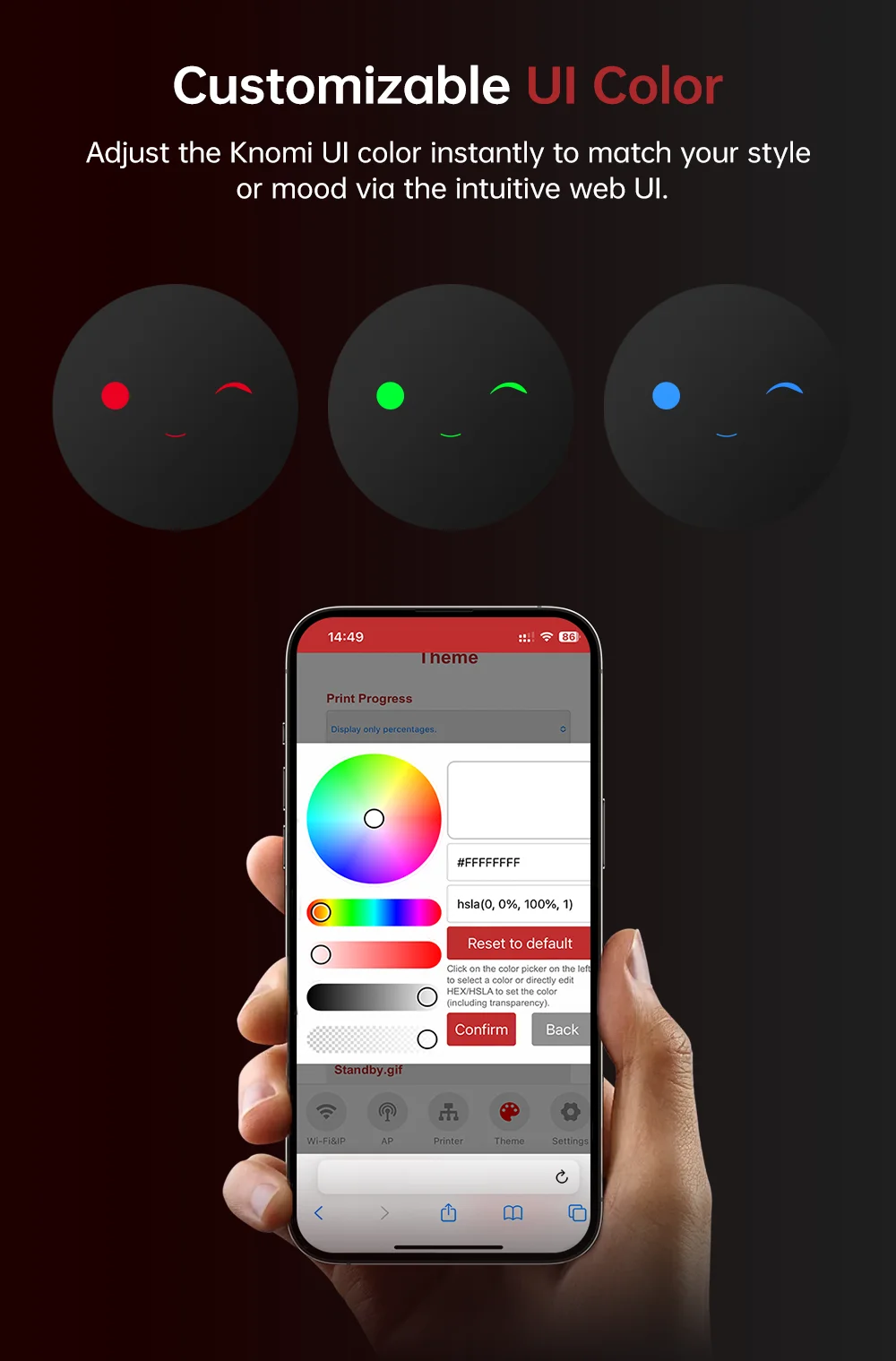

Customizable UI Color

Adjust the Knomi Ul color instantly to match your style or mood via the intuitive web Ul.

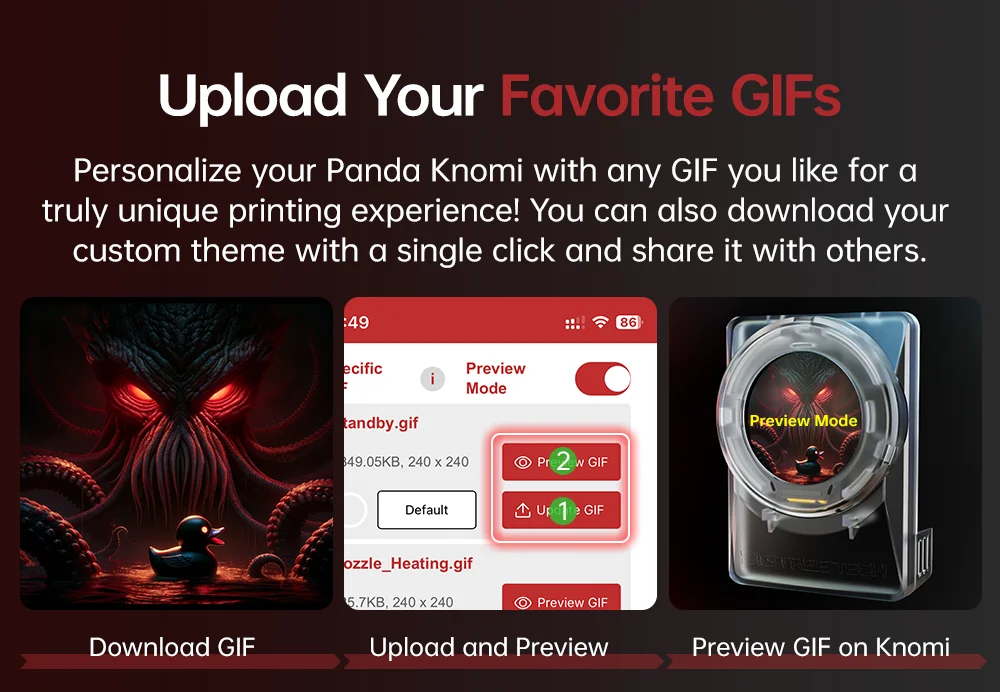

Upload Your Favorite GIFs

Personalize your Panda Knomi with any GIF you like for a truly unique printing experience! You can also download your custom theme with a single click and share it with others.

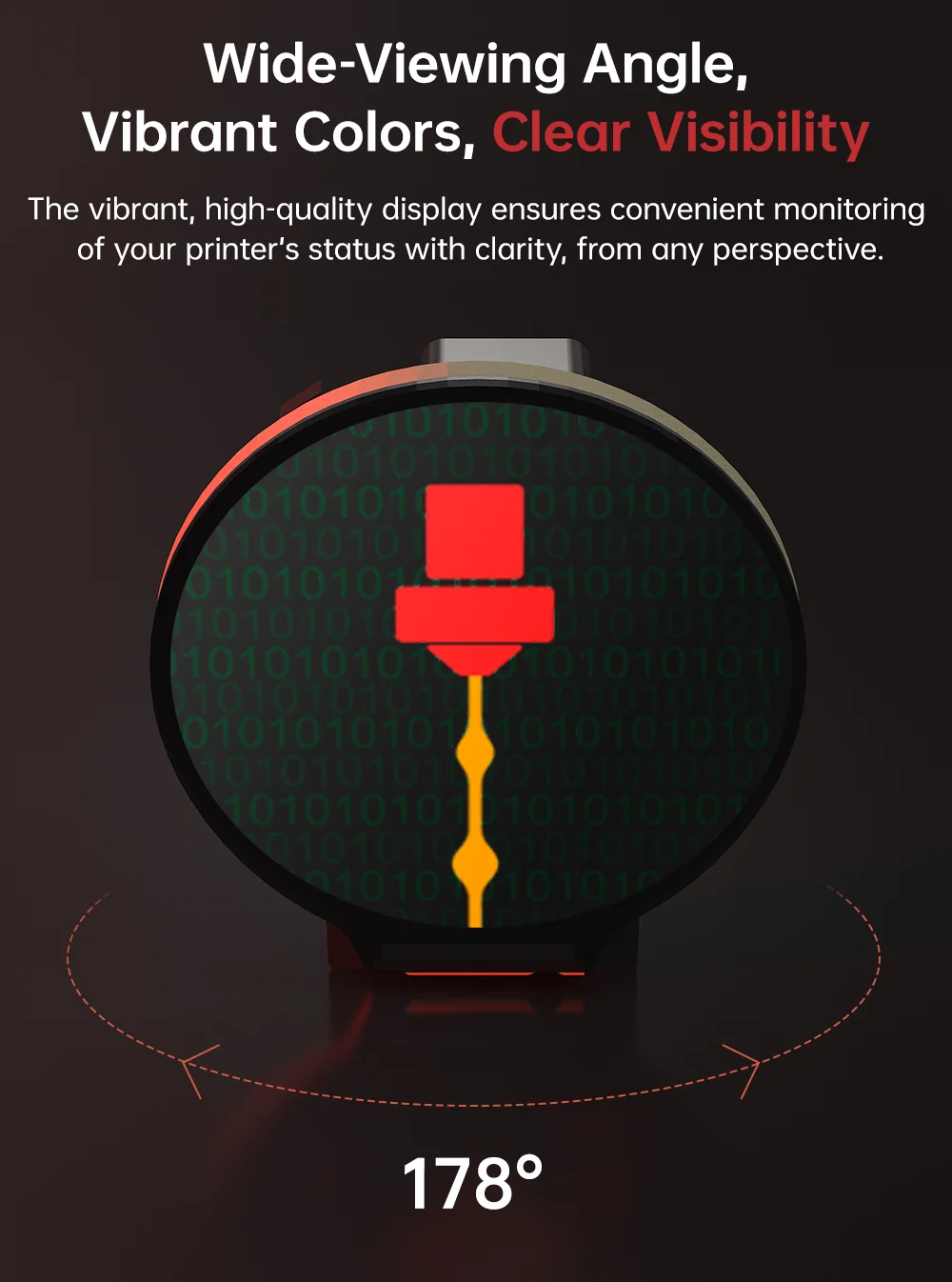

Wide-Viewing Angle,Vibrant Colors,Clear Visibility

The vibrant, high-quality display ensures convenient monitoring of your printer’s status with clarity, from any perspective.

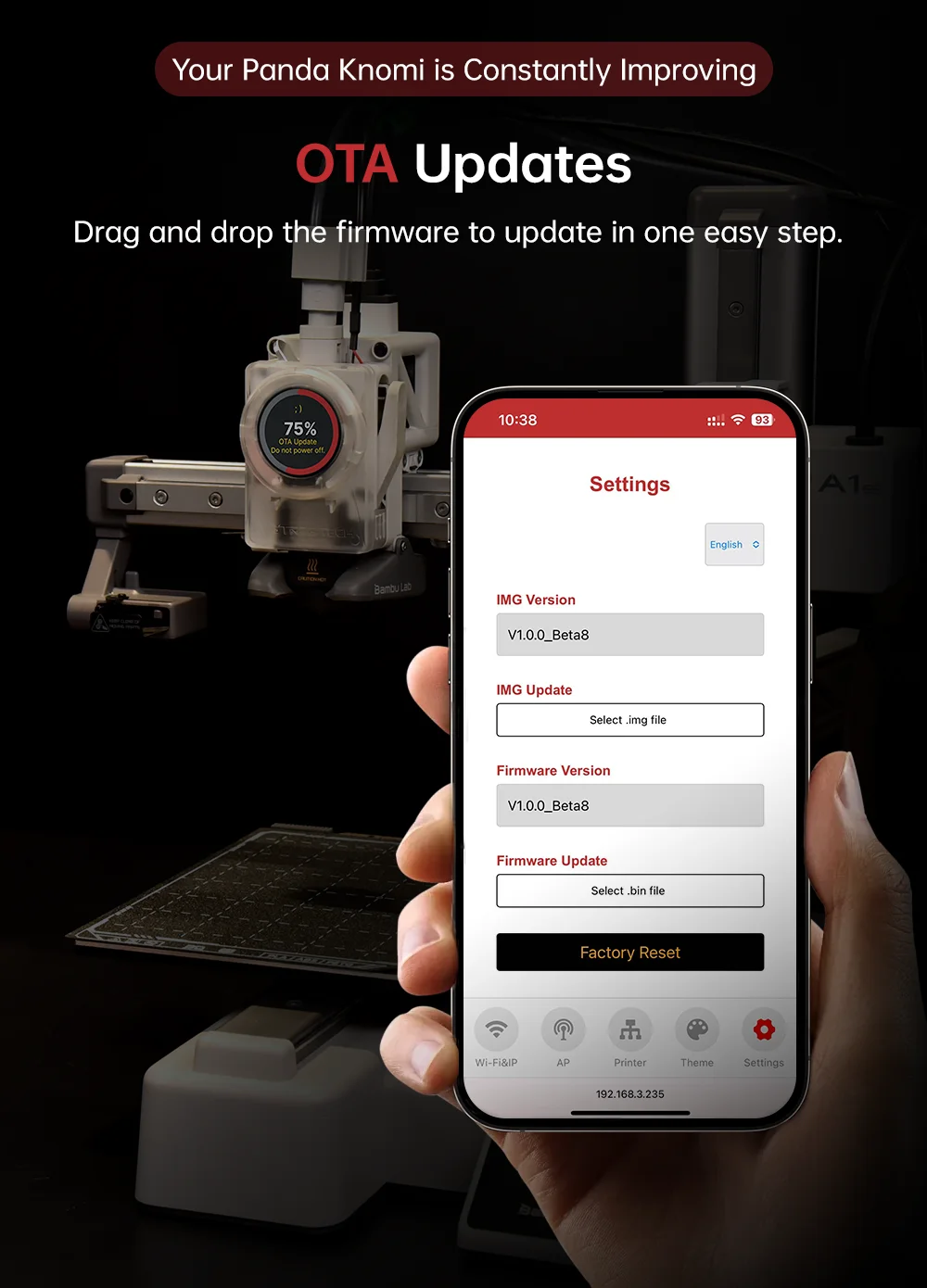

OTA Updates

Drag and drop the firmware to update in one easy step.

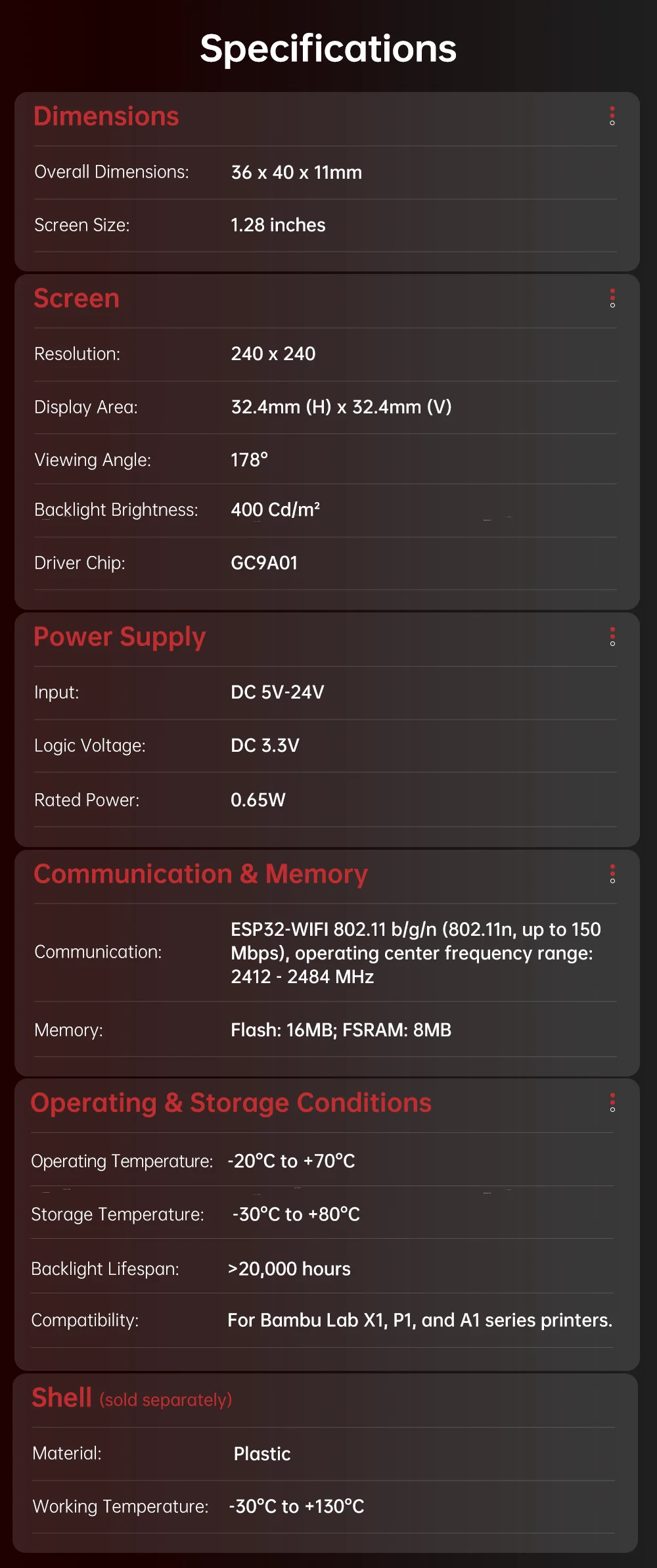

Specifications

Dimensions

Overall Dimensions: 36 x 40 x 11mm

Screen Size: 1.28 inches

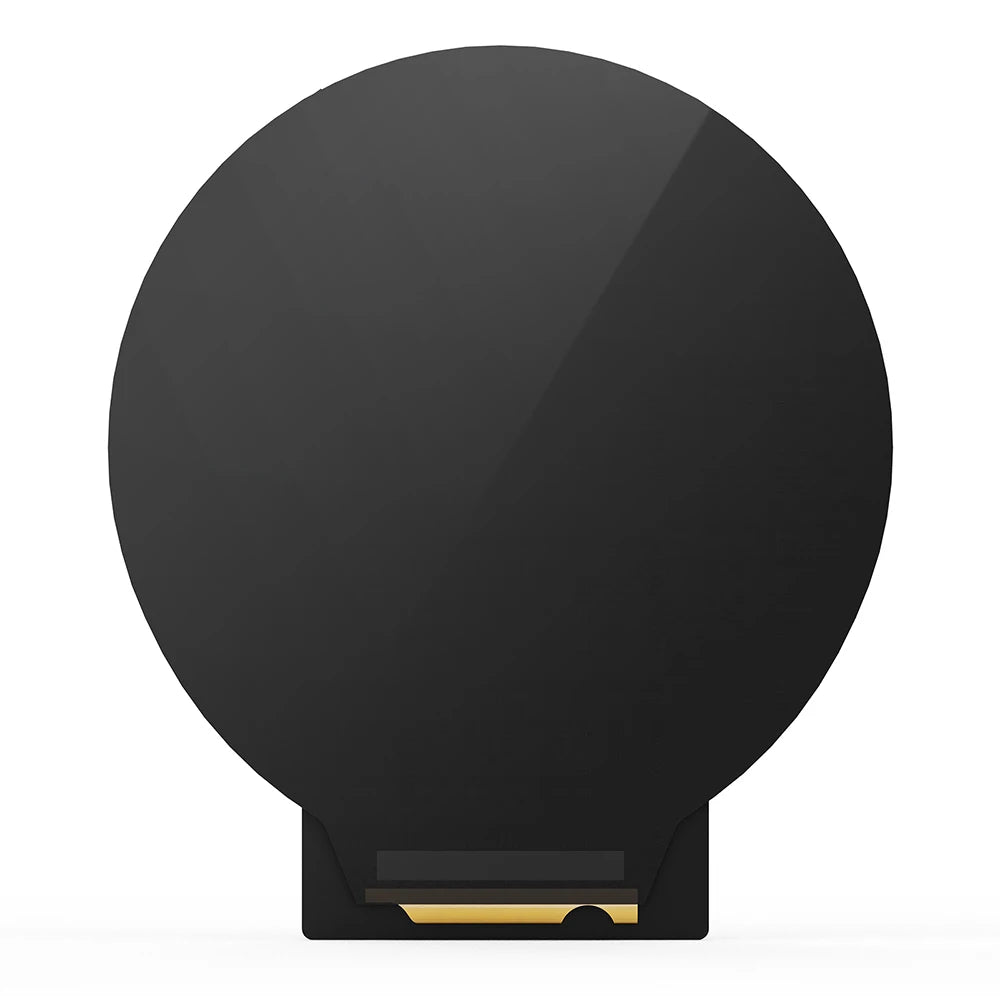

Screen

Resolution: 240 x 240

Display Area: 32.4mm (H) x 32.4mm (V)

Viewing Angle: 178°

Backlight Brightness: 400 Cd/m²

Driver Chip: GC9A01

Power Supply

Input: DC 5V-24V

Logic Voltage: DC 3.3V

Rated Power: 0.65W

Communication&Memory

Communication: ESP32-WIFI 802.11 b/g/n (802.11n, up to 150 Mbps), operating center frequency range: 2412 - 2484 MHz

Memory: Flash: 16MB; FSRAM: 8MB

Operating&Storage Conditions

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Backlight Lifespan: >20,000 hours

Compatibility: For Bambu Lab X1,P1,and A1 series printers

Shell

Material: Plastic

Working Temperature: -30°C to +130°C
