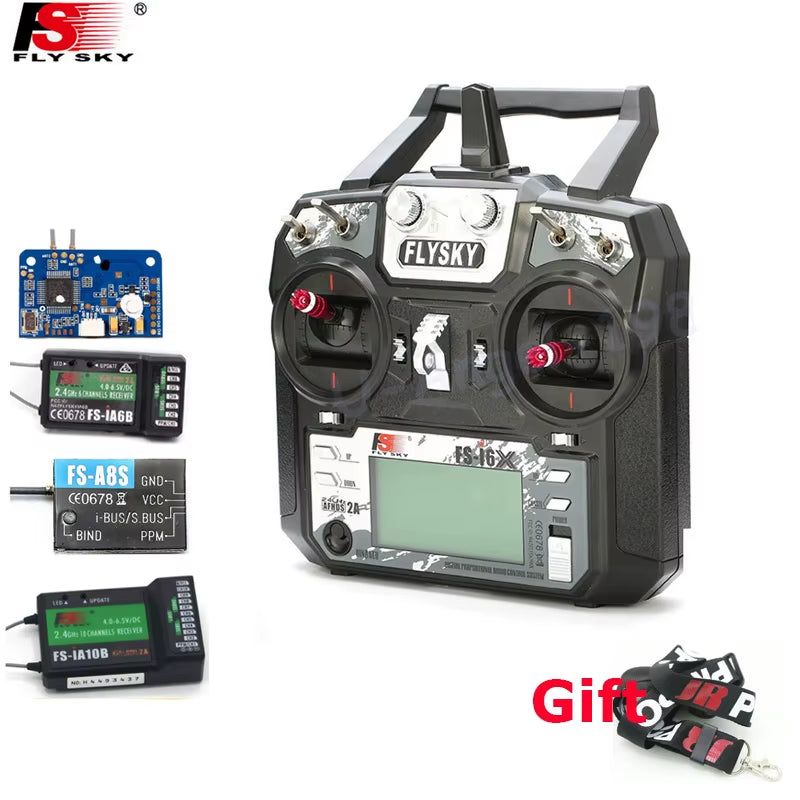

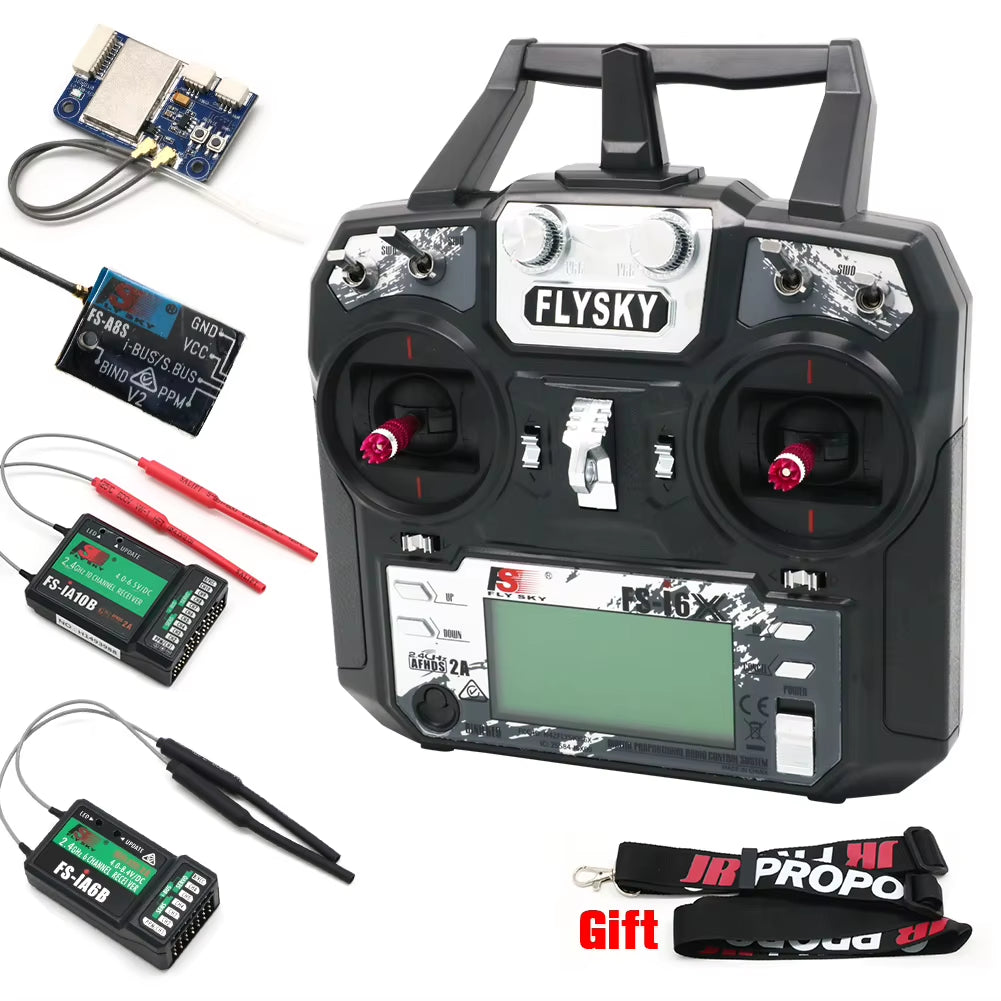

Original Flysky Fs-I6X 10CH 2.4Ghz AFHDS 2A RC Transmitter with Fs-Ia6B Fs-Ia10B FS-X6B FS-A8S Receiver for Rc Airplane Drone

FS-i6X Specifications:

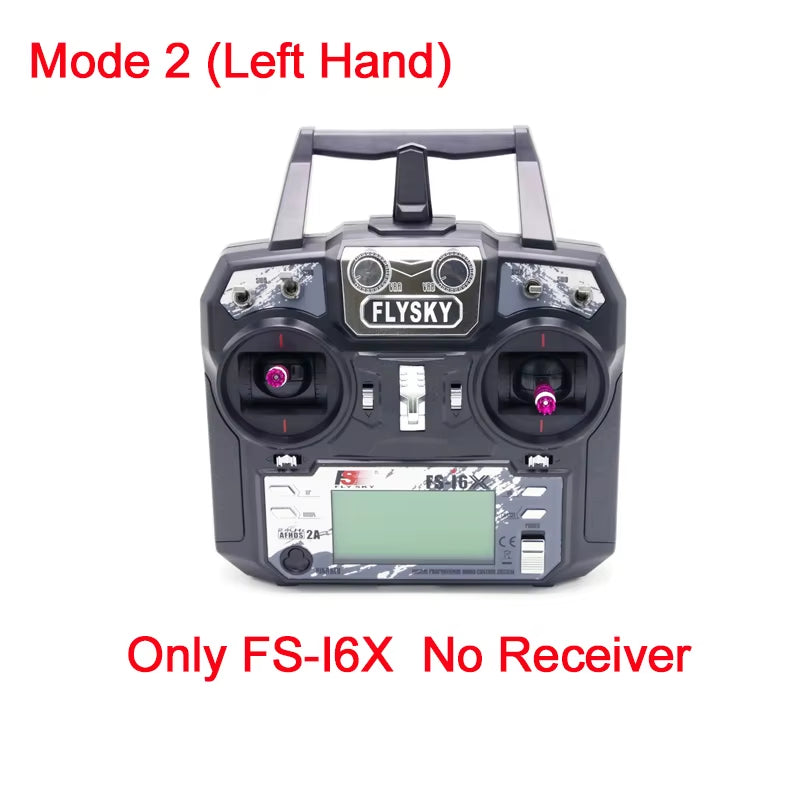

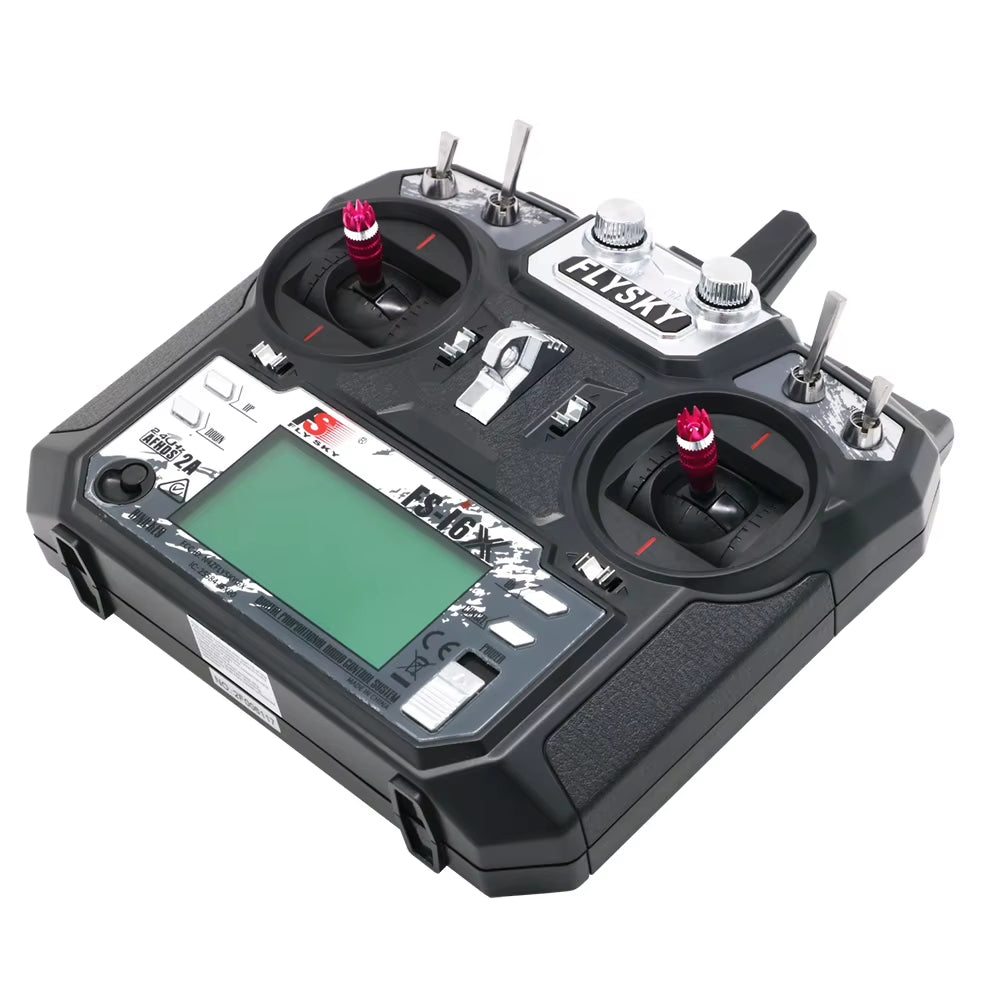

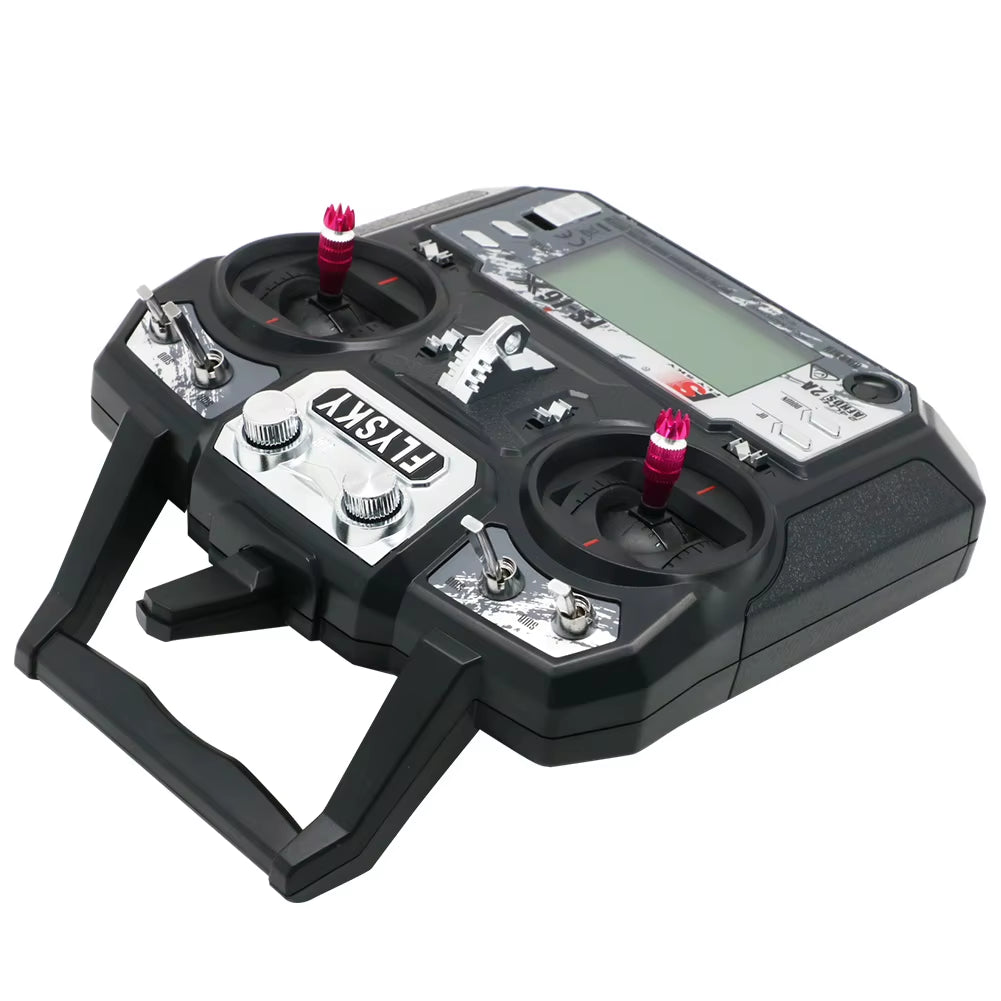

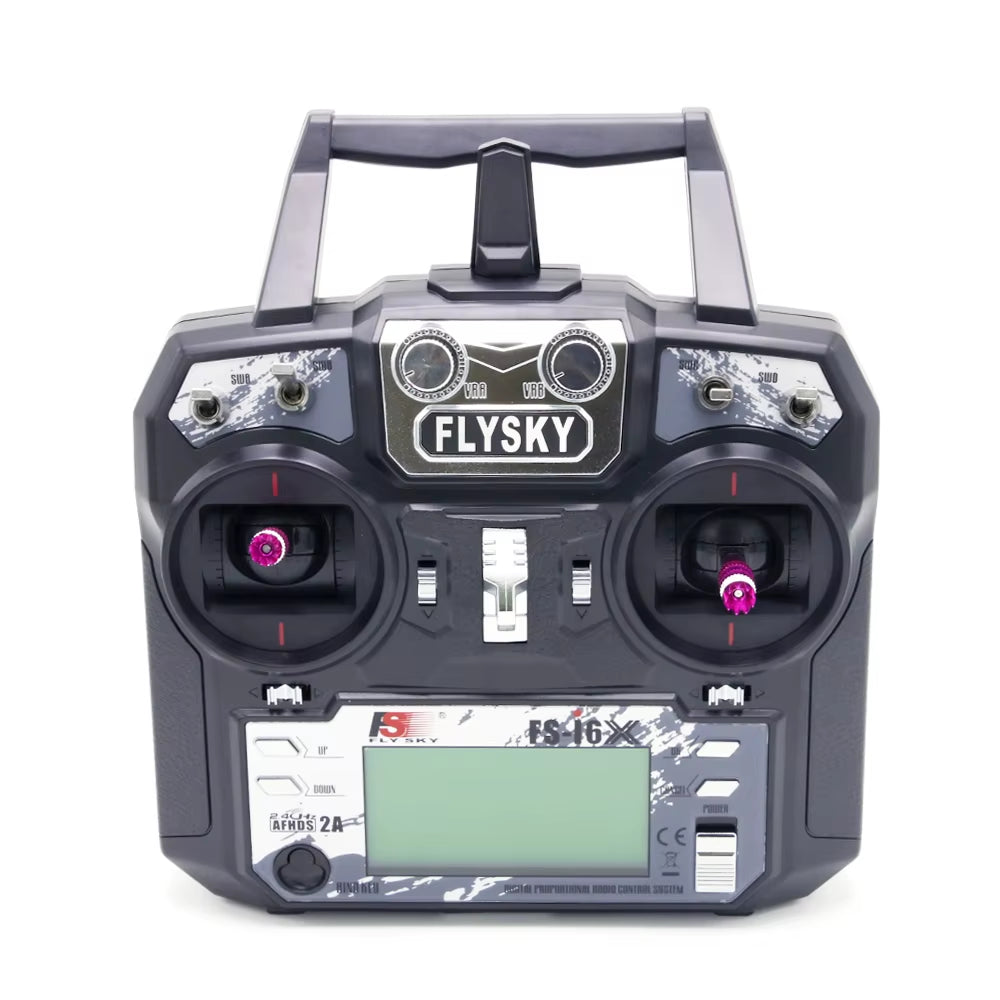

Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

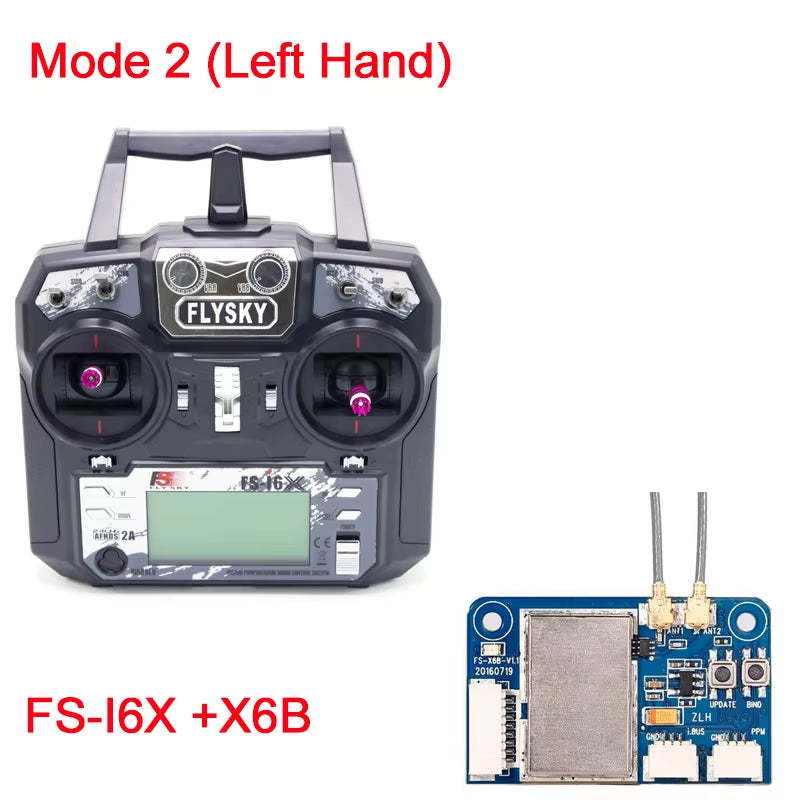

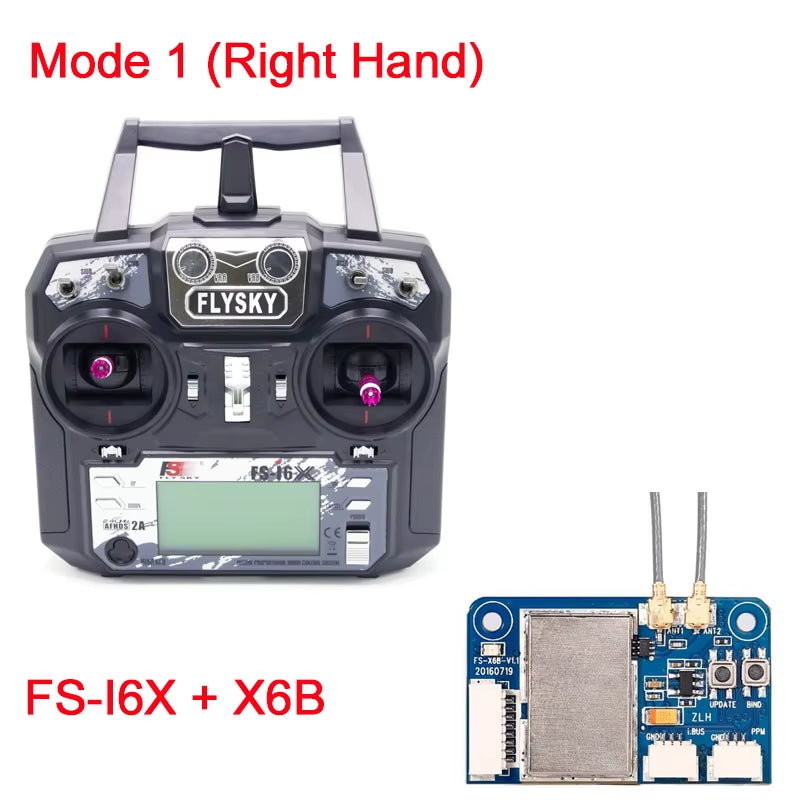

X6B i-BUS Specifications:

Brand Name: Flysky

Item: X6B i-BUS Receiver

Channels: 6(PWM), 8(PPM), 18(i-BUS)

Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz

Number of bands: 135

RF Power: No more than 20 dBm

RX Sensitivity: -95dBm

2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS

Antenna Length: 93mm (Dual Antenna)

Power input: 4.0-8.4V
On-line Update: Yes(Wireless)

Range: >300m

Weight: 4.5g

Size: 36*22*7.5mm

i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00

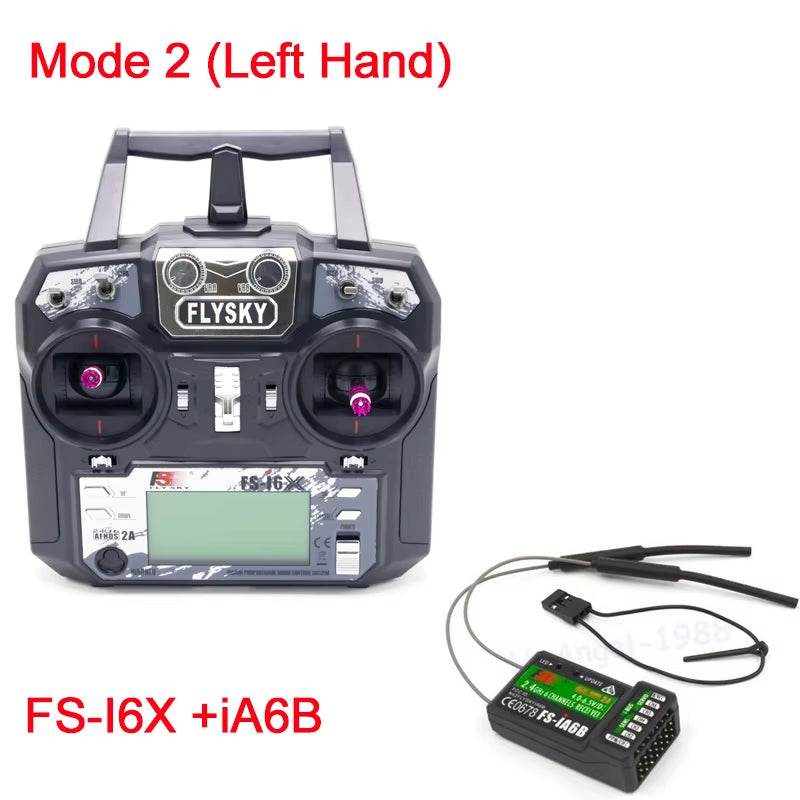

Item Name: IA6B
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 14.9g
Antenna lenght: 26mm
Size: 47.4*262.2*15 mm
Certificate: CE ,FCC

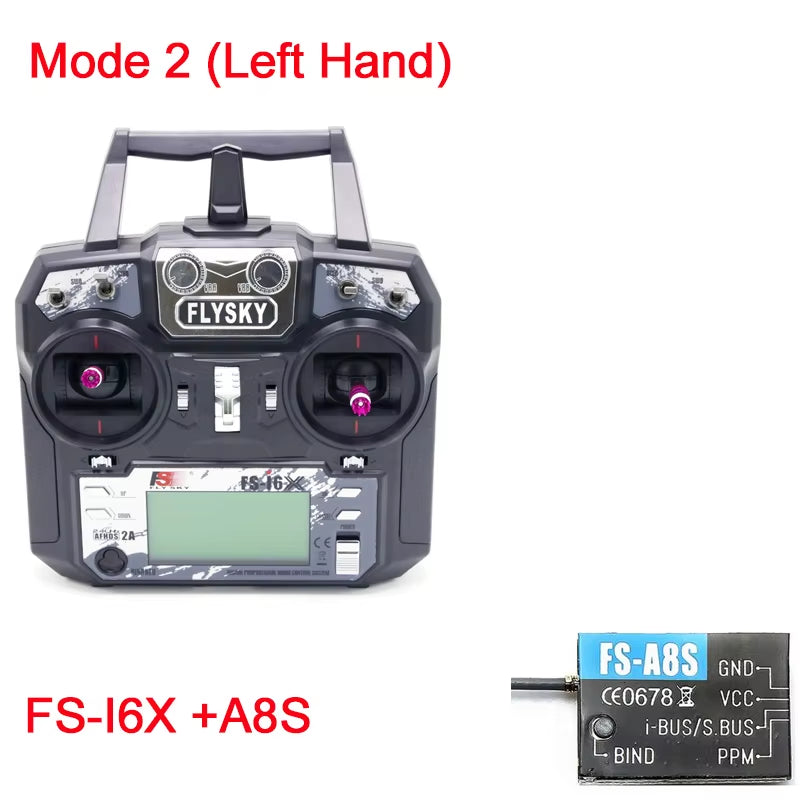

FS-A8S:

Brand Name:Flysky

Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH

Model type: Multi-rotor

Frequency range: 2.408-2.475GHz

b and width: 500KHz

b and number: 135
RX Sensitivity: -92 dBm

2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS

Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS

Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS

Size: 20*14*5.3mm

Weight: 1.2g

Certificate: CE0678, FCCID: N45ZA8S00

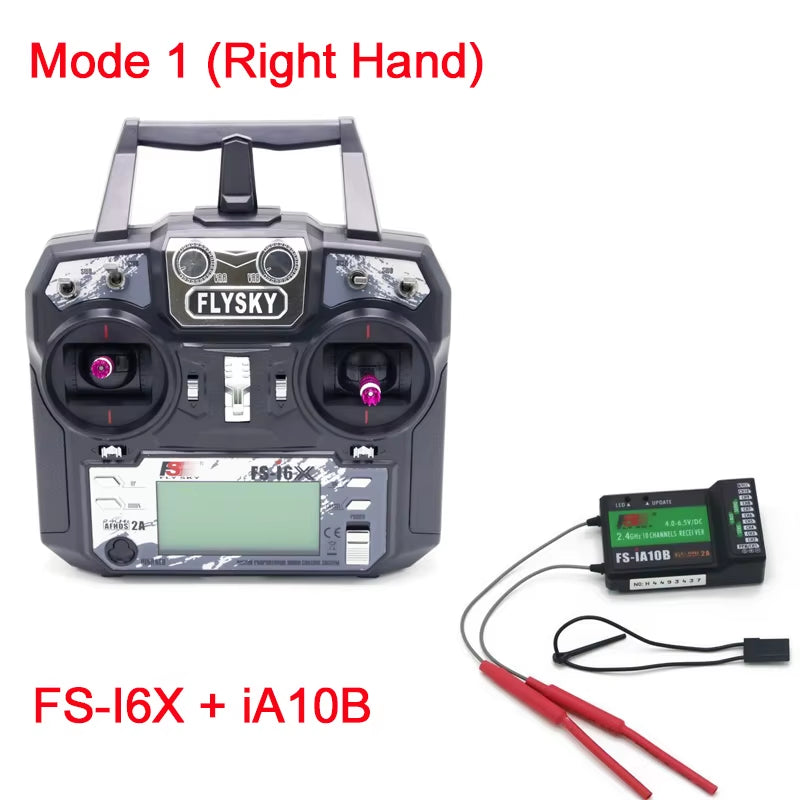

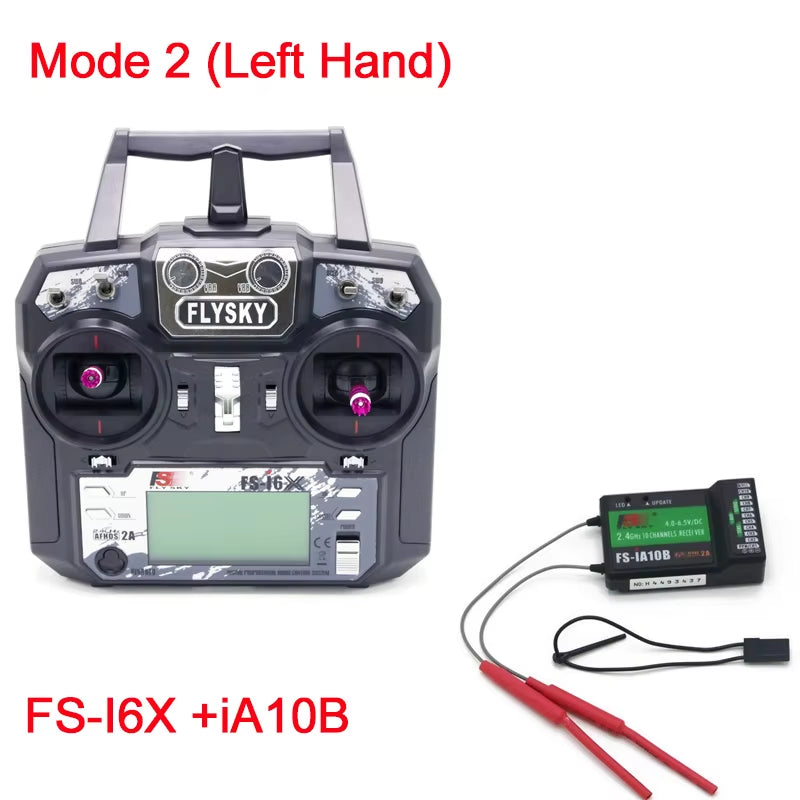

FS-IA10B:

Number of Channels: 10
Suitable models: Airplane / glider / helicopter Health
Frequency range :2.4-2 .48 GHz
Number of newspapers: 160
Transmitting power: not more than 20dBm
Receiver sensitivity:-105dBm
2.4G modes: automatic frequency second generation digital system
Encoding: GFSK
Antenna length: 26 mm * 2 (dual antenna)
Weight: 19.3 g
Input power :4.0-6 .5 V DC
Dimensions: 47 * 33.1 * 14.7 mm
Color: Black
Certification: CE0678, FCC
i-BUS Interface: Yes
Data acquisition interface: Yes

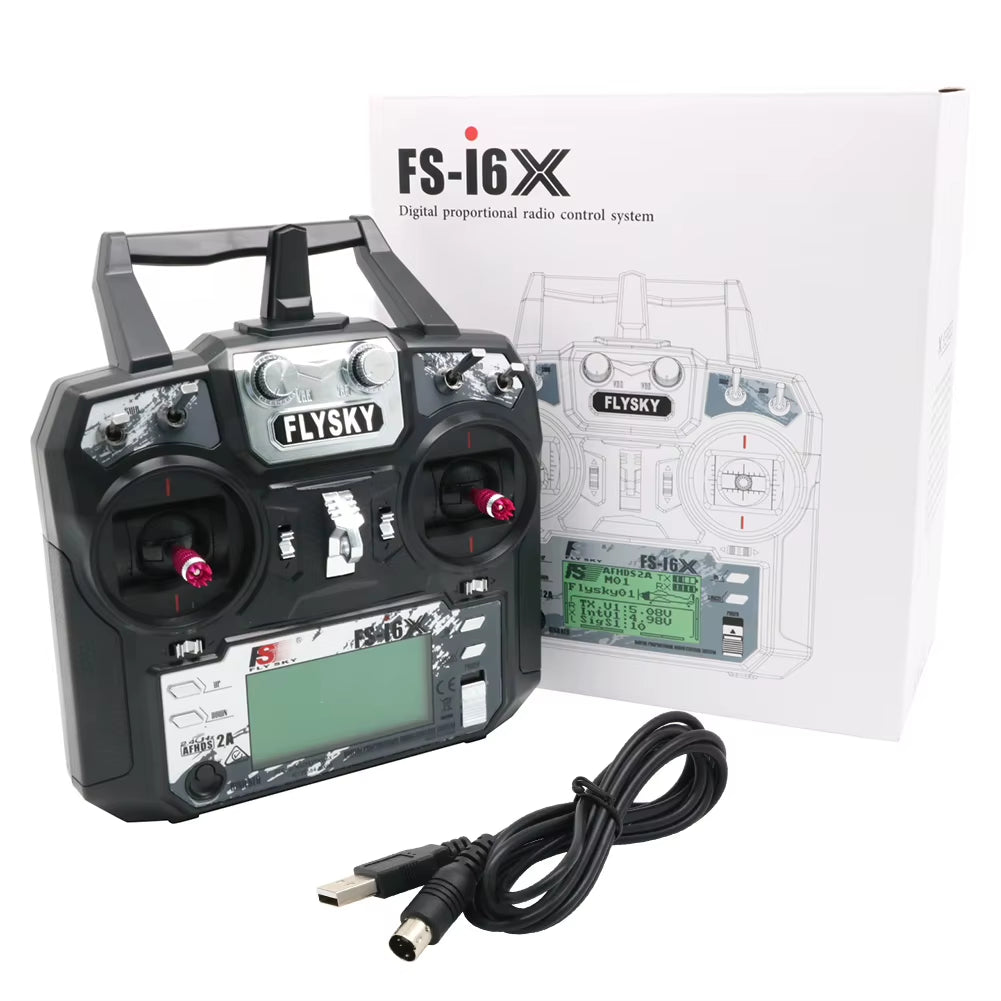

Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
1X Flysky Receiver
