PRODUCT DESCRIPTION

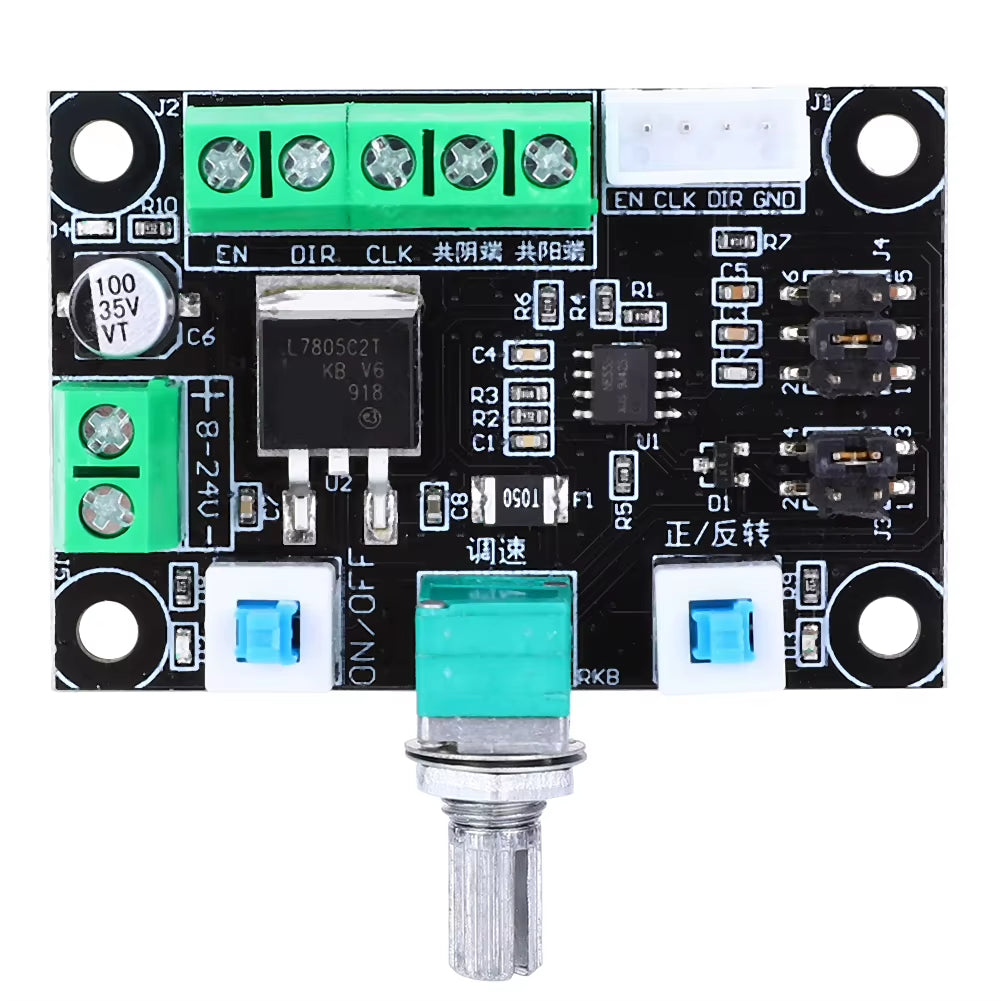

This module is a pulse generation module and supplies a stepper driver as a signal.

To control the stepper motor, it must be equipped with a driver.

This simple controller + stepper driver +stepper motor + DC power supply can form a simple control platform.

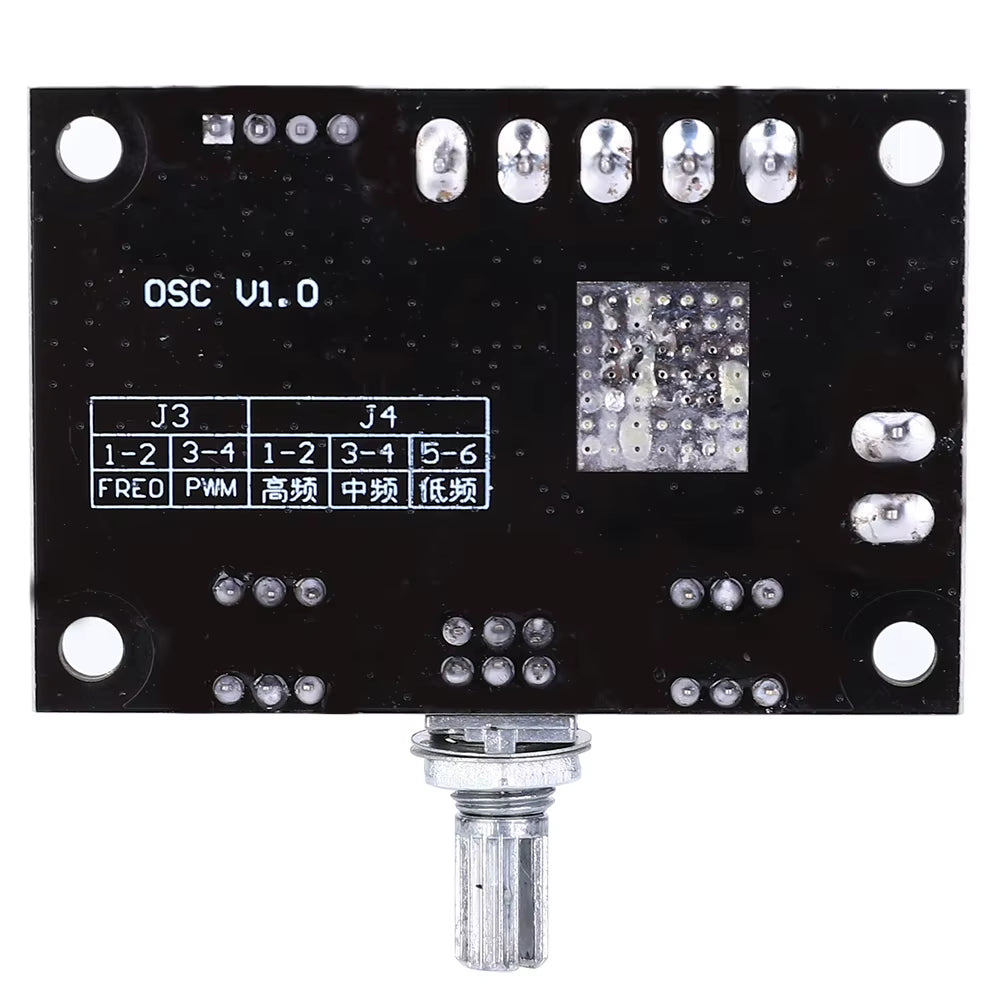

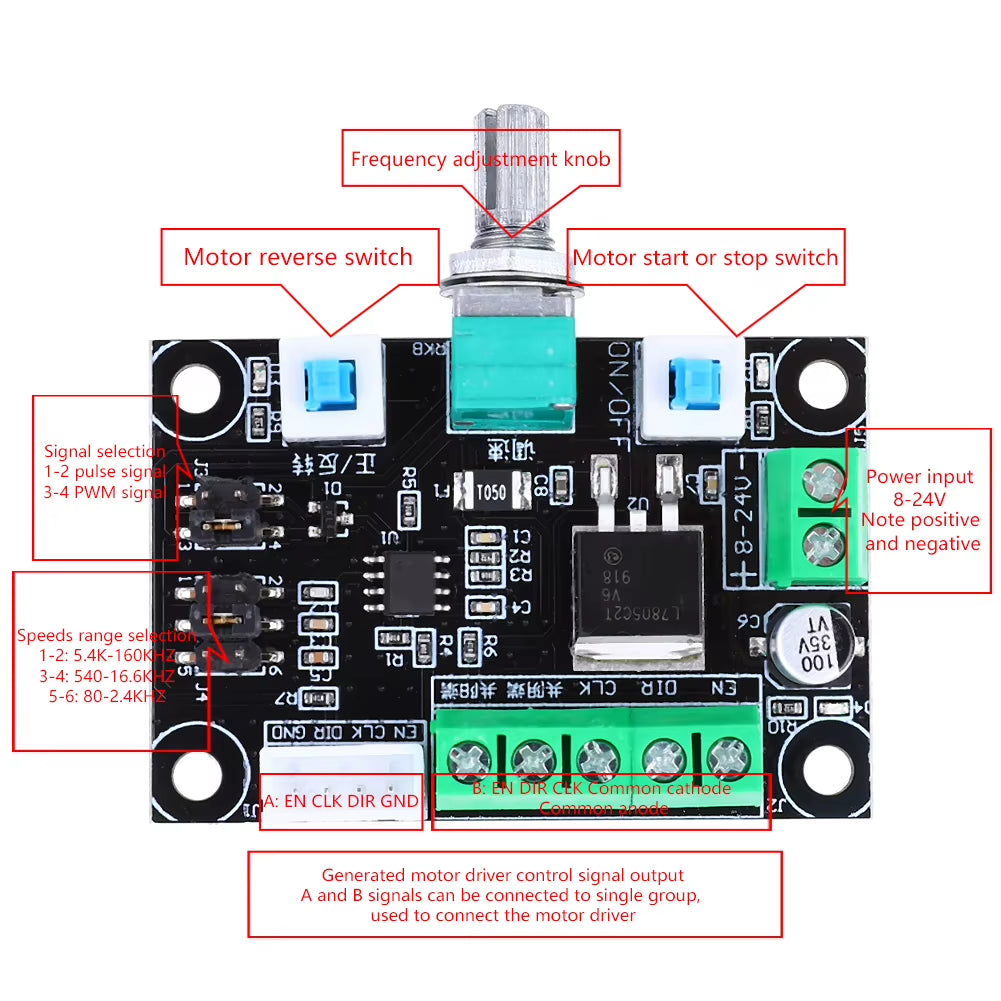

The controller has a total of 3 kinds of frequency signals: high 5.4k-160khz,medium 540-16.6khz, and low 80-2.4khz,

which can be selected with a jumper.It can generate pulse signal and PWM signal, and it can be selected by jumper.

Frequency measurement:You can measure PUL and common cathode (or common anode) two ports.
