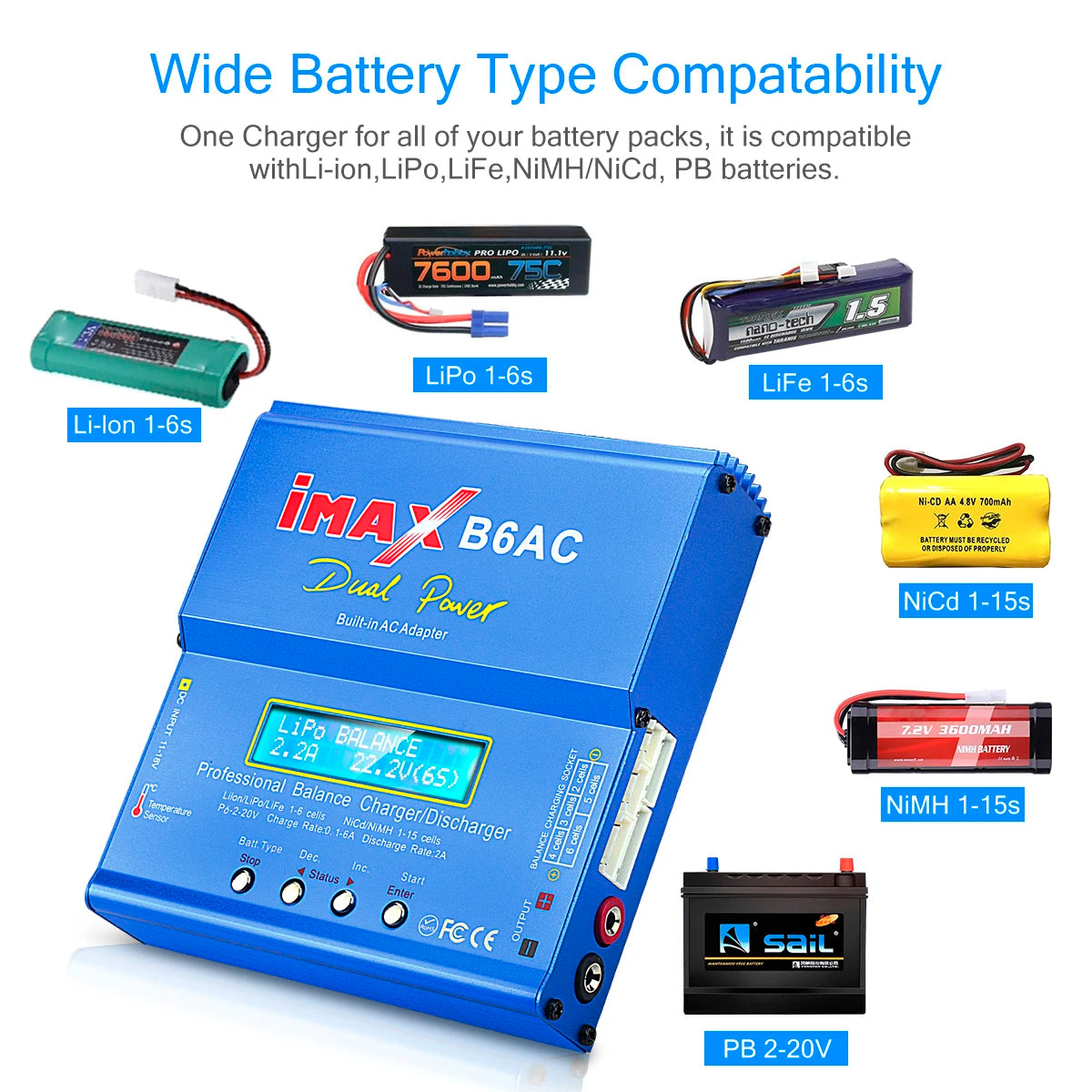

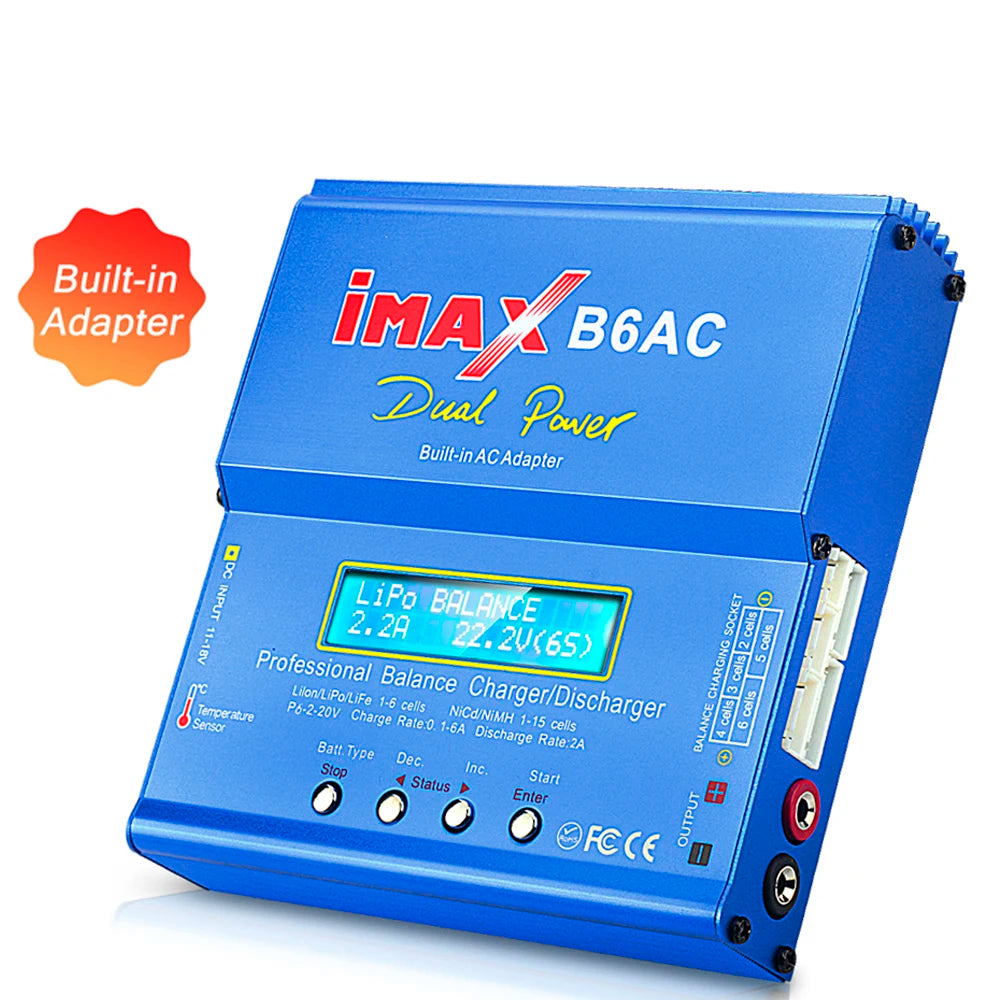

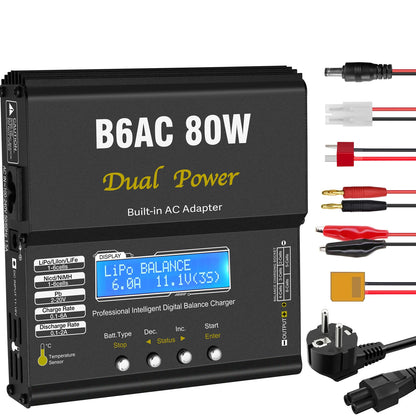

Imax B6AC 80W 6A Lipo Charger Balancer for Nimh Nicd Lipo Life Li-Ion Pb Battery LCD Screen Display RC Charger Discharger XT60
Imax B6AC 80W 6A Lipo Charger Balancer for Nimh Nicd Lipo Life Li-Ion Pb Battery LCD Screen Display RC Charger Discharger XT60

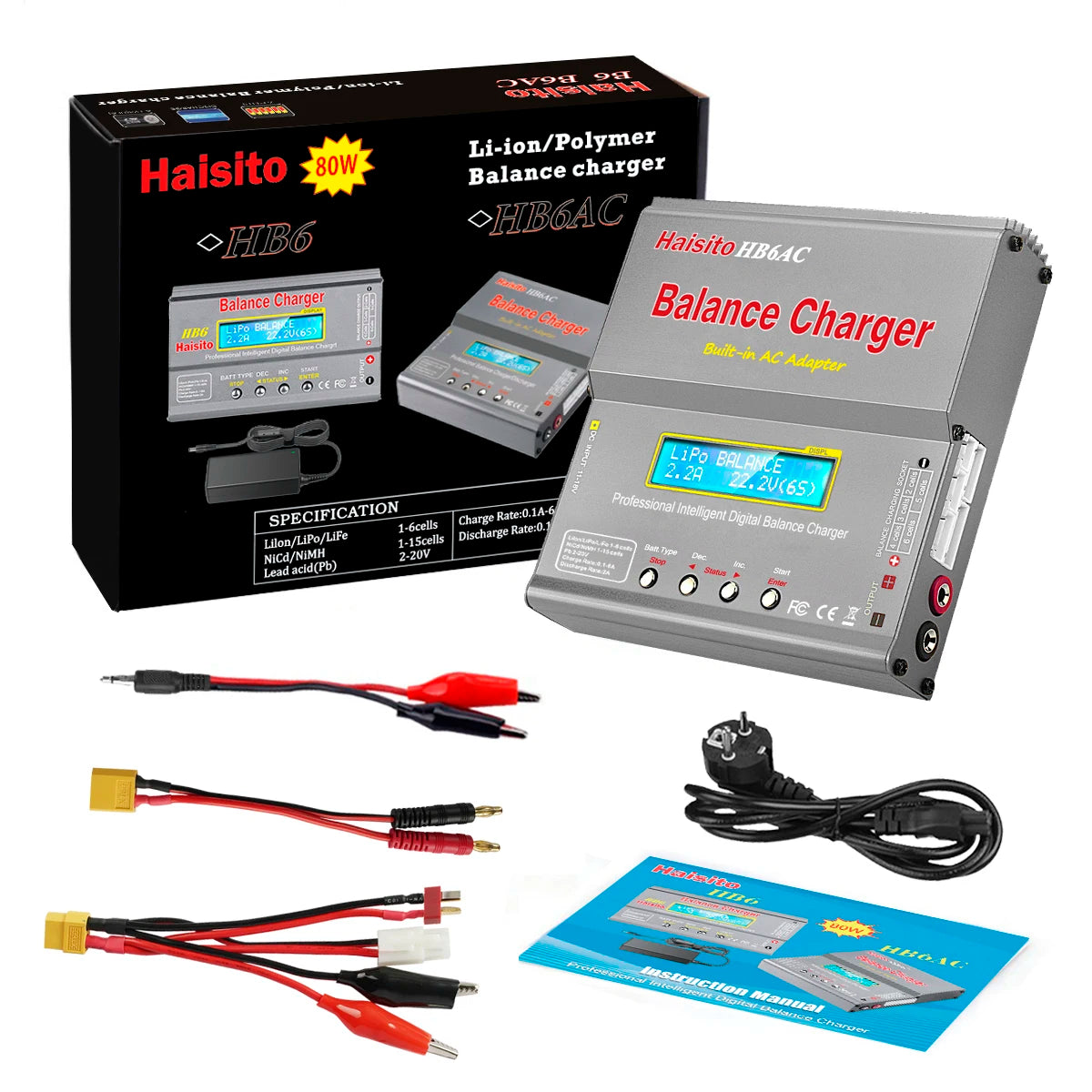

Q:What Difference of B6ac between Hb6 ac ？
A:The HB6 ac and B6 ac is just the color and brand differ,same Function,In order to satisfy to color preferences of more customer,Please don't worry.
Q:Does The IMAX B6 ac Original?
A:Yes.Our imax b6 ac is "HTRC "Brand And produced by Our HTRC factory which focus on the high quality chargers.not Skyrc,no fake,and don't need Security Code,if you mind,please don't buy,thanks!

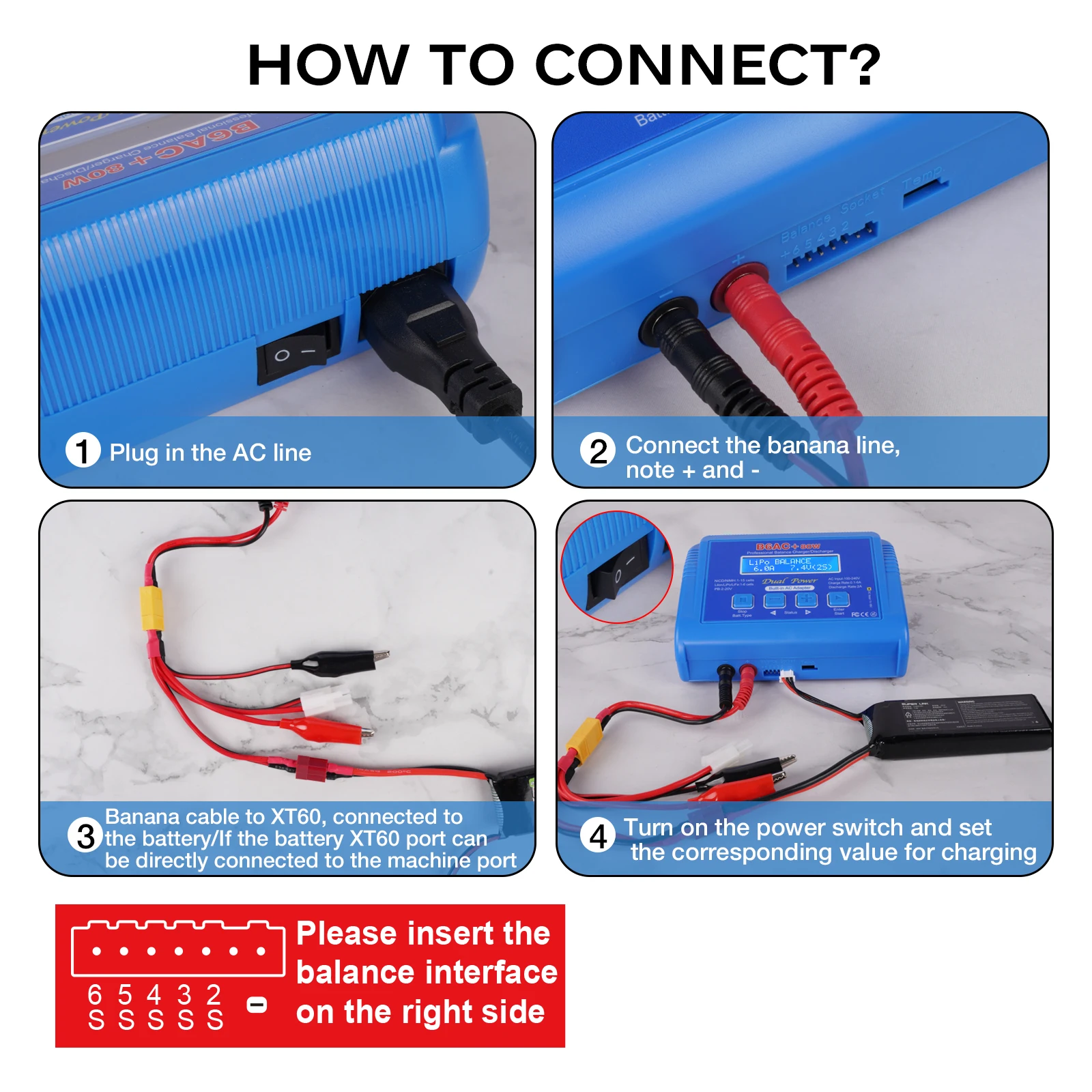

Q:How to charge correctly when received the goods?
A:after you received the goods,please follow those using turn
(if you plug the machine firstly,that will caused the machine can not open or work unnormally)

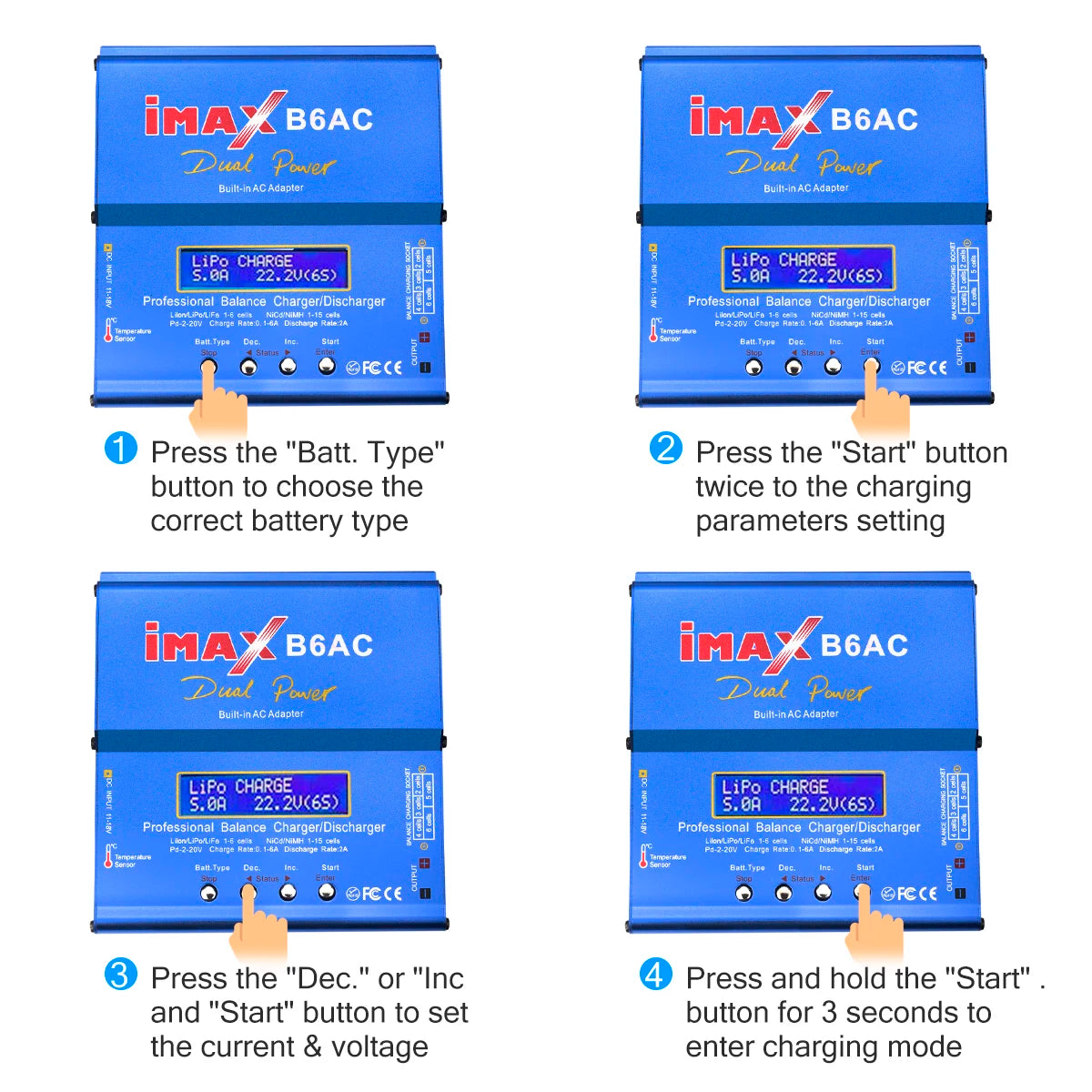

Q:How to use?
A:Do as below the picture show:
2.press the "start"button twice to the charging parameters setting
3.press the "dec."or "inc" and "start"button to set the current & voltage .
4.press and hold the "start"button for 3 seconds to entrt charging mode .
Specifications:
Operation Voltage range :
DC 11.0 ~ 18.0 Volt - AC 100V ~ 240V 50/60Hz
Circuit Power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. Charge power 80W
Max.Discharge power 5W
Charge Current range : : 0.1~6.0A
Discharge Current range : 0.1~2.0A
Current Drain for Balancing Li-Po : 300mAh/cell

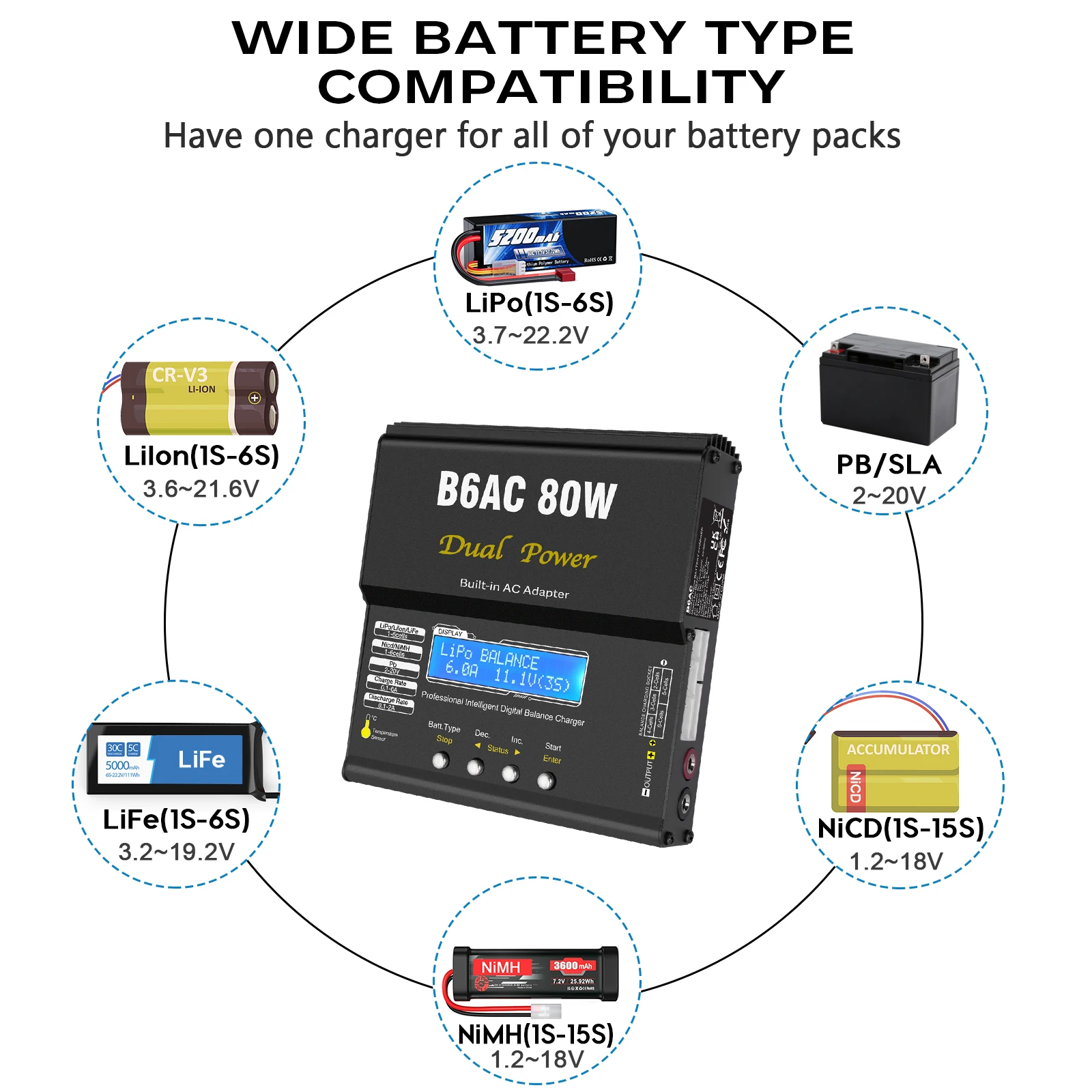

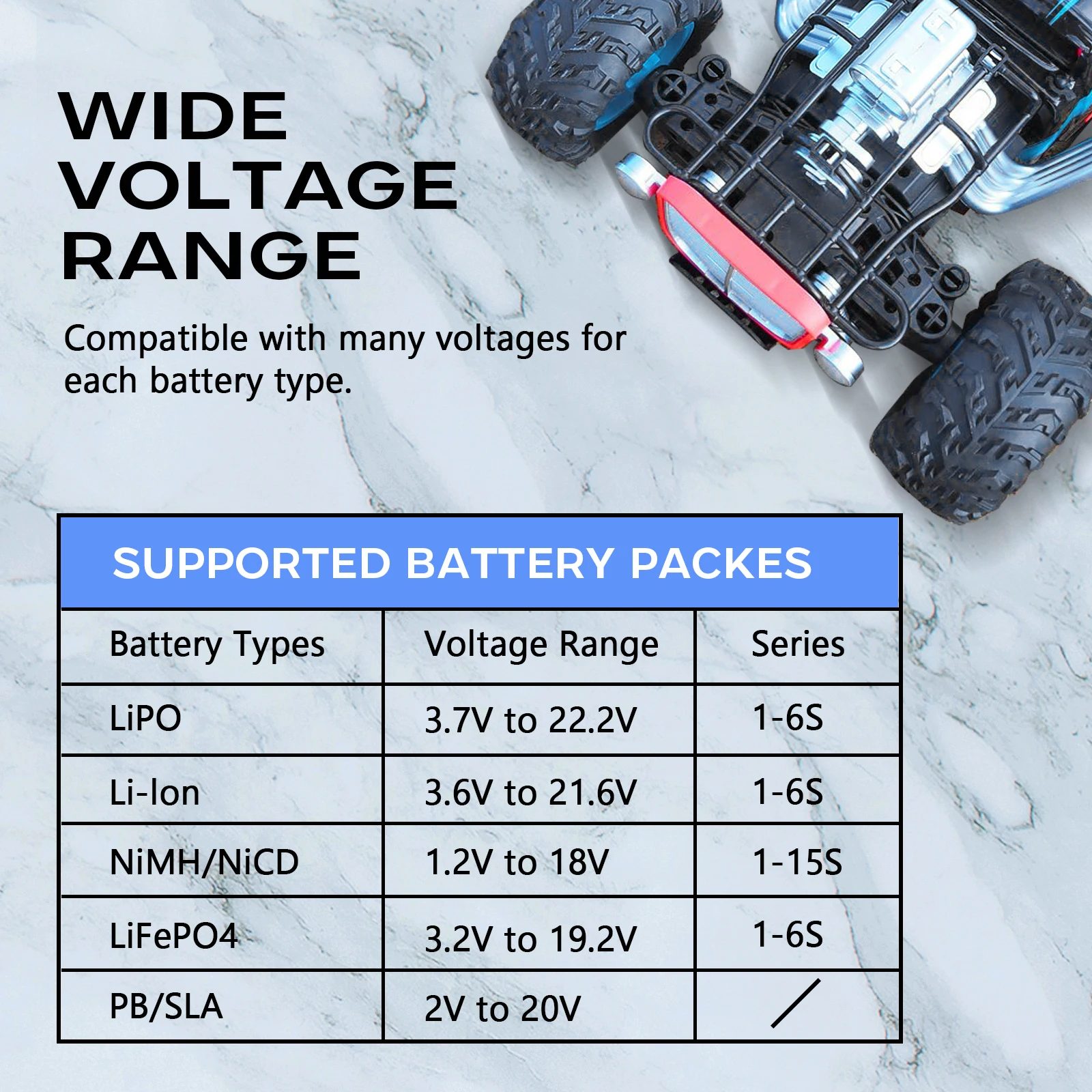

NiCd / NiMH battery Cell Count : 1~15 cell
Li-Ion / Polymer Cell Count : 1~6 series
Pb Battery Voltage : 2V~20V

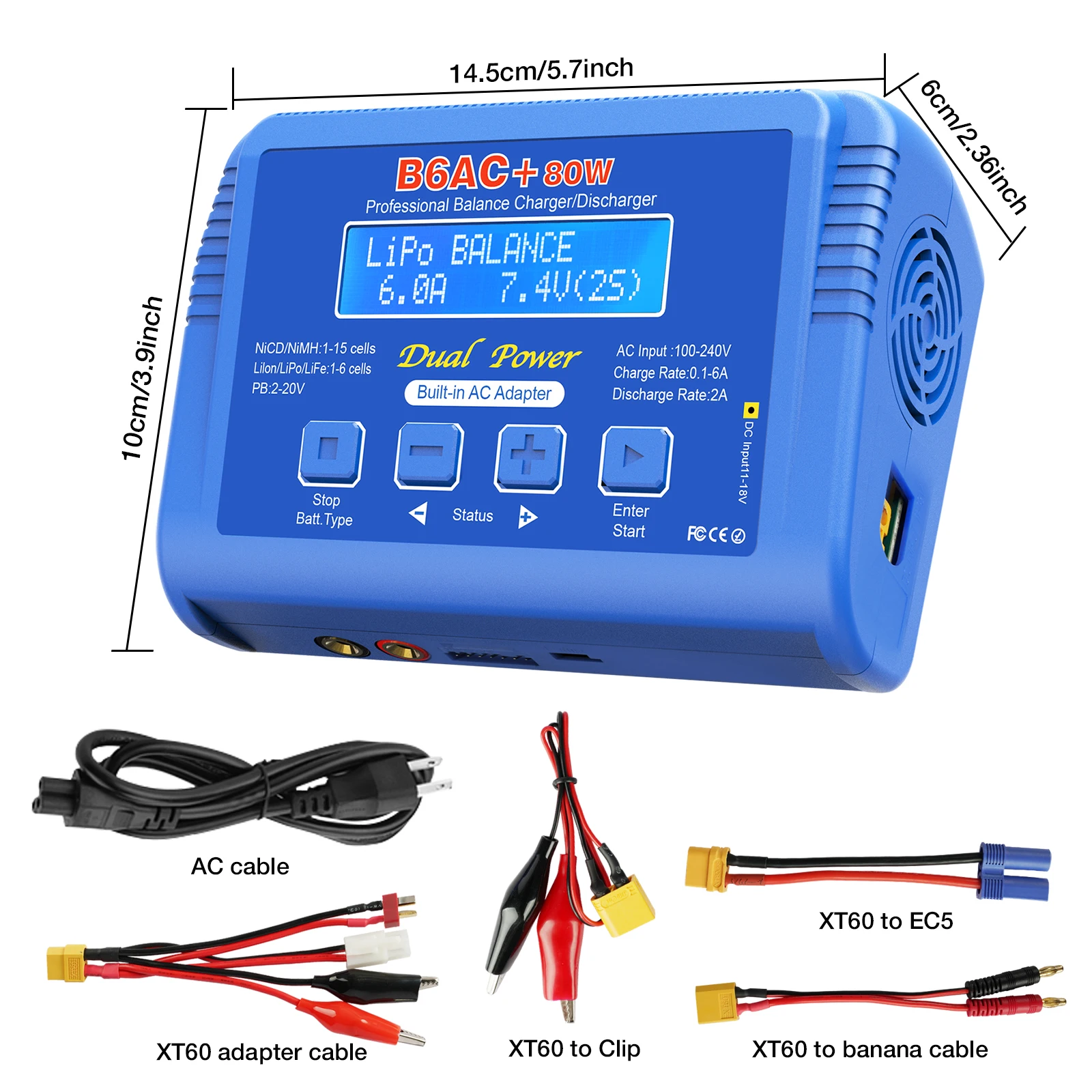

Dimensions : approx. 13.5x14.4x3.6cm

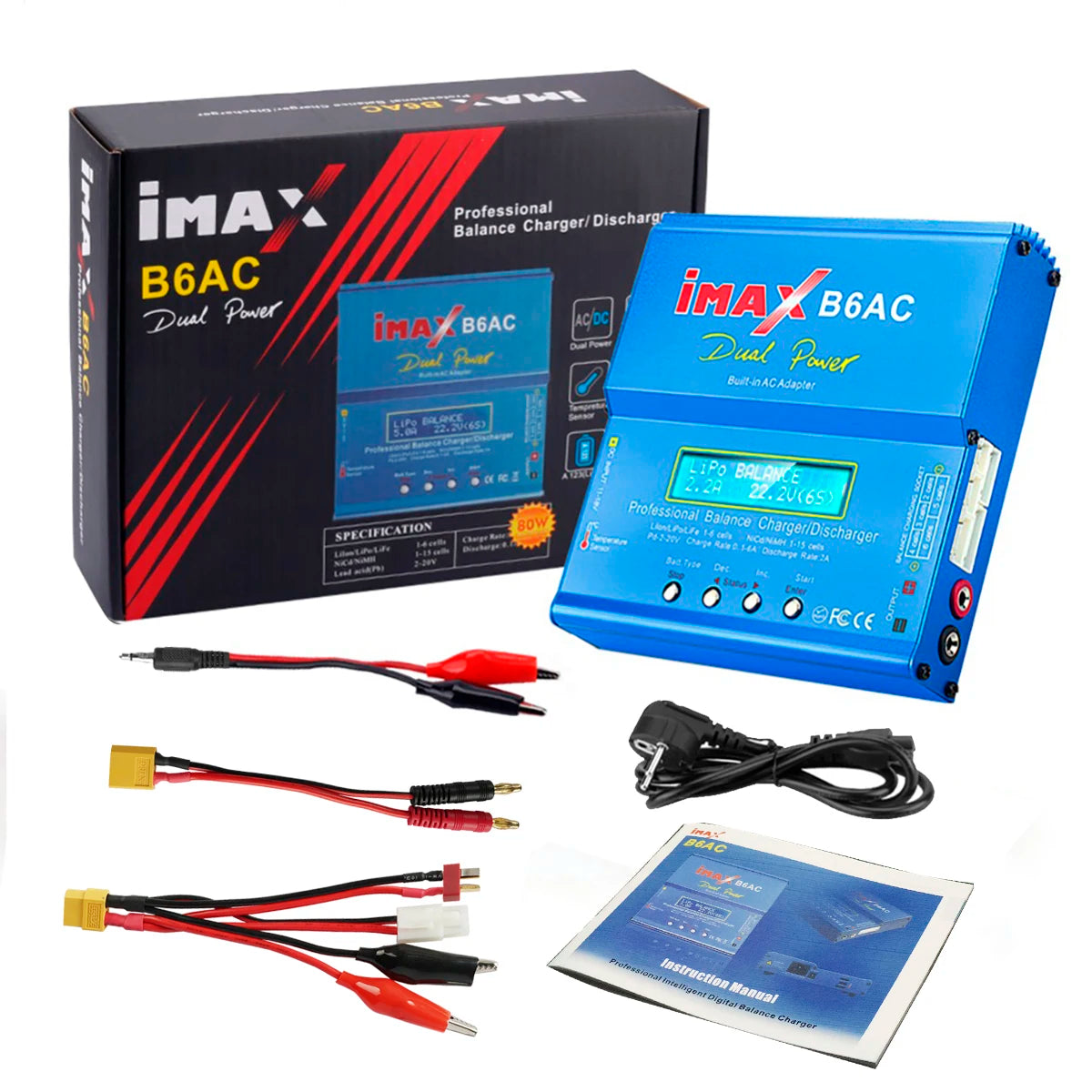

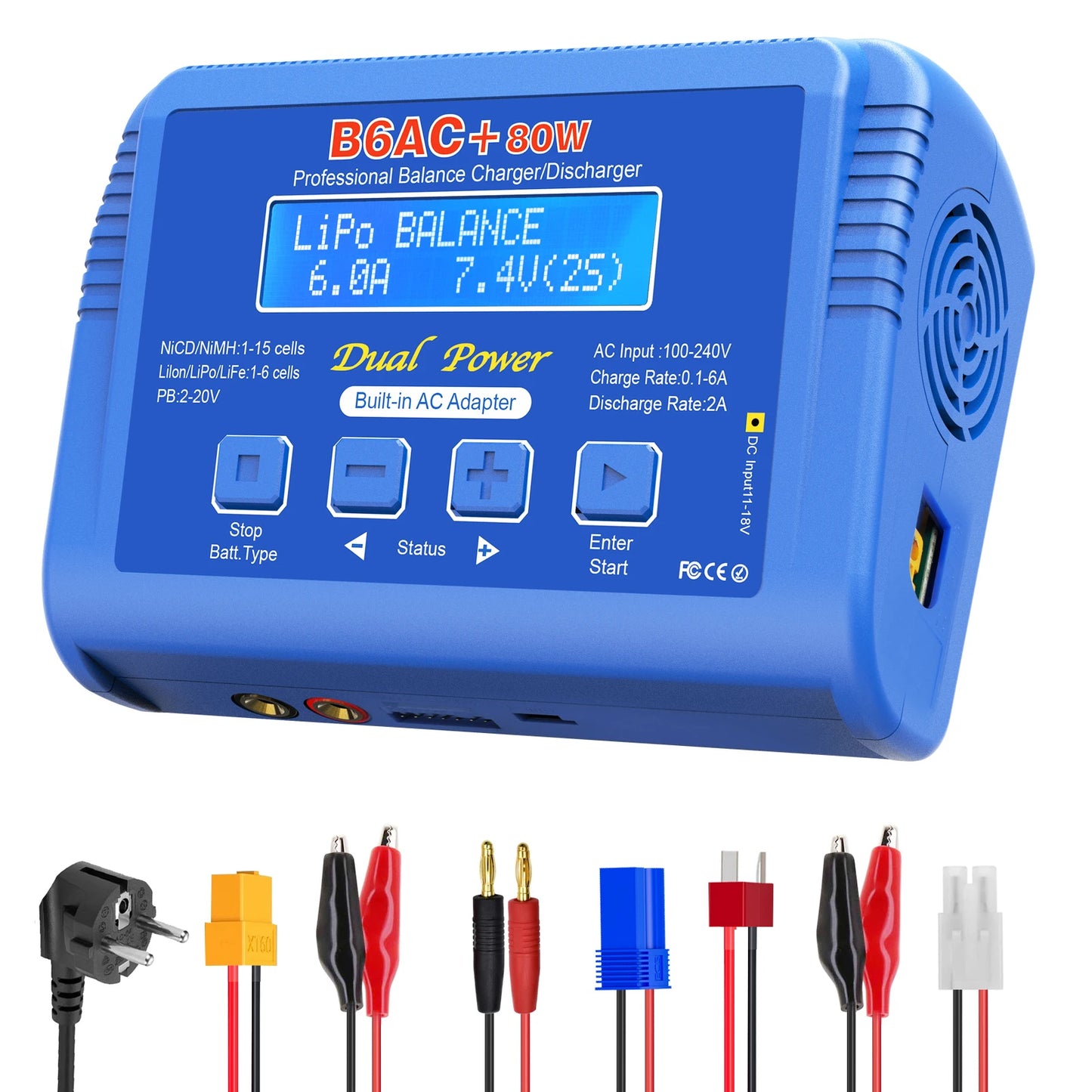

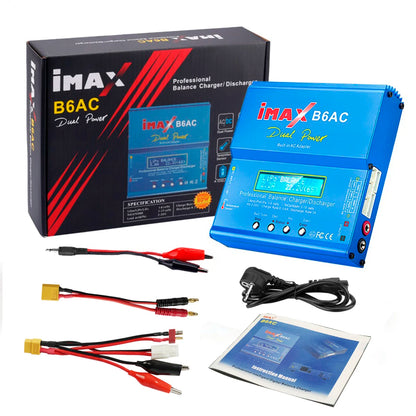

Package Included:

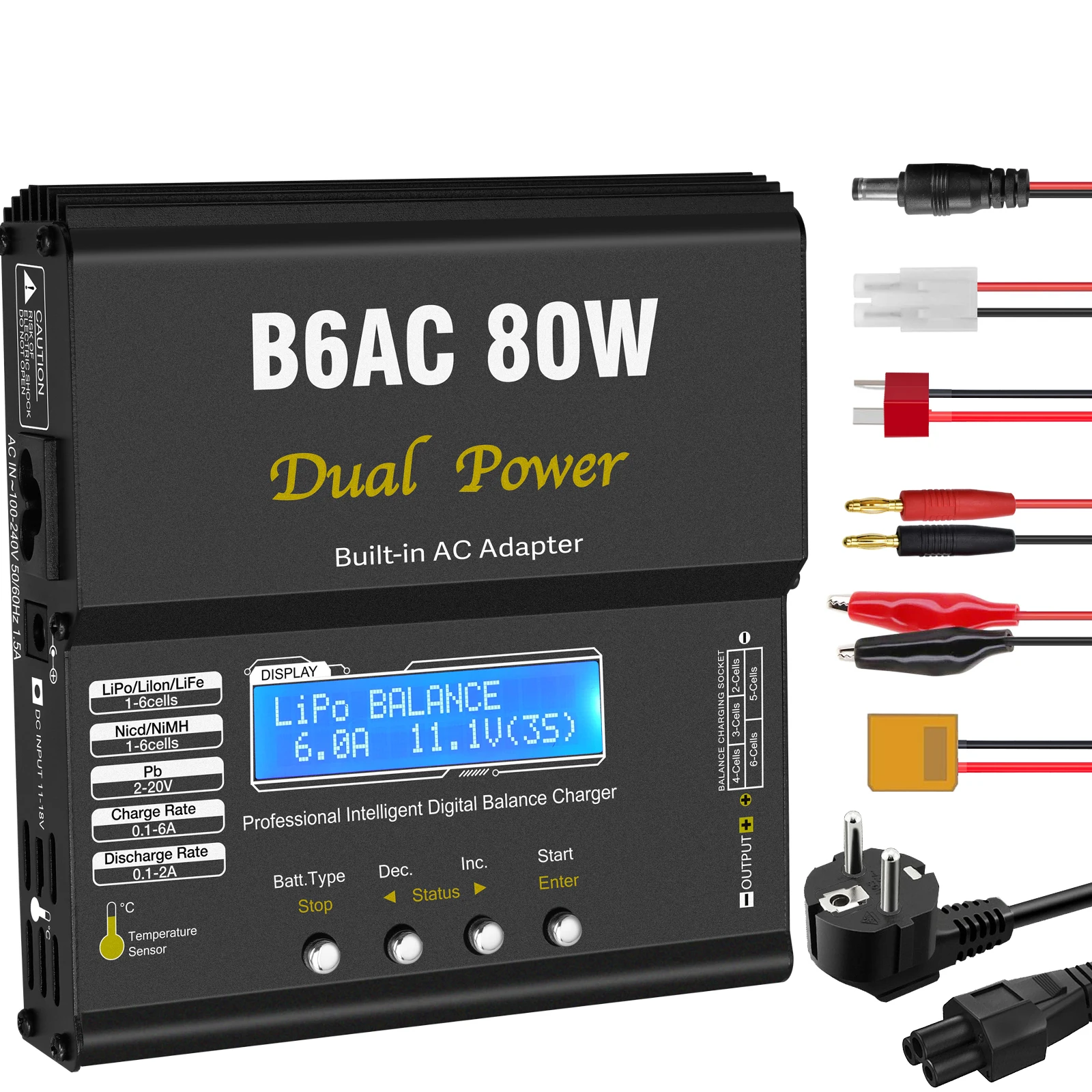

1 x B6AC Charger

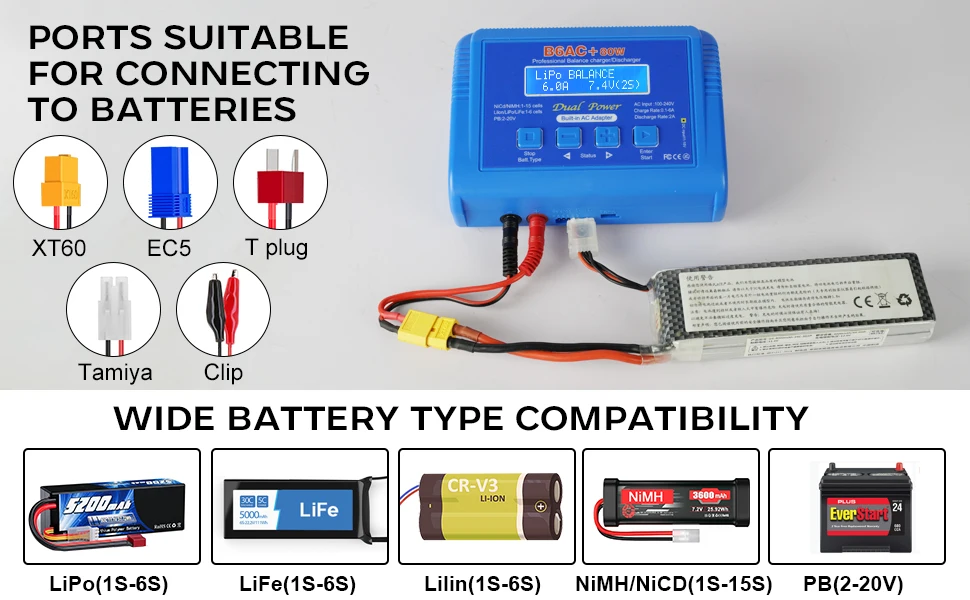

1 x charge cable with xt60
1 x 3 in 1 cable(T Plug/Big Tamiya /Universal crocodile clip)
1 x Universal crocodile clip
1 x Manual
1 x AC plug
Please note:
Our machine can't support to measure the 1s battery 's voltage and Resistance
Feedback:
Blue B6AC:
Black B6AC color:

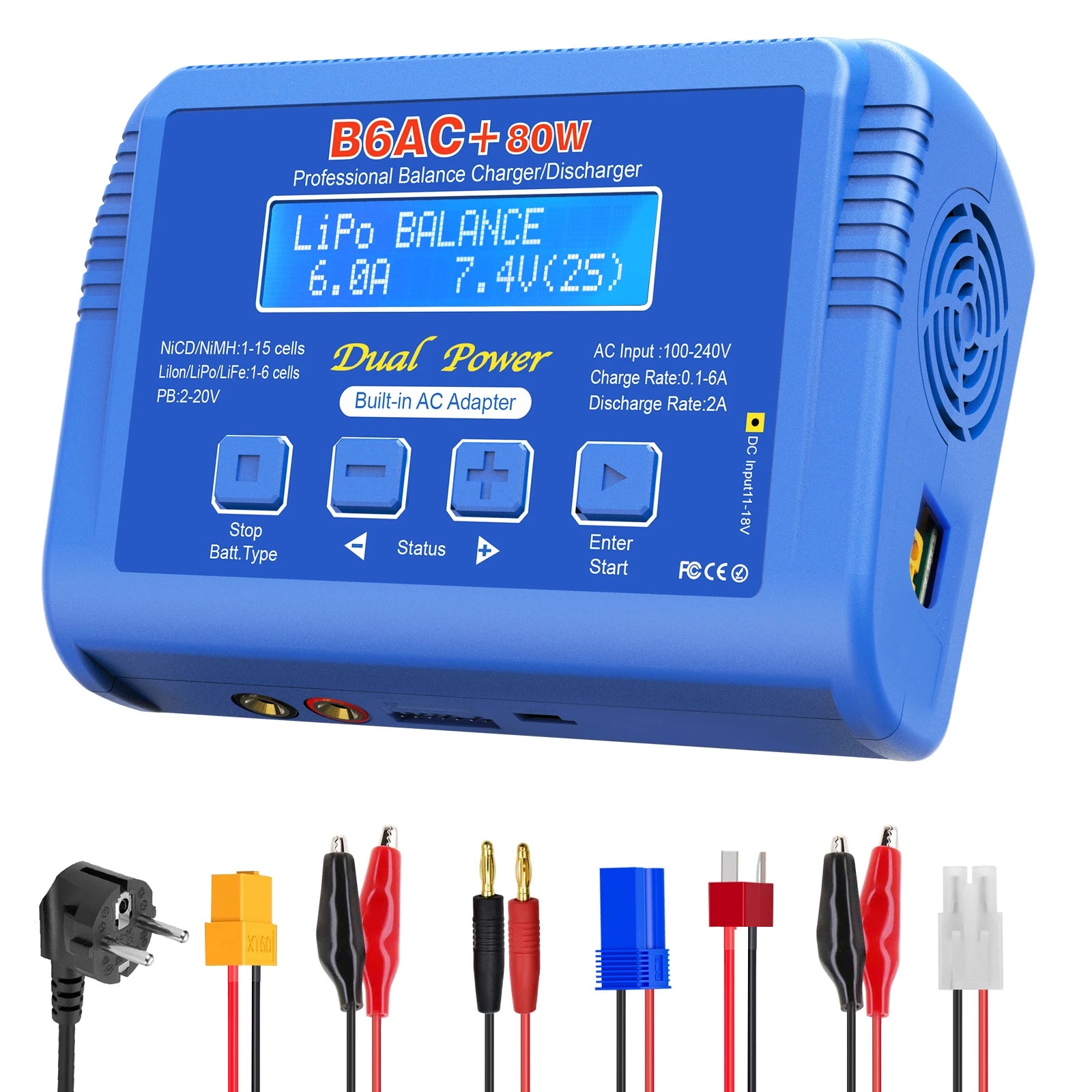

NEW B6AC PLUS:
B6ac plus Packing list as below:
NOTE:

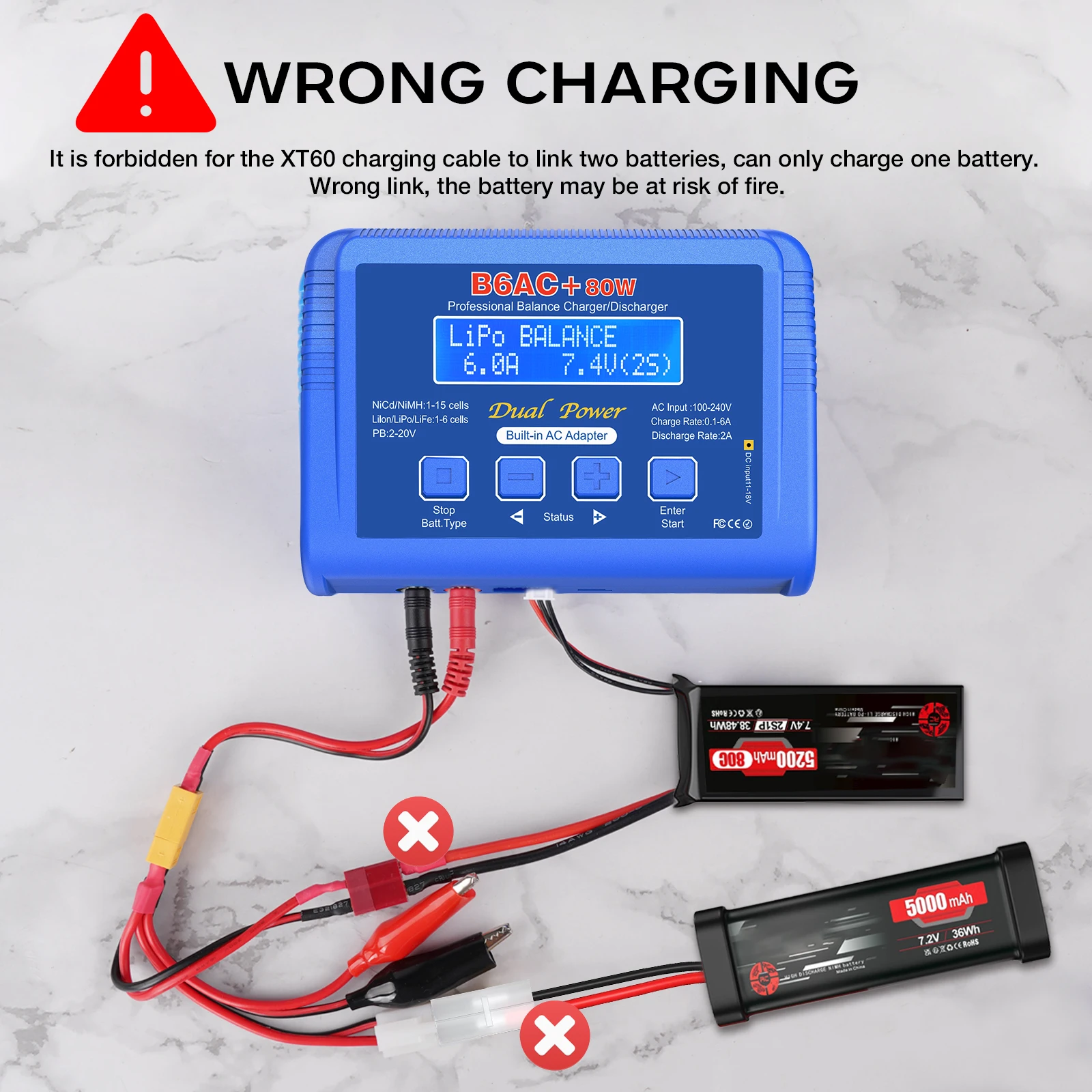

1.About the positive electrode and negative electrode interfaces,you need to connect correctly,otherwise,it will fail to charger.
2.About the connectors,you need to connect correctly,otherwise,it will fail to charger.

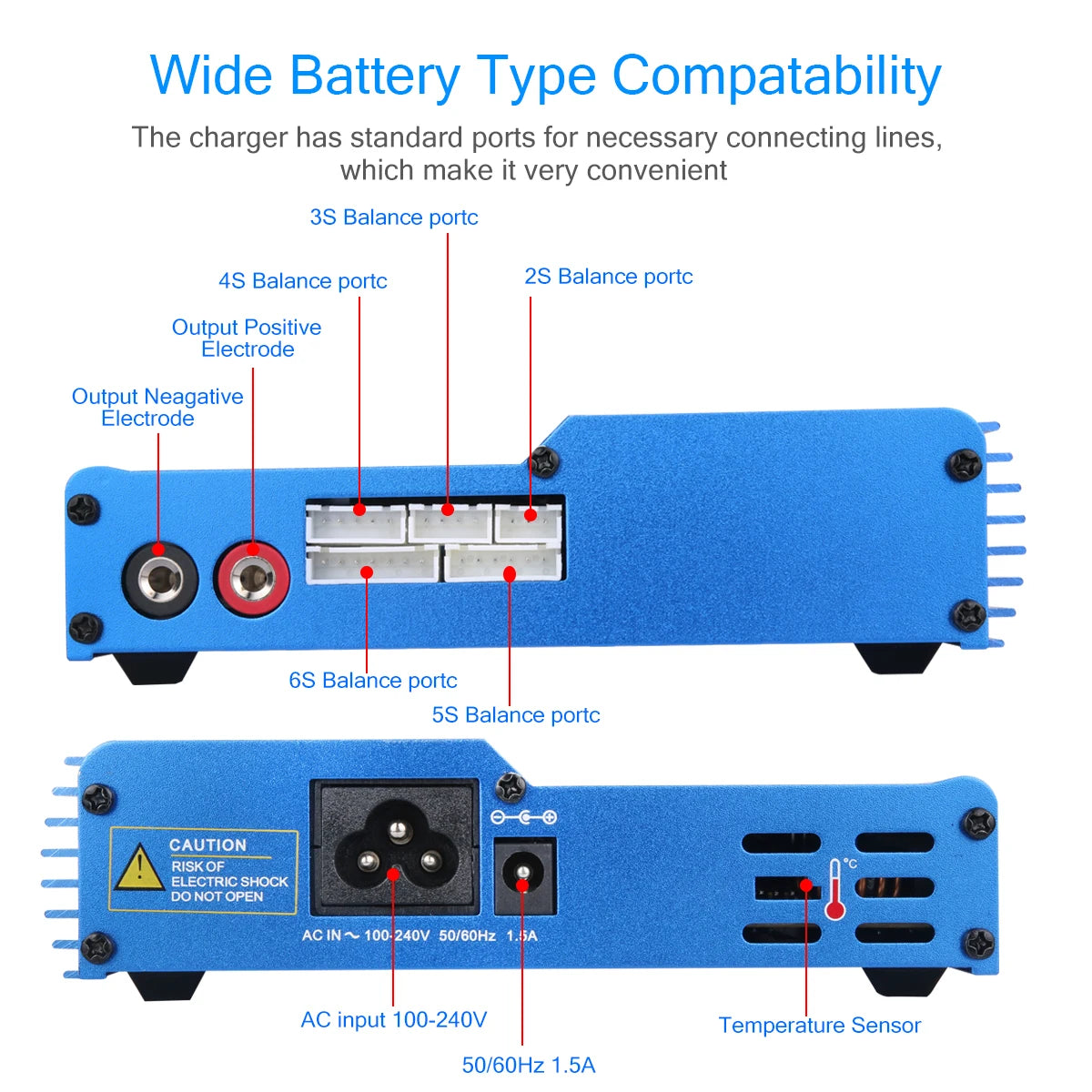

3.If you choose the balance mode about the balance ports ,you need to connect correctly ,otherwise,it will fail to charger
4.After setting ,press the "ENTER"button for 3 seconds,then you can charge the battery .

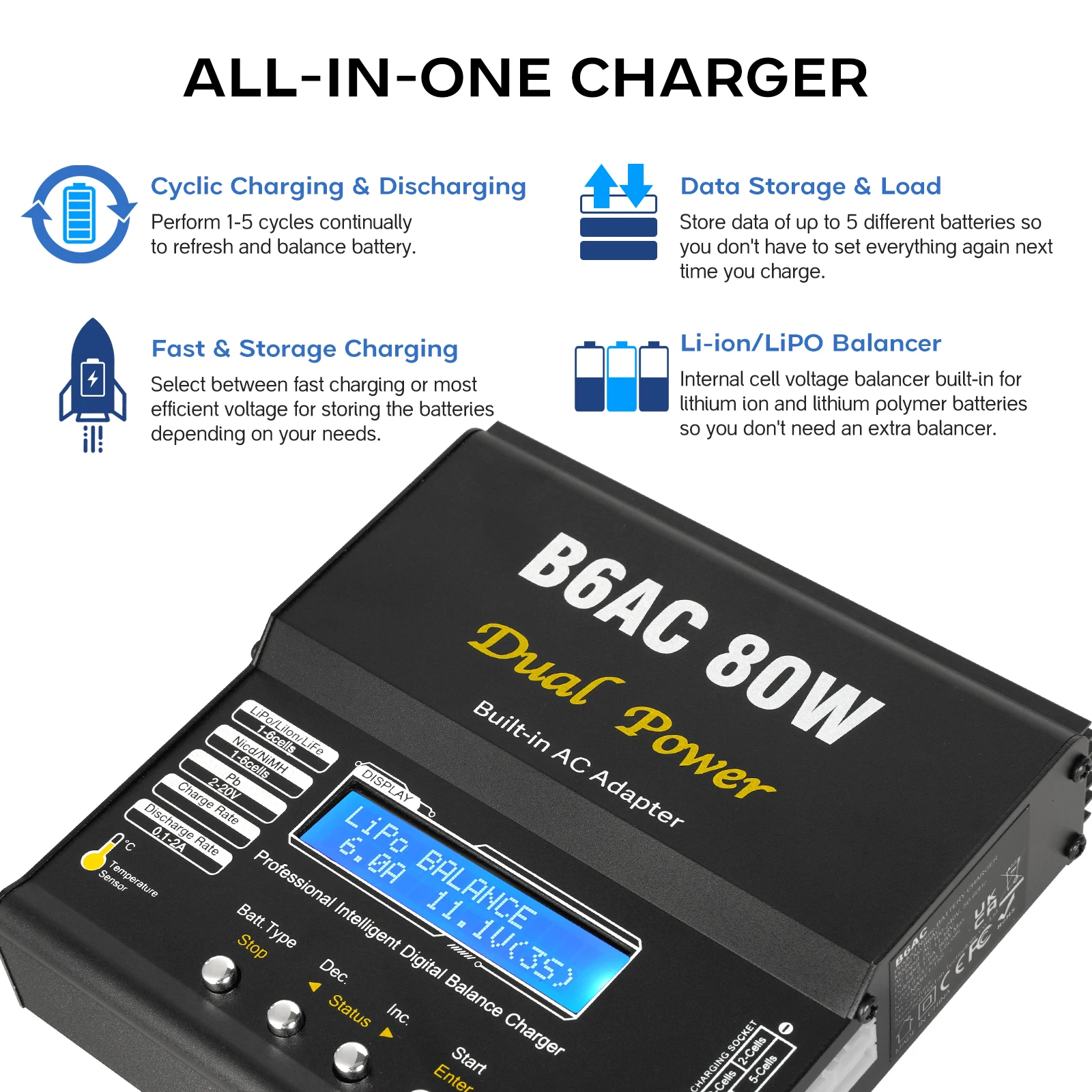

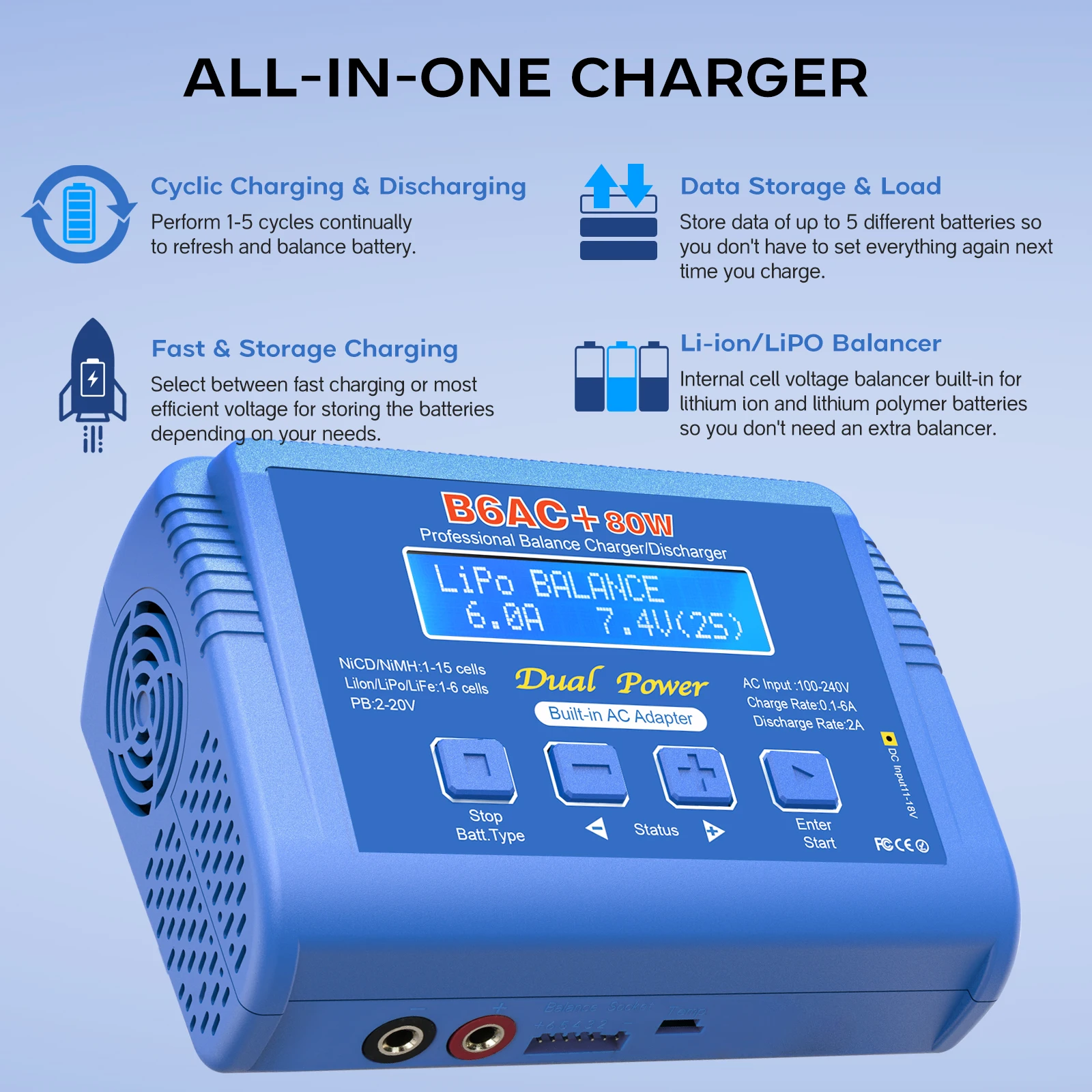

1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries
2.USER SET PROGRAM: to set the parameter of charge batteries which you need .
3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries
4.PROGRAM SELECT SAVE DATA : save setting data
5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .
