High Quality Mechanical Edge Finder 10MM for Milling Lathe Machine Touch Point Sensor Work Quickly Measurement Tool

Welcome to my shop

• 100% Brand new and high quality!

• It is a high-precision measurement tool that can quickly and easily set mechanical spindle and workpiece datum

• exact center position: accuracy and reproducibility of competent drilling, milling, boring and grinding jigs, etc.

• Applies to traditional milling machines and machining centers

• With the speed 400-600rpm use.

• The mechanical rotation measurements, no clamping errors

• Specially designed probe 4mm, provide for a small aperture is narrow trench and measured using.

• The lower end of the rotation part is magnetically shielded.

• Suit For: CNC Machine Milling

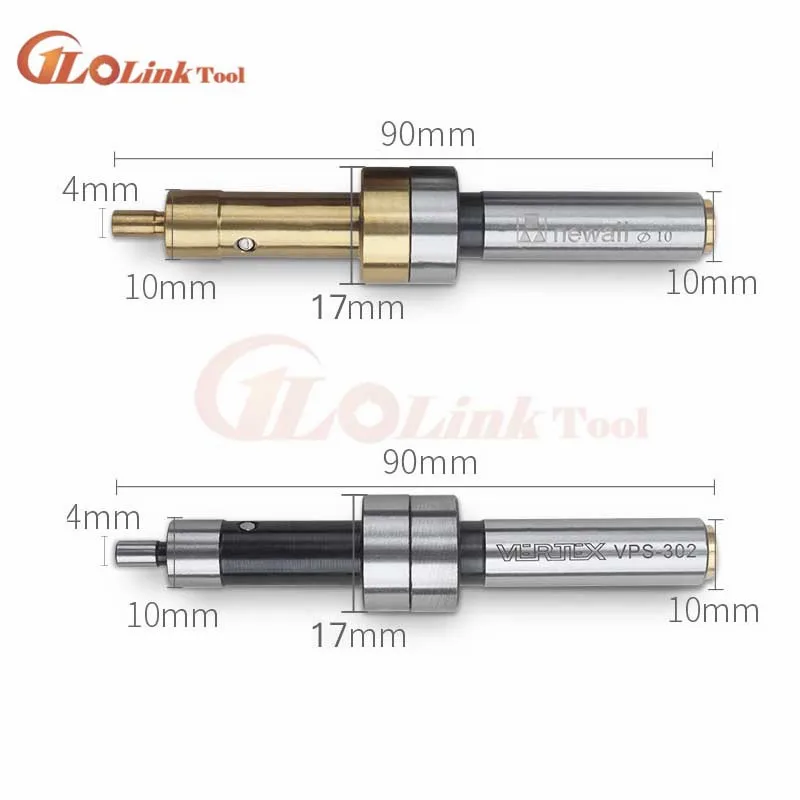

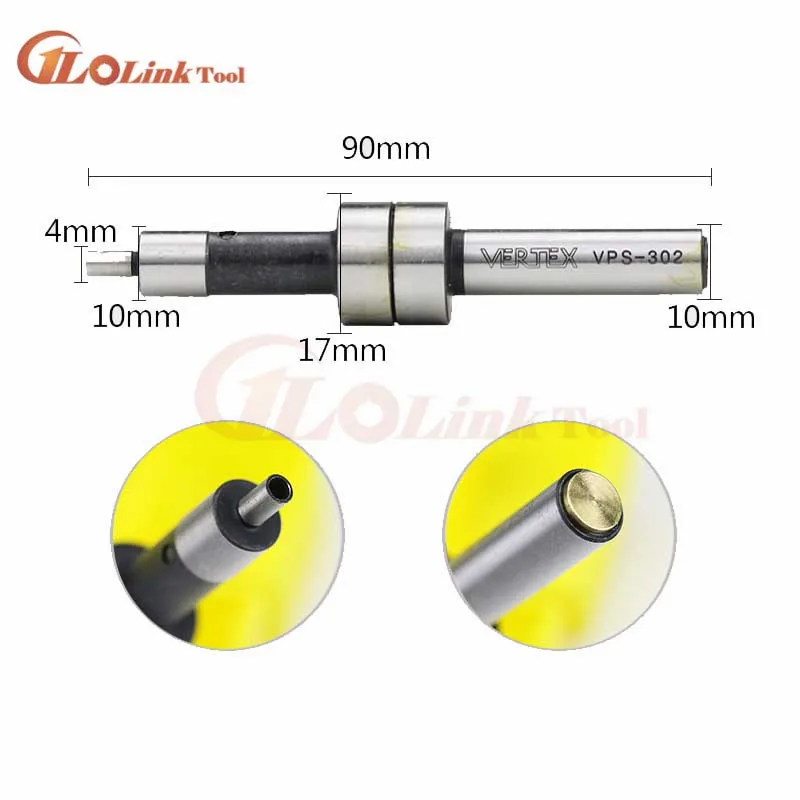

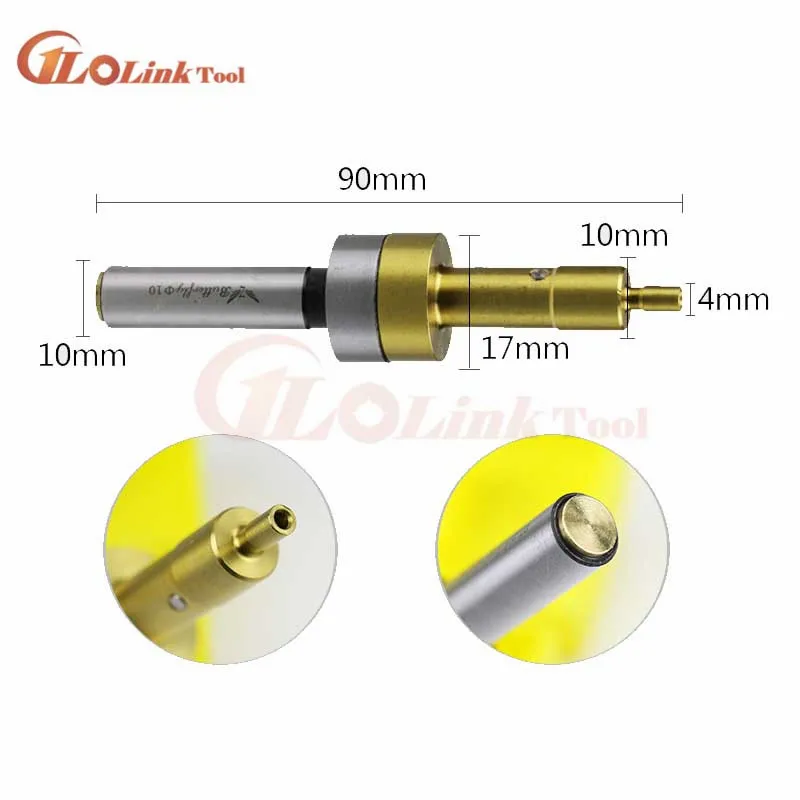

• Edge Finder Length: 8.5cm

• Shank: 10mm

• 1pc * Mechanical Edge Finder

• 1 Do not use bent edge finder or barely drag, otherwise it will affect the accuracy;

• 2.Slide the end face do not adhering foreign matter or dust;

• 3 In the measurement, the speed can not exceed 600RPM;

• 4 bias-type edge finder is not suitable for use on horizontal type machines

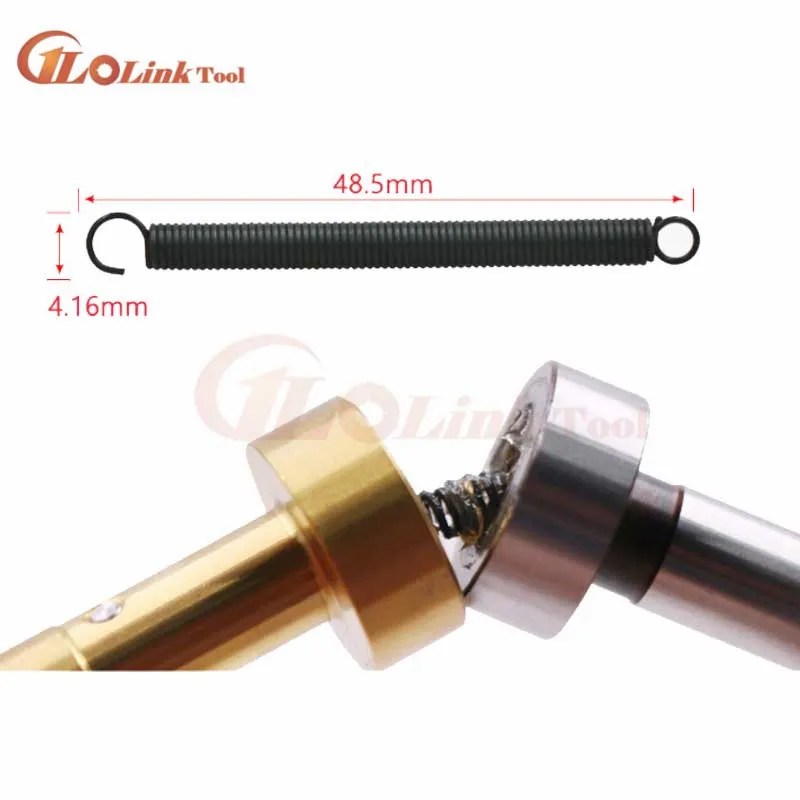

Vedio:The video shows the edge finder replacement of the spring operation
