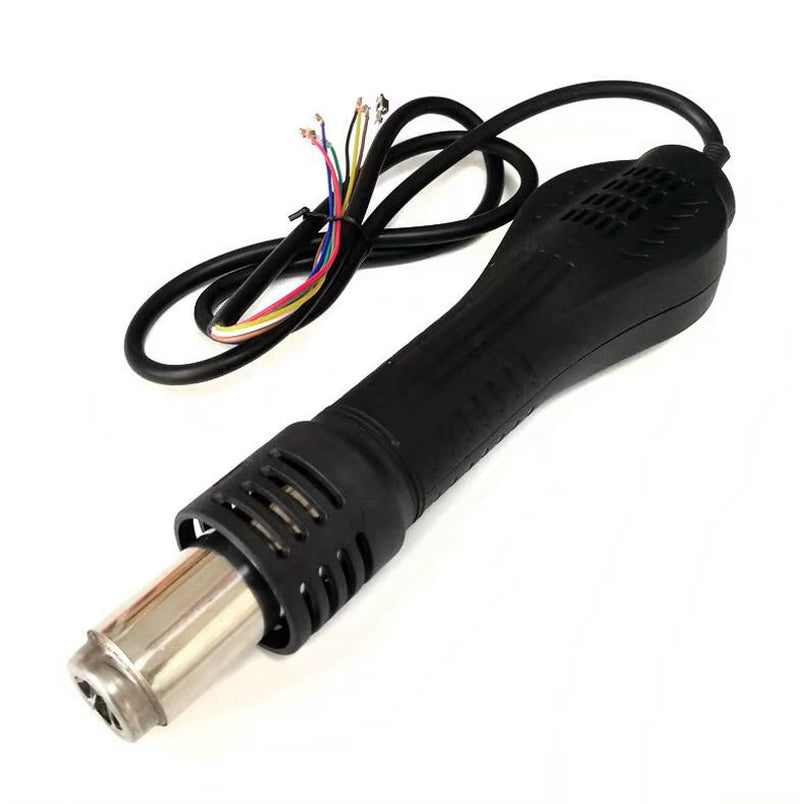

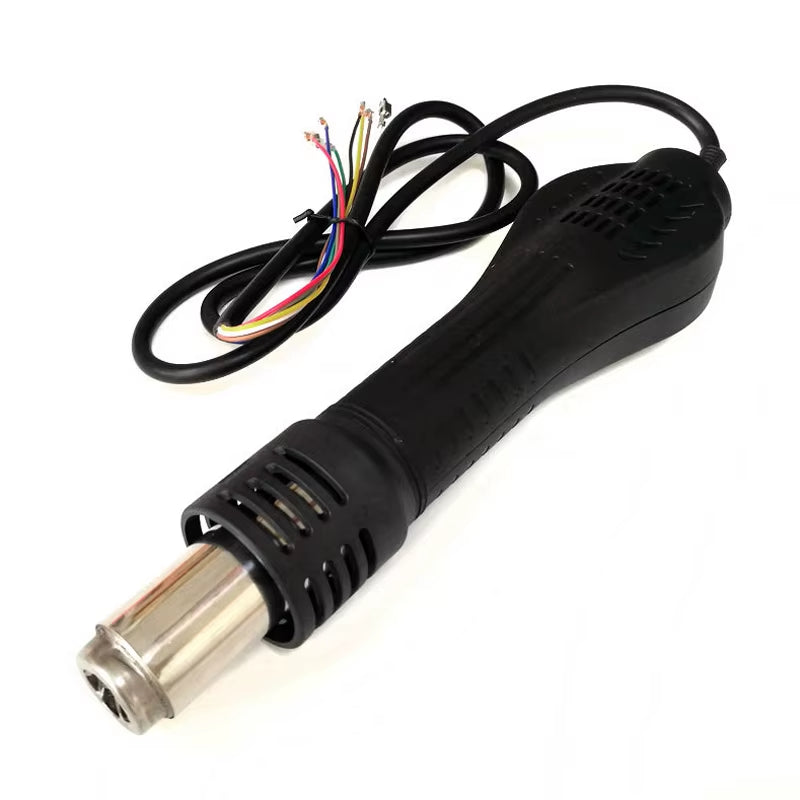

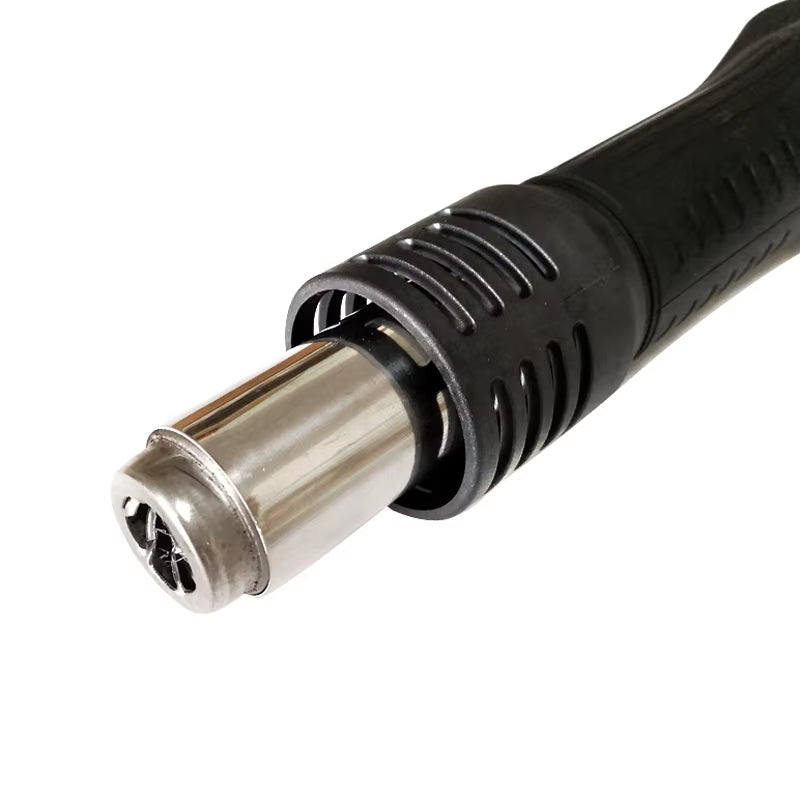

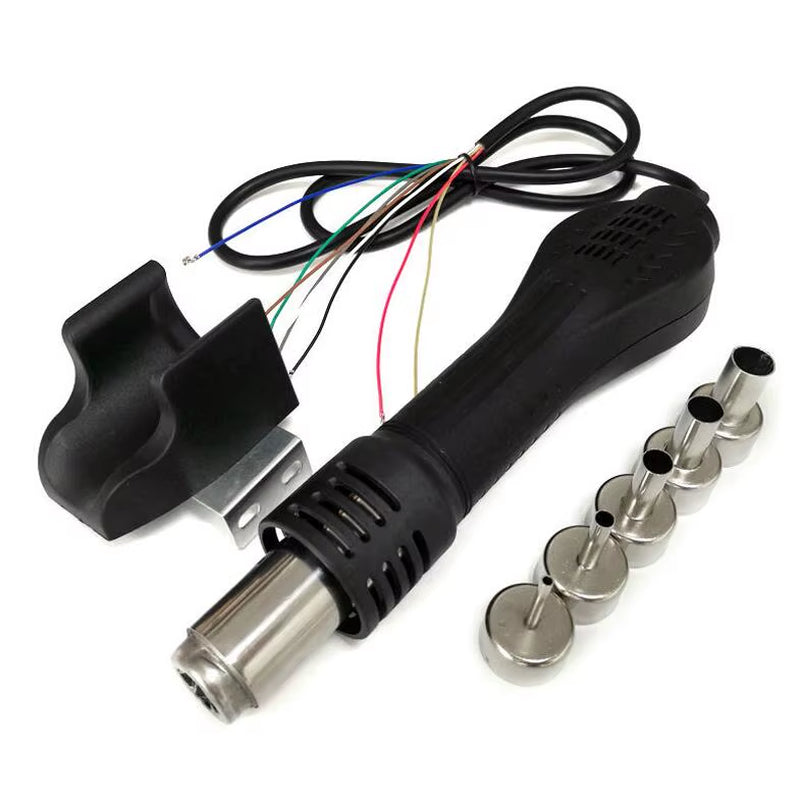

Heat Gun Hot Air Hair Dryer Soldering Hairdryer Gun Handle for 858 858D 8858 8586 878 BGA Rework Solder Station Desoldering Tool

Heat Gun Hot Air Hair Dryer Soldering Hairdryer Gun Handle FOR 858 858D 8858 8586 878 BGA Rework Solder Station Desoldering Tool

Yellow: Ground wire

Green: magnetic control line
Brown: fan +
Blue: fan -
Orange: sensor +
White: sensor -
Black: heater (no positive and negative)
Red: heater (no positive and negative)

The wiring diagram

Features:

• 100% brand new and high quality

• Built-in position sensor, suitable for Hakko850 hot air station or other derived series of products made in China, which has similar appearance and structure with it and no worry about its brand, such as 858 858D 868 878 898.

• Handy and portable, it is a space saver on the test bench and portable enough to carry in your bag.

• Suitable for products with supply voltage of 200-240V

Specifications:

• Thermal fuse resistance: Nickel alloy thermal fuse resistance ≈60Ohm

• Sensor type: K type thermocouple (Characteristic resistance ≈3Ohm)

• Built-in fan voltage: DC24V OR 12V , the voltage is variational during air regulation.

• Plug diameter: Approx. 0.49inch/12.5mm

• Plug pin quantity: 8 female pins.

• If the plug of your hot air station is different from it but shares the parameters, you can connect the cable again according to the detailed instructions by yourself.

Note:It is only an accessory and itself does not have any power supply, so it can not exercise the function alone, it is recommended to buy with relevant expertise.

Package included:

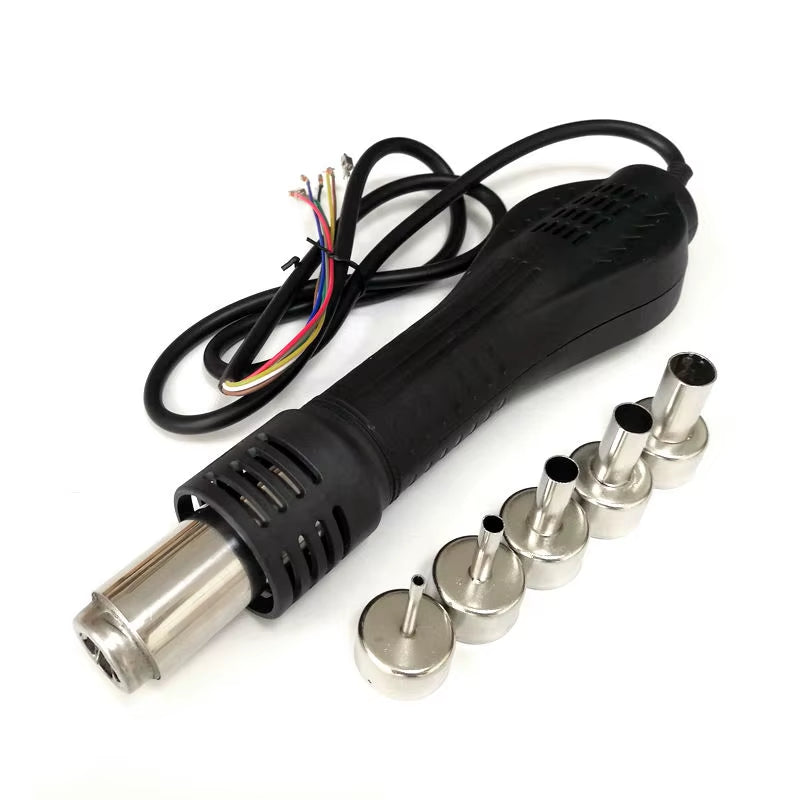

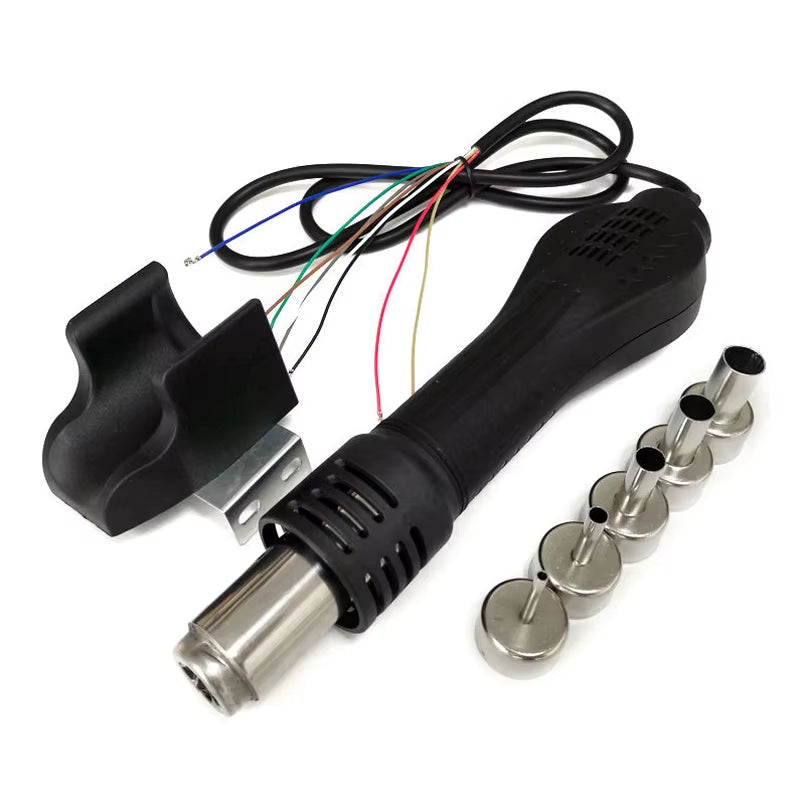

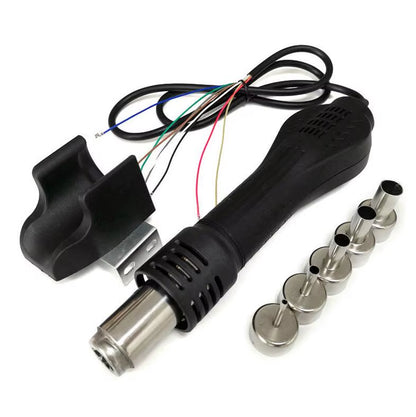

• 1 x Hot Air Gun Handle

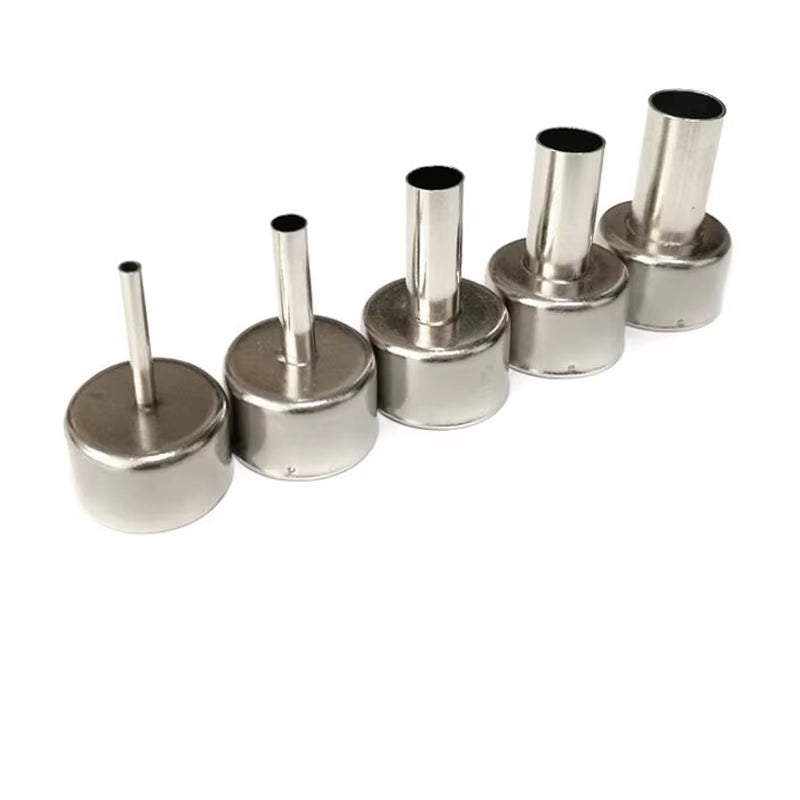

  5 X Hot Air Gun Nozzle

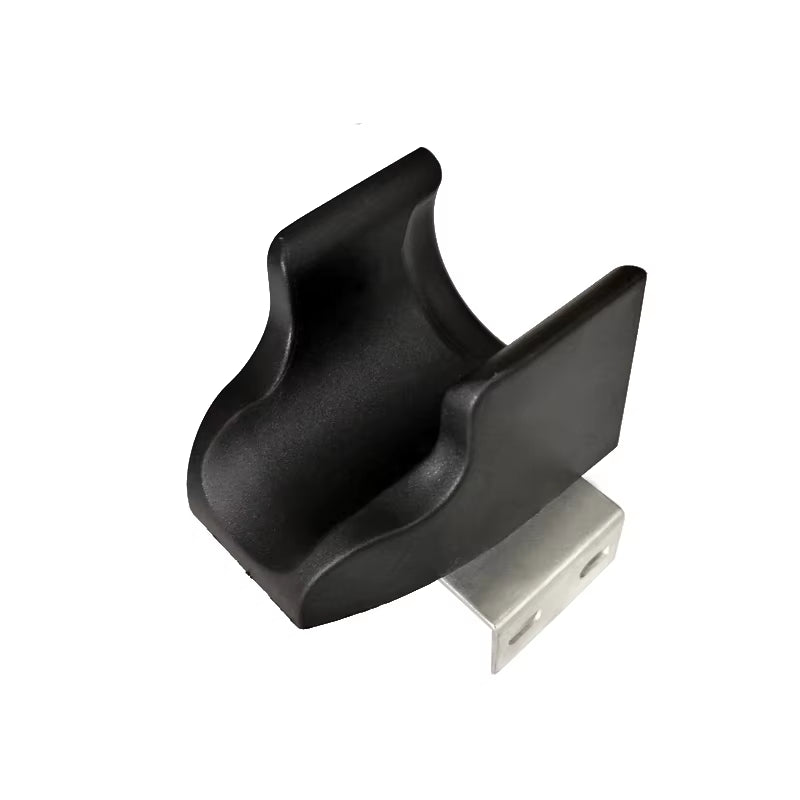

  1 X Hot Air Gun Stand
