H.265 Max 4K Output CCTV NVR Face Detection 9CH 10CH /16CH 32CH 4K Security Video Recorder Motion Detect P2P Onvif XMEYE
H.265 Max 4K Output CCTV NVR Face Detection 9CH 10CH /16CH 32CH 4K Security Video Recorder Motion Detect P2P Onvif XMEYE
Specifications |
9CH |
10CH |
16CH |
32CH |
|
System |
Main processor |
XM8536D |
XM8536E |
XM8536E |
NT98323 |
Operating System |
Embedded Linux |
||||
System resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
||||
Interface |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
|||
Preview |
1/2/4/6/8/9 |
1/2/4/6/9/10 |
1/2/4/6/8/9/16 |
1/2/4/6/8/9/16/36 |
|
Video |
Video input (IP |
9*4K Unreal-time（Access bandwidth 60Mbps） |
10*4K（Access bandwidth 72Mbps） |
16*4K（Access bandwidth 72Mbps） |
36*4K |
Video compression |
H.265AI/H.265+(compatible H.265/H.264) |
||||
Display quality |
Max:4K |
||||
Playback quality |
4K/5M/4M/3M/1080P |
||||
VR |
Not support |
||||
human shape / Face |
Support(depend on camera,the camera of NETIP protocol can support face recognition) |
||||
Audio |
Audio compression |
G.711A |
|||
Intercom |
support |
||||
Record & playback |
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
|||
Localpayback(real-time+ |
1ch4K/2ch5M/1ch4M |
1ch4k/2ch5M/2ch4M/ |
1ch4k/2ch5M/2ch4M/ |
2ch4K@12fps/3ch5M@20fps/4ch4M@20fps/4ch3M@20fps/6ch1080P@25fps |
|
Search mode |
Search by Time/Calendar/Event/Channel/Face |
||||
Record storage |
HDD、Network |
||||
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
||||

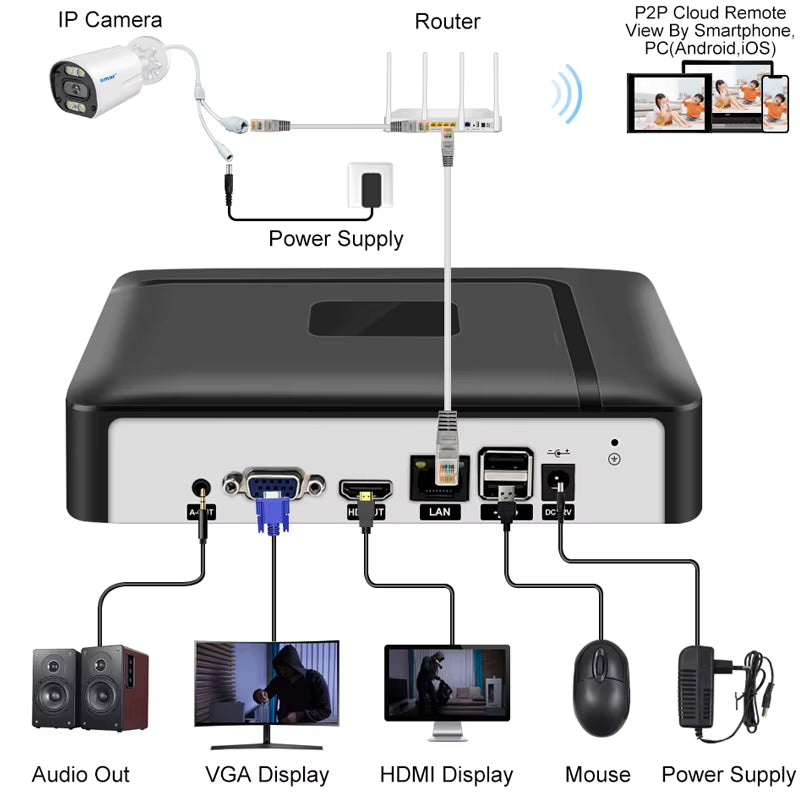

External |
Video output |
1ch VGA，1ch HDMI HD output |
|||
Audio I/O |
1/1（3.5mm） |
||||
Alarm I/O |
0/0 |
||||
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
1*RJ45 100M/1000M Adaptive Ethernet port |
|||
USB interface |
2*USB2.0 ports(one USB extension interface is reserved) |
||||
HDD |
1 SATA(Up to 14TB for each disk) |
||||
ESATA |
No |
||||
Serial interface |
No |
||||
Other |
ONVIF |
Support |
|||
power supplyr |
DC12V 2A(If the hard drive is greater than 2TB, please replace it with a 3A or higher power supply) |
||||
Power Consumption |
<10W(Without HDD) |
||||
Work environment |
Temperature:0°C －55°C, Humidity:10%－90%RH , Atm:86kpa－106kp |
Packing List:
1* 9CH/ 10CH/16CH/32CH H.265 NVR
1* USB Mouse
1* DC12V Power Adapter for NVR
1* User's Manual
For 9CH /10ch NVR:
1 Max support 10*4K(8MP) IP Camera
2. Don't support Wifi Adapter;
3. 9CH(XM) Max Support 1920x1080P Display
4.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech
For 16CH NVR:
1.16CH is XM8536E Chip;
2. Max support 16*4K(8MP) IP Camera
3. Don't Support Wifi Adapter
4.16CH(XM8536E) Board Max Support the 4K Display
5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech
For 32CH NVR:
1.32CH is NT98323 Chip;
2. Max support 36*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.32CH(NT982323) Max Support the 4K Display
5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech, Bulgarian, Slovak, Dutch

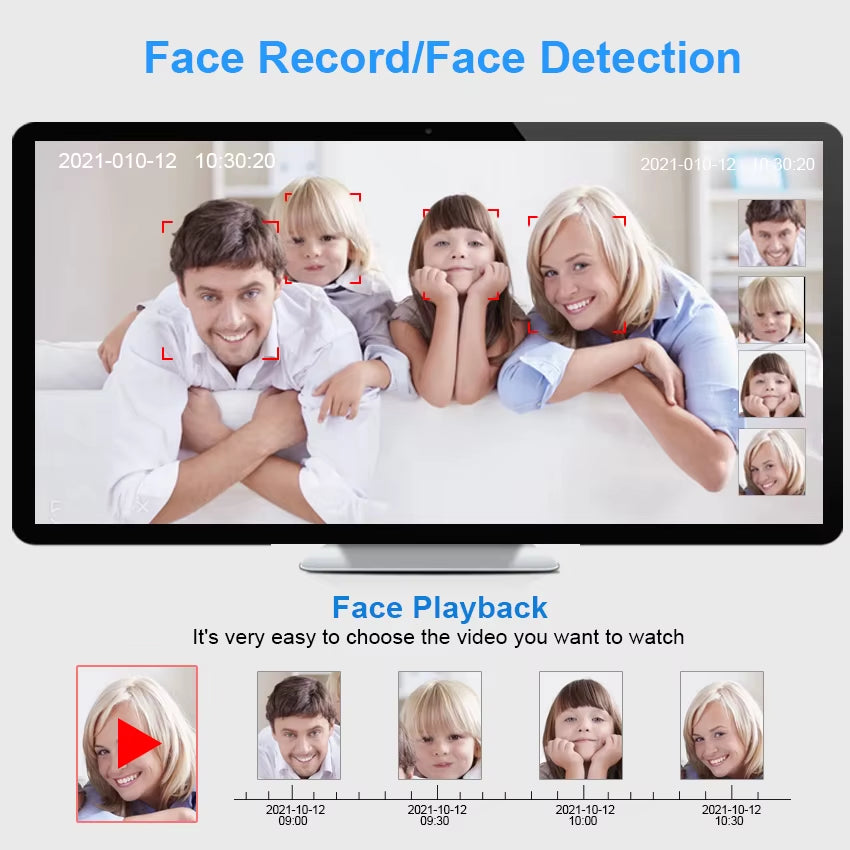

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera
Your Camera Must support XM Face Detection, or will not work)
Motion Detection & Email Alert
When the Detect Motion happened in your home and office. you'll get instant alarming email when the home or office is invaded. You can even ensure that false alarms are avoided by setting the motion detection "mask"to block areas with constant movement.
Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera; As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Can't used the Motion Detection Function with Our DVR. ( Please note before when you buying)
E-mail Set
Please note: SMTP Server only support these Email Box:126,163,gmail,sina,139,156,qq format, And the recipient can set up 5 vaild mail.
Mail Testing: Test message sent success(It's OK)
Mail Testing: Failed to connect to server.(It's failure)

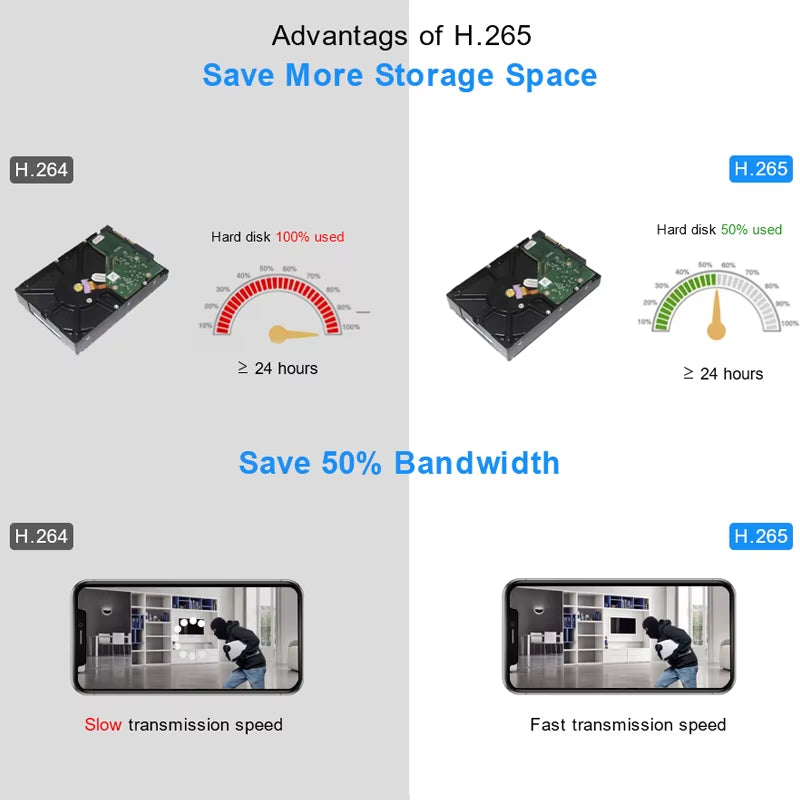

Advanced H.265 Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265 video saves around 70% of the bit rate at the same quality of coding, HD resolution offer you best image quality in a lower bit rate,save your HDD storage space and reduce your purchase cost.
