GET! Antenna Tuner Board Motherboard with Screen Finished Version DIY Antenna Kits Tester Electronic Components ATU‑100 400MA

1. The large heat dissipation area of the module can better maintain long-term operation.
2. One-piece molding without burrs, with smoothly and easy to install.
3. adopts 1.6mm thick double‑sided board, strong and durable, has a long service life.
4. The whole process of spraying tin ensures good passing performance of large and small currents.
5. The maximum installation inductance is 8.53uh, the minimum installation inductance is 0.05uh.

Item Type:Antenna Tuner Board
Model:ATU-100
Maximum Current Consumption:400ma
Number of Installed Inductors:7
Number of Installed Capacitors:7
Power Measurement Step of 10 Watts:0.1 watts
Measurement Steps With Power Higher Than 10: 1 watt
Power Measurement Accuracy:10%
Maximum Installation Inductance:8.53uh
Minimum Installation Inductance:0.05uh
Maximum Installed Capacity:1869pf
Minimum Installed Capacity:10pf
Colour:Black
Material:PC+Metal

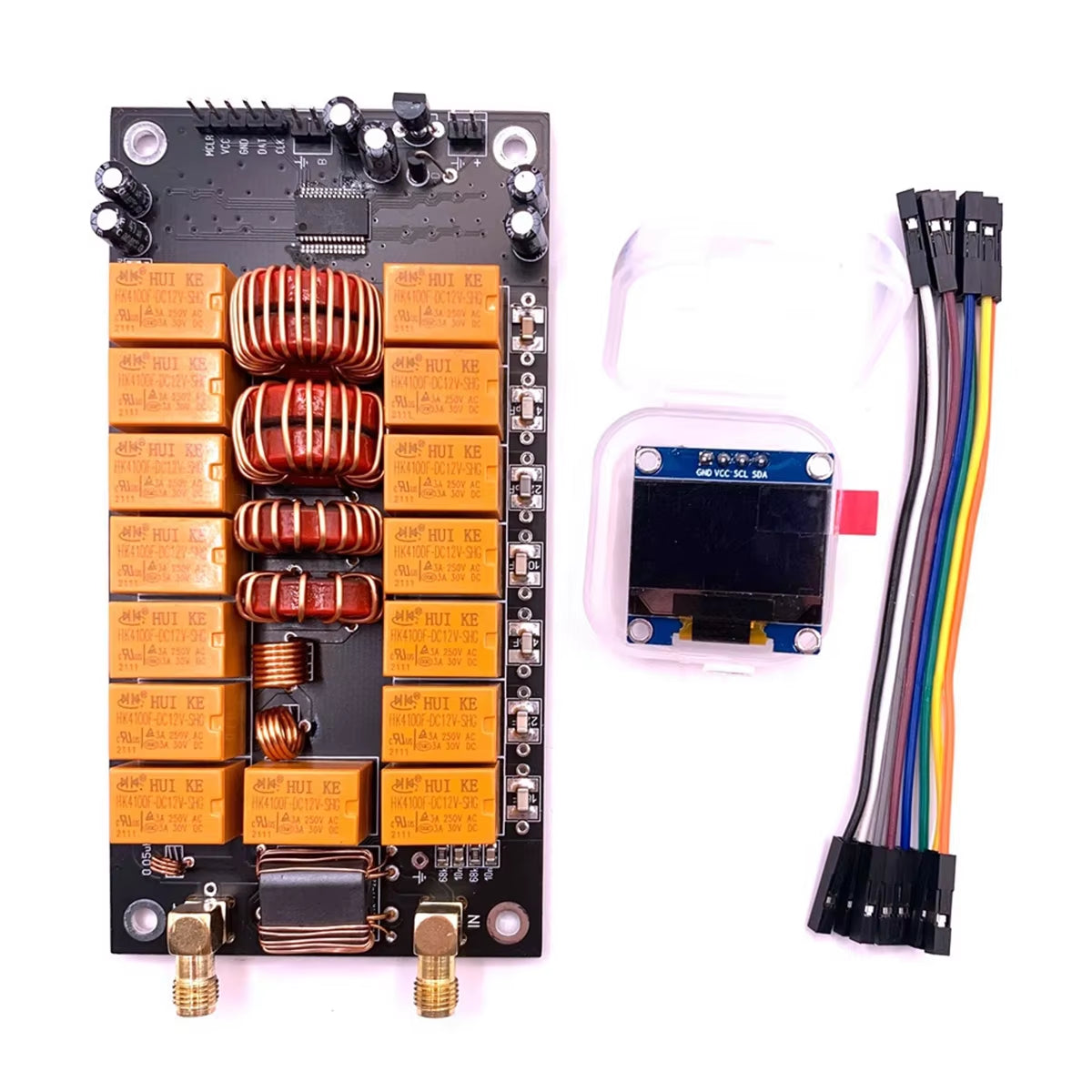

Package Contents:

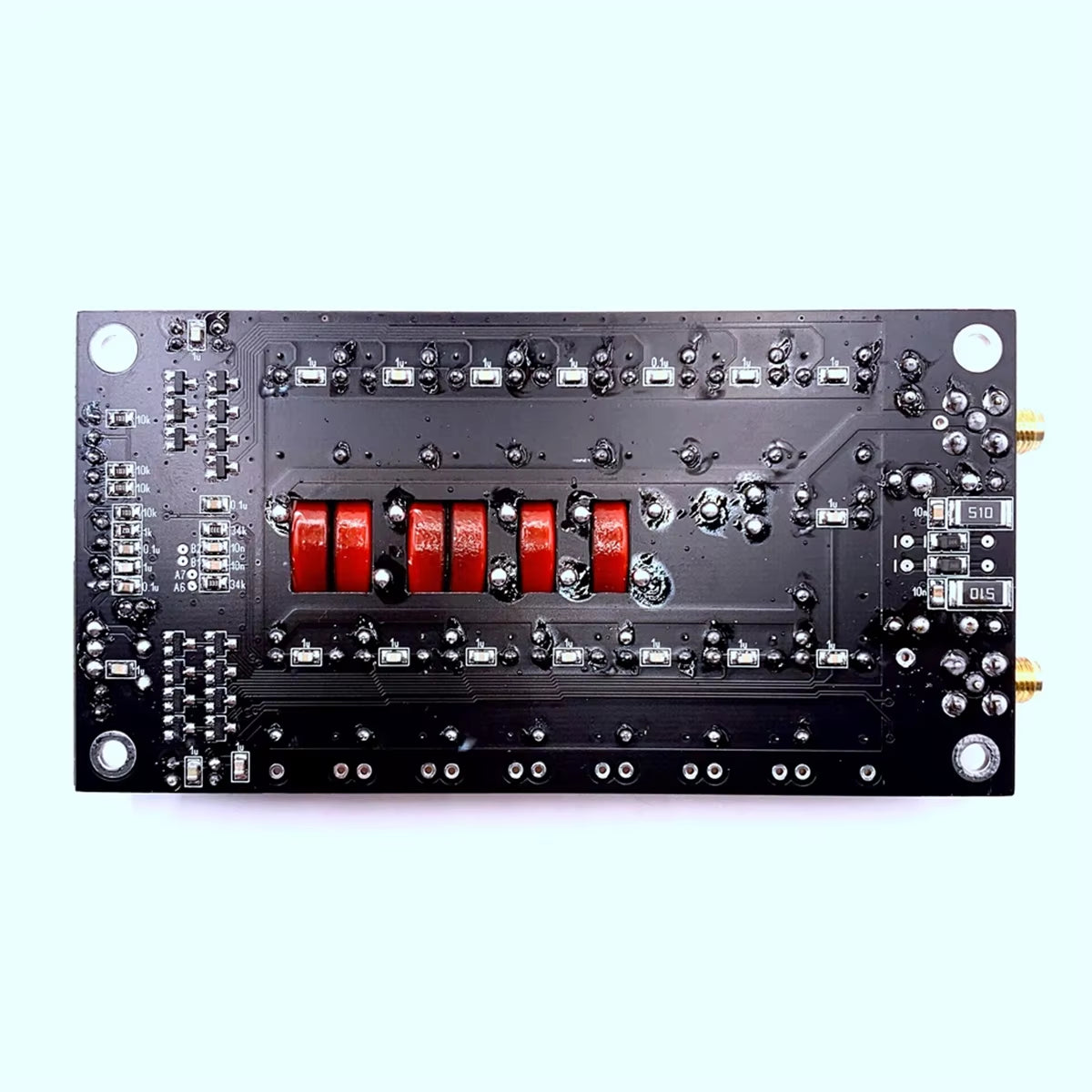

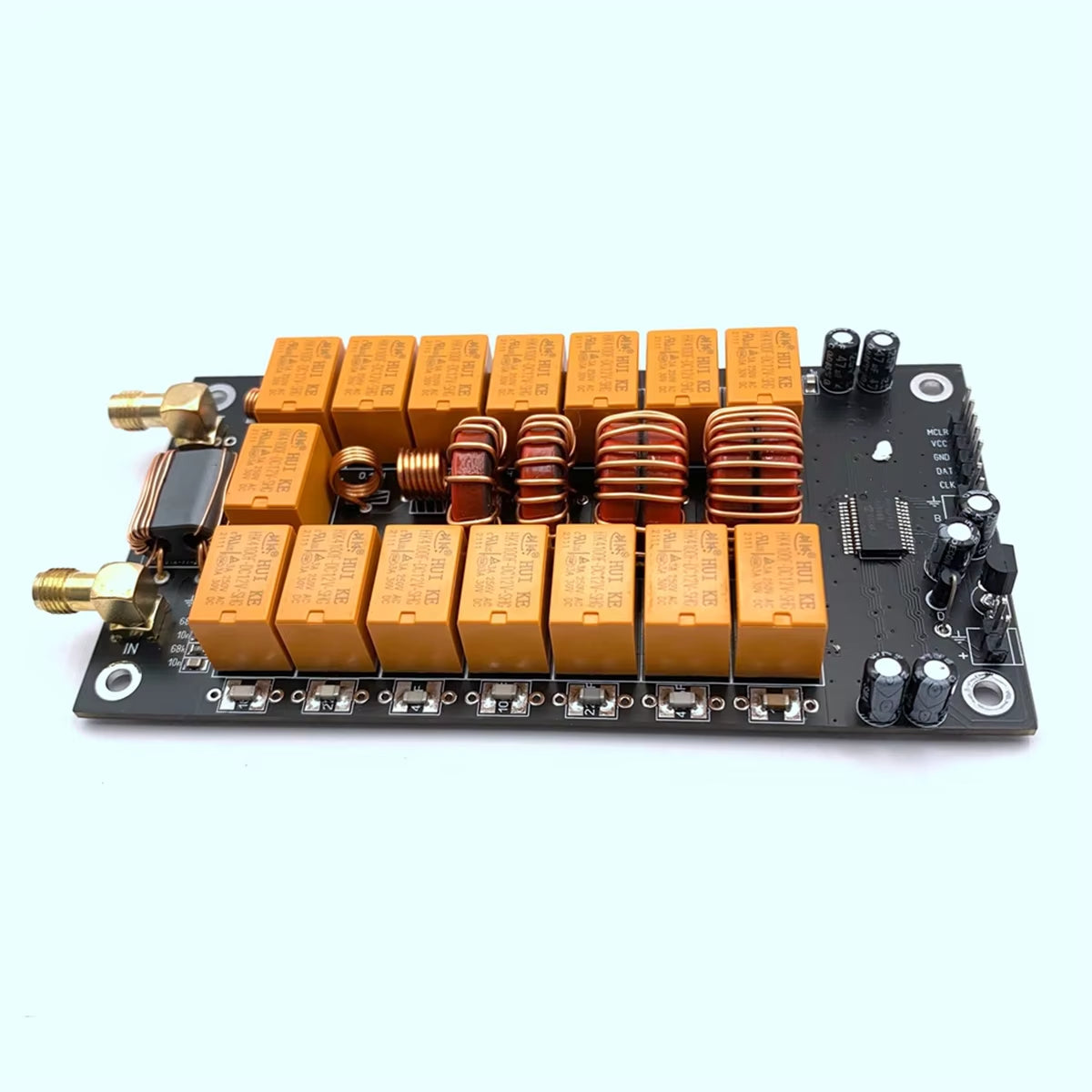

1 x Motherboard

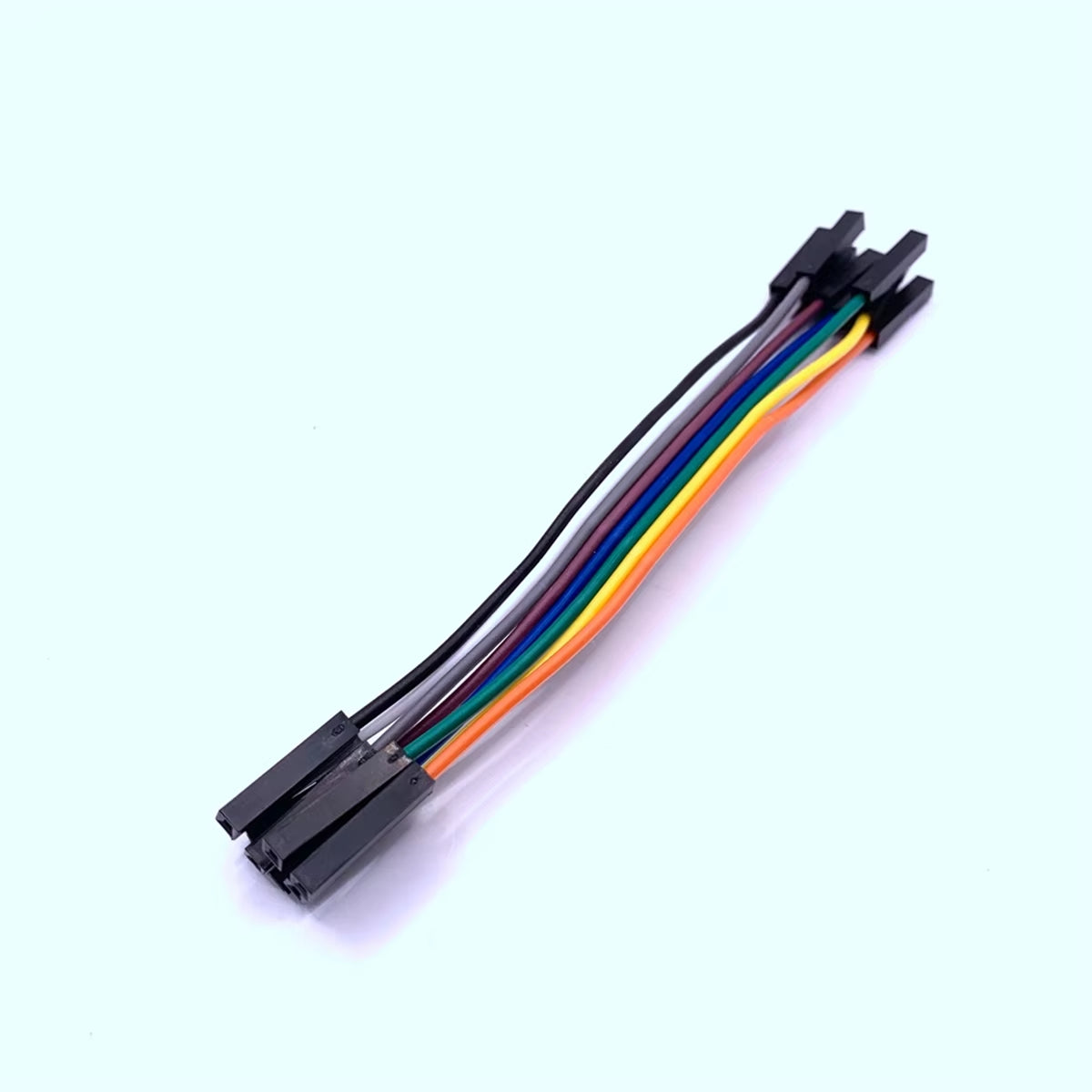

1 x Connection Line

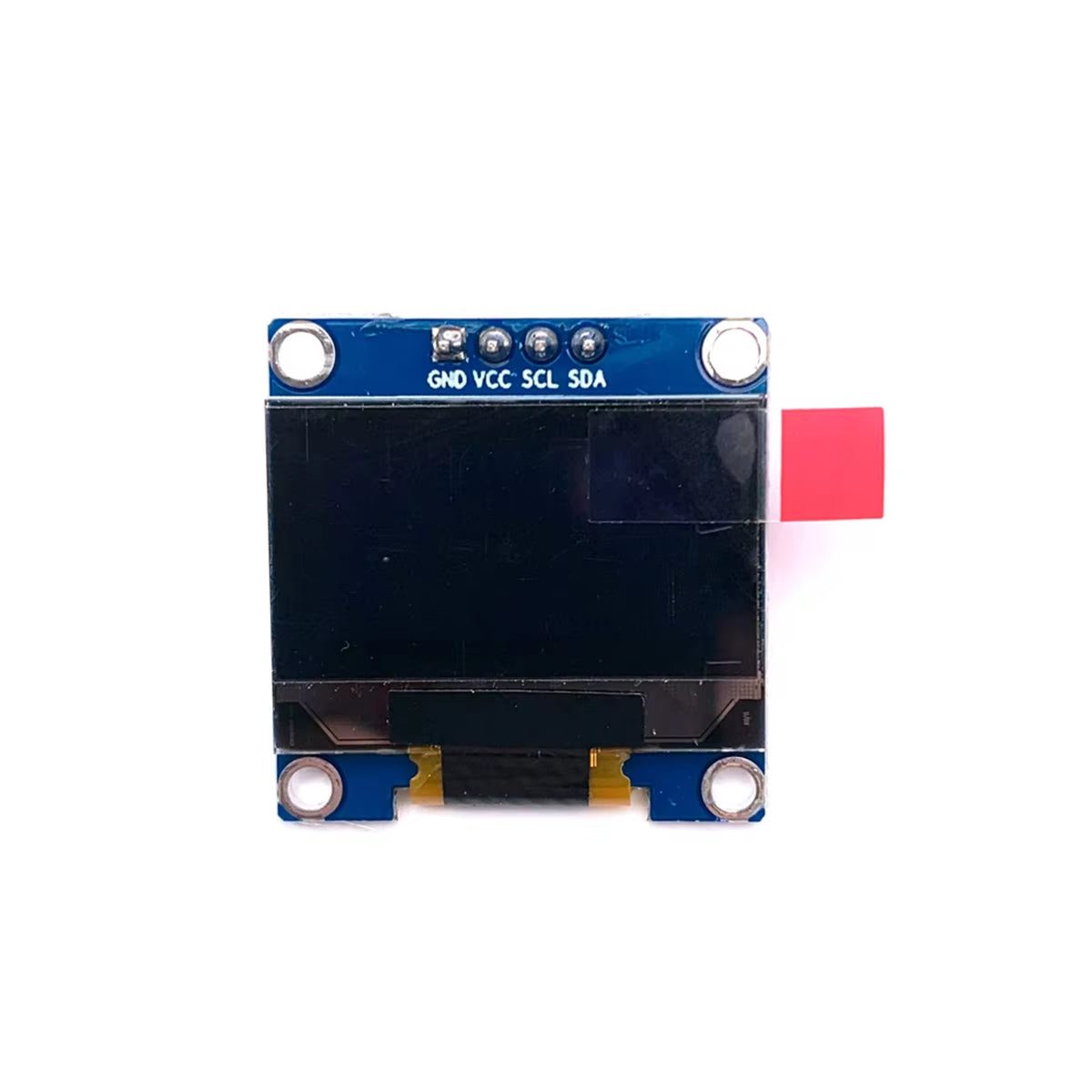

1 x Module

Only the above package content, other products are not included.
