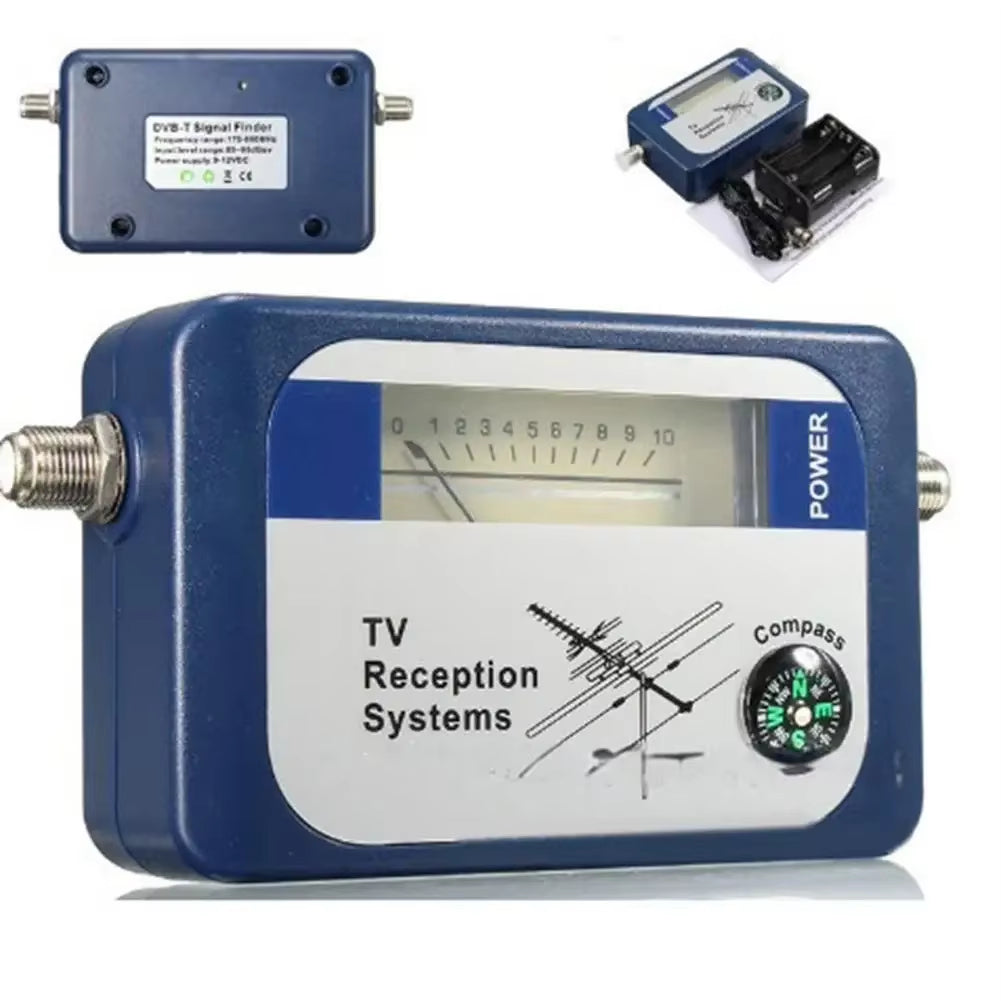

DVB-T Digital TV Antenna Detector Antenna Ground Signal Meter Receiving System Hand Tools Power Tool Accessories

Features:

With excellent sensitivity and accuracy, it helps you find the best position to install the DVB-T antenna.

Designed with a for compass for easier and faster adjustments.

With a buzzer and attenuation control function, it is simple to operate and user-friendly.

numbers intuitively display signal strength.

Compact size and light weight, truly portable and convenient.

Operation:

1. Connect the antenna cable to the left F female connector and the battery pack cable to the right F female connector. Remove any external that may be connected to the antenna*.

2. Adjust the antenna to the best position by observing the meter reading. The higher the scale, the better the signal. If the viewfinder reading reaches full scale, adjust the level control knob to reduce the reading to around 5 (turning the knob clockwise will reduce the reading), continue to move the antenna until you get the highest meter reading.

3. Remove the viewfinder and replace any disconnected .

Important Tips:

- If your antenna has a built-in (eg: 01MM-SQ01), it should be powered by an external power supply via a DC power plug-in. Make sure the power plug-in is between the satellite finder and the antenna.

Specifications:

Part Name: DVB-T Satellite Finder

Color: Blue

Material: Plastic

Frequency Range: 170-860MHz

Input Level Range: 65-95dBuv

Impedance: 75Ω

Insertion Loss: ≤5.0dB

Power Supply: 9-12V DC

size: Approx. 127 * 63 * 35 mm / 5 * 2.48 * 1.38 inches

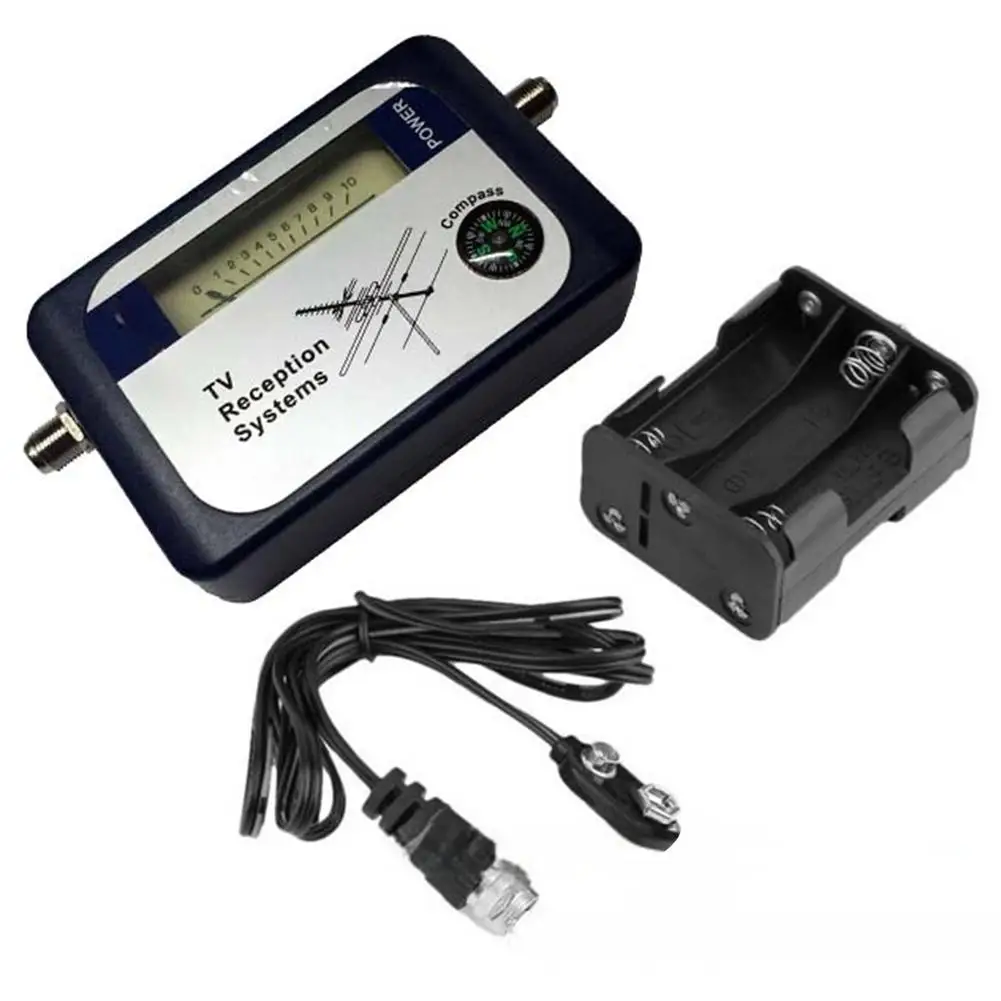

Package Contents:

1 * DVB-T Satellite Finder

1 * English User Manual

1 * Battery Holder

1 * Power Cord

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
