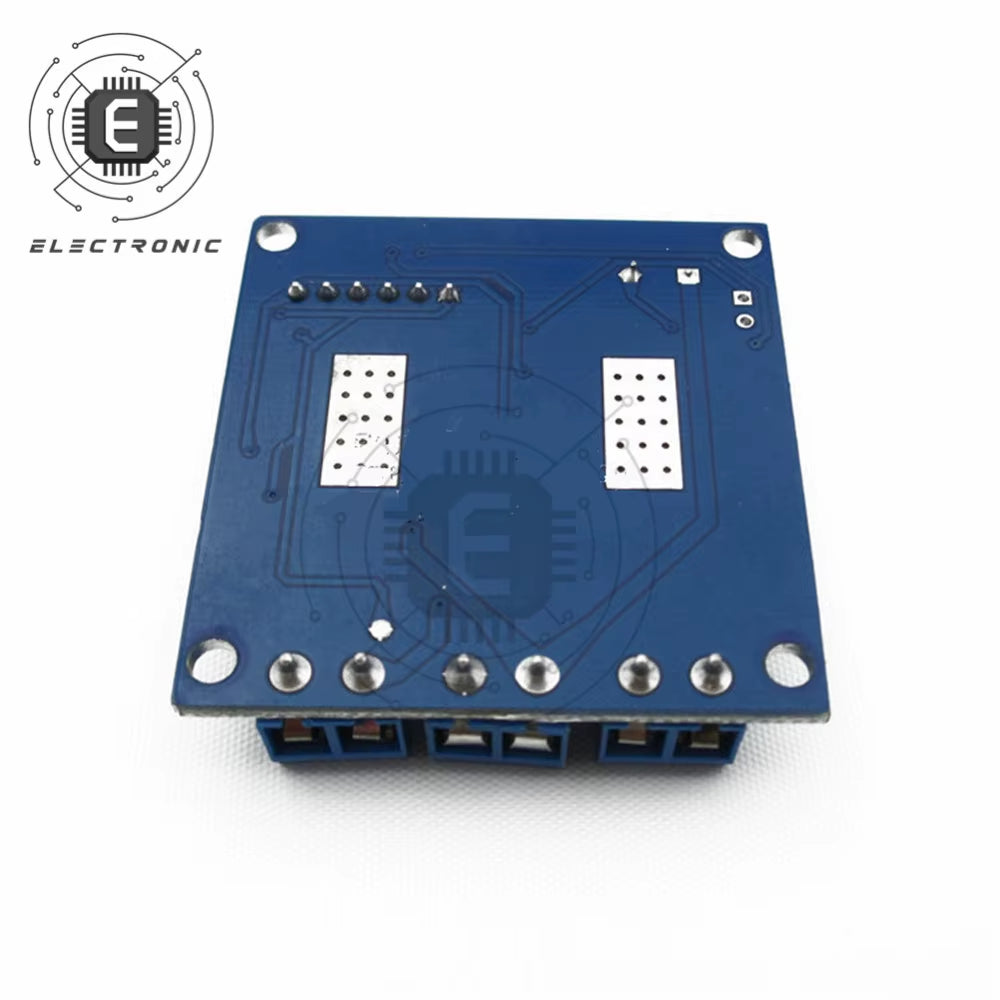

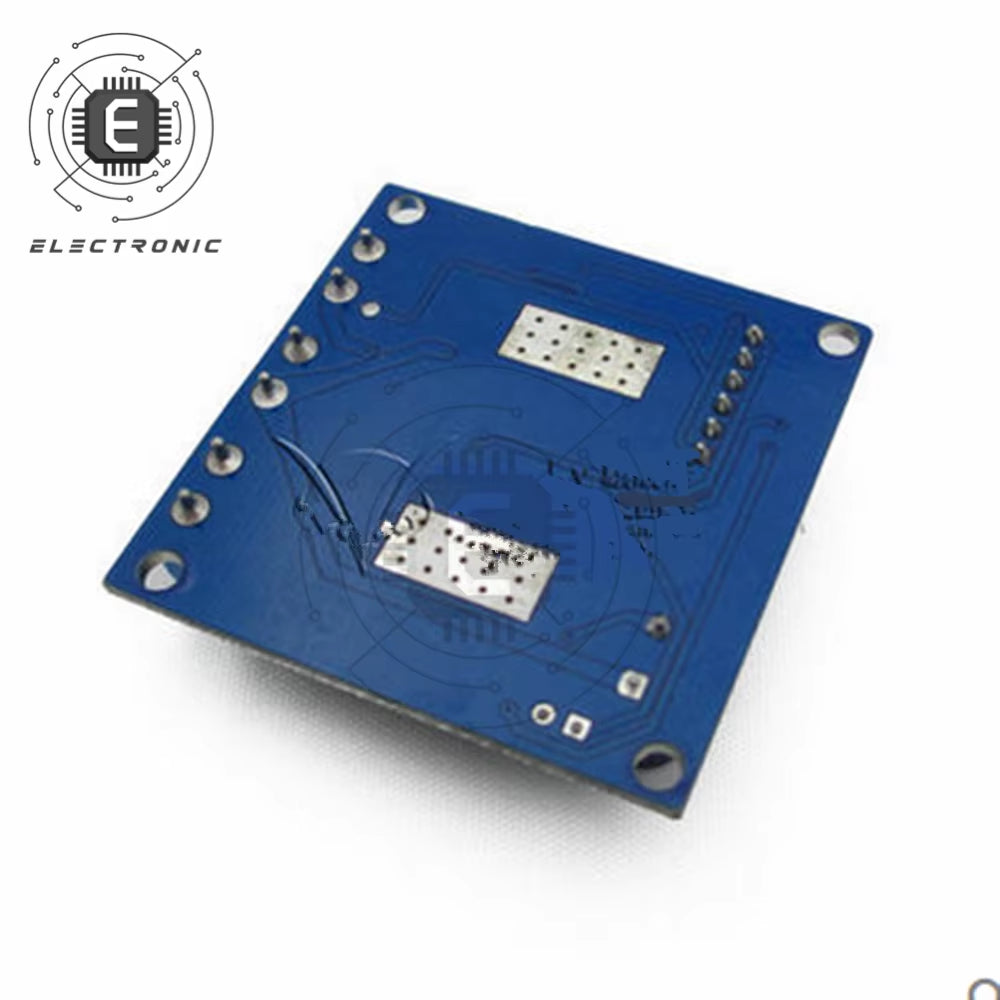

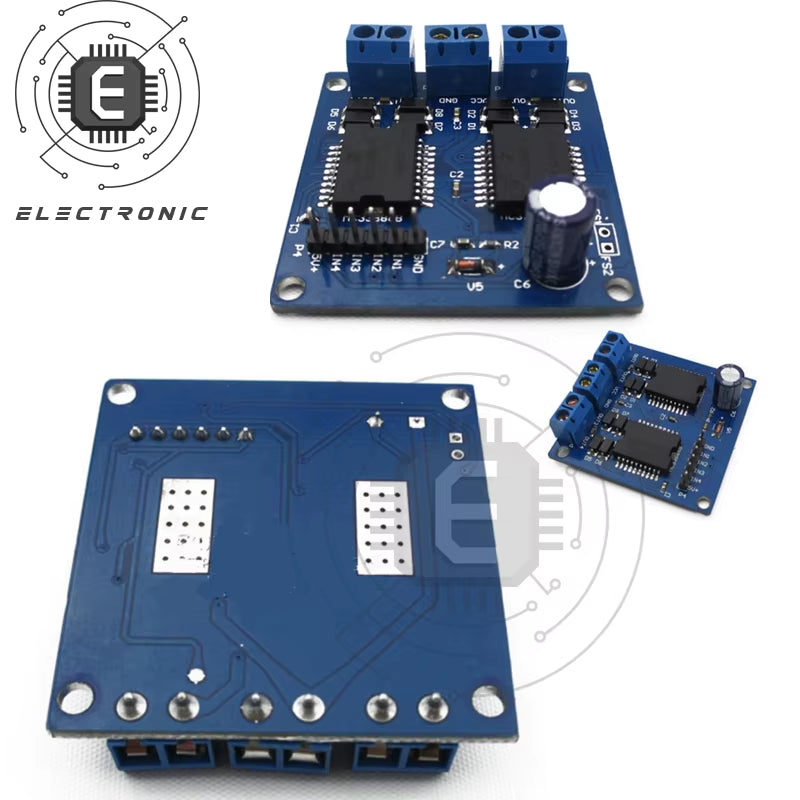

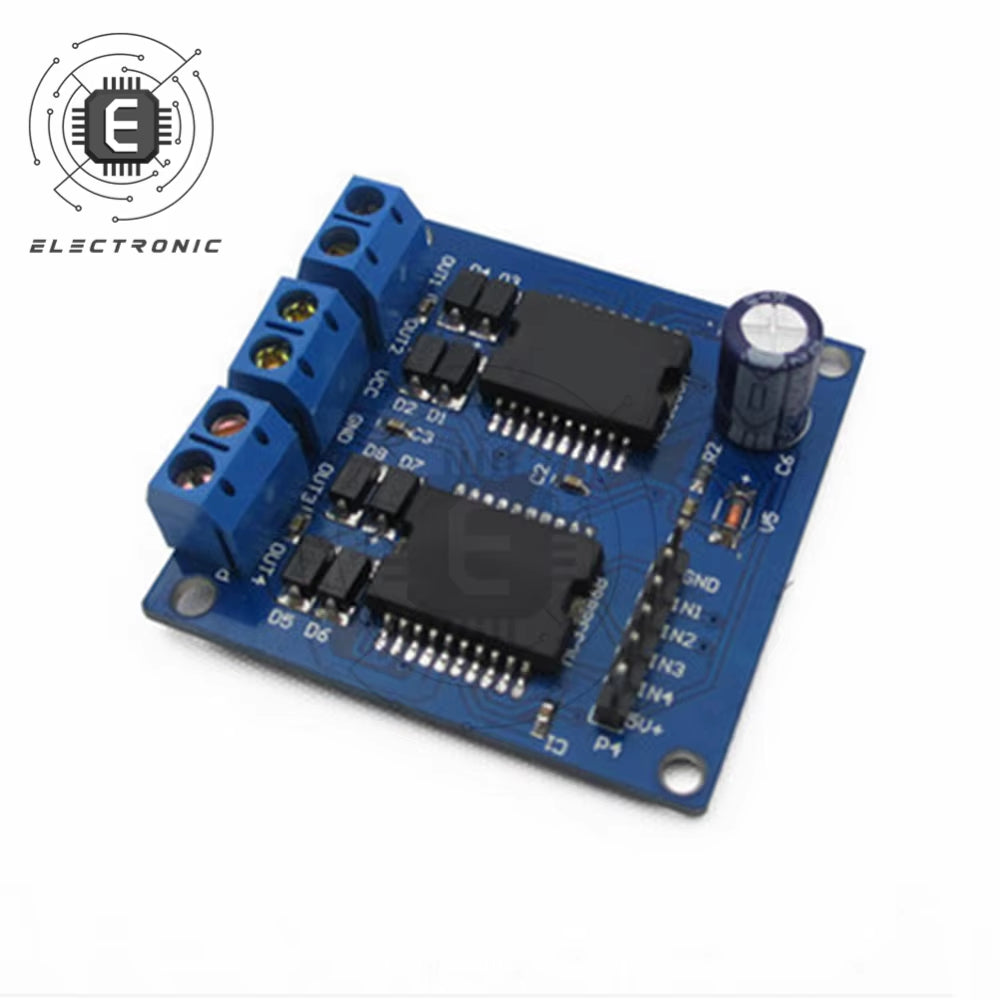

Dual MC33886 DC Motor Driver Module 5A Stepper Motor Driver Board Controller Module for Robot Smart Car
Dual MC33886 DC Motor Driver Module 5A Stepper Motor Driver Board Controller Module for Robot Smart Car
Dual MC33886 DC Motor Driver Module 5A Stepper Motor Driver Board Controller Module For Robot Smart Car
Feature:
Support Raspberry Pi A + / B + / 2B / 3B
Airborne IR receiver for remote control of robots
Multiple protection circuits, good stability
2A resettable fuse, keep your Pi safe
The driver chip has a high current, short-circuit shutdown function with under-voltage disable function
Motor output reverse polarity protection
Reverse diode for power supply
Power input range: 7V~40V
Single motor output current: maximum 5A
Raspberry Pi power supply current: up to 2A
Weight: 0.036 kg
Raspberry Pi GPIO interface: used to connect to Raspberry Pi
Motor screw terminal: used to connect the motor
External power input
74LVC4245AD: voltage level conversion chip, buffer
MC33886: Motor driver chip
LM2596-5.0: 5V voltage regulator
Power Indicator
Raspberry Pi power supply options
OFF: Raspberry Pi supplies power to the motor drive board
ON: The motor drive board supplies power to the Raspberry Pi
2A self-recovery fuse
Infrared receiver
Schottky diodes: protect motor drivers
Power anti-reverse diode
Package Included:
RPi motor drive board x 1
