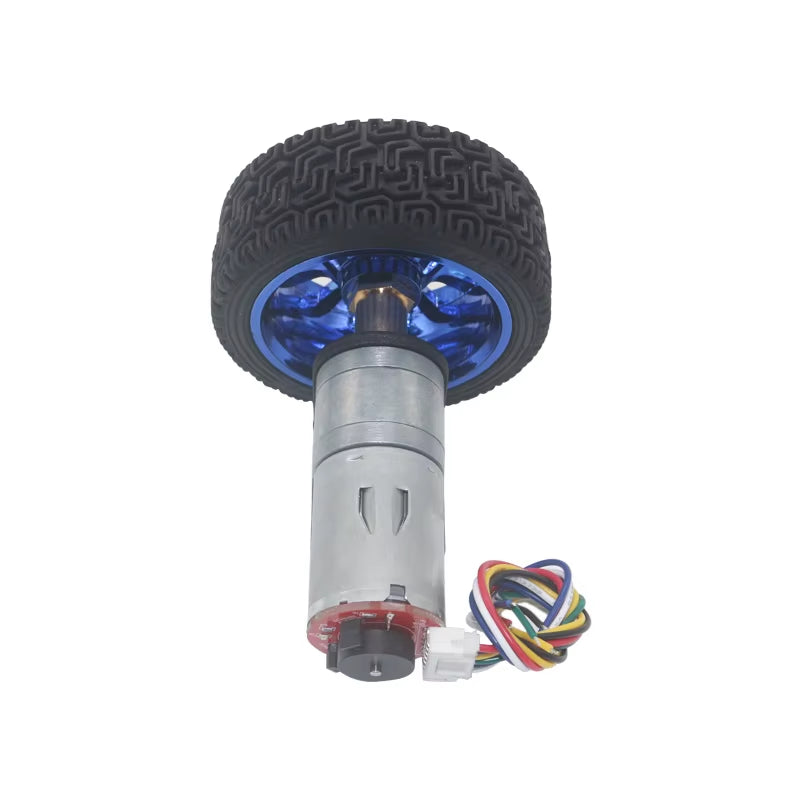

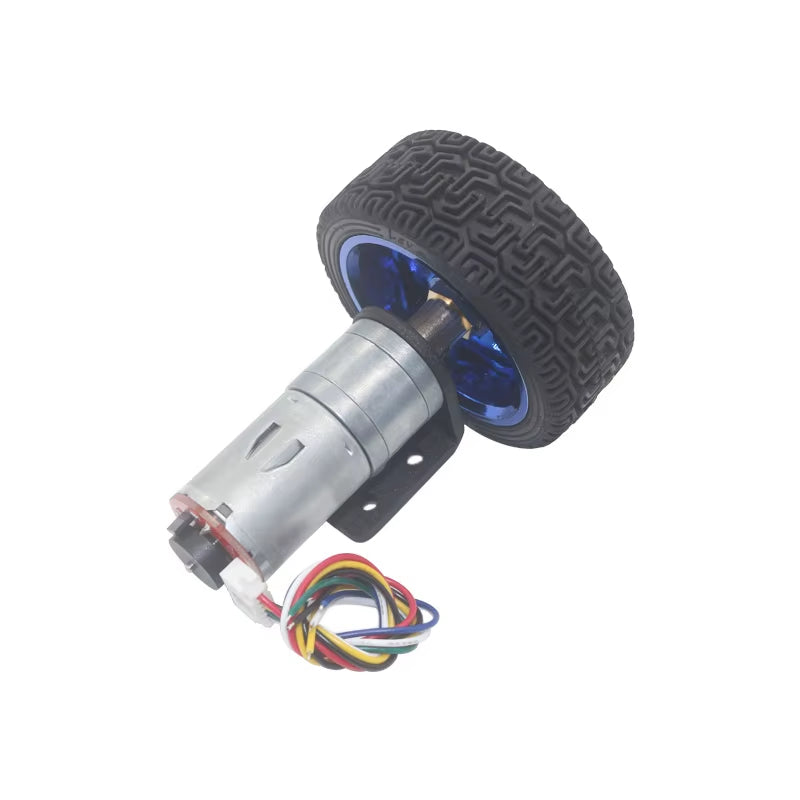

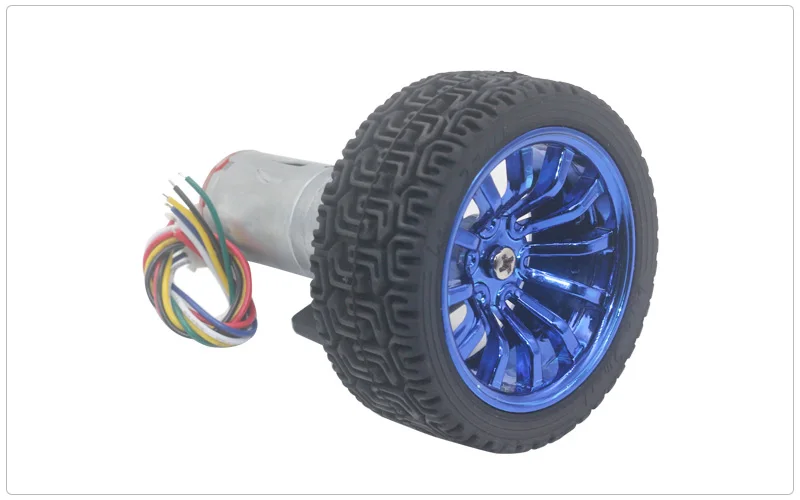

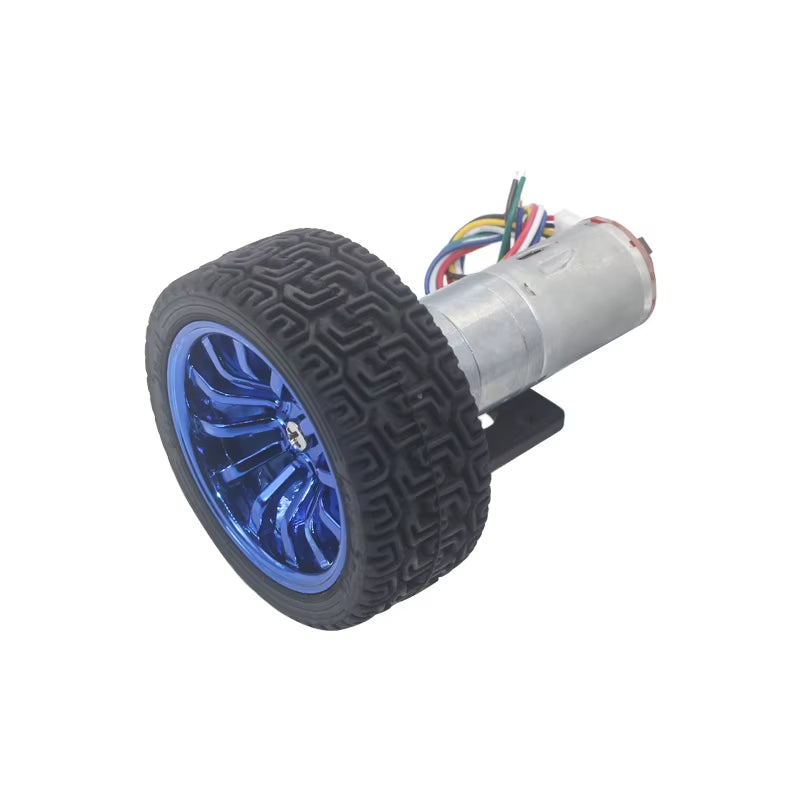

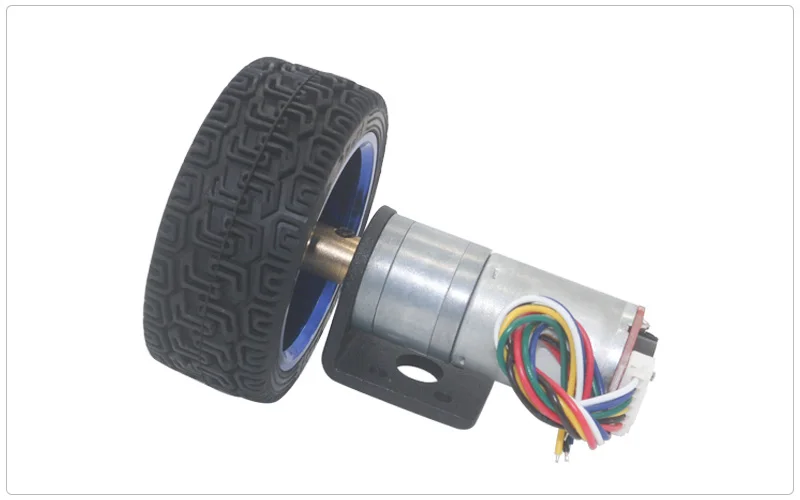

Diy Arduino Geared Motors 6V 12V 24V DC Gear Motor with Encoder and 65Mm Wheel Coupling Kit for Robot Smart Car Gearmotors

• Voltage: DC6V

No-Load Speed: 12RPM,16RPM,26RPM,35RPM,60RPM,77RPM,130RPM,170RPM,280RPM,620RPM,1360RPM

• Voltage: DC12V

No-Load Speed:12RPM,16RPM,26RPM,35RPM,60RPM,77RPM,130RPM,170RPM,280RPM,620RPM,1360RPM

Voltage:DC24V:

No-Load Speed:12RPM,16RPM,26RPM,35RPM,60RPM,77RPM,130RPM,170RPM,280RPM,620RPM,1360RPM

• Error: ±5%

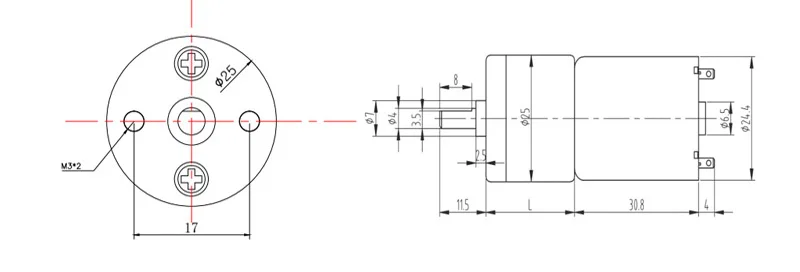

• Output Shaft Diameter: 4mm D-type

• Output Shaft Length: 14mm

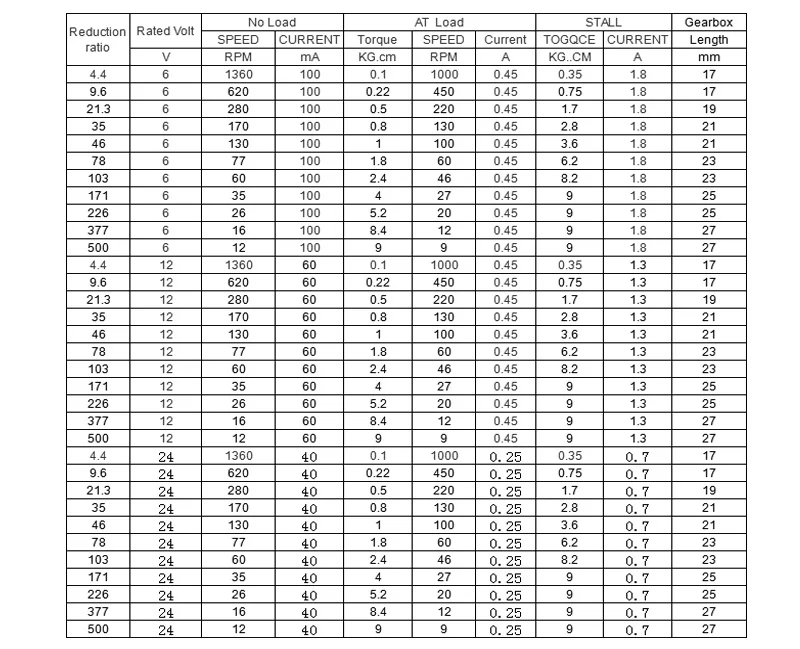

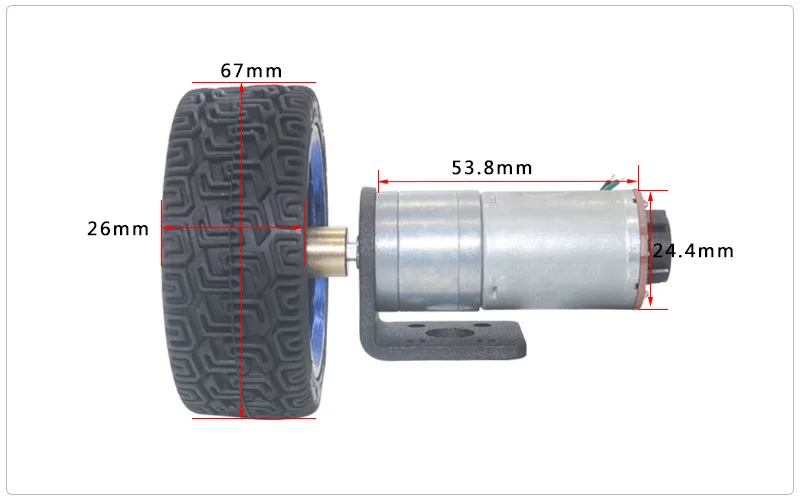

• Gearbox Size Detal, please see the table

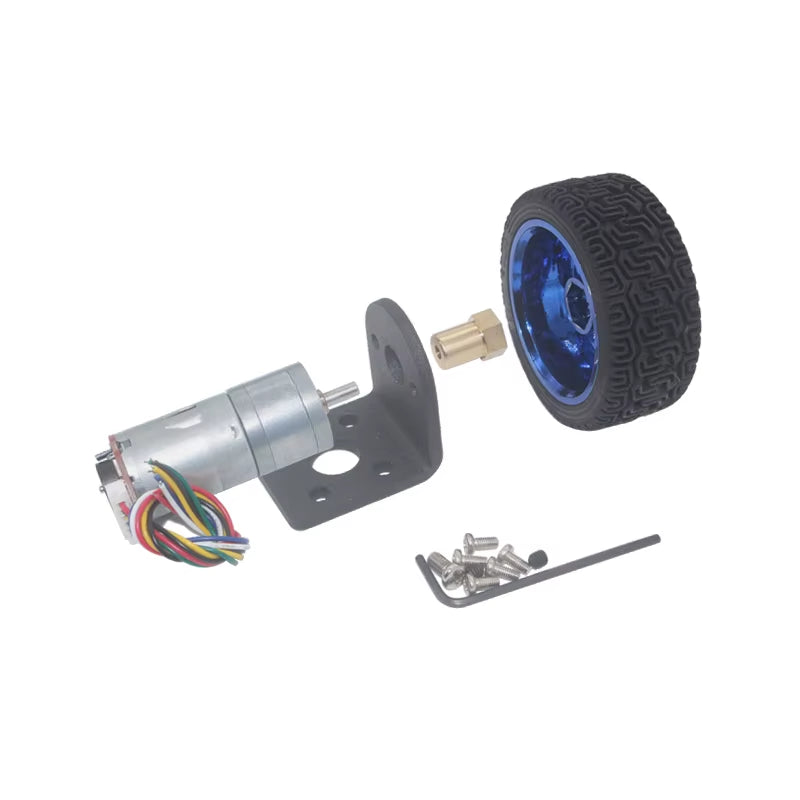

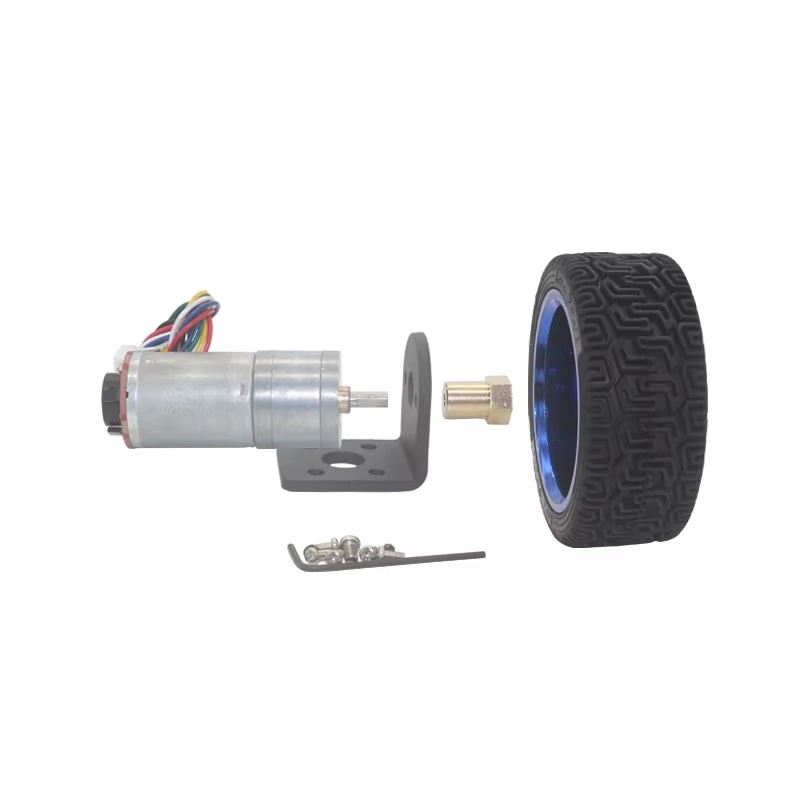

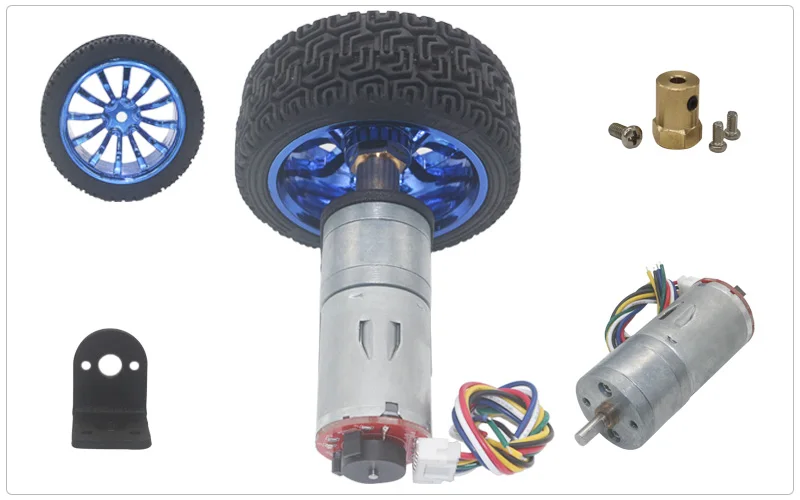

Packing include:
1*gear motor with encoder
1*mouting of motor
1*coupling
5*screws

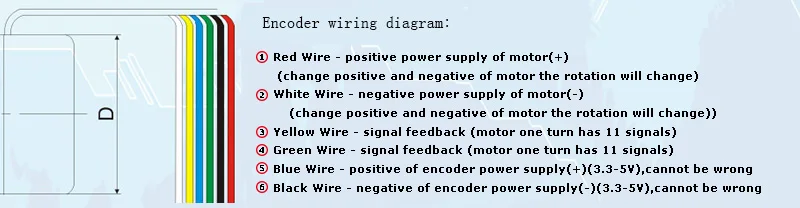

Wirings:

• Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)

• White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))

• Yellow Wire - signal feedback (motor one turn has 11 signals)

• Green Wire - signal feedback (motor one turn has 11 signals)

• Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong

• Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
