DCbrushed motor speed controller Micro motor drive module Mini DIY bidirectional forward reverse brushed ESC for car toys motor
Product selling points:
1. The product uses high-quality PCB materials and the quality is guaranteed
2. Compatible with various remote controls and receivers, with smooth and delicate speed control feel and good linearity

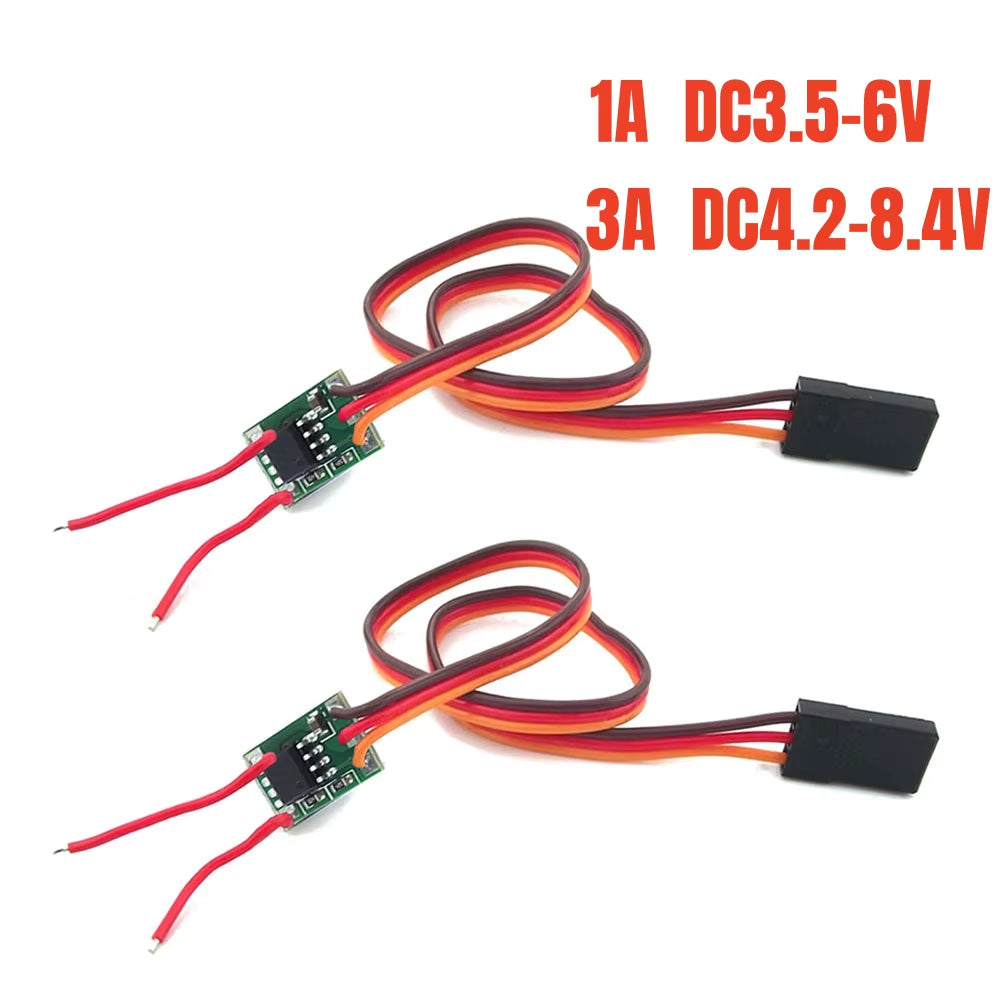

3. Simple ESC with brush, 1A and 3A current optional
4. Product performance is stable and service life is long
5. Application scope: mini cars, mini model aircraft, mini drones, mini multi-rotor ESCs, 360-degree continuous rotating servos, micro motors, 360-degree continuous rotating servos, digital circuits, no need for potentiometer adjustment, saving money Save effort

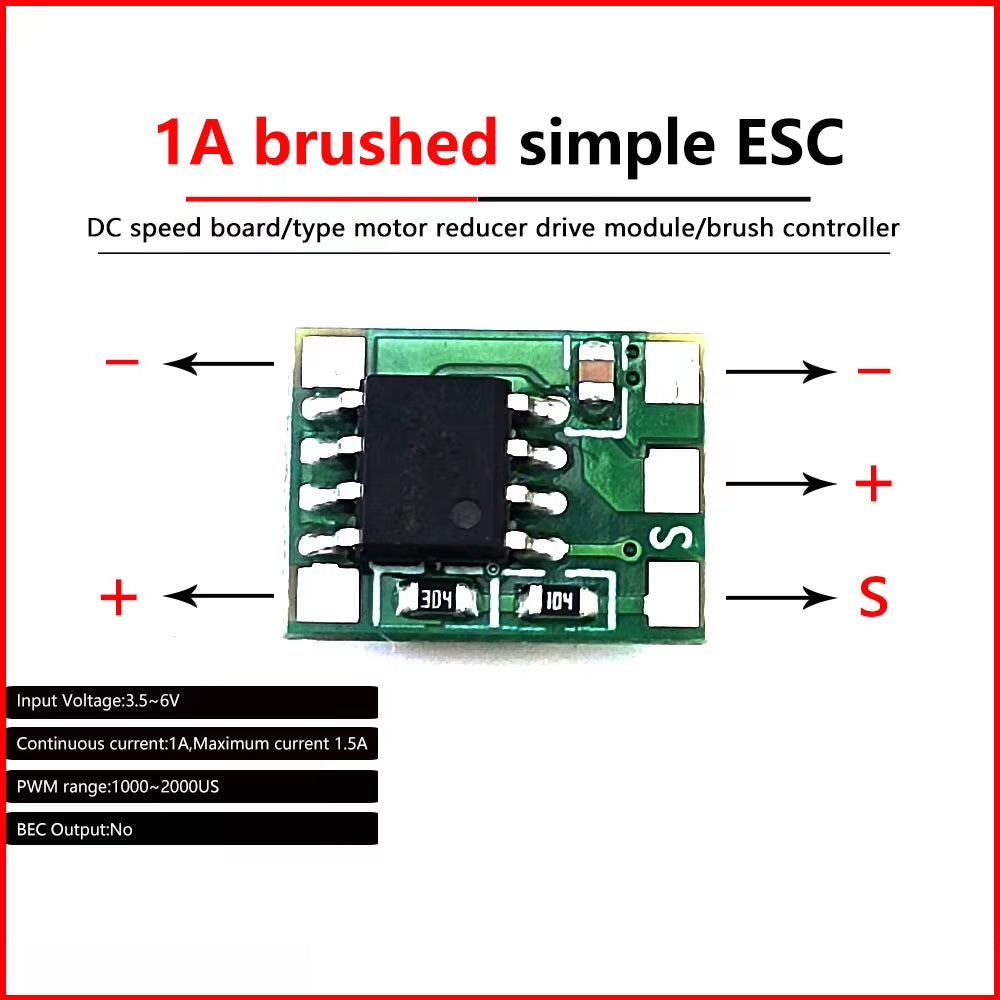

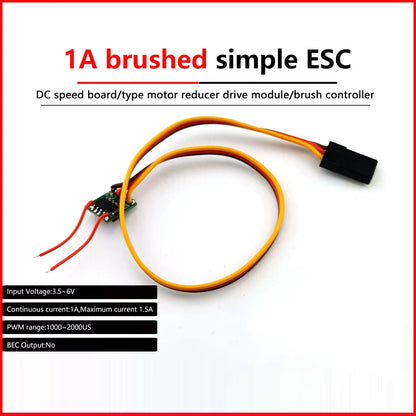

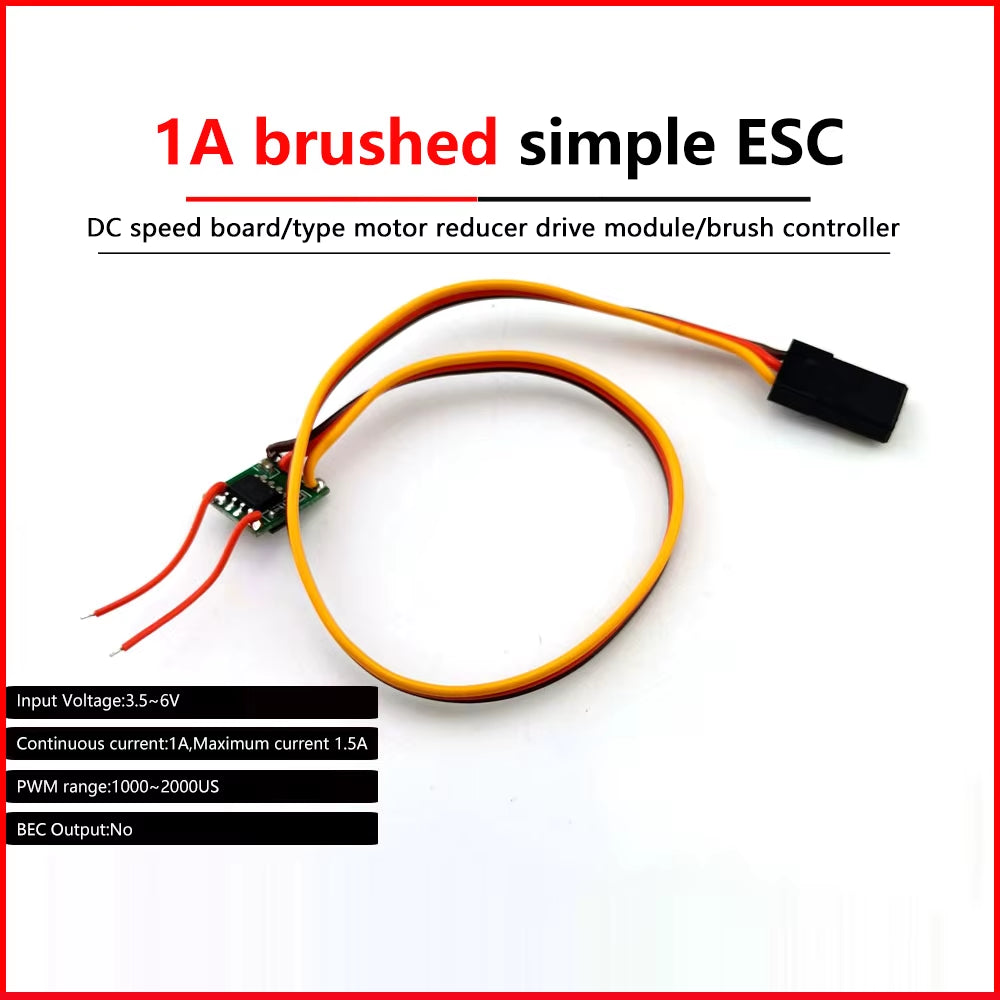

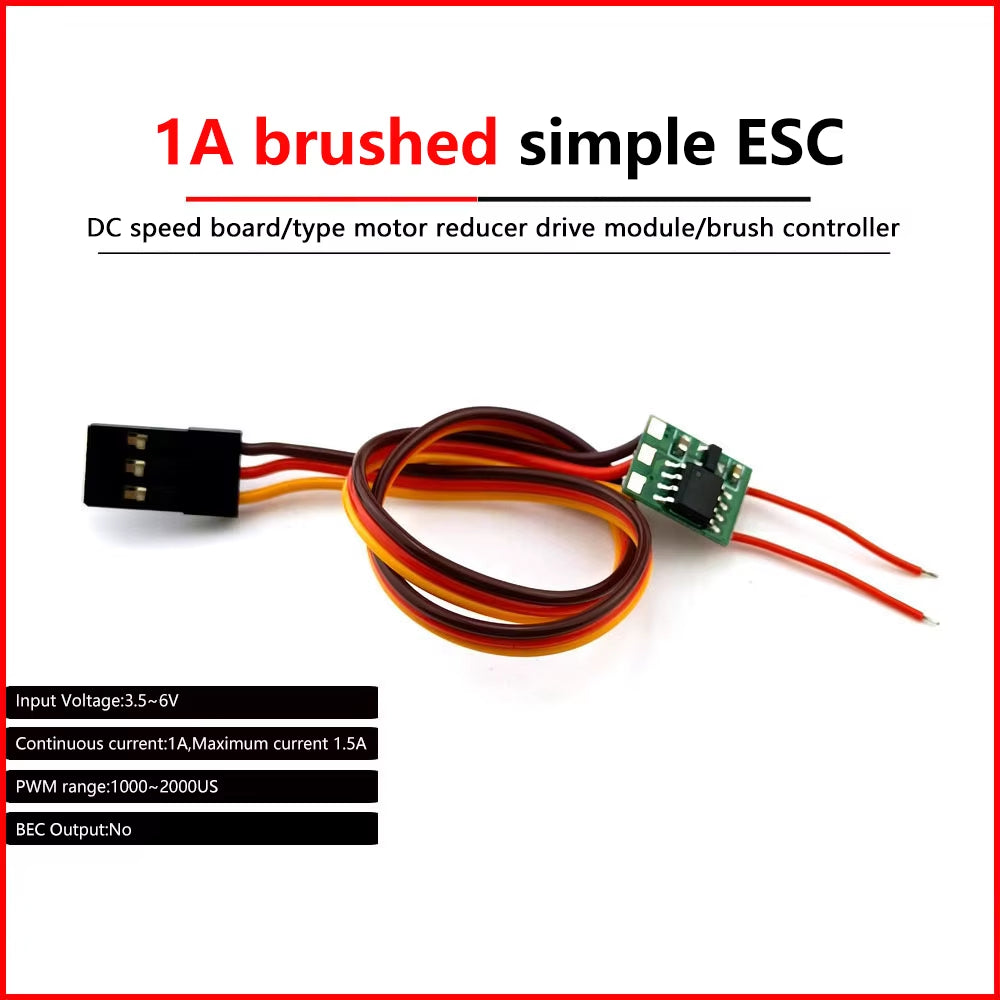

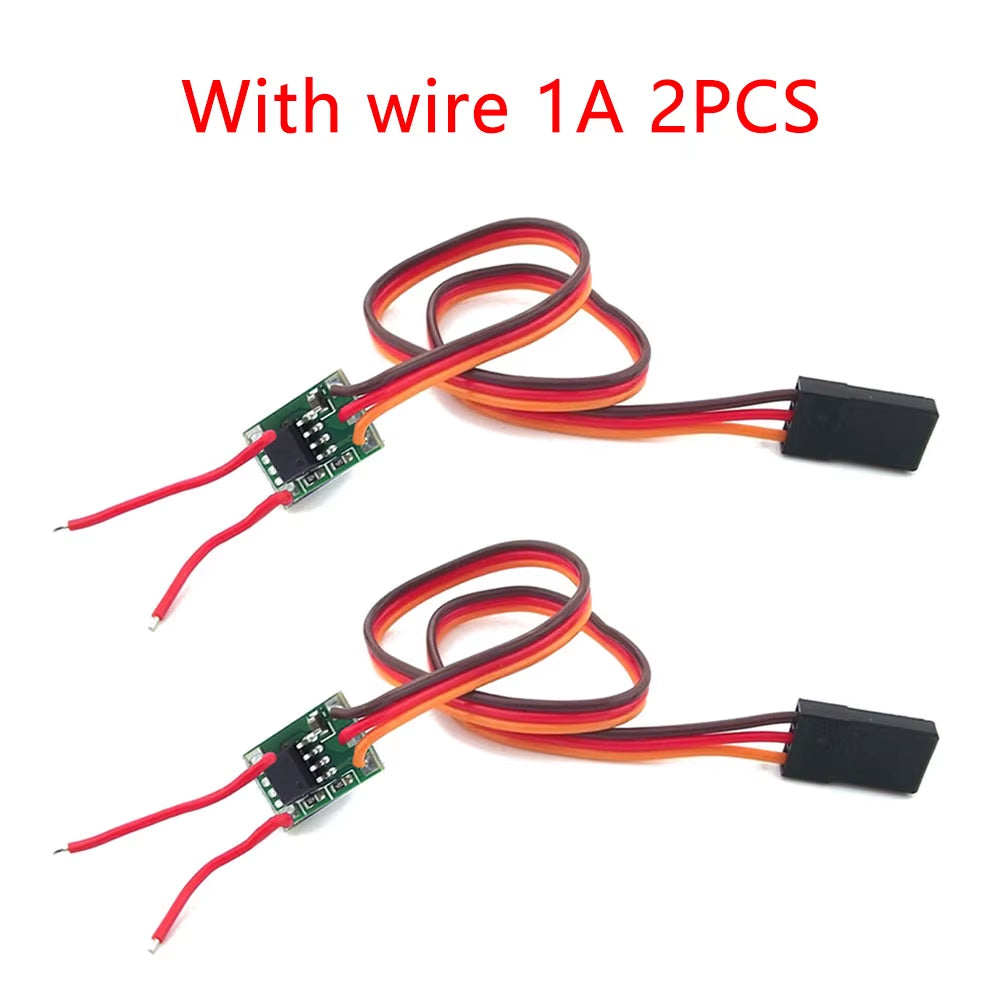

1A product parameters:
Size:12x8.5mm
Voltage: DC3.5-6V
Continuous current: 1A, maximum current 1.5A
PWM range: 1000~2000US
Wire length: 200mm
Motor cable length: 20mm

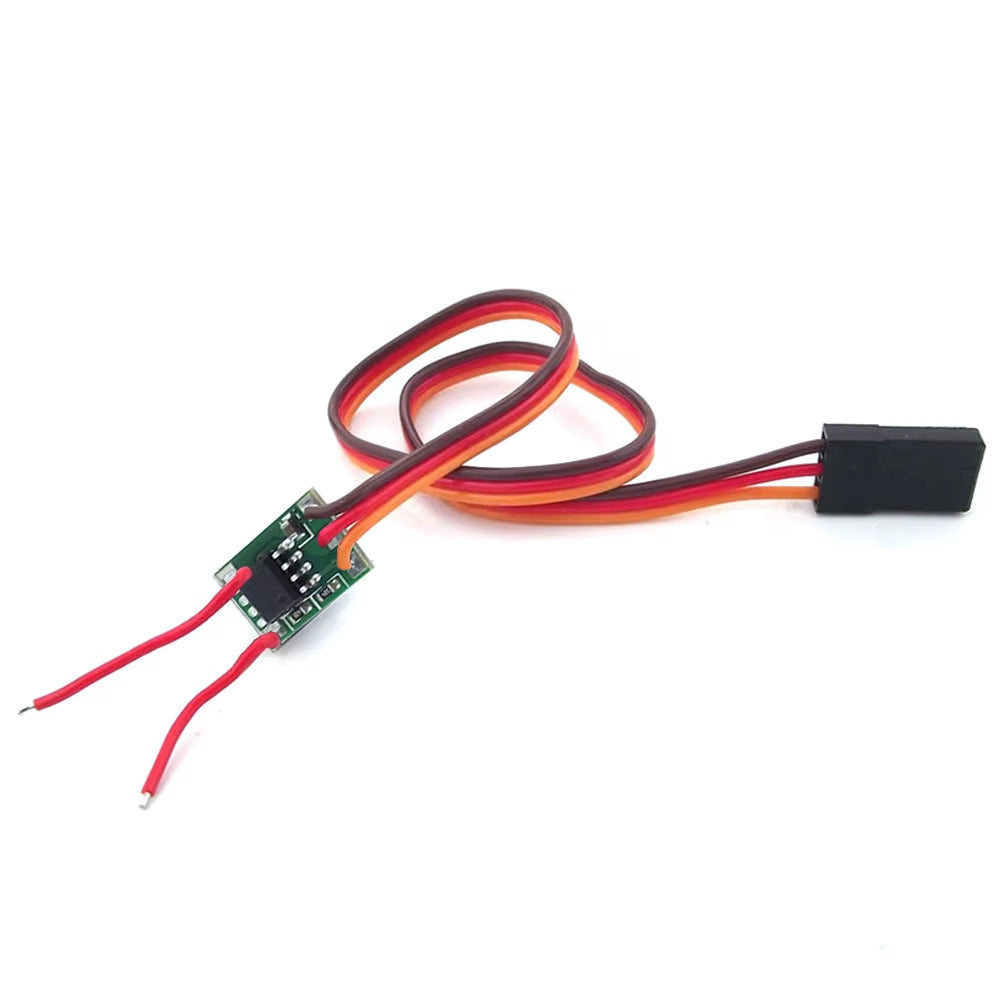

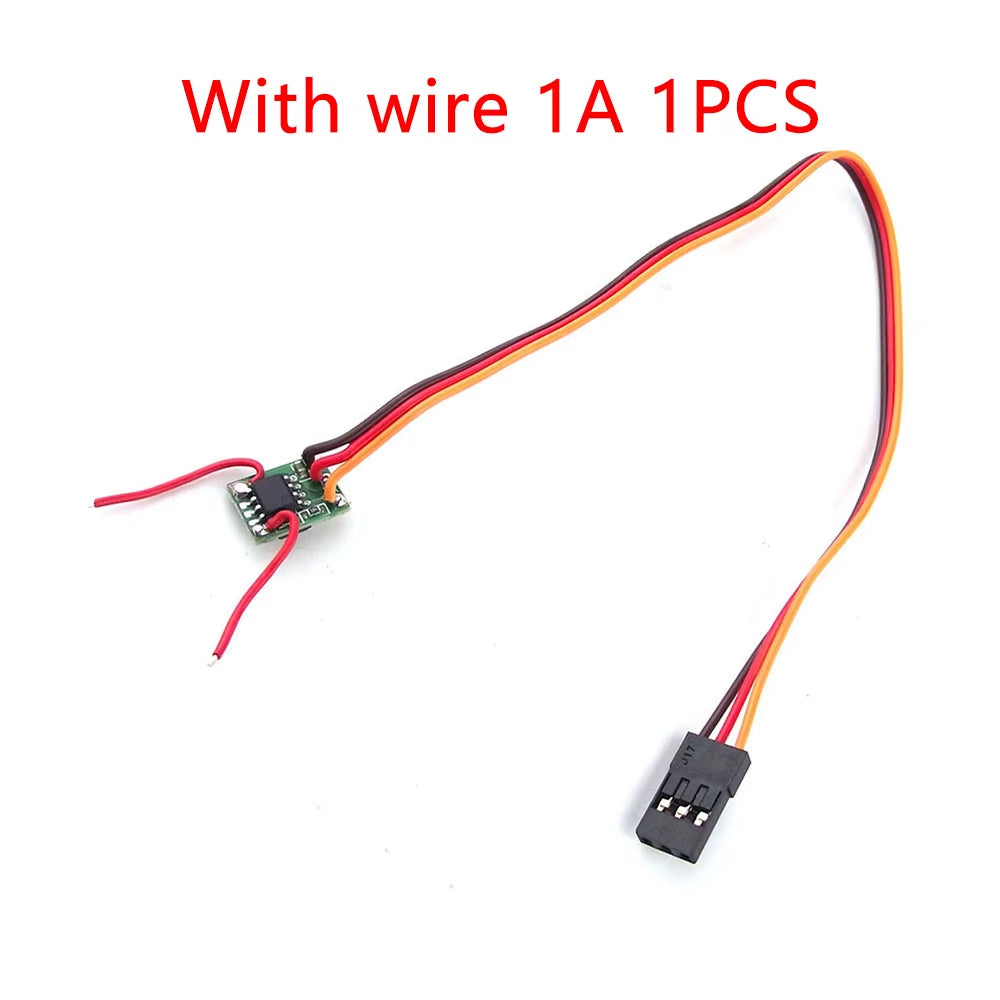

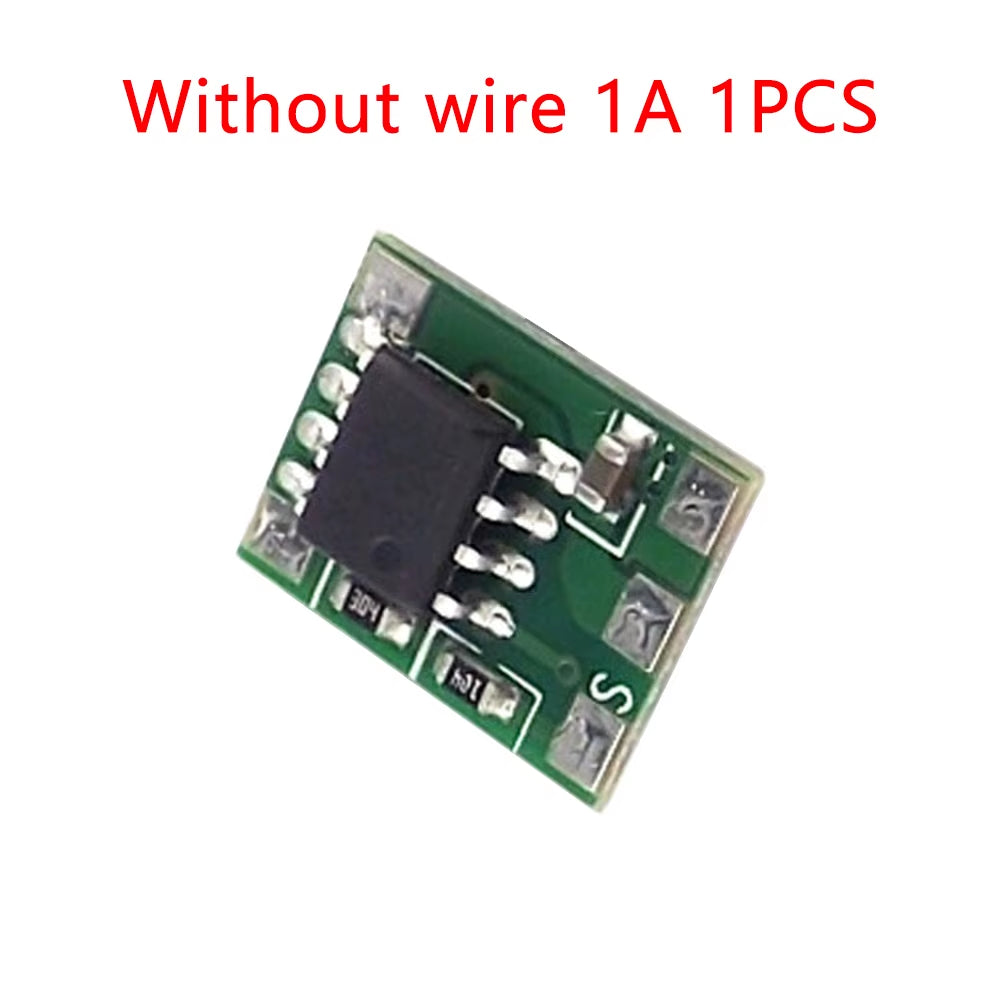

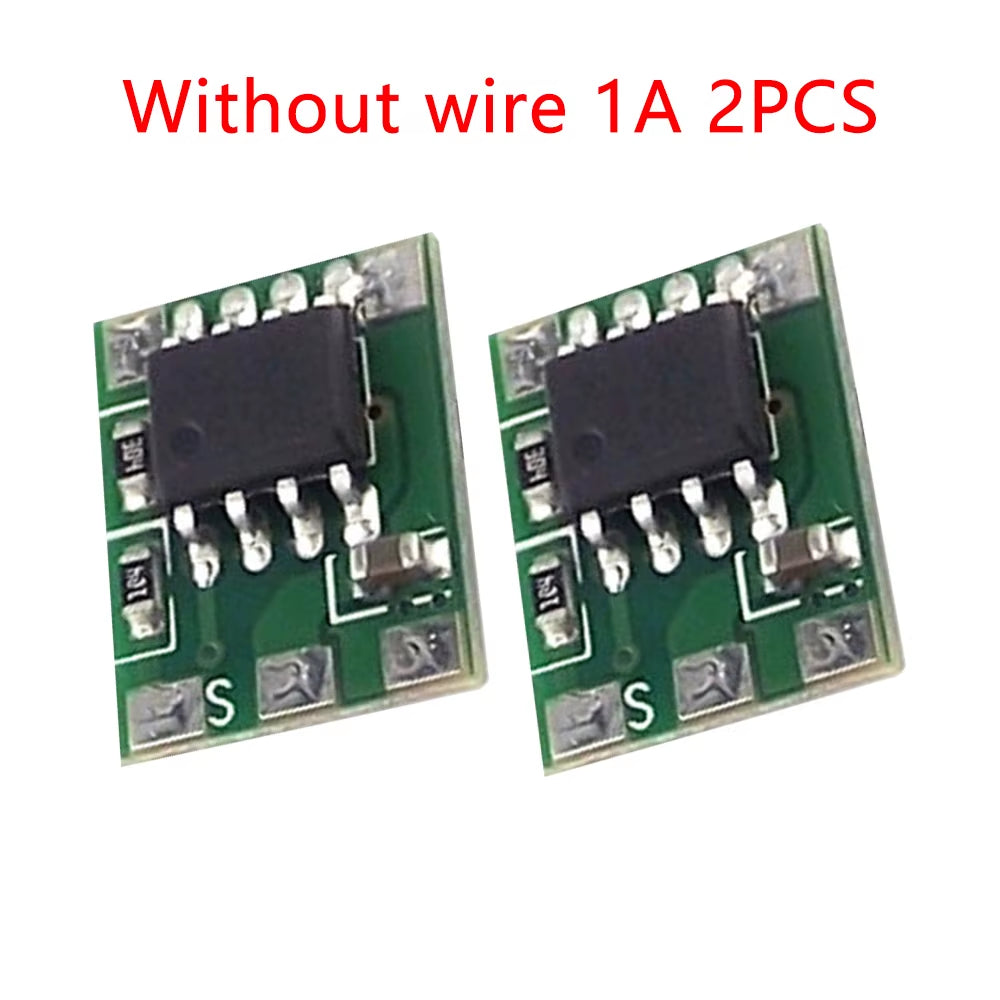

Specifications: Optional with or without wires
BEC output: none
Running direction: two-way, forward and reverse,
Applicable motor: brushed motor
Compatible with Futaba, JR, SANWA, Hitec and other remote control systems

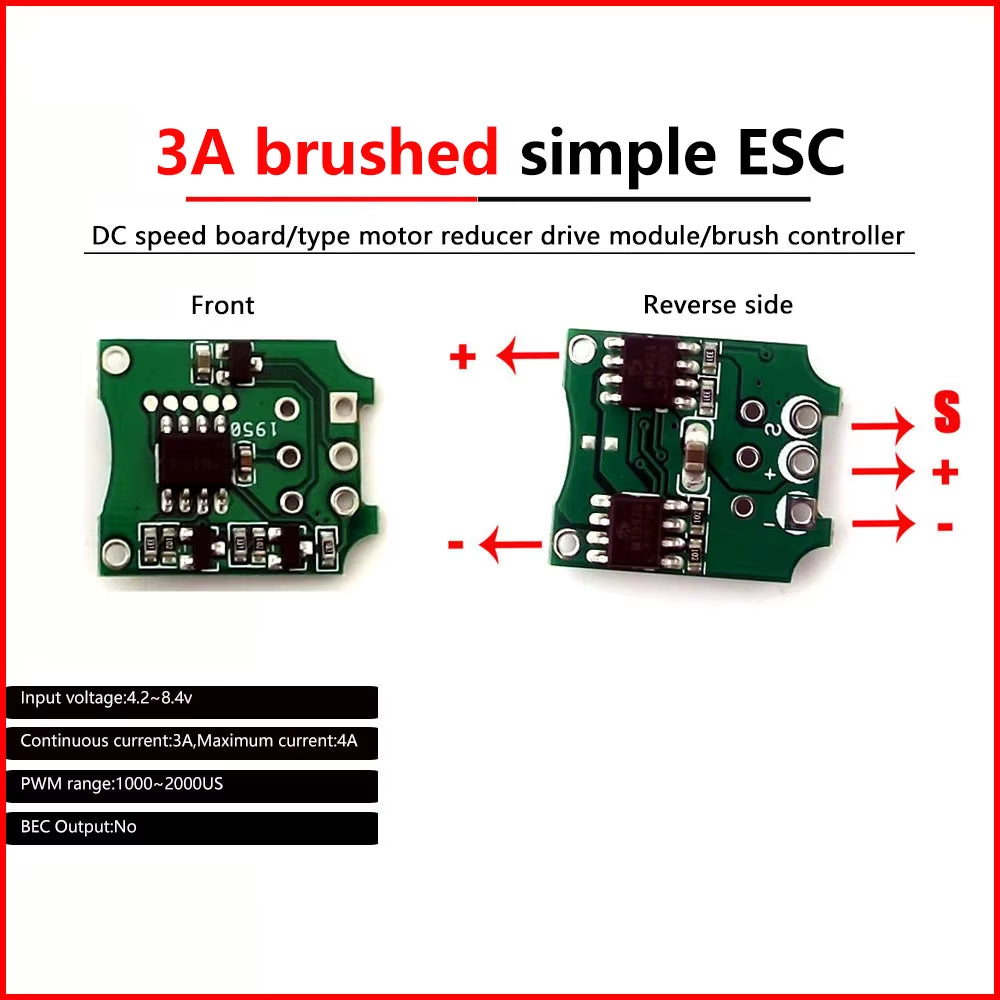

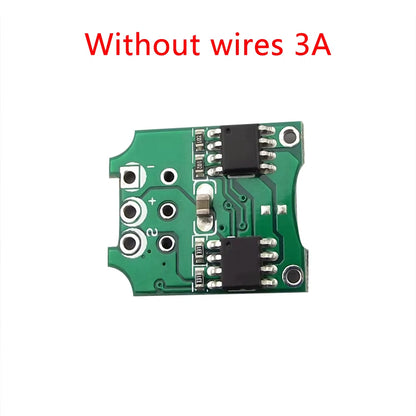

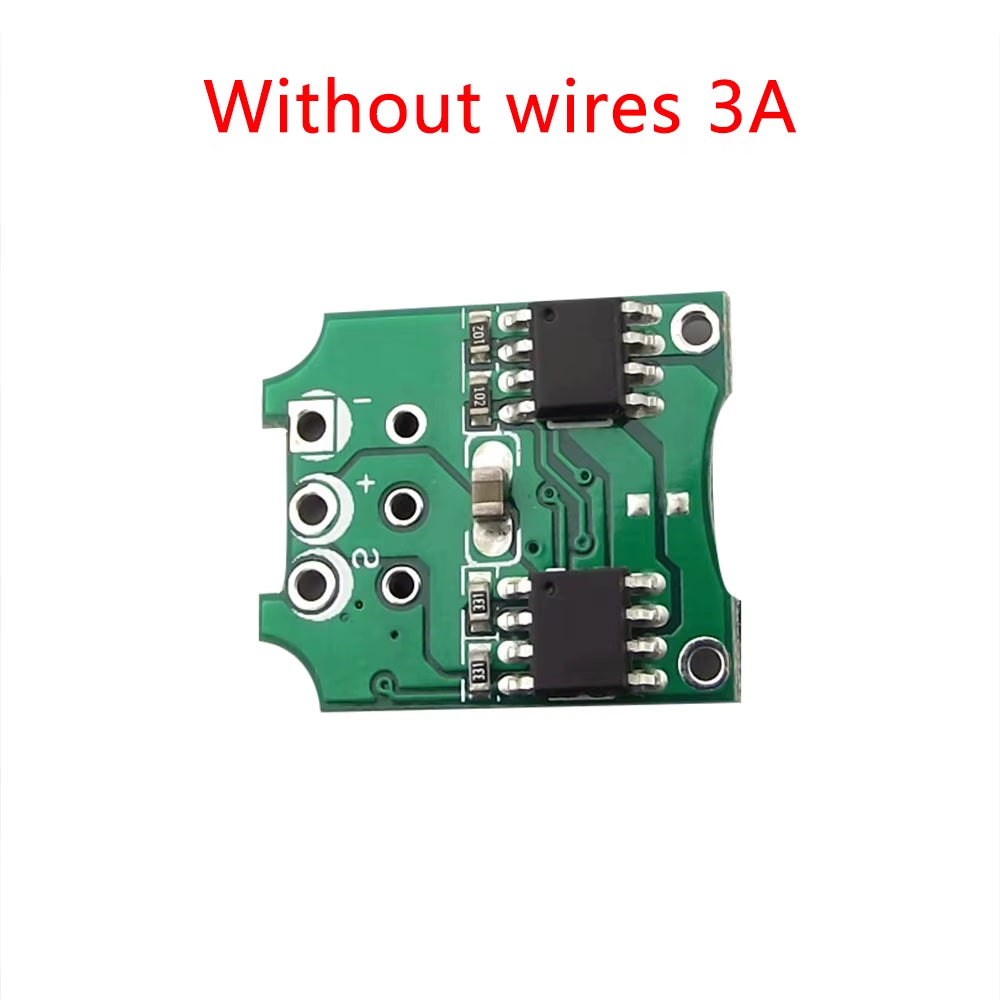

3A product parameters:
Size: 20x17mm
Voltage: DC4.2-8.4V
Continuous current: 3A, maximum current 4A
PWM range: 1000~2000US, stop at PWM1500US
Specifications: without wire
BEC output: none
Running direction: two-way, forward and reverse, PWM1500US stops
Applicable motor: brushed motor
Compatible with Futaba, JR, SANWA, Hitec and other remote control systems
Explanation: The 360-degree servo uses PWM to control its rotation speed and direction. The PWM of 500-1500US controls its forward rotation. The smaller the value, the greater the rotation speed. The PWM of 1500-2500US controls its reverse rotation, the greater the value. , the greater the rotation speed, the PWM of 1500US controls it to stop, it can only rotate continuously and cannot be positioned. Digital circuit does not require a potentiometer to adjust the stop position, saving worry and effort!
hint:
Before installation and use, you need to carefully read the above parameters to avoid unnecessary damage.
Please choose the appropriate specifications and do not overload the specifications, otherwise the mechanism or parts will be damaged.
Choose the correct power supply voltage and ensure sufficient current is supplied to avoid affecting the normal operation of the servo.
Use beyond the voltage range may cause abnormal operation or even damage, so special attention is required.
Keep the working environment clean and avoid erosion and pollution from dust, corrosive gas or humid air
About the size: Please allow 0-3mm error due to manual measurement, please make sure you don't mind before ordering
Shipping list:
ESC X1
