Car Telescopic Antenna Car Signal Electric Antenna Car Automatic Radio Remote Control Lift Telescopic Auto Antenna Accessories

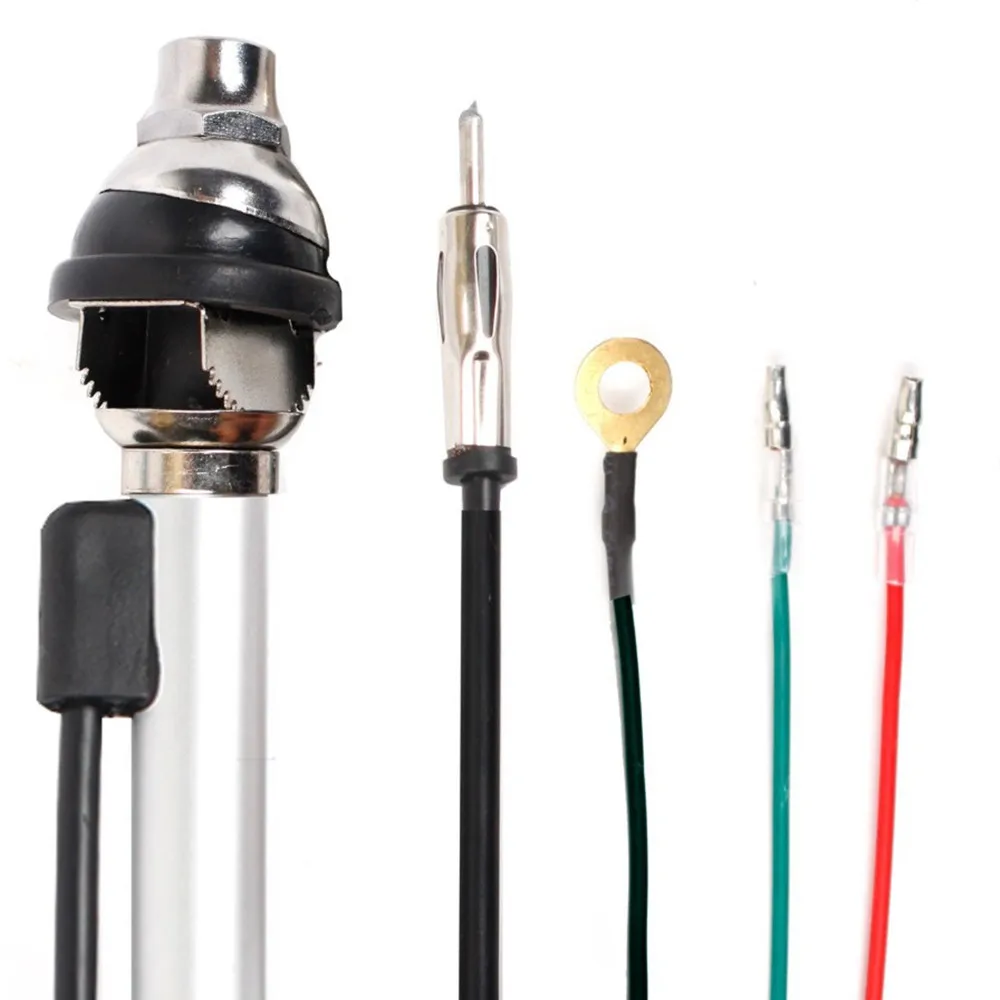

Wiring (three) connection method:
The red wire is connected to the positive pole of the power supply,
Black wire with wire lug to ground,
There are two ways to connect the green wire:
One is to direct the positive pole of the power supply, so that the antenna rises and falls with the power supply on and off,
One is to connect another control line, so that the antenna can control the lift at any time.

Stainless Steel Automatic Antenna
Working voltage: DC12V
Voltage range: DC10V-14V
Working current: 0.7±0.2A
Line length: 1.2 meters

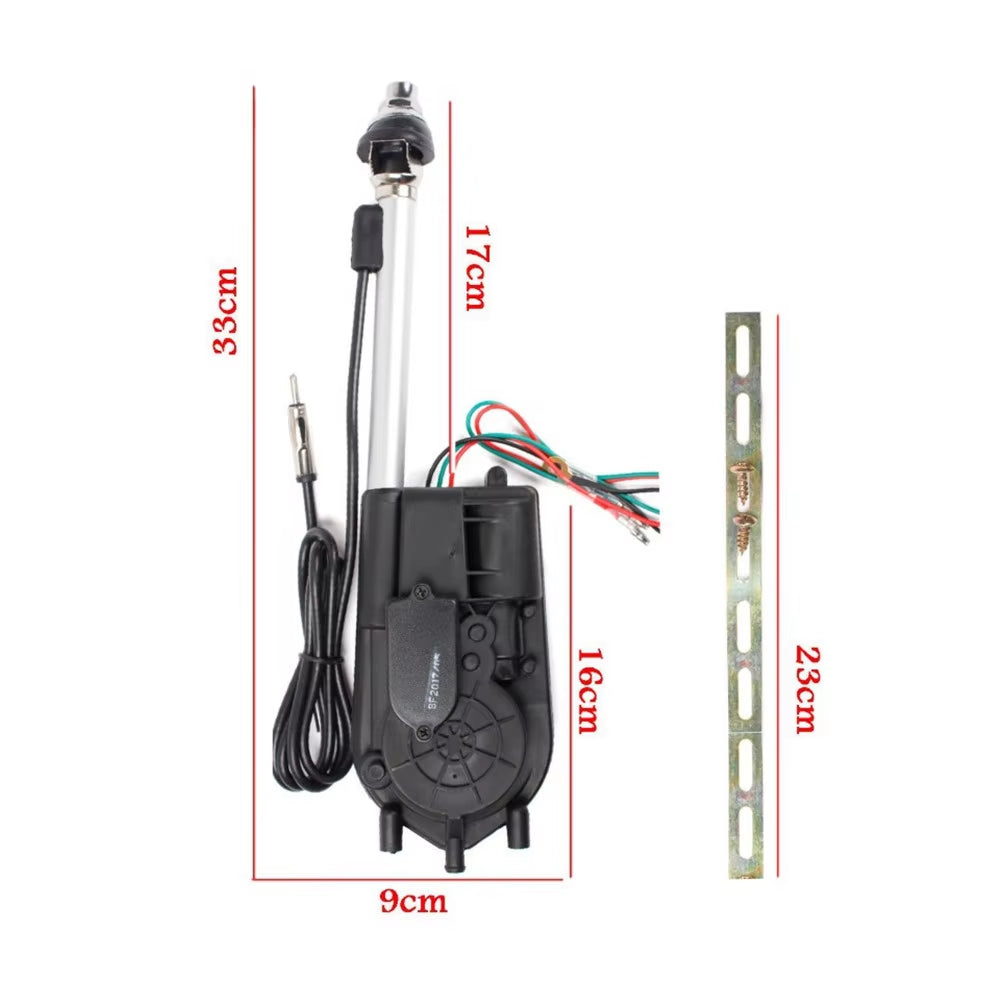

The extension of the antenna pole is 78CM

Features
Stainless steel antenna mast, good AM/FM acceptance performance, working current less than 0.5A,
The noise is less than 50DB, the service life is more than 50,000 times, and the top force is more than 4KG.
Good waterproof performance, easy to install, optional multiple mounting heads,
Built-in imported micro-relay, 3C-2V coaxial cable.
Economical car fully automatic antenna
Good FM radio
Low noise, good waterproof
Easy to install
External high-quality micro-relay, long service life
3C-2V coaxial cable, impedance 75 ohms
Installation angle: 0-30 degrees
