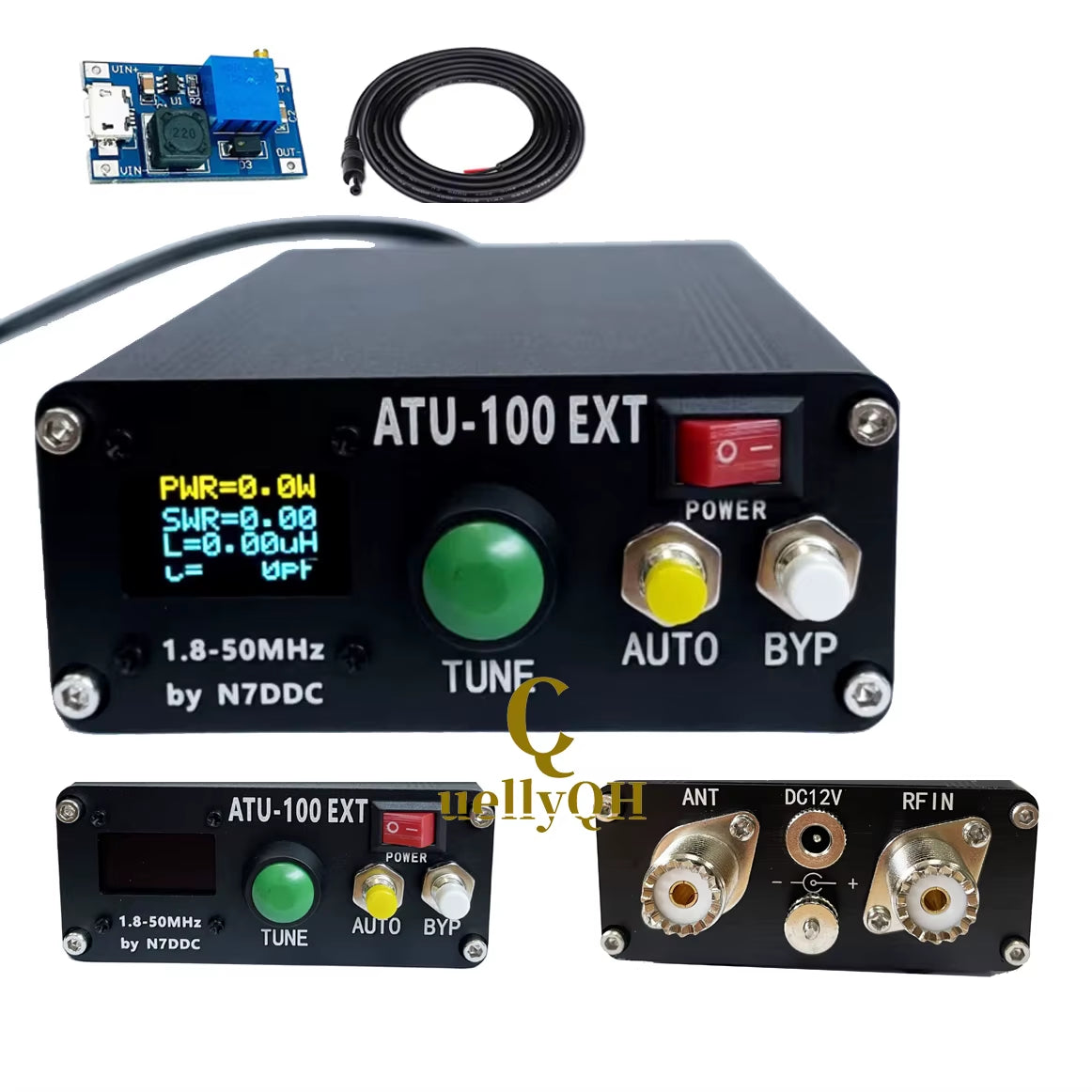

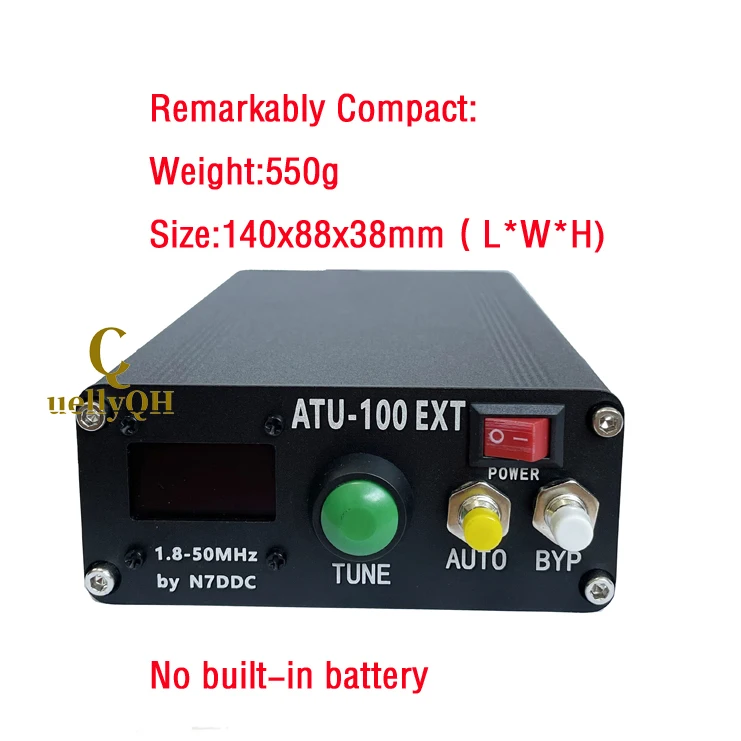

ATU-100 1.8-50Mhz ATU100 Automatic Antenna Tuner 0.96 Inch OLED Assembled Machine with Shell

Dear customers, we apologize for the inconvenience. To protect the environment, we have not printed any paper. You can leave your email address, and we will send you the schematic diagram and instruction manual.

ATU-100W EXT Description

(1)The latest firmware version is 3.2：

-SWR greater than 1.1 will automatically activate tuning, and the minimumpower has been changed from 5W to 1W. 3.2 Program can be tuned below 5W.However, Too low value may result in insufficiently fine tuning (originaldefault is greater than 5W auto tuning) , please know this before placing an order.

(2)Parameter Description:
-Power supply range: 10-15 VDC
-Max current: 450mA
-Max working power: 100 watts
-Max measured power: 150 watts
-Minimum power for tuning start: 1 watt
-Recommended maximum power while tuning not above 30 watts. (after tuningyou can set 100 watts and work on this power)
-Minimum measured power: 0.1 watt
-Step for measurement on powers under 10 watts: 0.1 watt
-Step for measurement on powers above 10 watts: 1 watt
-Power measurement accuracy: 10%
-Maximum inductance set: 8.5 uH
-Minimal step for setting inductance: 0.1 uH
-Maximum installed capacity: 1870 pF
-Minimal step for setting capacity: 10 pF

(3)Note:
1.Insufficient tuning may occur within 5W. So do not try to be lower than 5W.

2.Recommended maximum power while tuning not above30 watts. (after tuning you can set 100 watts and work on this power，Otherwise it will burn easily)

3. You need to use 9-12V for the ATU-100 to start. If you use a mobile power supply or a computer USB port to output power, you cannot start the ATU-100 because their voltage is too low.

Machine UHF：

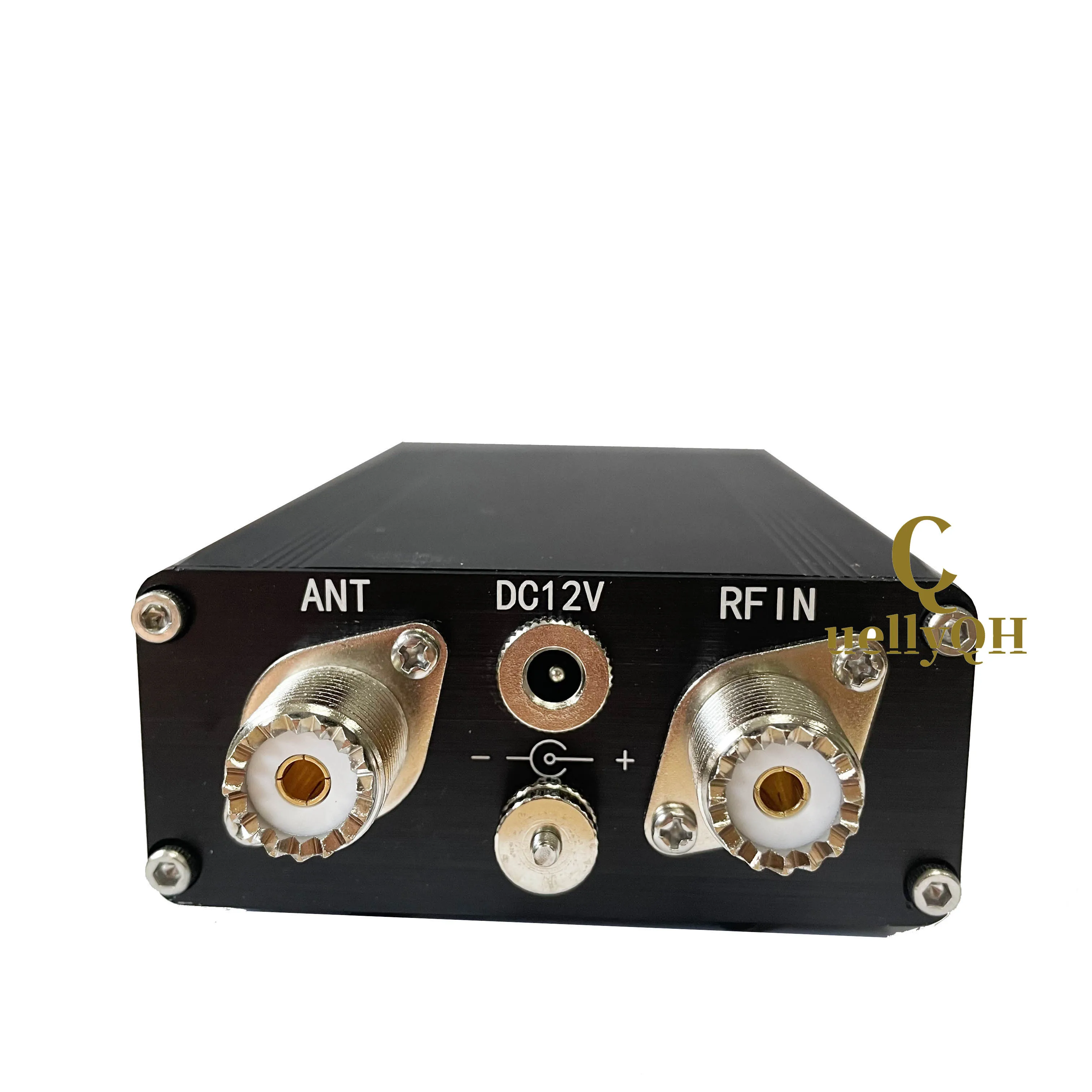

1. Machine with UHF connectors *1 (UHF female connectors, also named SO239/SL16/PL259)

2. DC5.5 x 2.1 power cord *1

3. USB 5V to 9V Booster board x 1

4.User manual*1

Recommended products for you that may be interested

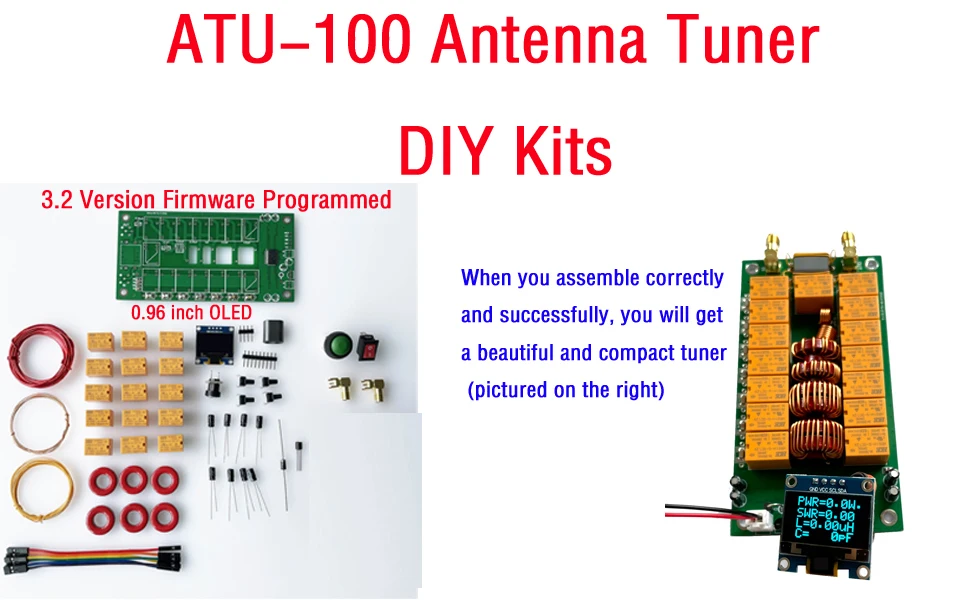

Item1:ATU-100 DIY Kits Automatic Antenna Tuner by N7DDC 7x7

https://www.aliexpress.com/item/1005002329705324.html

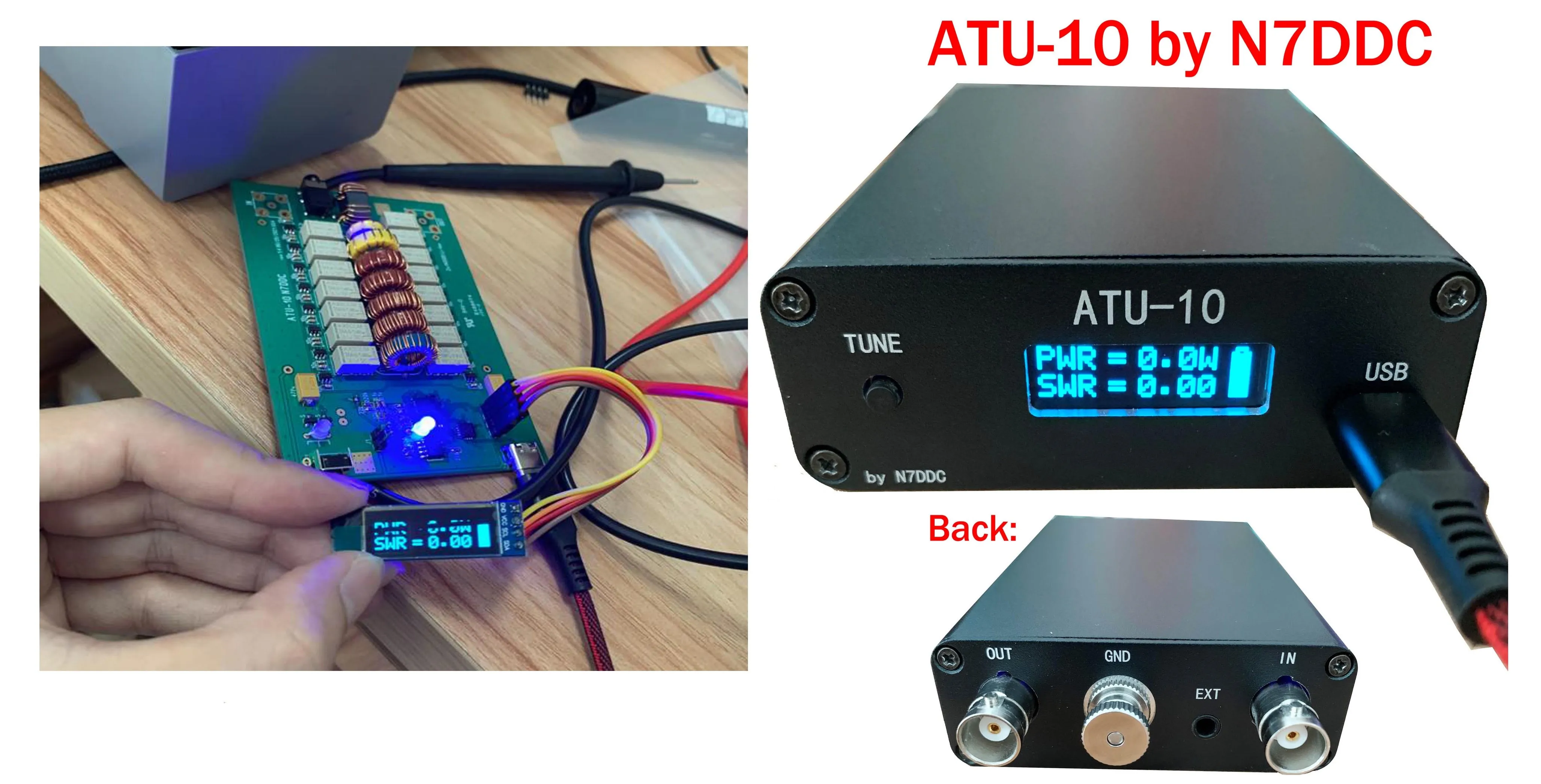

Item2:ATU-10 QRP Automatic Antenna Tuner ATU10 QRP by N7DDC The Tyny

https://www.aliexpress.com/item/1005003304614549.html

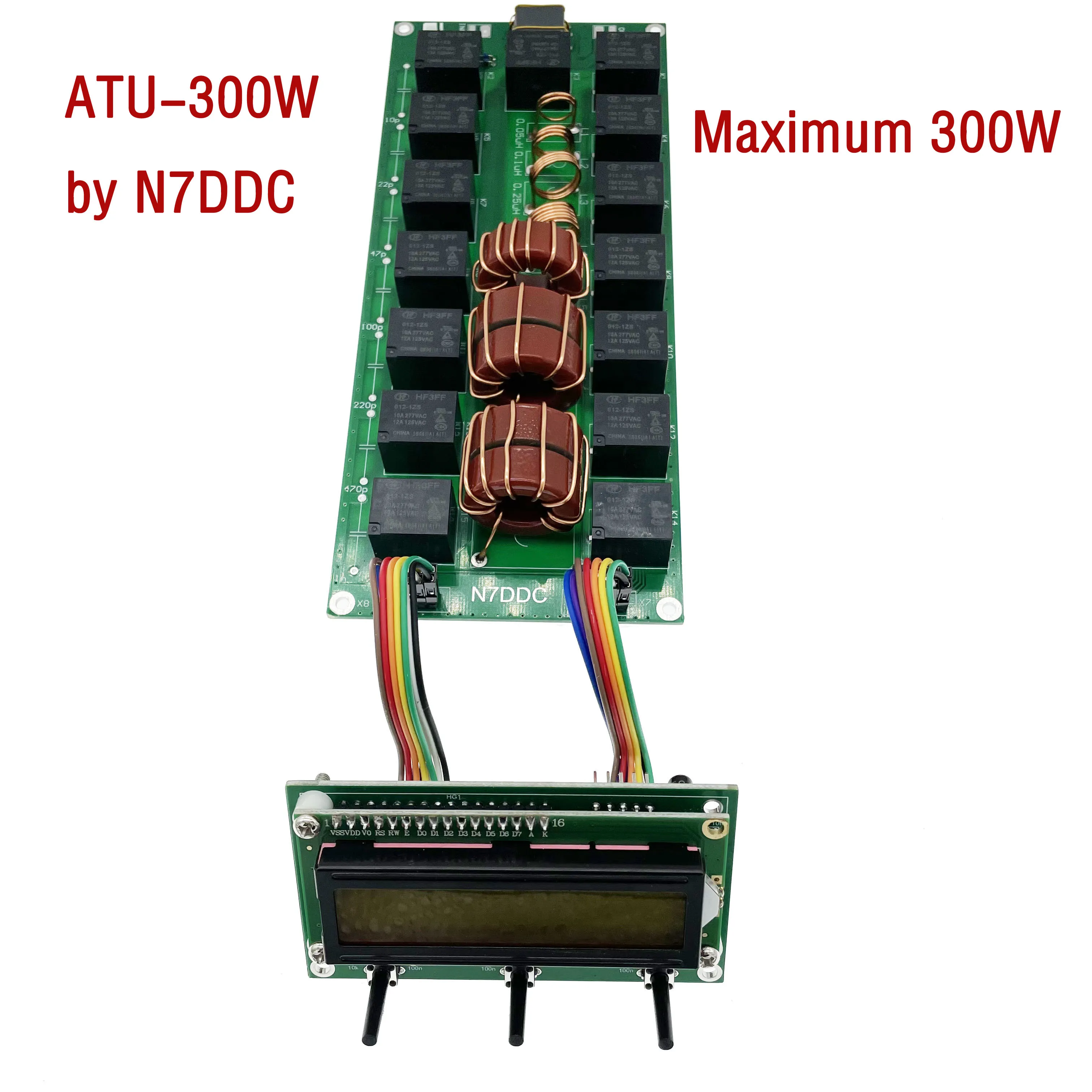

Item3:ATU-300W Automatic Antenna Tuner

https://www.aliexpress.com/item/1005003595970921.html

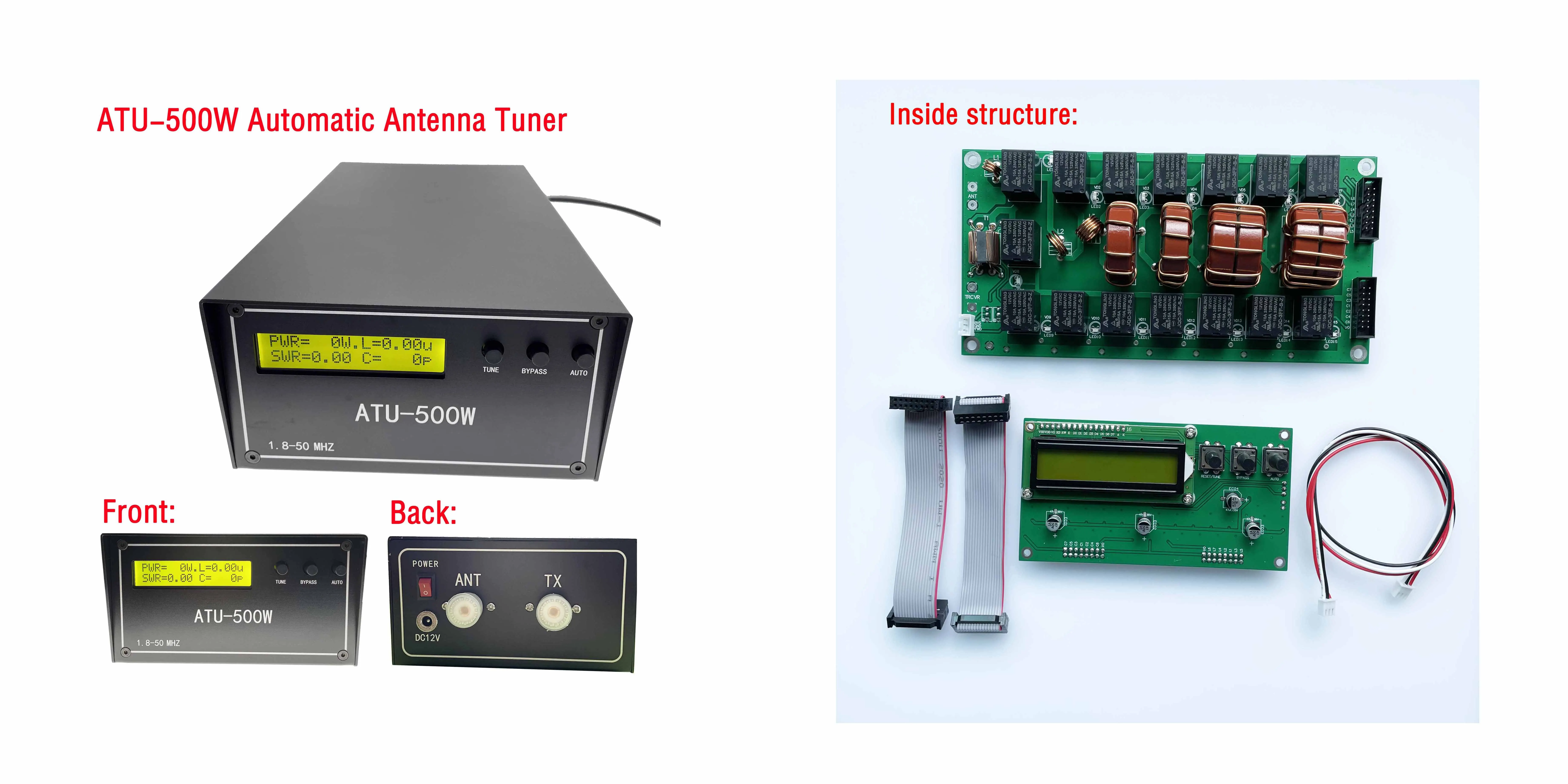

Item4: ATU-500W Automatic Antenna Tuner
