Antenna Tuner ATU-100 Tiny 100W Automatic Antenna Tuner OLED Display 1.8-55Mhz 7*7 ATU

1. The NANO Tuner M- 100 Automatic Antenna Tuner is assembled, ready to use! stable and reliable performance, practical, easy to operate and use, built-in 2950mAH battery.

2. The NANO Tuner M- 100 is automatically tuned without any control wires, suitable for most radio stations.

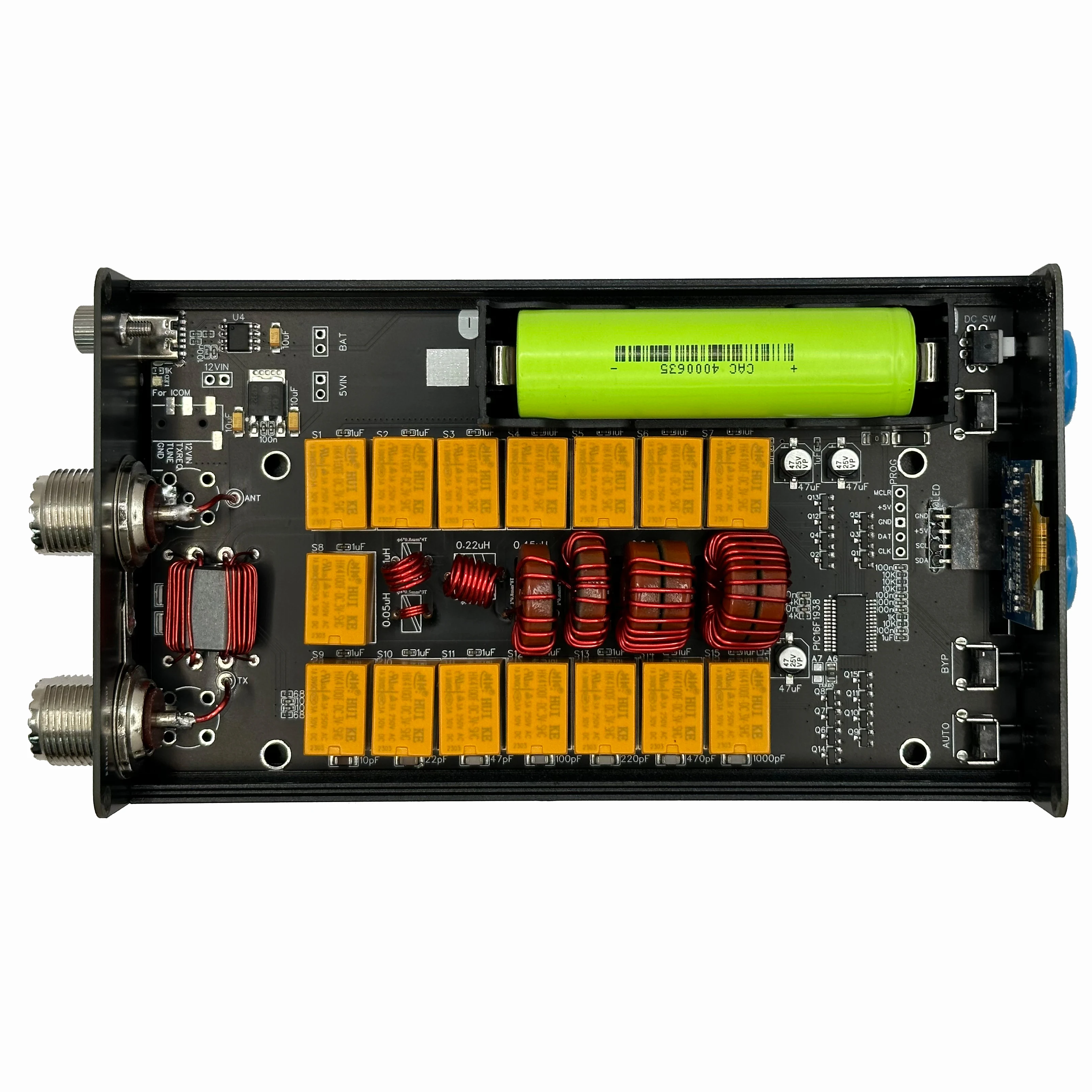

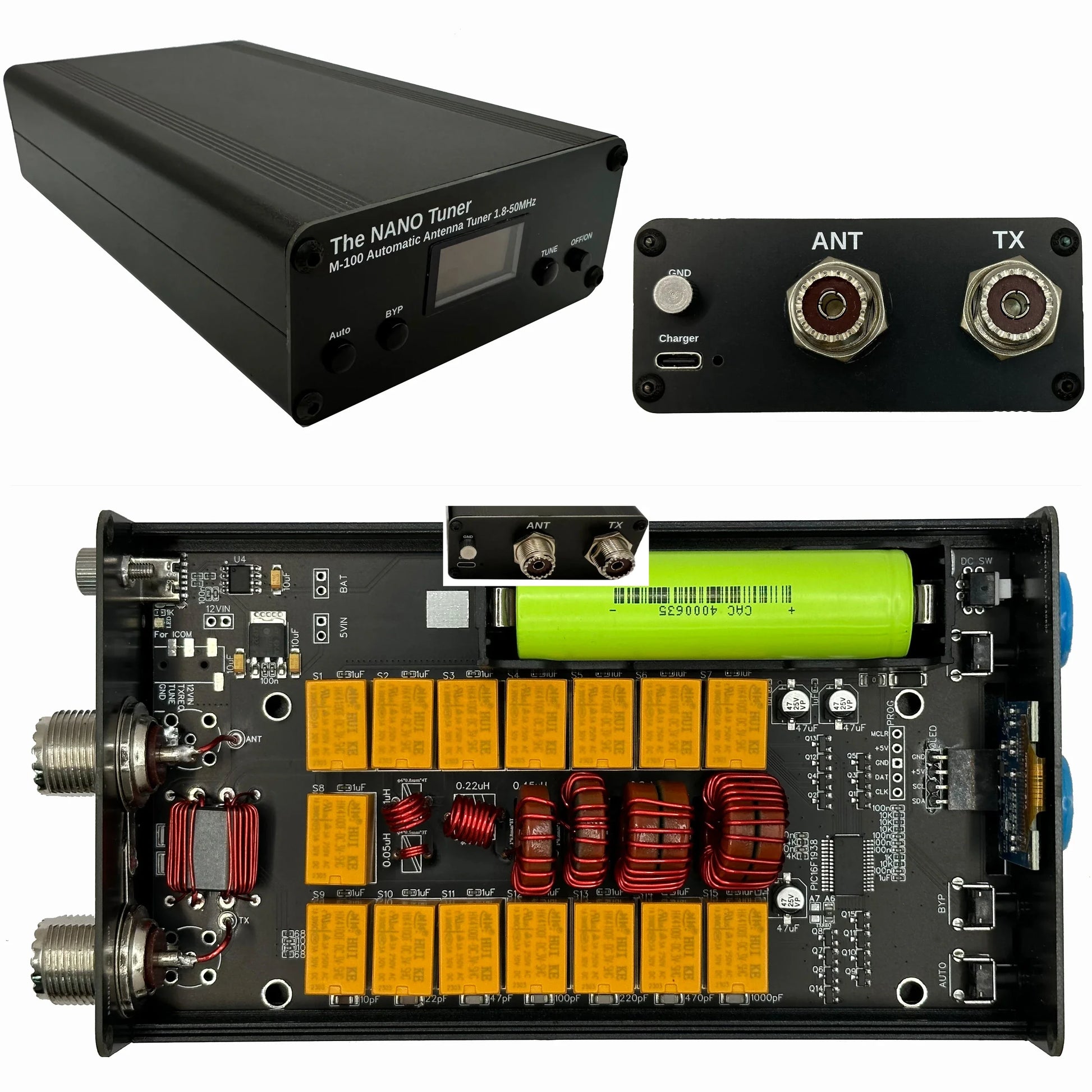

3. The NANO Tuner M- 100 contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-50MHz.

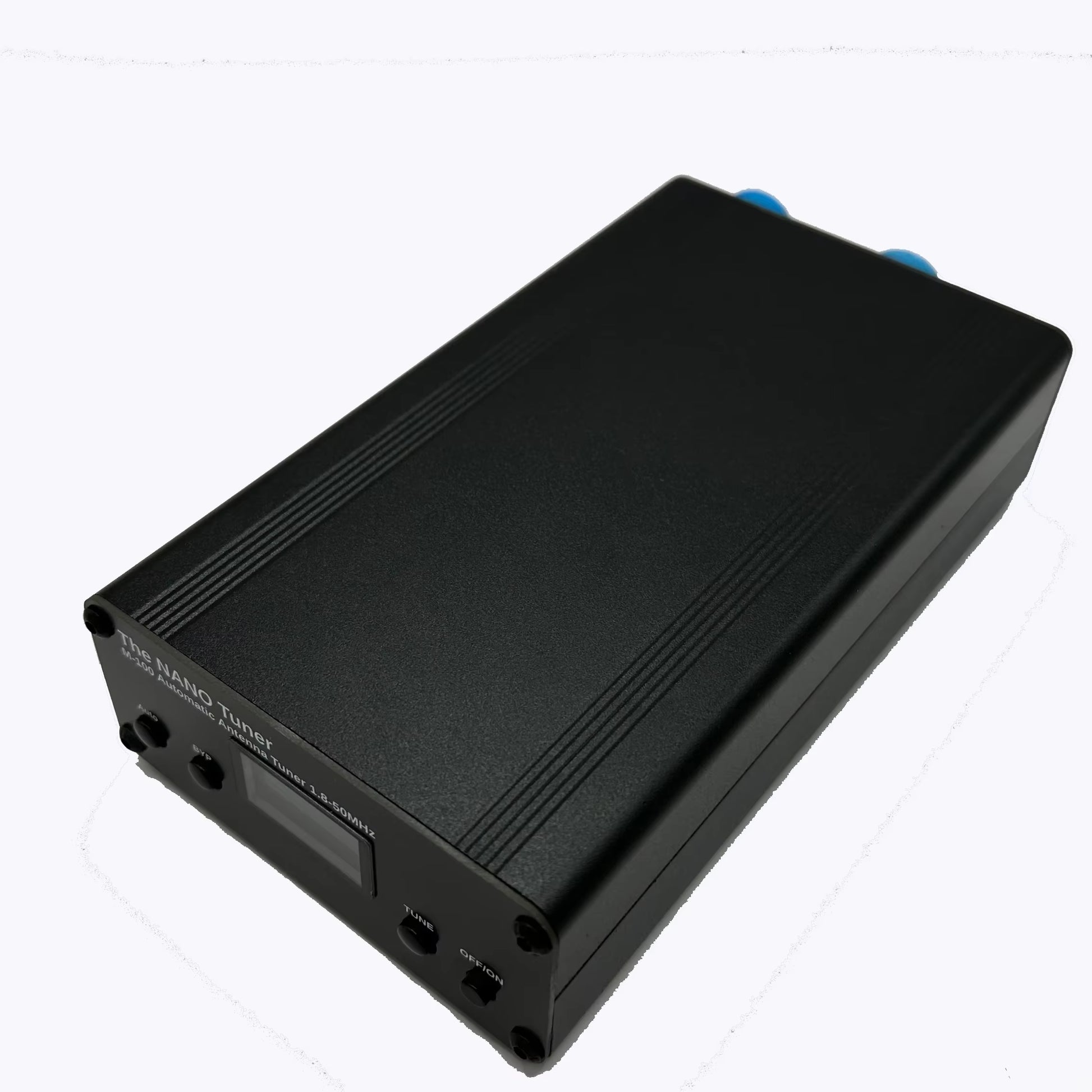

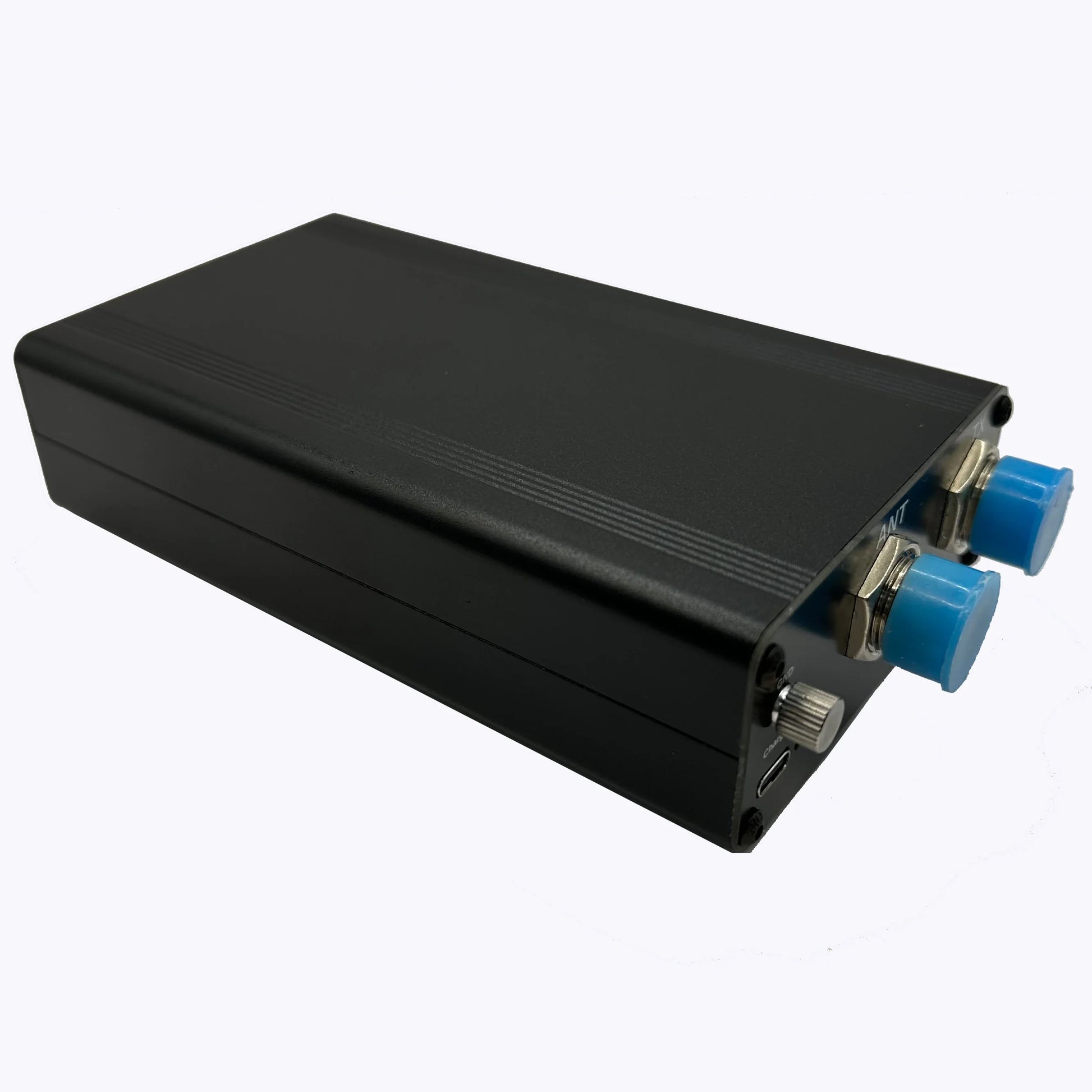

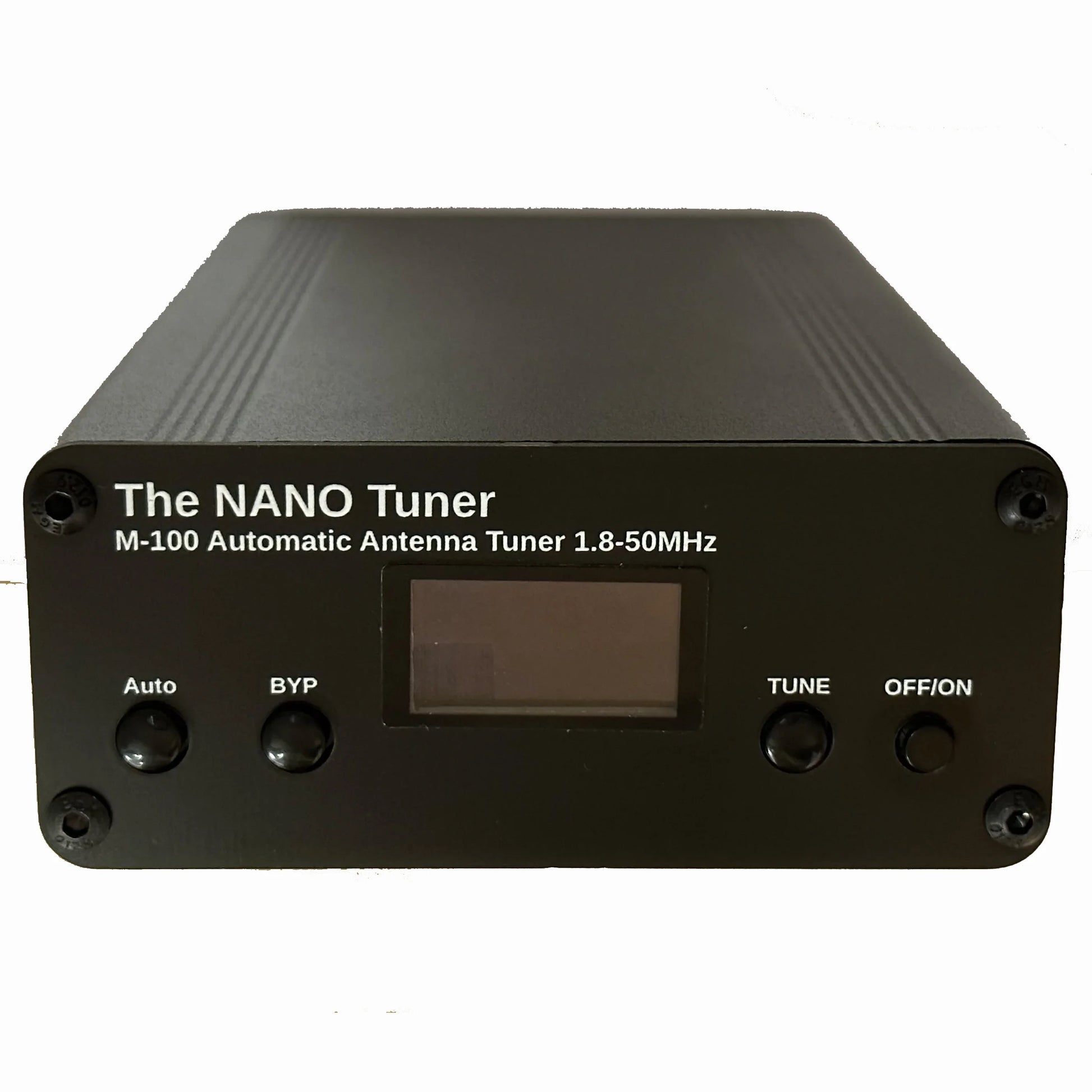

4. The NANO Tuner M- 100 automatic antenna tuner made of metal housing, , M seat, OLED display, Type-C charging interface, has a long service life.

5. Minimum step length installation inductance: 0.05uh; Maximum installation capacity: 1869pf; Minimum step length of installation capacity: 10pf. Power measuring accuracy: 10%; Maximum installation inductance: 8.53uh

Voltage range: TYPE-C 5V/1A (built-in 2950mAH rechargeable battery)

Maximum current draw: 400 mA

Maximum workload: 100 watts

Maximum possible measurable power: 150 W

Minimum power required to start tuning: 2.5 watts

Minimum possible measurement power: 0.1 W

Measurement step up to 10 watts: 0.1 watts

Measurement step above 10 watts: 1 watt

Power measurement accuracy: 10%

Maximum installation inductance: 8.53μH

Minimum inductance step size: 0.05μH

Maximum installed capacitance: 1869 pF

Minimum capacitance step size: 10 pF

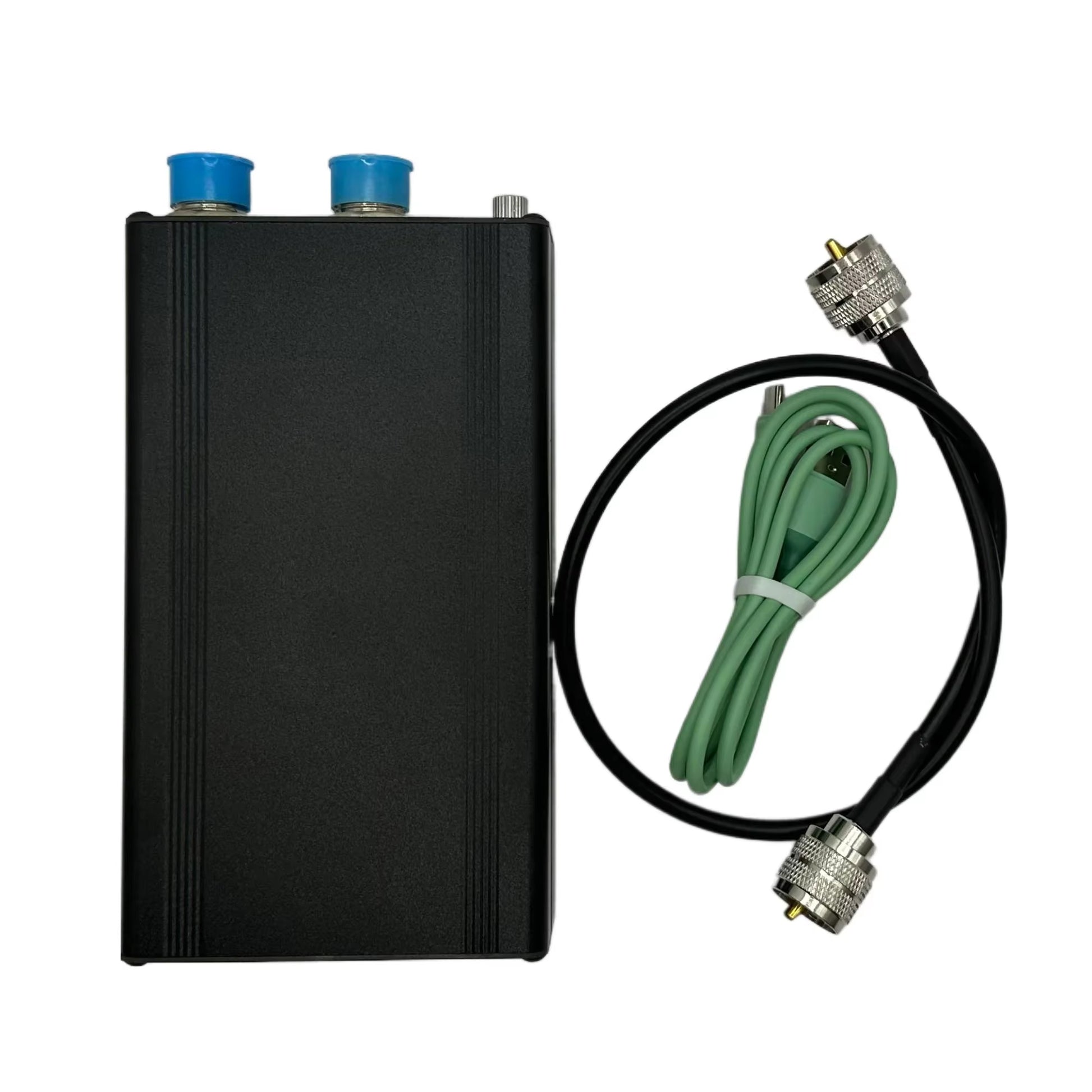

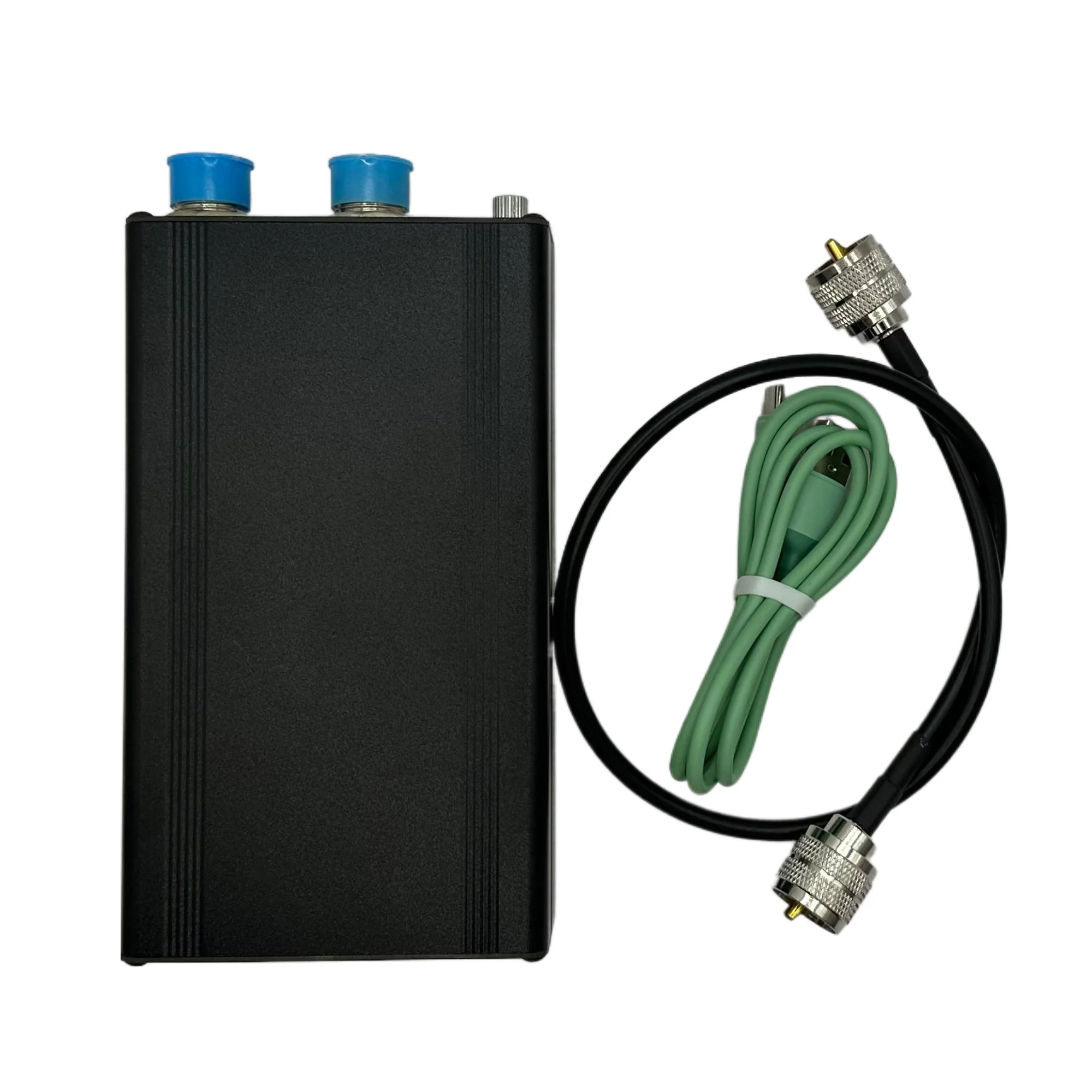

Package Included:

-1 x Automatic Antenna Tuner (battery included)

-1 x USB A to TYPE-C cable

-1 x RG58 feeder cable 50CM

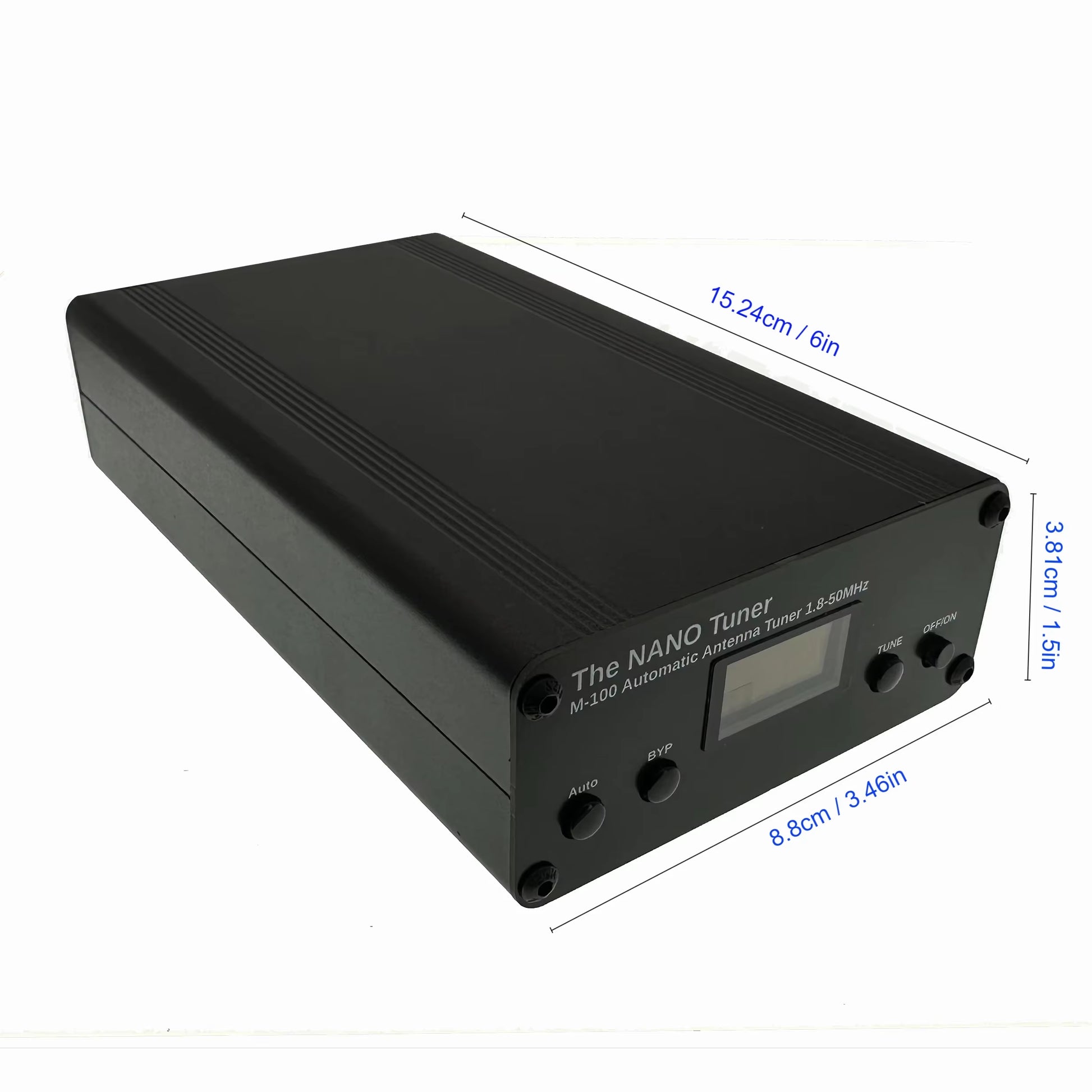

Weight: 650g M-100 SIZE: 150 x 86 x 38 mm (L*W*H)
