A72T LZ1AQ Shortwave Small Loop Antenna LZ1AQ Loop Antenna 50K-500Mhz Full Band Active Antenna AM FM VHF UHF SDR Receiver Rad
A72T LZ1AQ Shortwave Small Loop Antenna LZ1AQ Loop Antenna 50K-500Mhz Full Band Active Antenna AM FM VHF UHF SDR Receiver Rad
Normaler Preis
€24,25 EUR
Normaler Preis
€0,00 EUR
Verkaufspreis
€24,25 EUR
Inkl. Steuern.
Welcome to our store.
Our products have affordable prices and good quality. We support dropshipping and wholesale. If you want to work with us for a long time, please contact us and we will give you a very favorable price.Best Regards!

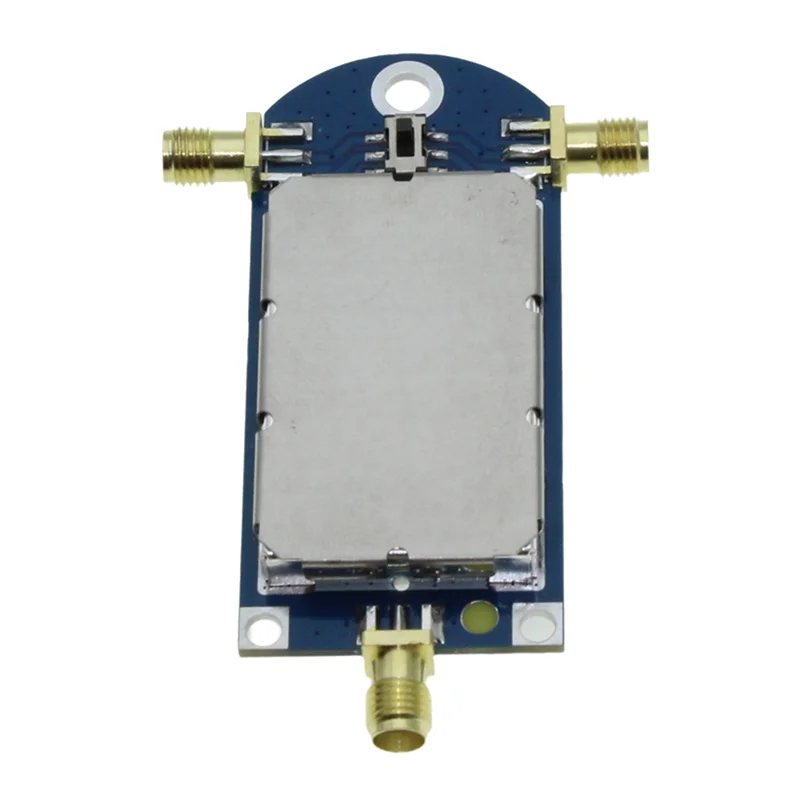

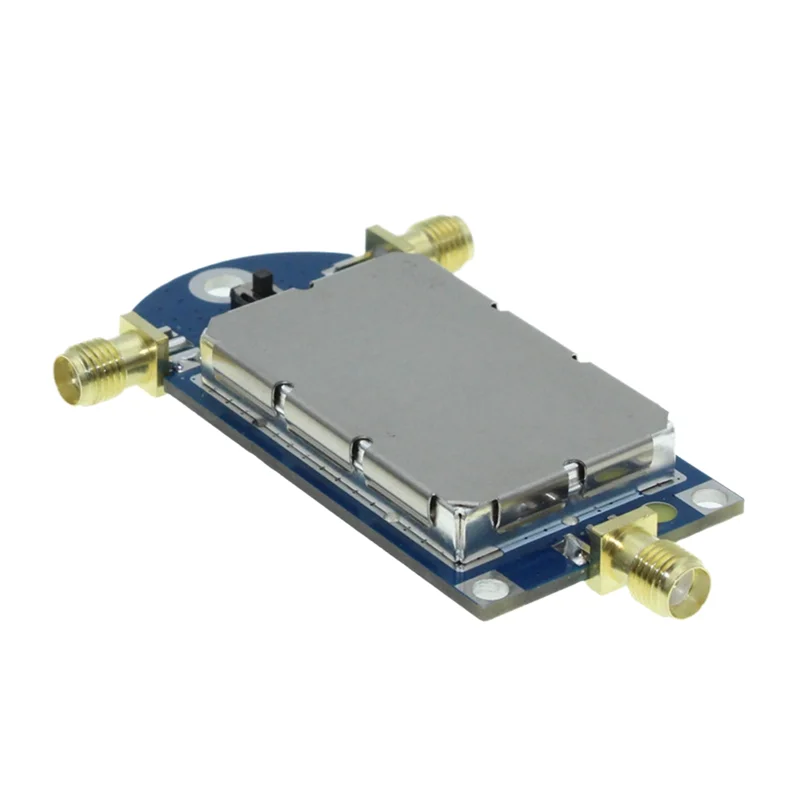

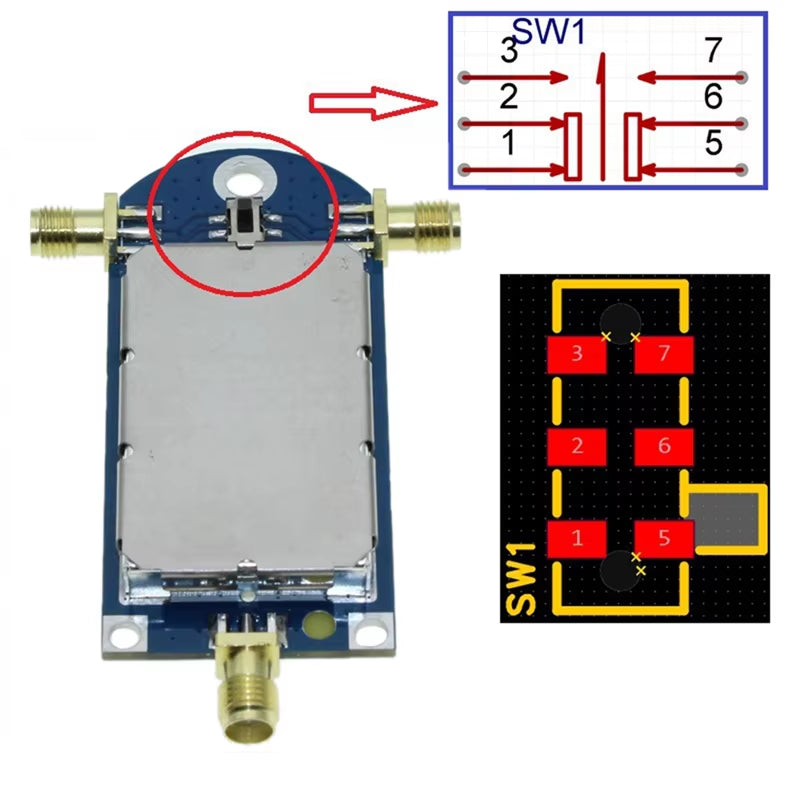

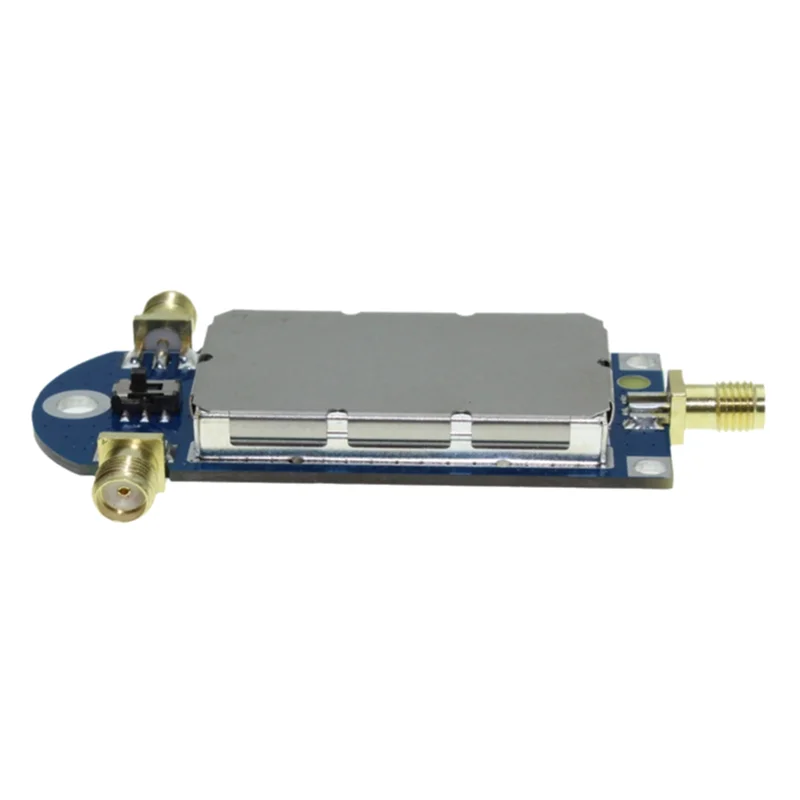

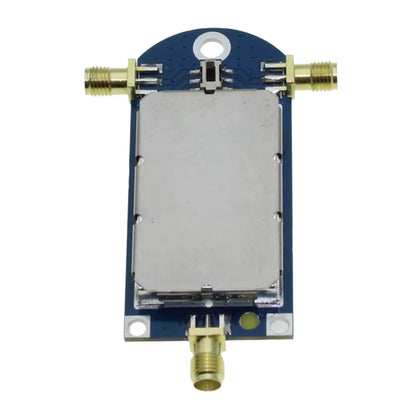

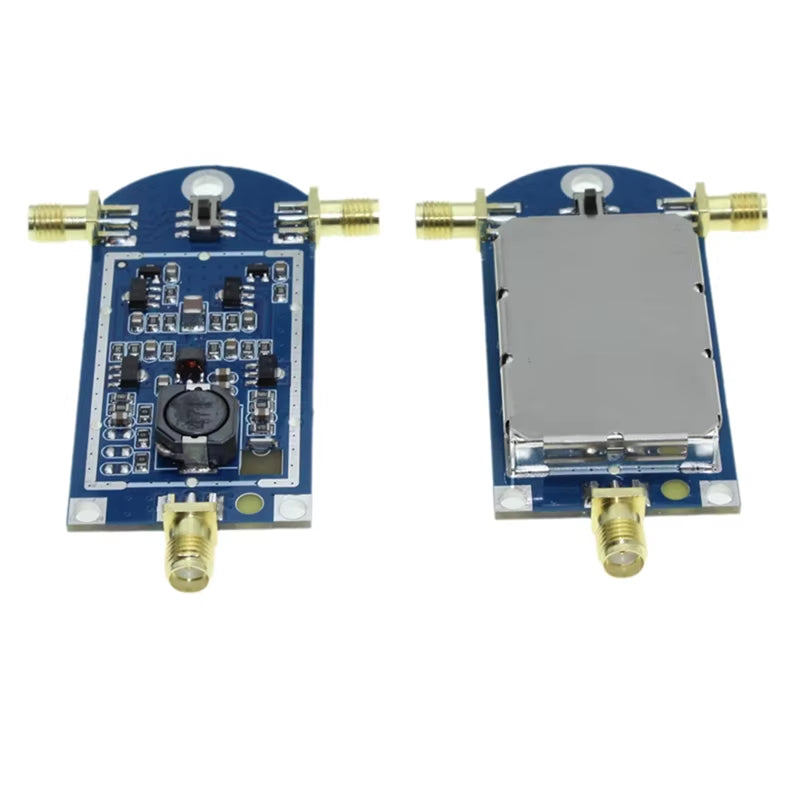

LZ1AQ shortwave small loop antenna
Receiving frequency range: 50kHz to 500MHz
Gain: 17dB@10MHz
Output noise: -125dBm(@10MHz, BW=100Hz)
P1dB: +15.5dBm@10MHz
OIP3: +38dBm@10MHz
Supply voltage: 9V to 12V
Supply current: 150-156mA (maximum)
Antenna interface: SMA(M)
Output interface: SMA(F)
Small loop coaxial cable model: RG402
Small loop coaxial cable loss: 0.145dB/m
Small loop antenna diameter: 60cm

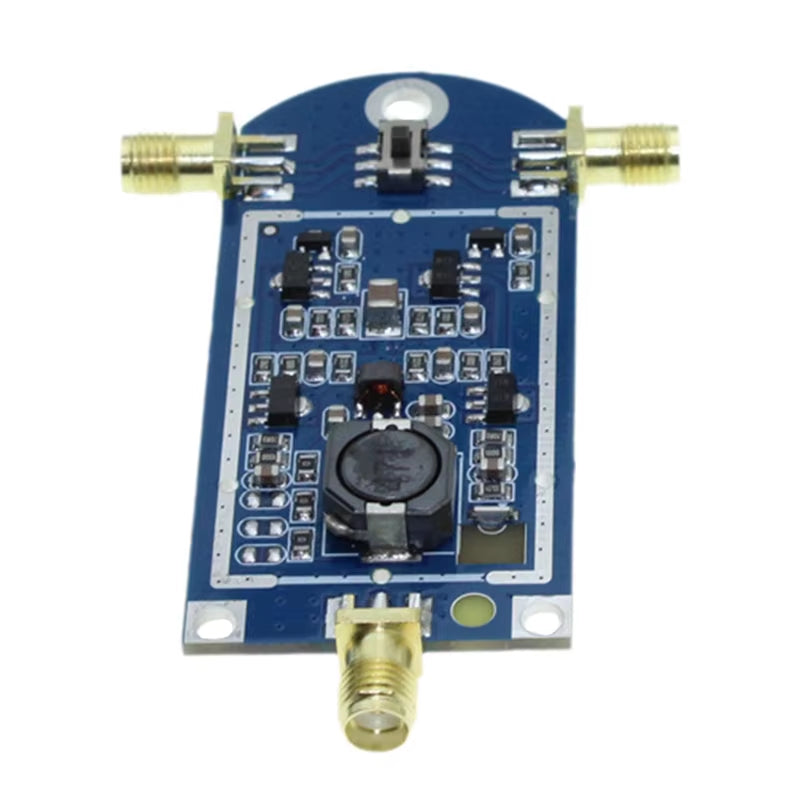

The temperature of the small board is 40-46 degrees, slightly hot, which is normal because 4 ICs are used to amplify the signal;
Color: As shown
Material: ABS
Package Contents:
1 * LZ1AQ Loop Antenna
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Receiving frequency range: 50kHz to 500MHz
Gain: 17dB@10MHz
Output noise: -125dBm(@10MHz, BW=100Hz)
P1dB: +15.5dBm@10MHz
OIP3: +38dBm@10MHz
Supply voltage: 9V to 12V
Supply current: 150-156mA (maximum)
Antenna interface: SMA(M)
Output interface: SMA(F)
Small loop coaxial cable model: RG402
Small loop coaxial cable loss: 0.145dB/m
Small loop antenna diameter: 60cm
The temperature of the small board is 40-46 degrees, slightly hot, which is normal because 4 ICs are used to amplify the signal;
Color: As shown
Material: ABS
Package Contents:
1 * LZ1AQ Loop Antenna
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
