Introduction :

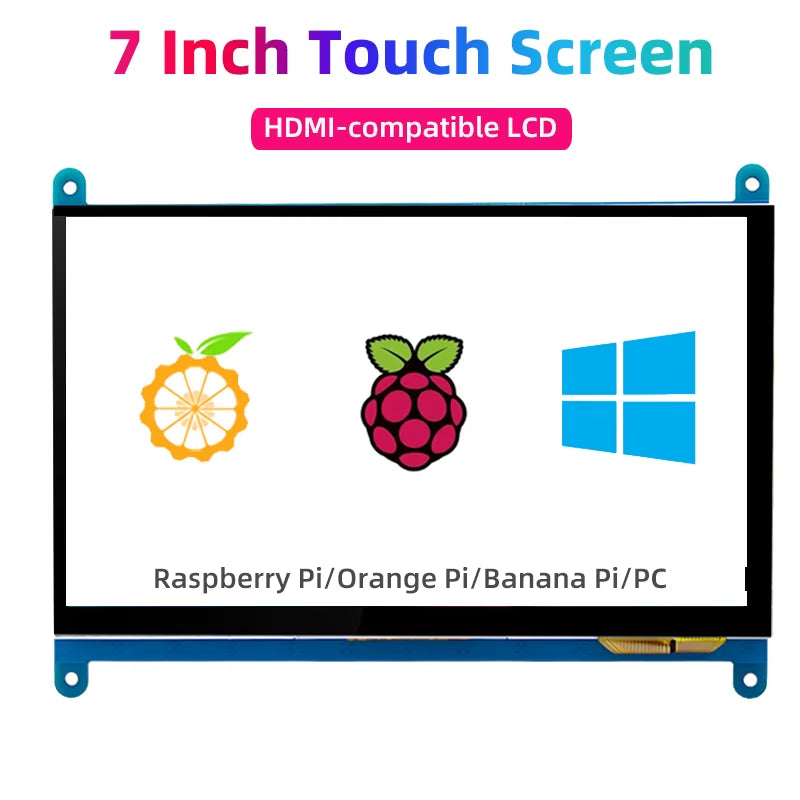

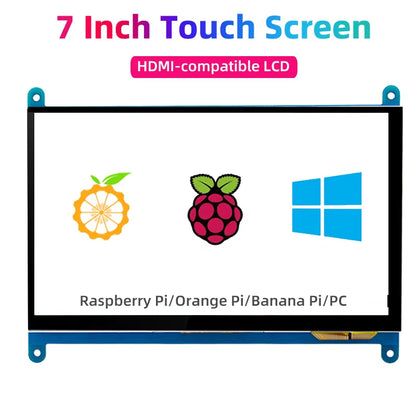

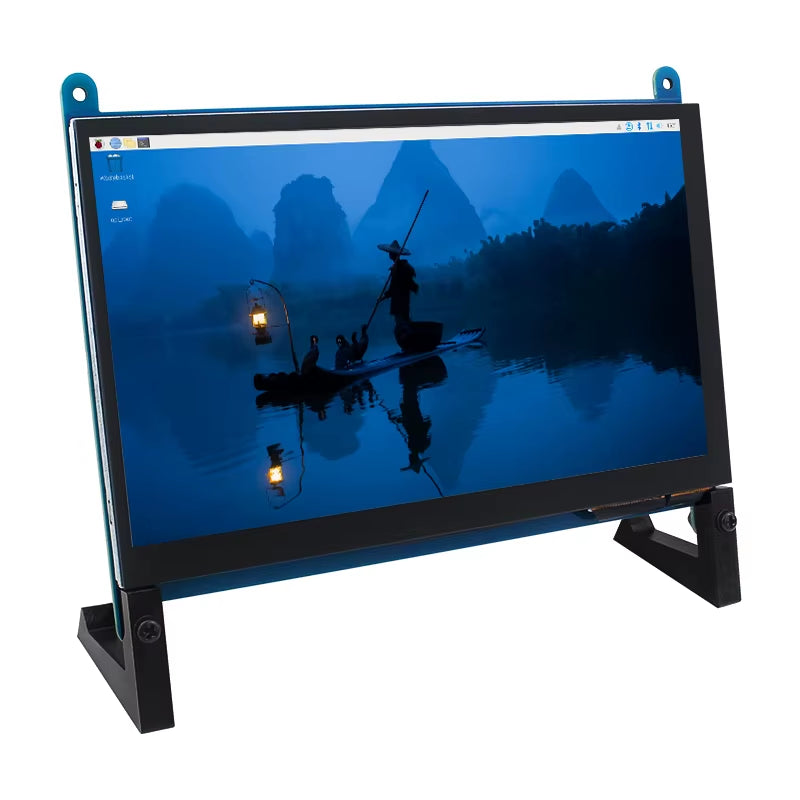

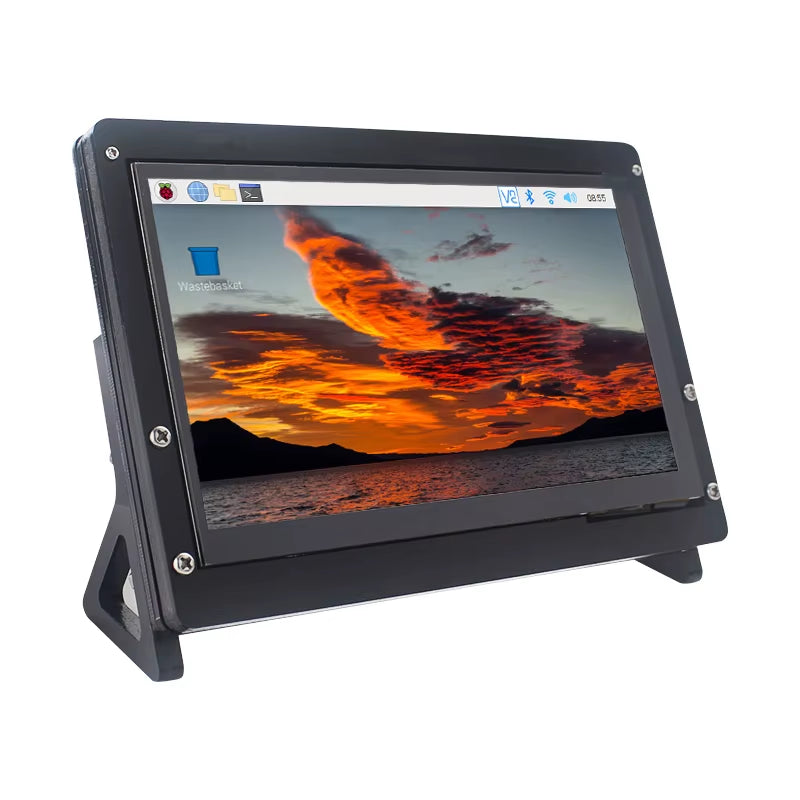

This is the 7 inch capacitive touchscreen for Raspberry Pi , support Raspberry Pi 4 Model B and 3B+/3B/Zero. It need nor driver. And we specially make a acrylic holder for the screen , to solve the problem of place it on desktop.
It is suitable for computer and laptop , Nvidia Jetson Nano , free driver for touching , plug &play.
When you use the LCD for the Raspbian and Ubuntu , it is plug and play.

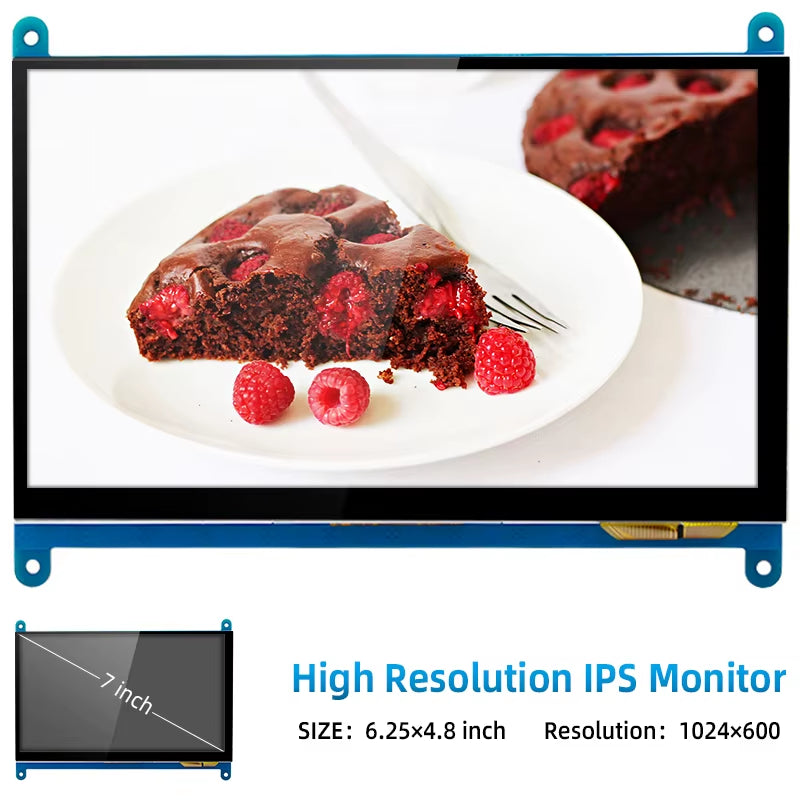

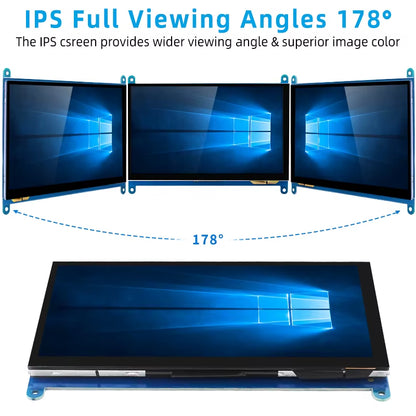

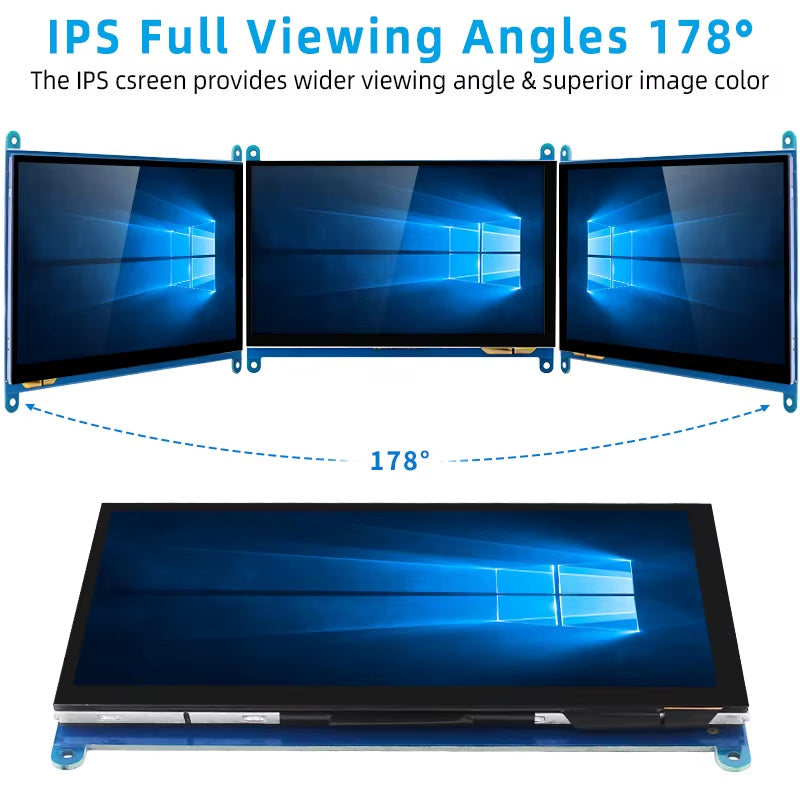

1024x600 Resolution Screen (IPS Screen)

800x480 Resolution Screen (not IPS Screen) :

Specifications:

1. Size: 7.0 inch

2. Resolution: 1024 × 600 / 800 x 480 (dots)

3. Touch: five-point capacitive touch

4. Product Size: 164.9*124.27 (mm)

5. Rough Weight(Package containing): 405 (g)

6. Power Dissipation: 0.84A*5V

Features:

1. 7 inch standard display, 1024 × 600 / 800 x 480 Hardware resolution, Up to 1920x1080 software configuration resolution.

2. Capacitive touch screen, maximum support 5 point touch (depend on system)

3. Support backlight control alone, the backlight can be turned off to save power

4. Support Raspberry Pi, BB Black, Banana Pi , for Nvidia Jetson Nano and other mainstream mini PC

5. Can be used as general-purpose-use HDMI-compatiblemonitor, for example: connect with a computer HDMI-compatible as the sub-display

6. Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive.
Please use our recommended system for touch screen. If you use other systems, it may not have touch function or may not work. You need to configure it yourself. Because there are many systems that the Raspberry Pi can use, we can’t make every system compatible with our touch screen.

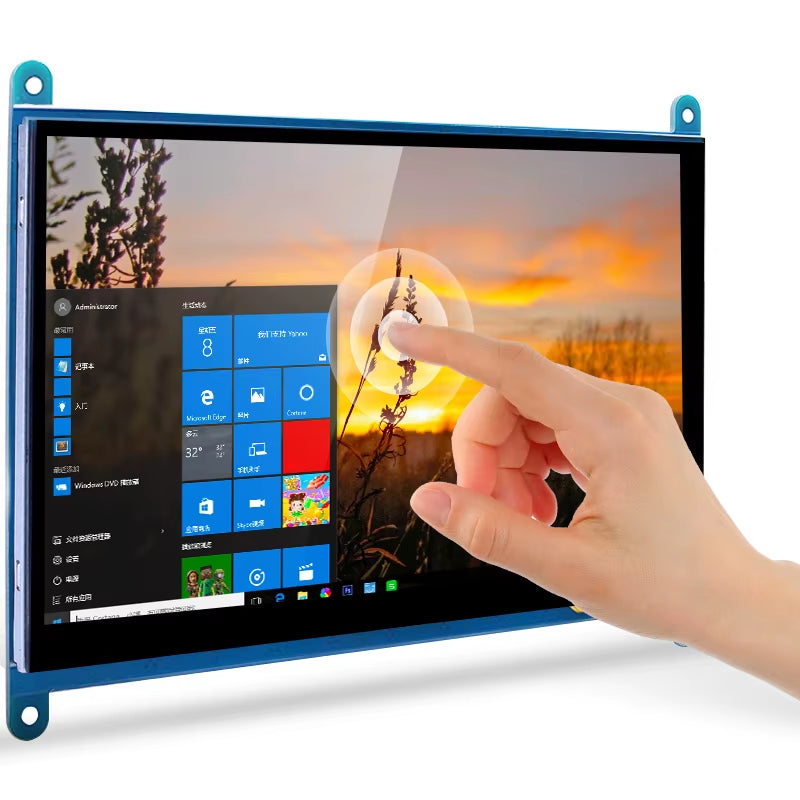

7. Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive

Interfaces :

①Backlight Power switch: Controls the backlight turned on and off to save power.
②&③USB Touch / power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.
④HDMI-compatible interface: For connecting motherboard and LCD monitor to HDMI-compatibletransmission.

How to use for Raspberry Pi :

For Raspbian and Ubuntu system , it is plug and play.

Please click here for the guide:

How to use for Nvidia Jetson Nano/PC/Laptop

1. Connect the LCD to PC/Laptop by HDMI-compatible cable

2. Use micro USB cable to provide power for LCD by the USB port on PC/Laptop ( You can also use the 5V1A or 5V2A power adapter for it ) , then it work.

If you have any problem about it , please cotact us.

Packing List :

Note: the power adapter have EU/US plug, for UK/AU plug, we provide the US plug power + US to UK/AU converter plug

Option1:

1 x 800*480 Touchscreen (TN)
1 x CD
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible to HDMI-compatible Adapter
1 x USB Cable
1 set x Screws and Nuts

Option2:

1 x 1024*600 Touchscreen (IPS)
1 x CD
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible to HDMI-compatible Adapter
1 x USB Cable
1 set x Screws and Nuts

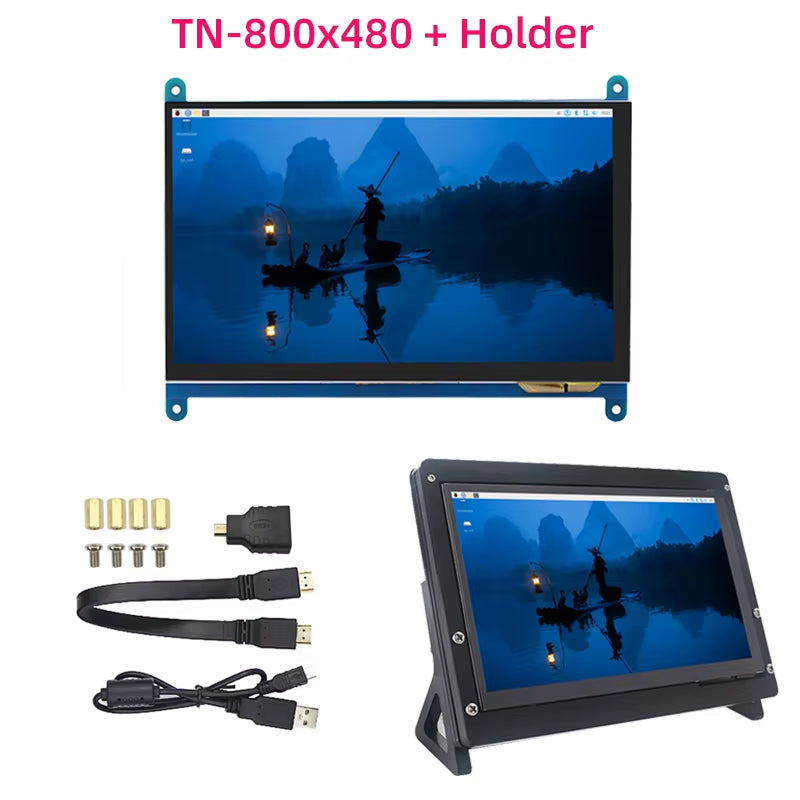

Option3:

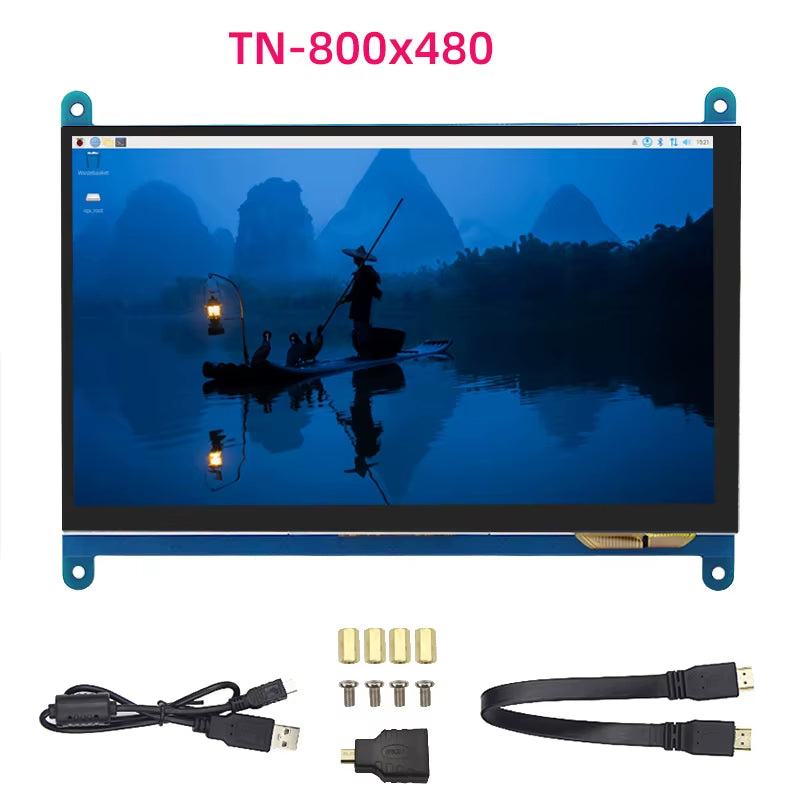

1 x 800*480 Touchscreen (TN)
1 x Acrylic Holder
1 x CD
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible to HDMI-compatible Adapter
1 x USB Cable
1 set x Screws and Nuts

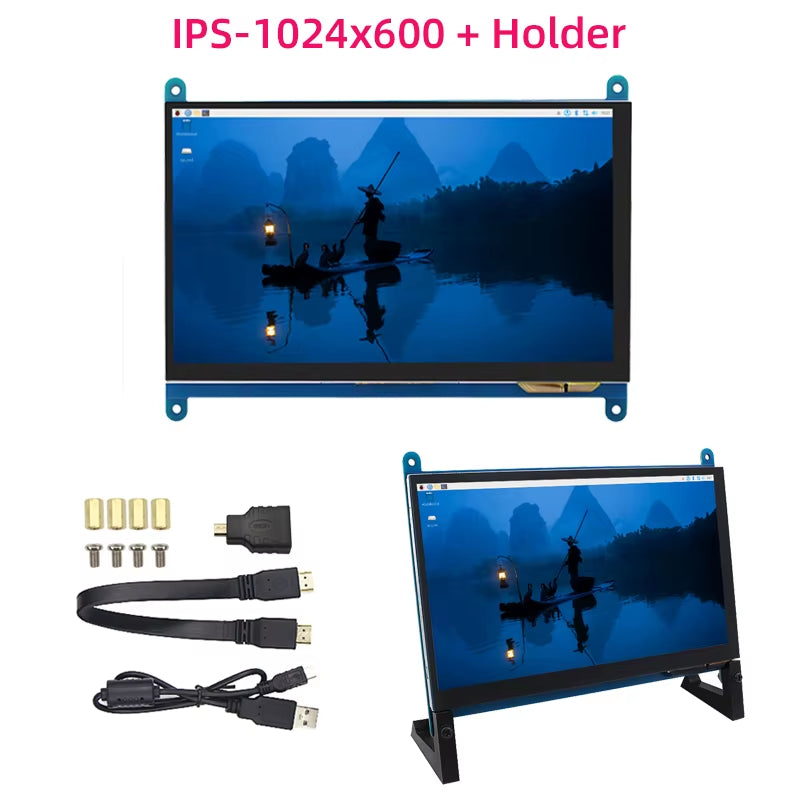

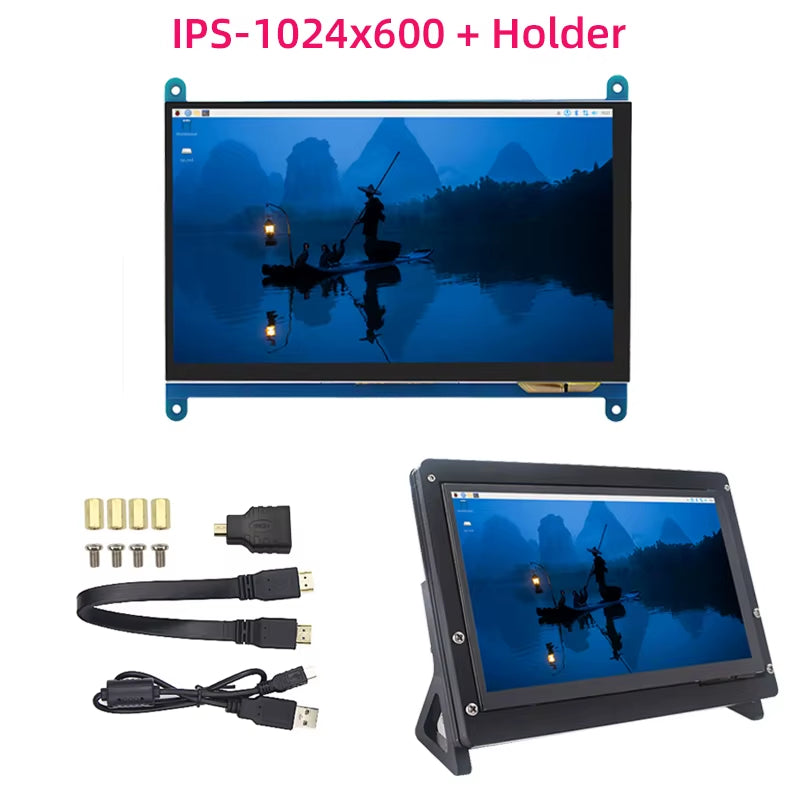

Option4:

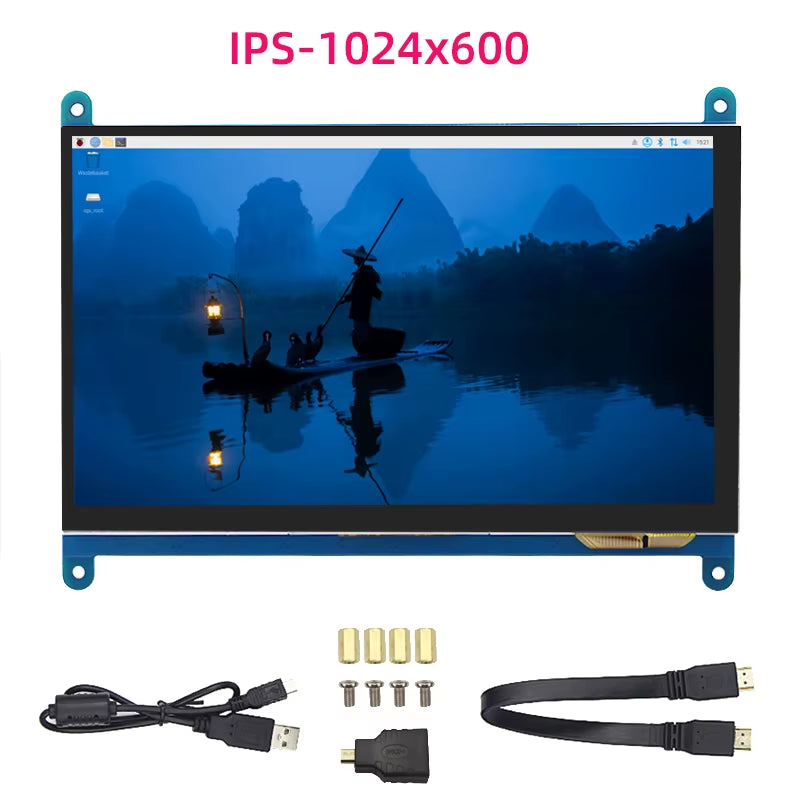

1 x 1024*600 Touchscreen (IPS)
1 x Acrylic Holder
1 x CD
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible to HDMI-compatible Adapter
1 x USB Cable
1 set x Screws and Nuts

For Raspberry Pi 4

Not include Raspberry Pi
