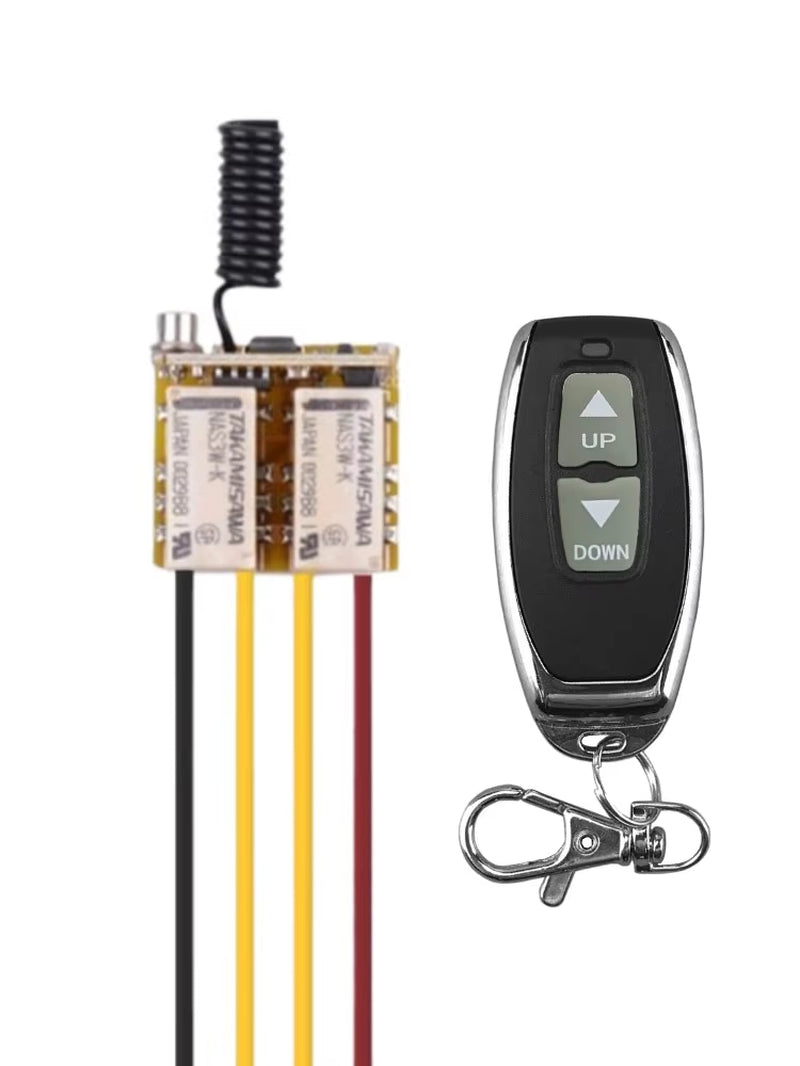

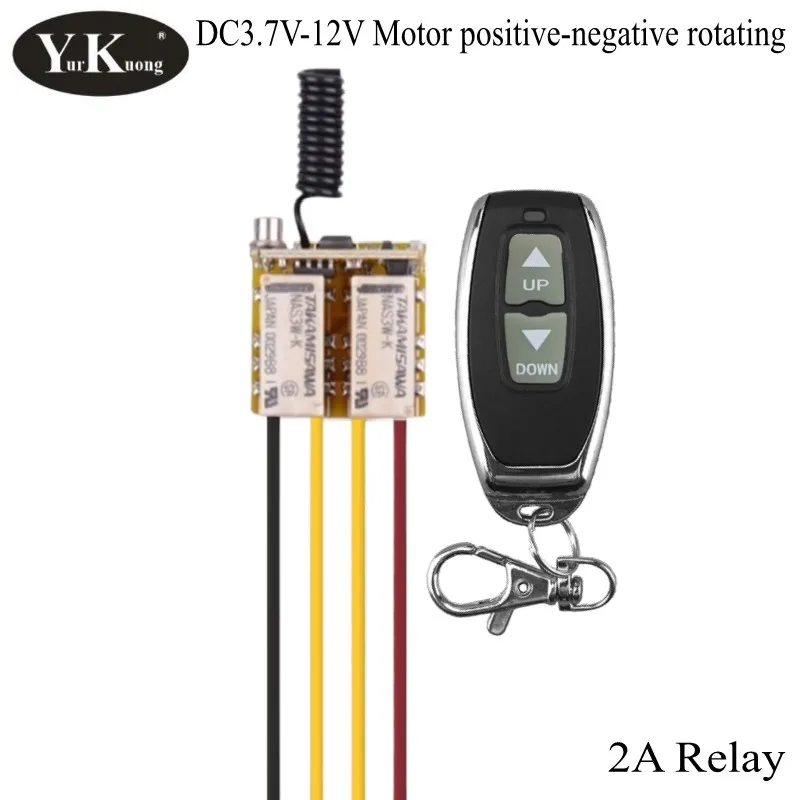

3.7V 4.2V 4.5V 5V 6V 7.4V 9V 12V Mini Motor Remote Switch Motor Forwards Reverse up down Stop Wireless Controller Motor RF RX TX

Working Voltage: DC3.7V-DC12V

(Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V all is ok)

(it can work with DC Power / Rechargeable lithium battery / Rechargeable Pal)

Max Load: 2A Relay (have better Load less than 700ma (0.7A) each Relay )

Quiescent Current: 7ma

Relay Working Current: 1 Relay ON 50ma, 2 Relay ON 100ma

Size: 20*21*12mm

Working Mode: Momentary Latched adjustable

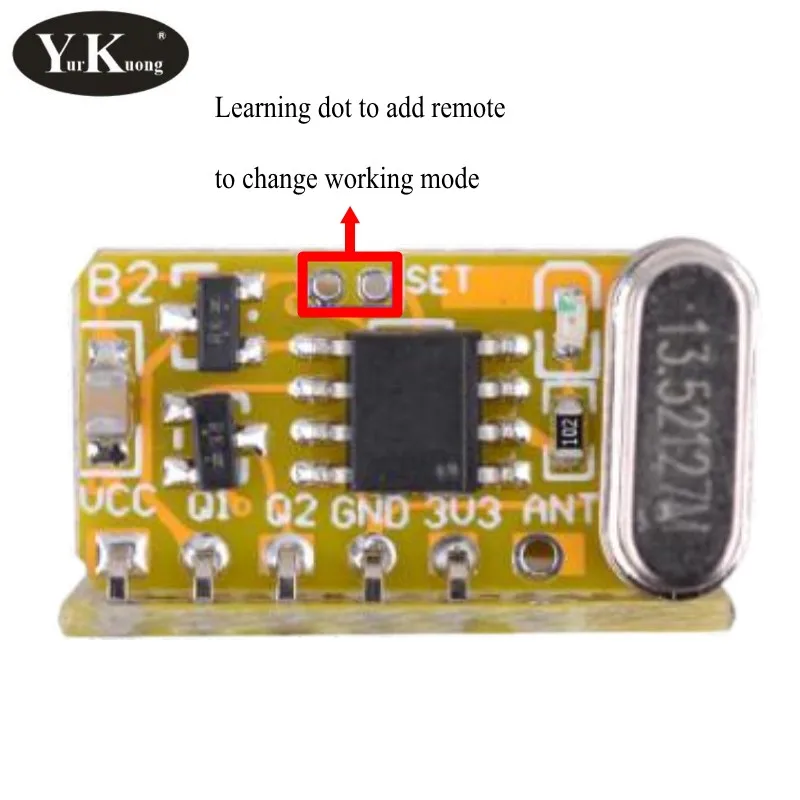

Encoding Type: Learning Dot to add Transmitter

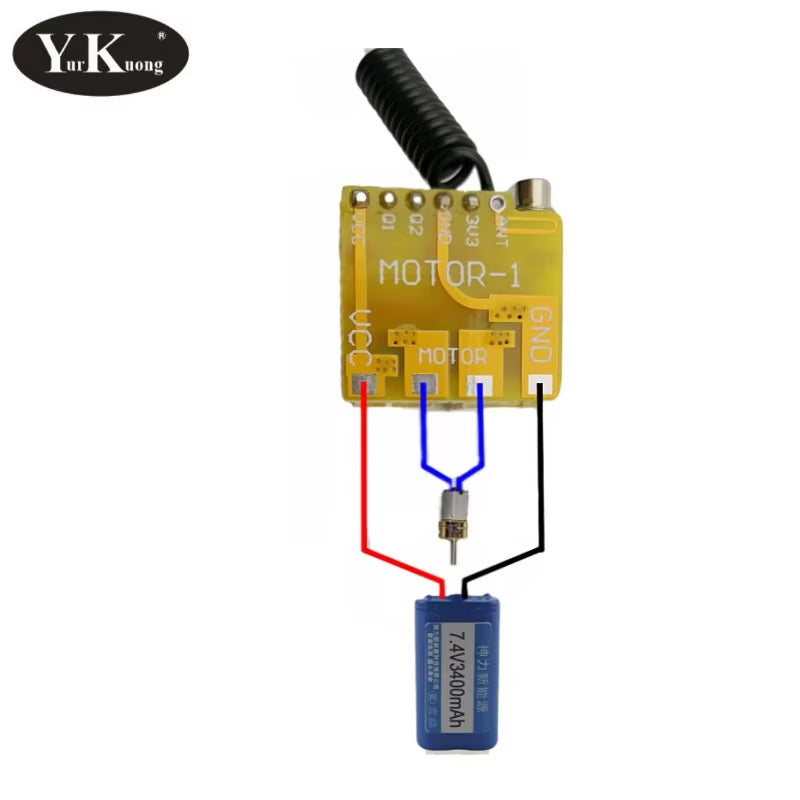

VCC--------Input VCC +

MOTOR----------Output for motor

GND----- Input GND -

6. Momentary -------------

Press Button"Up", the Motor Forward, Release is Stop.

Press Button "Down", the Motor Reverse, Release is Stop.

Latched------------------

Press Button "Up", the Motor Forward, Press Button "Stop" is stop.

Press Button "Up", the Motor Reverse, Press Button"Stop" is stop
